0751972504 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0751972504

0751972504: DescriptionVHDM LITE 8R 25C OPEN END BP; CategoryThe connector; File Size358KB，3 Pages; ManufacturerMolex Premise Network

Download Datasheet Parametric Compare View All

0751972504 Overview

VHDM LITE 8R 25C OPEN END BP

0751972504 Parametric

Parameter Name	Attribute value
Connector usage	-
Connector type	Connector, male pin
Connector style	VHDM®
Number of pins	200
Number of pins loaded	all
spacing	0.079"（2.00mm）
Number of rows	8
Number of columns	25
Installation type	Through hole
Termination	Press fit
Contact layout (typical)	-
characteristic	-
Contact plating	gold
Contact plating thickness	30.0µin（0.76µm）
color	black
Rated current	1A
Material flammability rating	UL94 V-0
Operating temperature	-55°C ~ 105°C
Rated voltage	120V

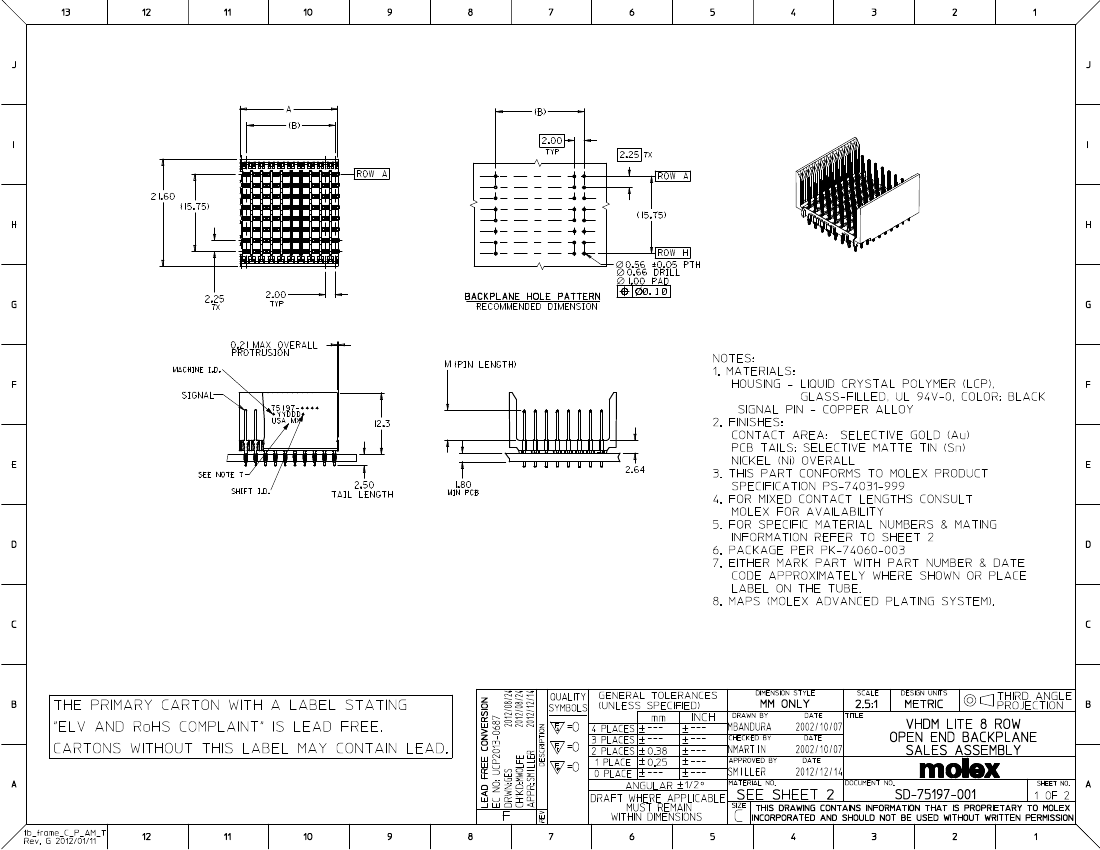

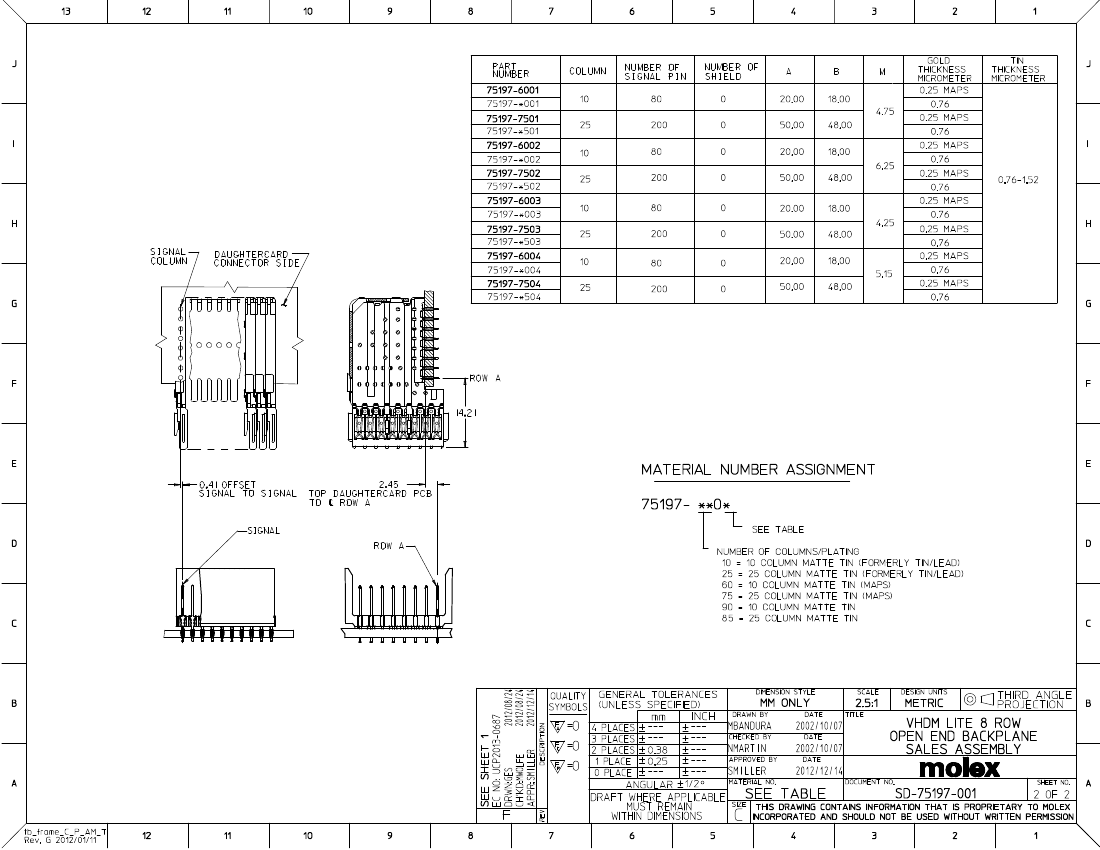

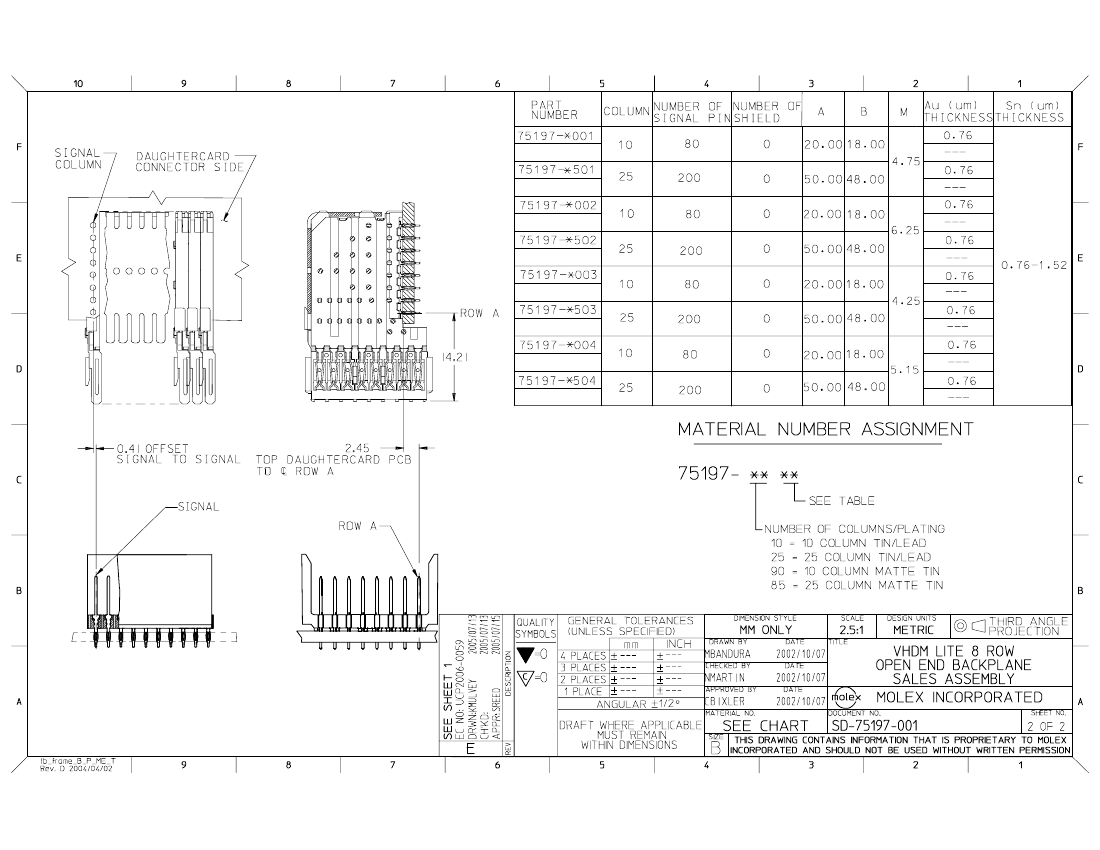

Preview

Download Datasheet

View All

0751972504 Related Products

	0751972504	0751971003	0751971001	0751971002	0751971004	0751972501	0751972502	0751972503	0751979001
Description	VHDM LITE 8R 25C OPEN END BP	VHDM LITE 8R 10C OPEN END BP	VHDM BP 8R 10C OPEN L-SERIES	VHDM LITE 8R 10C OPEN END BP	VHDM LITE 8R 10C OPEN END BP	VHDM LITE 8 ROW OPEN BACKPLANE	VHDM LITE 8R 25C OPEN END BP	VHDM LITE 8R 25C OPEN END BP	VHDM BP 8R 10C OPEN L-SERIES
Connector type	Connector, male pin	Connector, male pin	Connector, male pin	Connector, male pin	Connector, male pin	Connector, male pin	Connector, male pin	Connector, male pin	Connector, male pin
Connector style	VHDM®	VHDM®	VHDM®	VHDM®	VHDM®	VHDM®	VHDM	VHDM®	VHDM®
Number of pins	200	80	80	80	80	200	200	200	80
Number of pins loaded	all	all	all	all	all	all	all	all	all
spacing	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）
Number of rows	8	8	8	8	8	8	8	8	8
Number of columns	25	10	10	10	10	25	25	25	10
Installation type	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole
Termination	Press fit	Press fit	Press fit	Press fit	Press fit	Press fit	Press fit	Press fit	Press fit
Contact plating	gold	gold	gold	gold	gold	gold	gold	gold	gold
Contact plating thickness	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）
color	black	black	black	black	black	black	black	black	black
Rated current	1A	1A	1A	1A	1A	1A	1A	1A	1A
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Rated voltage	120V	120V	120V	120V	120V	120V	120V	120V	120V
