ABLJO-187.500MHZ-T2 datasheet, PDF

Datasheet> All Categories > Passive components> ABLJO-187.500MHZ-T2

ABLJO-187.500MHZ-T2: DescriptionOSC XO 187.5MHZ LVCMOS SMD; CategoryPassive components; File Size622KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABLJO-187.500MHZ-T2 Overview

OSC XO 187.5MHZ LVCMOS SMD

ABLJO-187.500MHZ-T2 Parametric

Parameter Name	Attribute value
type	XO (Standard)
frequency	187.5MHz
Function	-
output	LVCMOS
Voltage - Power	3.3V
frequency stability	±25ppm
Operating temperature	-40°C ~ 85°C
Current - Power (maximum)	40mA
grade	-
Installation type	surface mount
Package/casing	6-SMD, no leads
size/dimensions	0.563" long x 0.343" wide (14.30mm x 8.70mm)
Height - Installation (maximum)	0.217"（5.50mm）
Current - Power (disabled) (maximum)	-

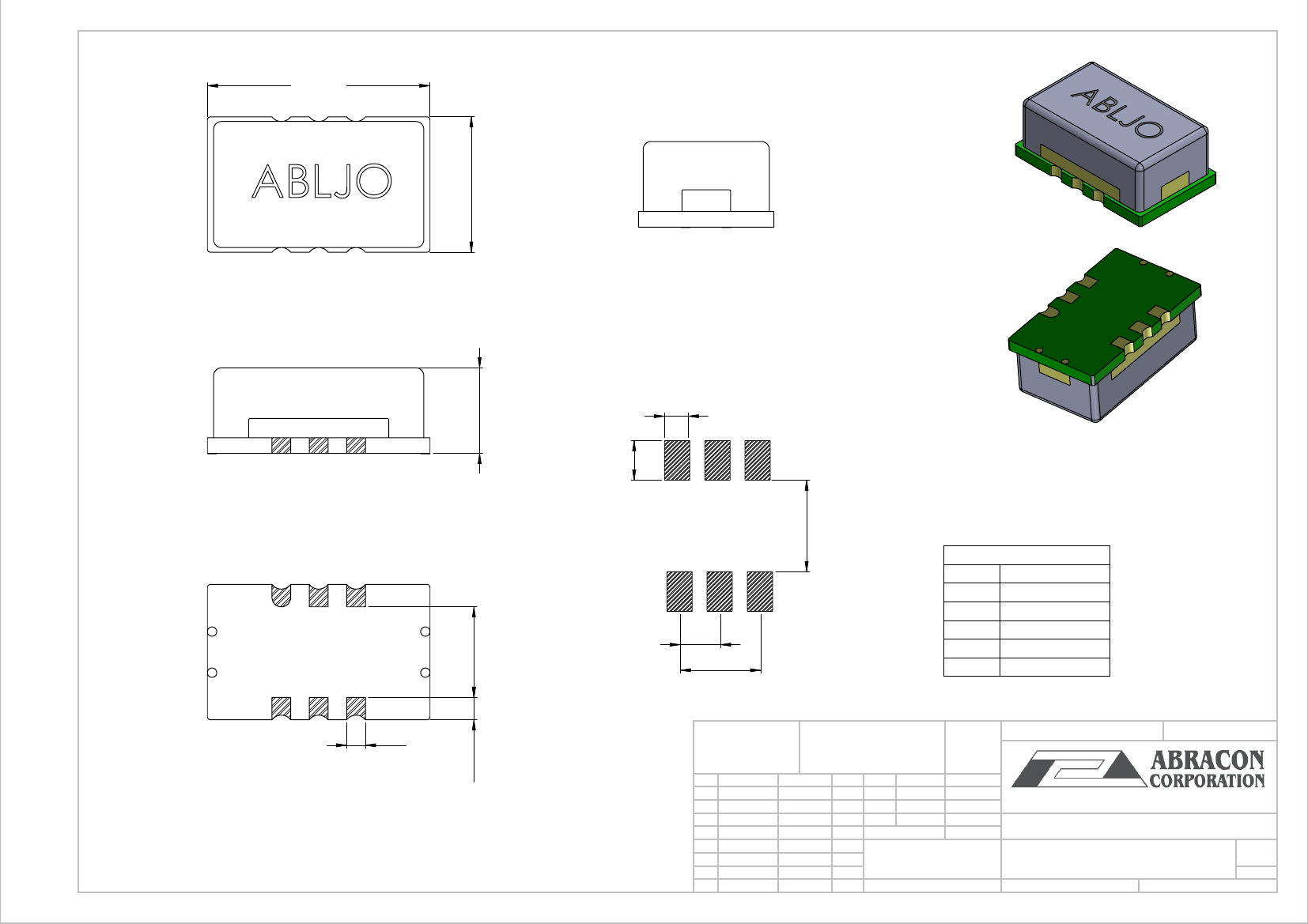

Preview

Download Datasheet

View All

14.3±0.5

8.7±0.5

Side View

Top View

Recommended Soldering Pattern

5.5 MAX

1.5

2.5

Front View

5.8

CONNECTION

V.C

N.C

GND

OUTPUT

N.C

Vcc

5.8±0.3

2.54

5.08

Bottom View

1.4±0.3

1.2

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MM

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

NAME

DRAWN

CHK'D

APPV'D

MFG

Q.A

XXXXXX

FINISH:

DEBUR AND

BREAK SHARP

EDGES

DO NOT SCALE DRAWING

REVISION

SIGNATURE

DATE

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

LOW JITTER CRYSTAL OSCILLATOR

MATERIAL:

DWG NO.

ABLJO

SHEET 1 OF 1

WEIGHT:

SCALE:4:1
