Part Number

Search

EDZ770/12

Description
TERMINAL BLOCK 5.08MM 12POS PCB
CategoryThe connector
File Size29KB,1 Pages
ManufacturerOn Shore Technology Inc.
Environmental Compliance

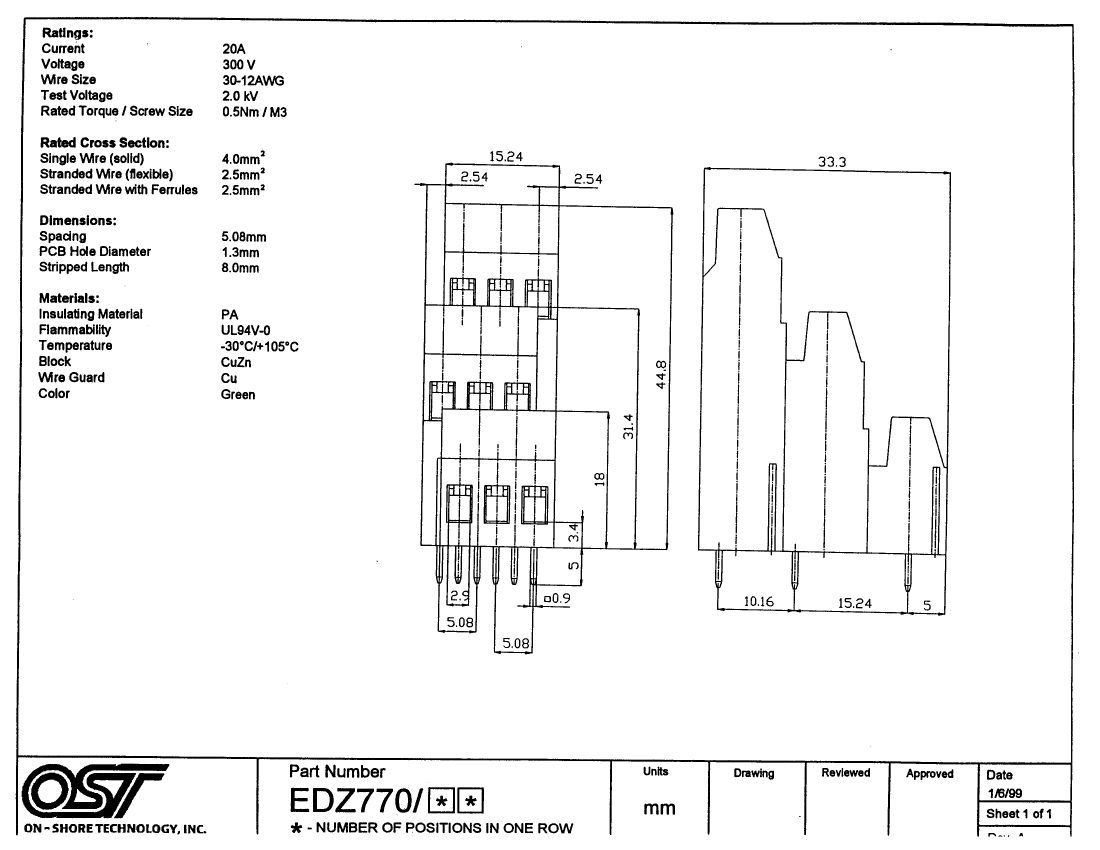

Download Datasheet Parametric View All

EDZ770/12 Overview

TERMINAL BLOCK 5.08MM 12POS PCB

EDZ770/12 Parametric

Parameter NameAttribute value
Number of levels3
Number of pins per level12
spacing0.200"(5.08mm)
Mating directionHorizontal, with board
current20A
Voltage300V
Wire gauge12-30 AWG
Installation typeThrough hole
wire terminationScrews - Lift Cage Clamp
characteristic-
colorgreen
Operating temperature-30°C ~ 105°C
Shell materialPolyamide (PA), nylon
Contact material - platingbrass
Fixture Material - Platingcopper
Screw material - coating-
Torque - Screws0.5 Nm(4.4 Lb-In)
ThreadM3
