2-178239-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-178239-9

2-178239-9: DescriptionCONNECTOR, 100 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size144KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-178239-9 Overview

CONNECTOR, 100 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE

2-178239-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	CHAMP
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (12)
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	178239
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	STEEL
Termination type	SOLDER
Total number of contacts	100
UL Flammability Code	94V-0
Base Number Matches	1

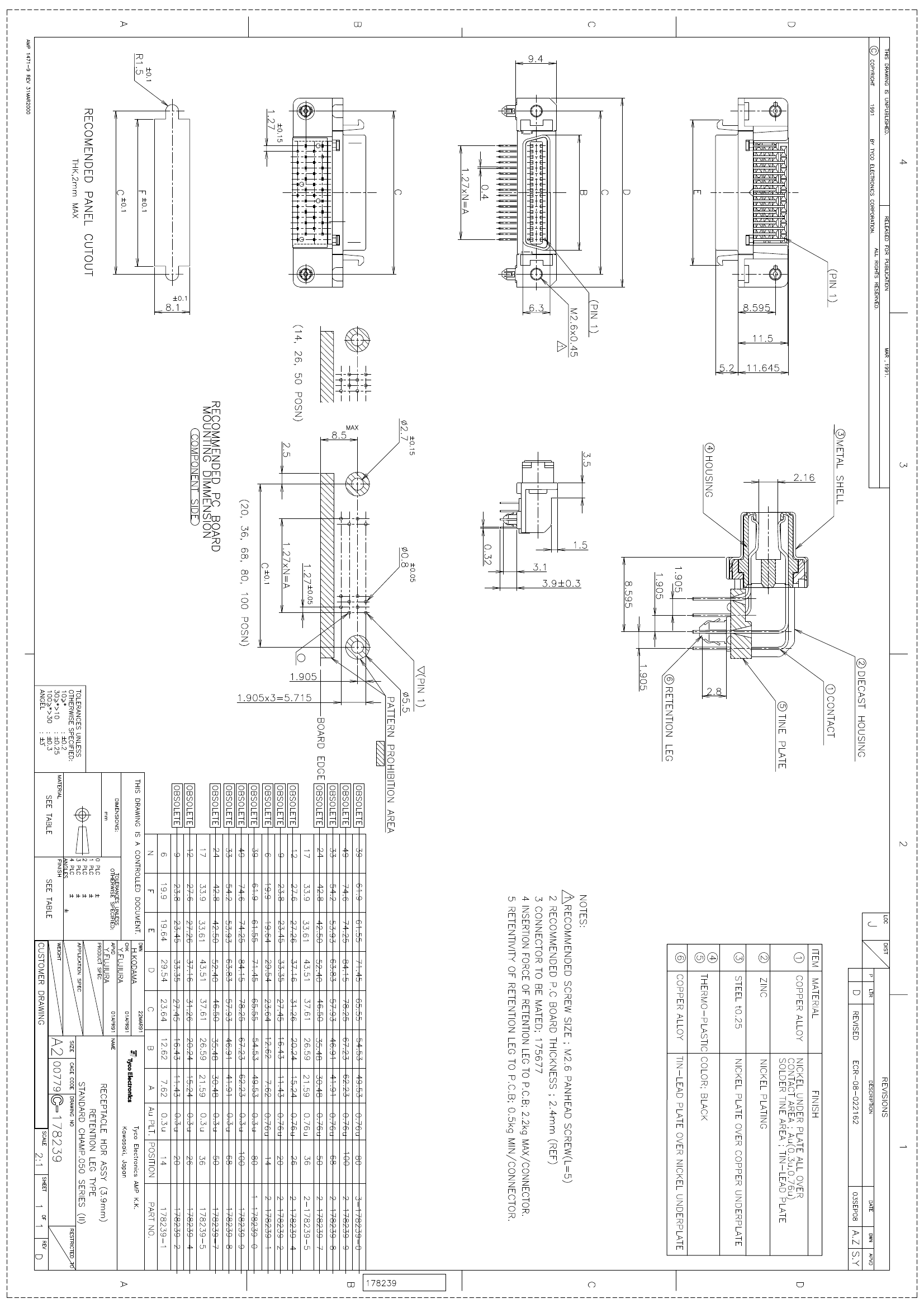

Preview

Download Datasheet

View All

2-178239-9 Related Products

	2-178239-9	2-178239-2	2-178239-4	2-178239-7	1-178239-0	3-178239-0	RM422-086-891-9717	2-178239-8
Description	CONNECTOR, 100 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, 20 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE	26 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, 50 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, 80 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, 80 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE	Board Connector, 86 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Receptacle,	CONNECTOR, 68 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	conform to	incompatible
Reach Compliance Code	unknow	unknow	unknown	unknow	unknown	unknown	compliant	unknown
Other features	CHAMP	CHAMP	CHAMP	CHAMP	CHAMP	CHAMP	POLARIZED	CHAMP
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	BOARD CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (12)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (12)	GOLD (30)	GOLD	GOLD (30)
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	Gold (Au)	TIN LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0	e4	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	PRESS FIT	SOLDER
Total number of contacts	100	20	26	50	80	80	86	68
empty shell	NO	NO	NO	NO	NO	NO	-	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	-	POLYETHYLENE
Manufacturer's serial number	178239	178239	178239	178239	178239	178239	-	178239
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	-	NICKEL
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	-	STEEL
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	-	94V-0
Base Number Matches	1	1	-	1	-	1	-	1
