D711N60TXPSA1 Overview

DIODE GEN PURP 6KV 1070A

D711N60TXPSA1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time36 weeks
applicationGENERAL PURPOSE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeO-CEDB-N2
Maximum non-repetitive peak forward current8500 A
Number of components1
Phase1
Number of terminals2
Maximum output current1050 A
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeROUND
Package formDISK BUTTON
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum repetitive peak reverse voltage6000 V
surface mountYES
Terminal formNO LEAD
Terminal locationEND
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

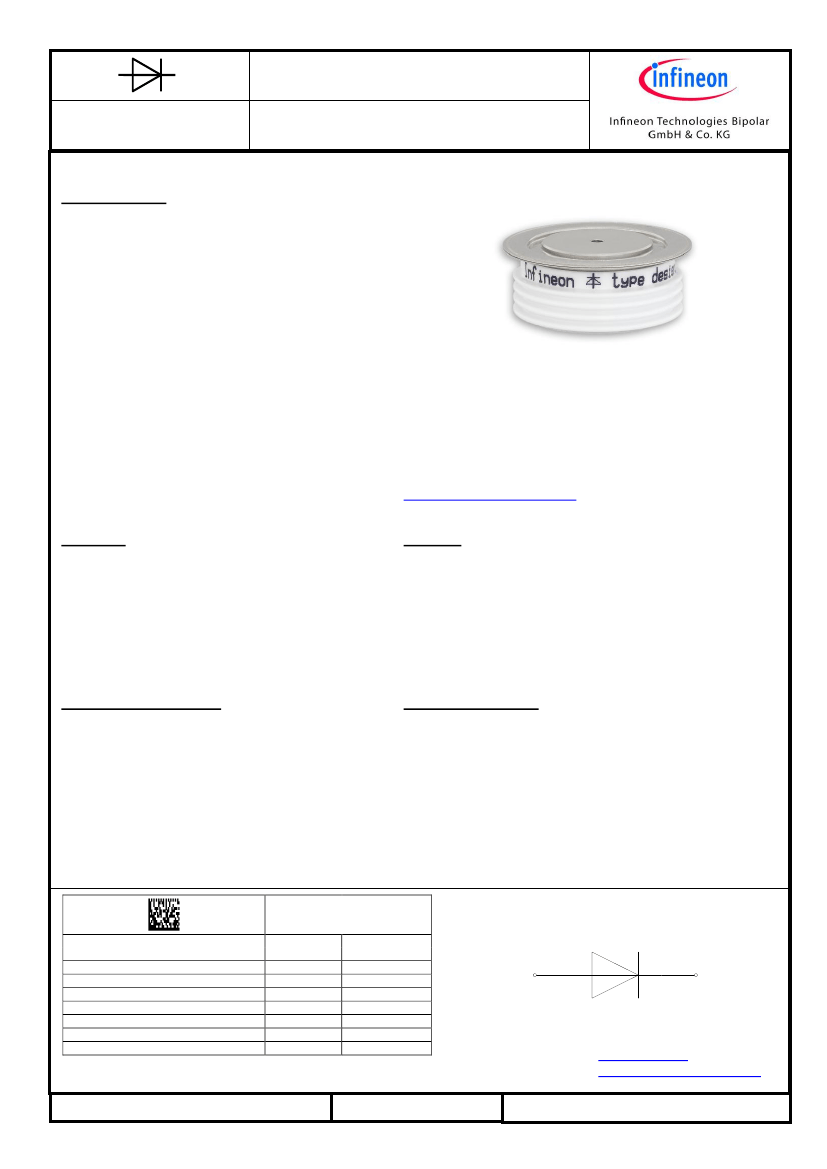

Technische Information /
technical information
Netz-Gleichrichterdiode
Rectifier Diode
D711N
Key Parameters
enndaten
V
BO
/ V
RRM
I
FAVM
I
FSM
V
T0
r
T
R
thJC

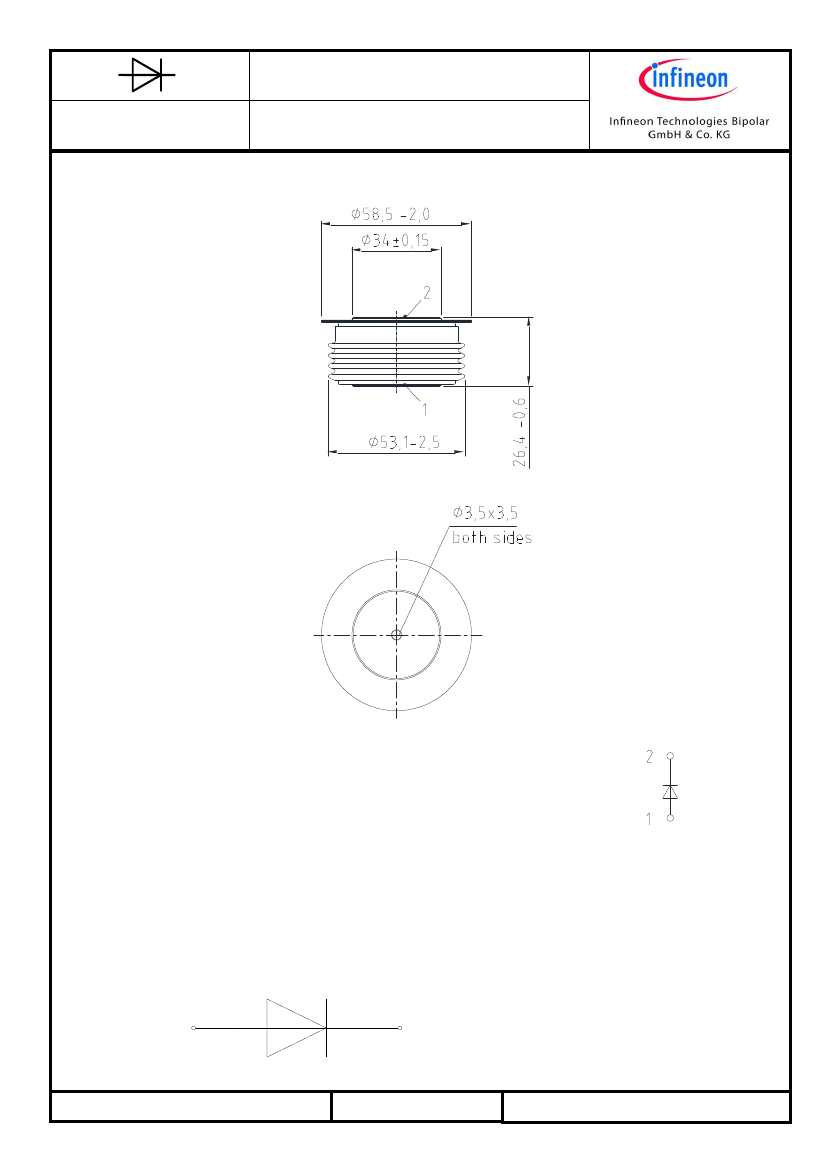

Clamping Force
Max. Diameter
Contact Diameter
Height
5800 V / 6800 V
770 A (T
C
=100 °C)
12500 A
3570A (T
C
=55°C)
0,84 V
0,87 mΩ
28 K/kW
10 … 16 kN
58,5 mm
34 mm
26,4 mm
For type designation please refer to actual
short form catalog
http://www.ifbip.com/catalog
Merkmale
Volle Sperrfähigkeit 50/60Hz über einen weiten
Temperaturbereich
Hohe DC Sperrstabilität
Hohe Stoßstrombelastbarkeit
Hermetisch dichtes Keramikgehäuse
Hoher Gehäusebruchstrom
Features
Full blocking capability 50/60Hz over a wide
temperature range
High DC blocking stability
High surge current capability
Hermeticaly sealed ceramic package
High case non-rupture current
Typische Anwendungen
Gleichrichter für Antriebsapplikationen
Mittelspannungsumrichter
Pulsed Power - Applikationen
Kurzschliesser Applikationen
Typical Applications
Rectifier for Drives Applications
Medium voltage converters
Rectifier for Drives Applications
Pulsed power applications
content of customer DMX code
serial number
SP material number
datecode (production day)
datecode (production year)
datecode (production month)
vT class (optional)
QR class (optional)
DMX code
digit
1..7
8..16
17..18
19..20
21..22
23..26
27..30
DMX code
digit quantity
7
9
2
2
2
4
4
1
2
www.ifbip.com
support@infineon-bip.com
Seite/page 1/9
Date of Publication: 2014-06-01
Revision: 8.1
