520.03-BLK

Description
SWITCH PUSH SPST-NO 0.01A 35V
Categoryaccessories
File Size150KB,2 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Download Datasheet Parametric View All

520.03-BLK Overview

SWITCH PUSH SPST-NO 0.01A 35V

520.03-BLK Parametric

Parameter NameAttribute value
typestandard
circuitSPST-NO
switch functionOff - instantaneous
Rated current10mA(DC)
Rated voltage - DC35V
Actuator typesquare, button
Color - Actuator/Capblack
lighting type, color-
Lighting voltage (nominal)-
Installation typeThrough hole
Terminal typePC pin
Intrusion protection-
characteristic-
Panel opening size-
Operating temperature-
Mechanical life-
Electrical life500,000 cycles

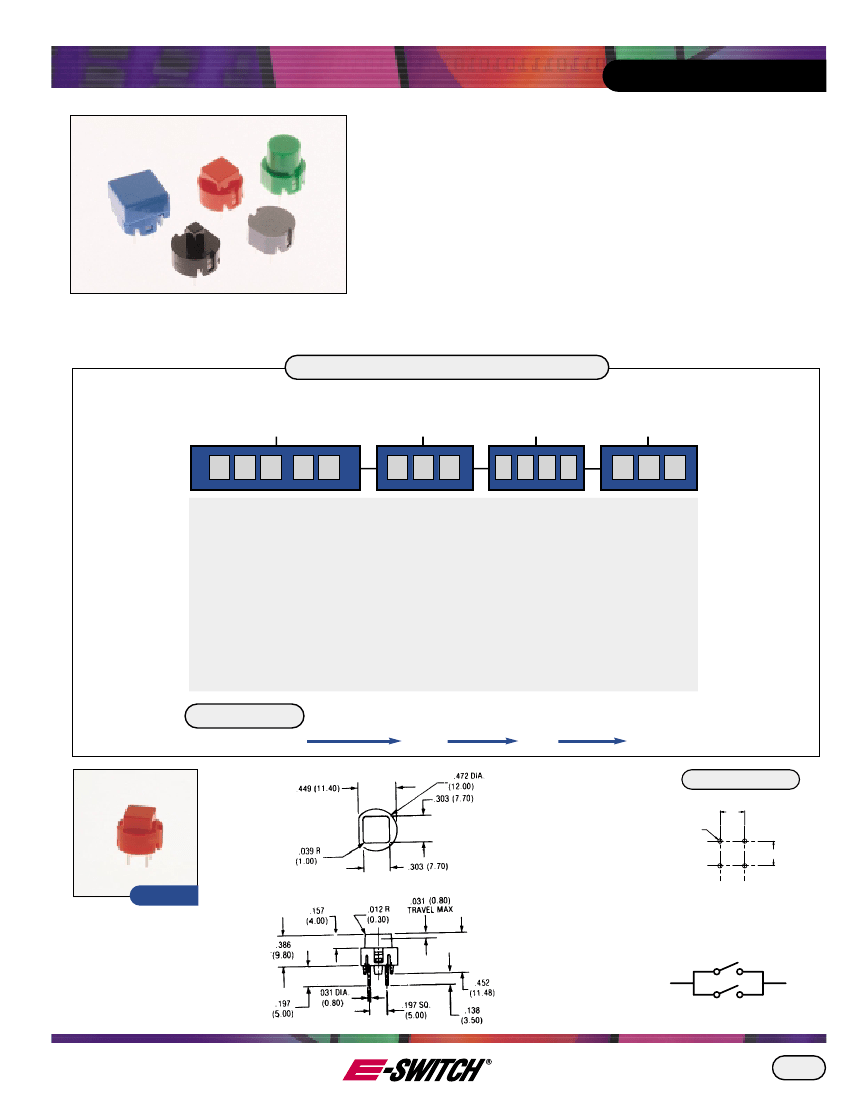

SERIES
5 2 0
SWITCHES
PUSHBUTTON SWITCHES
SPECIFICATIONS
Ratings:
Electrical Life:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Operating Force:
10mA @ 35 VDC
500,000 cycles typical
10mΩ max., typcial @ 2-4 VDC, 100mA
1,00MΩ min.
>1,000 V rms at sea level
130 ± 50 gf
MATERIALS
Housing:
Base:
Contacts:
Terminals:
Polycarbonate (PC)
Valox
Silver-plated copper alloy
Silver-plated copper alloy
HOW TO ORDER
Additional Cap
Cap Style
Cap Color
(Fits Over Cap
Style 520.04 Only)
Additional
Cap Color
.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
520.01
520.02
520.03
520.04
520.05
BLK=Black
YEL=Yellow
WHT=White
BLU=Blue
RED=Red
GRN=Green
DGR=Dark Grey
LGR=Light Grey
520.04 & 520.05
available in BLK & LGR
only
See Cap Section
EXAMPLE
520.04
BLK
TAA
RED
P.C. MOUNTING
5.00
[.197]
0.90
[.035]
5.00
[.197]

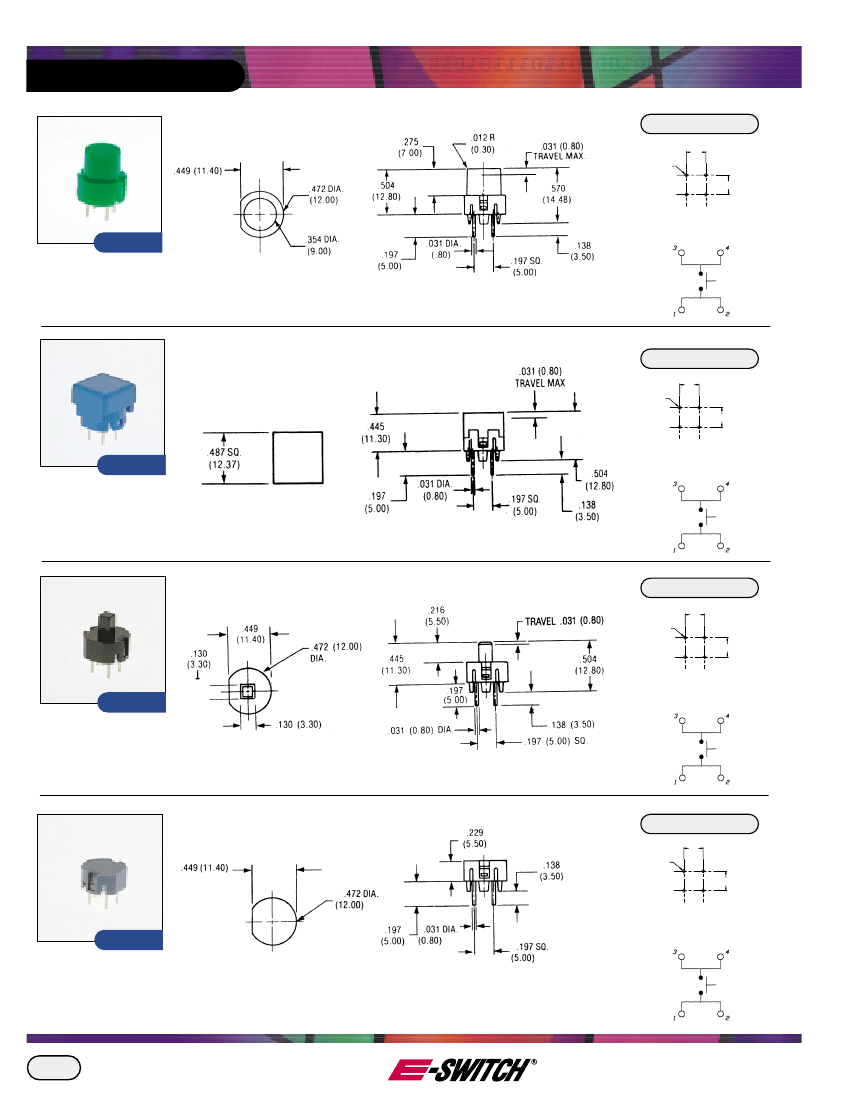

520.01
Schematic
2
1
4
3
Phone: 763-504-3525
Fax: 763-531-8235
www.e -switch.com
