MP7613BP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > converter> MP7613BP

MP7613BP: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time, PQCC44,; Categoryconverter; File Size539KB，12 Pages; ManufacturerMicro Power Systems

Download Datasheet Parametric Compare View All

MP7613BP Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time, PQCC44,

MP7613BP Parametric

Parameter Name	Attribute value
Maker	Micro Power Systems
Reach Compliance Code	unknown
Is Samacsys	N
Maximum analog output voltage	10.6 V
Minimum analog output voltage	-10.6 V
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, WORD
JESD-30 code	S-PQCC-J44
Maximum linear error (EL)	0.024%
Nominal negative supply voltage	-12 V
Number of digits	12
Number of functions	1
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum stabilization time	50 µs
Nominal settling time (tstl)	30 µs
Maximum slew rate	20 mA
Nominal supply voltage	12 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal location	QUAD
Base Number Matches	1

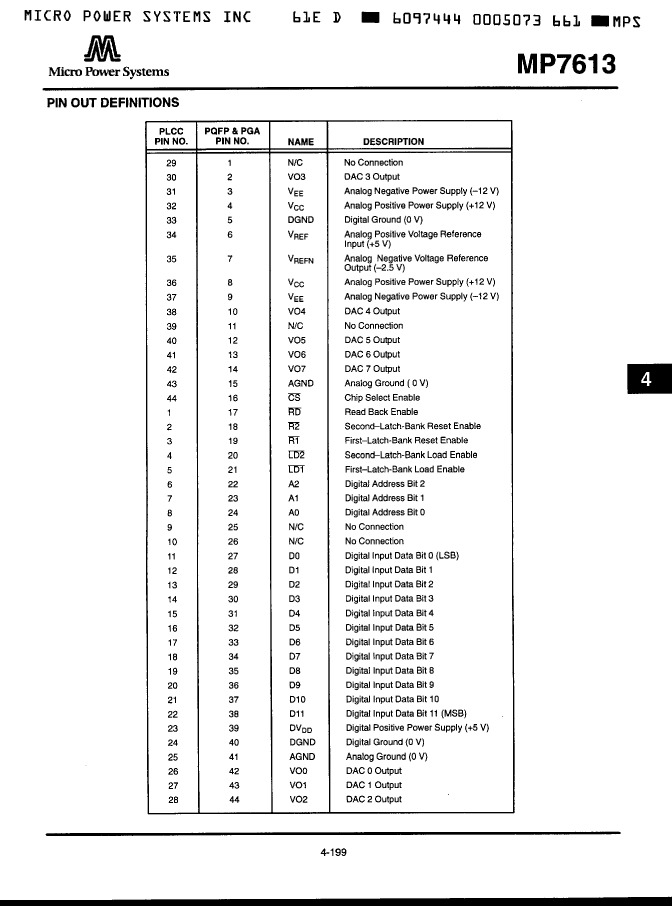

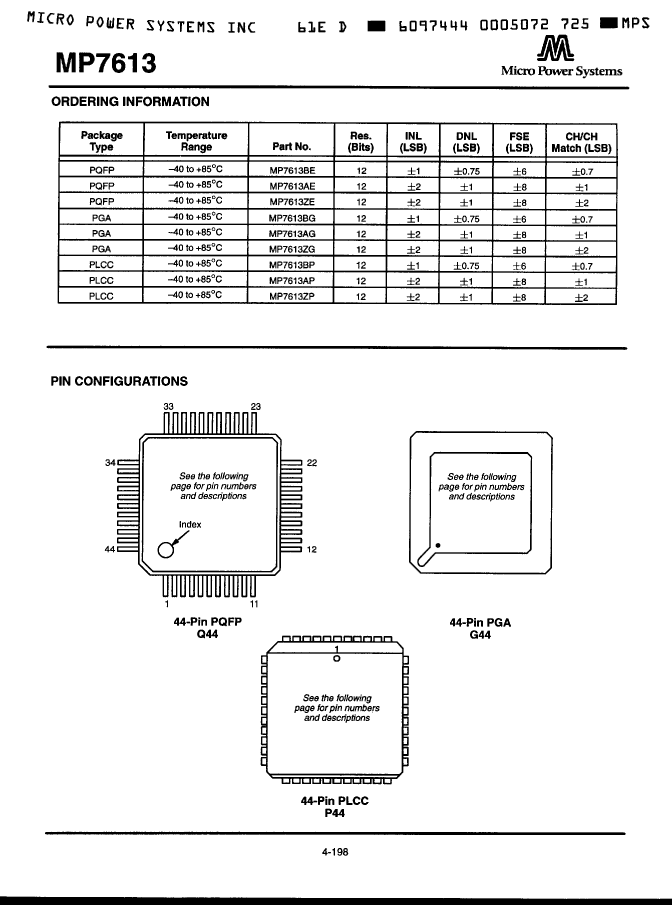

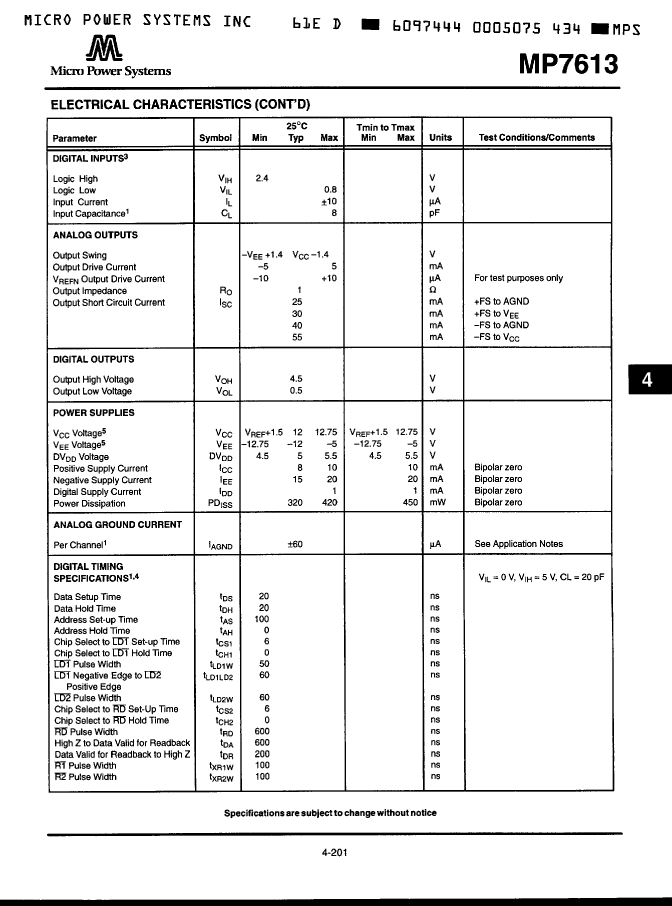

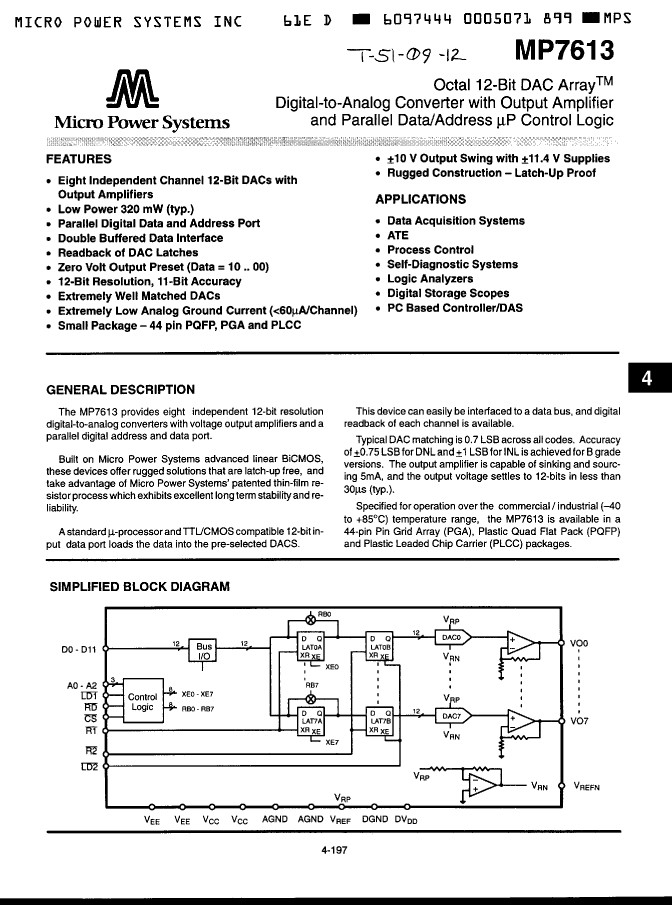

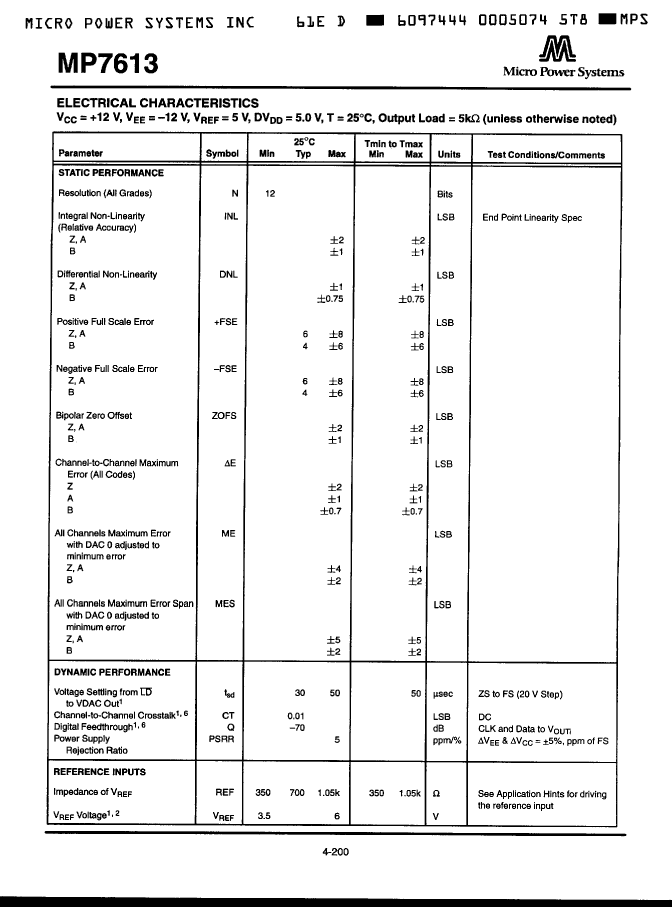

Preview

Download Datasheet

View All

MP7613BP Related Products

	MP7613BP	MP7613BE	MP7613AP	MP7613ZE	MP7613ZG	MP7613ZP	MP7613BG
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time, PQCC44,	D/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time, PQFP44,	D/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time, PQCC44,	D/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time, PQFP44,	D/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time,	D/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time, PQCC44,	D/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time,
Maker	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N	N	N	N
Maximum analog output voltage	10.6 V	10.6 V	10.6 V	10.6 V	10.6 V	10.6 V	10.6 V
Minimum analog output voltage	-10.6 V	-10.6 V	-10.6 V	-10.6 V	-10.6 V	-10.6 V	-10.6 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	S-PQCC-J44	S-PQFP-G44	S-PQCC-J44	S-PQFP-G44	S-XPGA-P44	S-PQCC-J44	S-XPGA-P44
Maximum linear error (EL)	0.024%	0.024%	0.048%	0.048%	0.048%	0.048%	0.024%
Nominal negative supply voltage	-12 V	-12 V	-12 V	-12 V	-12 V	-12 V	-12 V
Number of digits	12	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1	1
Number of terminals	44	44	44	44	44	44	44
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	FLATPACK	CHIP CARRIER	FLATPACK	GRID ARRAY	CHIP CARRIER	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	50 µs	50 µs	50 µs	50 µs	50 µs	50 µs	50 µs
Nominal settling time (tstl)	30 µs	30 µs	30 µs	30 µs	30 µs	30 µs	30 µs
Maximum slew rate	20 mA	20 mA	20 mA	20 mA	20 mA	20 mA	20 mA
Nominal supply voltage	12 V	12 V	12 V	12 V	12 V	12 V	12 V
surface mount	YES	YES	YES	YES	NO	YES	NO
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	J BEND	GULL WING	J BEND	GULL WING	PIN/PEG	J BEND	PIN/PEG
Terminal location	QUAD	QUAD	QUAD	QUAD	PERPENDICULAR	QUAD	PERPENDICULAR
Base Number Matches	1	1	1	1	1	1	1
