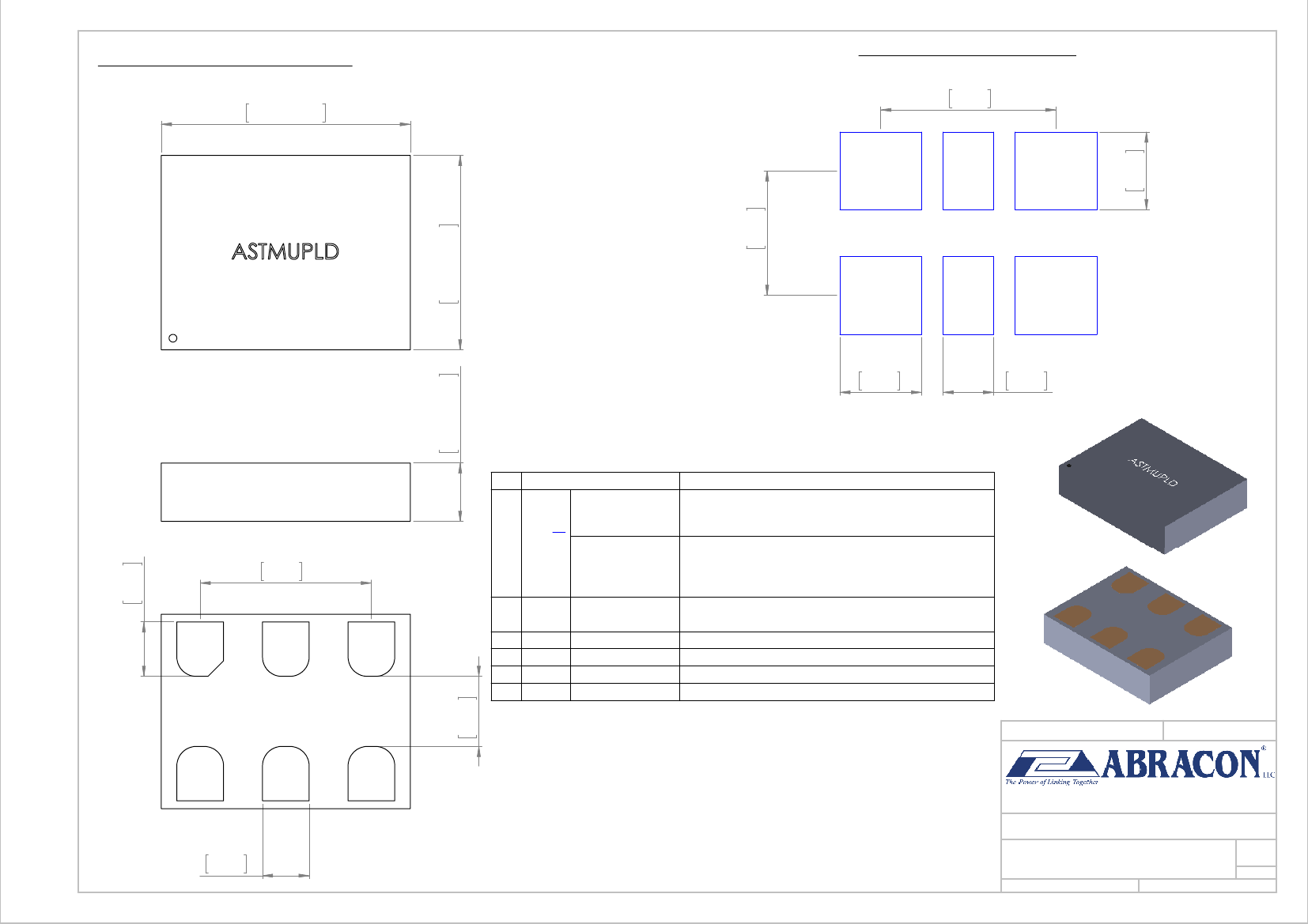

3.2 x 2.5mm Package (Option “E”)
0.126±0.002
3.20±0.05
#6
#5
#4
Recommended Land Pattern
0.089
2.25
0.098±0.002
2.50±0.05
0.063
1.60
0.030±0.002
0.75±0.05
#1
#2
#3
0.041
1.05
0.026
0.65
Pin
0.028
0.70
0.087
2.20
#1
#2
#3
1
OE/ST
2
3
4
5
6
NC
GND
Out+
Out-
Vdd
0.035
0.90
Functionality
H or Open (1): specified frequency output
Output Enable L: output is high impedance. Only output
driver is disabled
H or Open (1): specified frequency output
L: output is low (weak pull down). Device
Standby
goes to sleep mode. Supply current reduces
to Istd.
it floating or connect to GND for
No Connect Leave heat dissipation
better
Power
Vdd power supply ground(1)
Output
Oscillator output
Output
Complementary oscillator output
Power
Power supply voltage (1)
DO NOT SCALE DRAWING
REVISION
Name
0.039
1.00
-
#6
0.024
0.60
#5
#4
TOP PACKAGE MARKING IS
FOR ILLUSTRATION PURPOSES ONLY
Apracon LLC. 2 Faraday, Suite#B Irvine, Ca. 92618
TITLE:
High Performance, Programmable
LVDS SMD MEMS Oscillator
DWG NO.
Notes: 1. A capacitor value of 0.1μF between Vdd and GND is recommended.
SCALE:25:1
ASTMUPLD
SHEET 1 OF 3
A3

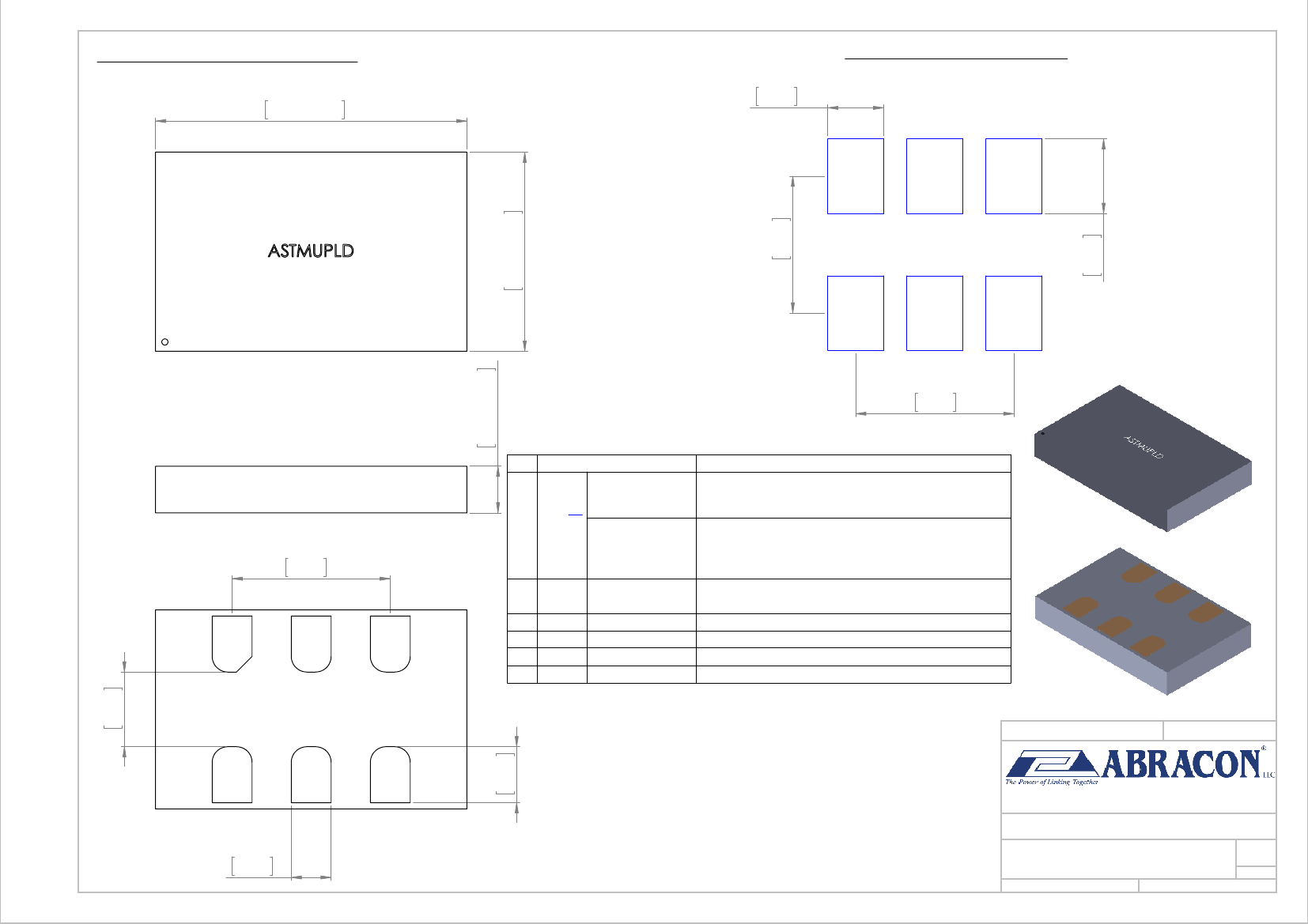

5.0 x 3.2mm Package (Option “FL”)
0.197±0.002
5.00±0.05
#4
#5
#6
0.035
0.90
Recommended Land Pattern
0.126±0.002
3.20±0.05
0.087
2.20
0.030±0.002
0.75±0.05
#1
#2
#3
0.100
2.54
Pin
1
OE/ST
0.100
2.54
#1
#2
#3
2
3
4
5
6
NC
GND
Out+
Out-
Vdd
Functionality
H or Open (1): specified frequency output
Output Enable L: output is high impedance. Only output
driver is disabled
H or Open (1): specified frequency output
L: output is low (weak pull down). Device
Standby
goes to sleep mode. Supply current reduces
to Istd.
it floating or connect to GND for
No Connect Leave heat dissipation
better
Power
Vdd power supply ground(1)
Output
Oscillator output
Output
Complementary oscillator output
Power
Power supply voltage (1)
Name
0.047
1.20
0.047
1.20
DO NOT SCALE DRAWING
REVISION
-
0.035
0.90
#6
0.025
0.64
#5
#4
TOP PACKAGE MARKING IS
FOR ILLUSTRATION PURPOSES ONLY
Apracon LLC. 2 Faraday, Suite#B Irvine, Ca. 92618
TITLE:
High Performance, Programmable
LVDS SMD MEMS Oscillator
DWG NO.
Notes: 1. A capacitor value of 0.1μF between Vdd and GND is recommended.
SCALE:20:1
ASTMUPLD
SHEET 2 OF 3
A3

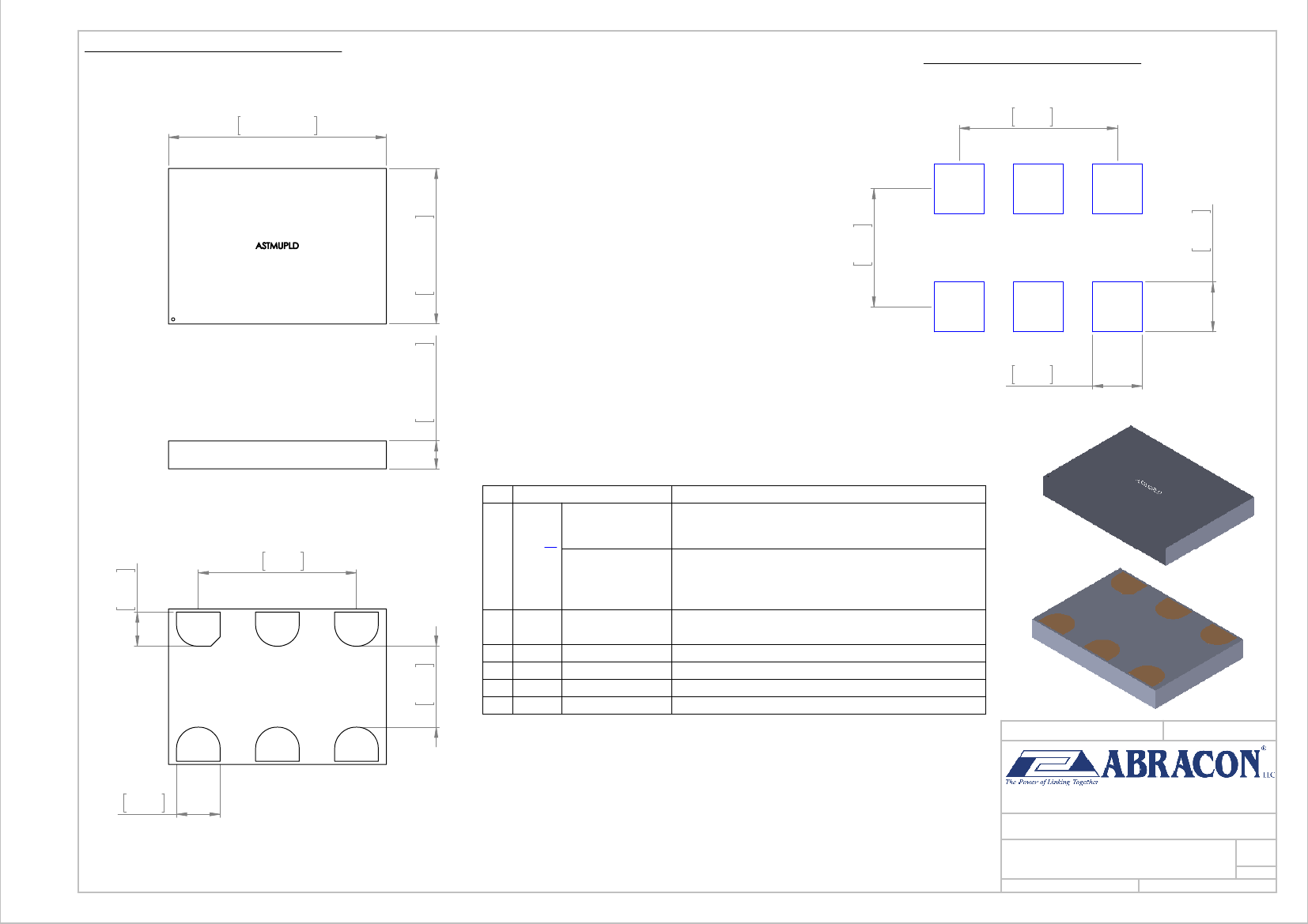

7.0 x 5.0mm Package (Option “V”)
Recommended Land Pattern
0.200
5.08
#4
0.276±0.004
7.00±0.10
#6
#5
0.197±0.004
5.00±0.10
0.035±0.004
0.90±0.10
#1
#2
#3
0.150
3.80
0.063
1.60
Pin
0.043
1.10
0.200
5.08
#1
#2
#3
1
OE/ST
2
3
4
5
6
NC
GND
Out+
Out-
Vdd
Functionality
H or Open (1): specified frequency output
Output Enable L: output is high impedance. Only output
driver is disabled
H or Open (1): specified frequency output
L: output is low (weak pull down). Device
Standby
goes to sleep mode. Supply current reduces
to Istd.
it floating or connect to GND for
No Connect Leave heat dissipation
better
Power
Vdd power supply ground(1)
Output
Oscillator output
Output
Complementary oscillator output
Power
Power supply voltage (1)
DO NOT SCALE DRAWING
REVISION
Name
0.102
2.60
0.063
1.60
-
0.055
1.40
#6
#5
#4
TOP PACKAGE MARKING IS
FOR ILLUSTRATION PURPOSES ONLY
Apracon LLC. 2 Faraday, Suite#B Irvine, Ca. 92618
TITLE:
High Performance, Programmable
LVDS SMD MEMS Oscillator
Notes: 1. A capacitor value of 0.1μF between Vdd and GND is recommended.
DWG NO.
ASTMUPLD
SHEET 3 OF 3
A3
SCALE:10:1
