• .050 inch centers permit mass termination to a broad
line of IDC connectors
• Zippable for branching or discrete termination
• See Regulatory Information Appendix (RIA) for
chemical compliance information
(RIA E1 & C1 apply)
Insulation:
Color: Gray
Material: Polyvinyl Chloride (PVC)
Marking:
Standard: None
Canadian Option:
AWM 2651 105C 300V VW1 3M NU C
T
IN
Conductors:
28 AWG, [ Ø 0.32 ] Tinned Solid Copper
Electrical
IS
Voltage Rating:
USA: 300V
Canada: 300V
Insulation Resistance:
> 1 × 10
10
Ω/10
ft. [ 3 m ]
Characteristic Impedance:
Unbalanced
Balanced
114
Ω
12.8 pF/ft [ 42.0 pF/m ]
0.17 μH/ft [ 0.54 μH/m ]
1.45 ns/ft [ 4.76 ns/m ]
70%
188
Ω
7.4 pF/ft [ 24.3 pF/m ]
0.26 μH/ft [ 0.87 μH/m ]
1.40 ns/ft [ 4.59 ns/m ]
73%
C
O
N
U
E
AWM IA 105C 300V FT1 EU <50V
Physical
D
EU: <50V
Date Modified: February 24, 2012
TS-0419-C
Sheet 1 of 2
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
Note: Unbalanced is measured between ground-signal-ground conductors. Balanced is measured between signal conductors within a pair.
Environmental
Temperature Rating:
-20°C to +105°C
Canada: FT1
Flammability Rating:
USA: VW-1
UL File No.: E42769, Style No: 2651
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
D
3M
™

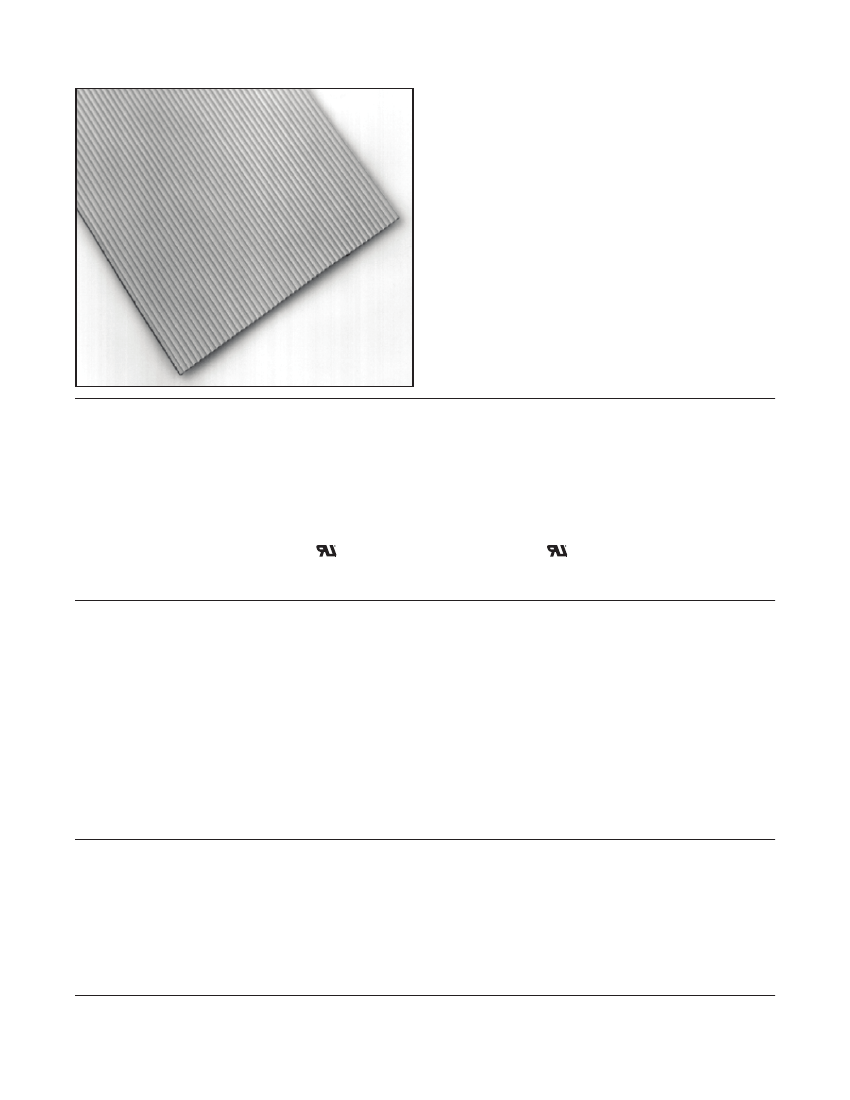

Round Conductor Flat Cable
.050" 28 AWG Solid, PVC
Number of
Conductors
09
10
14
15
3M Part
Number
3709/09
3709/10
3709/14
3709/15
Dimension A
0.500 ± .010 [ 12.70 ]
0.700 ± .010 [ 17.78 ]
0.750 ± .010 [ 19.05 ]
0.450 ± .010 [ 11.43 ]
3709 Series
Dimension B
0.400 ± .007 [ 10.18 ]
0.450 ± .007 [ 11.43 ]
0.650 ± .007 [ 16.51 ]
0.700 ± .007 [ 17.78 ]
0.750 ± .011 [ 19.05 ]
0.850 ± .011 [ 21.59 ]
0.950 ± .011 [ 24.13 ]
C
16
18
20
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
C
O
.033
±
.003
[ 0.84 ]
N
T
.025
±
.007
[ 0.64 ]
Note: Red marking on one edge of cable designates wire #1.
Ordering Information
D
IS
28 AWG [
ø
0.32 ] Tinned Solid
Copper Conductors
3709 / XX XX
Blank = Standard
C = Canadian Certified Version
Blank = Standard
SF = Splice Free
Number of Conductors
(See Table)
Note: Available in standard 100 ft or 300 ft rolls, please
specify when ordering. Contact 3M for availability of
additional conductor counts and/or custom roll lengths.
IN
A
B
U
E
.050
±
.002 Typ
[ 1.27 ]
PVC Insulation
[ ] Dimensions for Reference Only
24
25
26
30
34
36
37
40
50
60
64
3709/16
3709/18
3709/20
3709/24
3709/25
3709/26
3709/30
3709/34
3709/36
3709/37
3709/40
3709/50
3709/60
3709/64
0.800 ± .015 [ 20.32 ]
0.900 ± .015 [ 22.86 ]
1.000 ± .015 [ 25.40 ]
1.200 ± .015 [ 30.48 ]
1.250 ± .015 [ 31.75 ]
1.300 ± .015 [ 33.02 ]
1.500 ± .020 [ 38.10 ]
1.700 ± .020 [ 43.18 ]
1.800 ± .020 [ 45.72 ]
1.850 ± .020 [ 46.99 ]
2.000 ± .020 [ 50.80 ]
2.500 ± .020 [ 63.50 ]
3.000 ± .020 [ 76.20 ]
3.200 ± .020 [ 81.28 ]
1.150 ± .011 [ 29.21 ]
1.200 ± .011 [ 30.48 ]
1.250 ± .011 [ 31.75 ]
1.450 ± .015 [ 36.83 ]
1.650 ± .015 [ 41.91 ]
1.750 ± .015 [ 44.45 ]
1.800 ± .015 [ 45.72 ]
1.950 ± .015 [ 49.53 ]
2.450 ± .015 [ 62.23 ]
2.950 ± .015 [ 74.93 ]
3.150 ± .015 [ 80.01 ]
D
TS-0419-C
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
