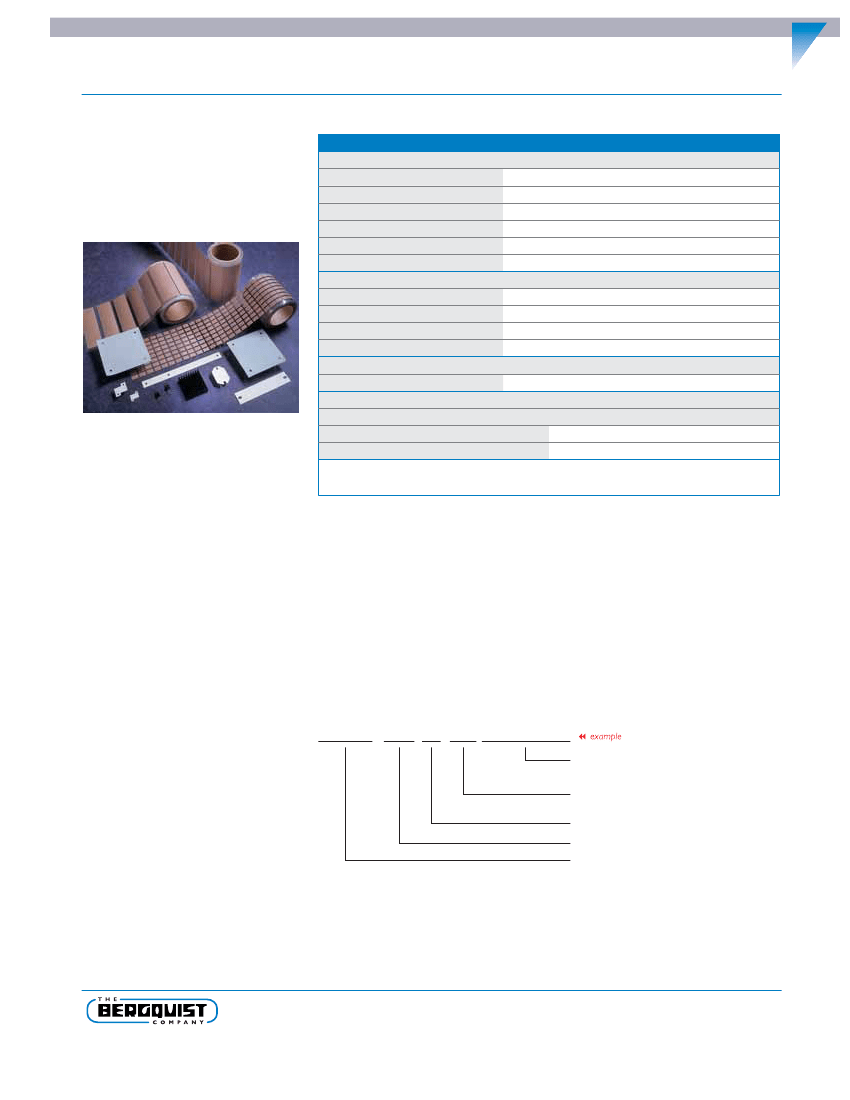

Sil-Pad A2000
®
Higher Performance, High Reliability Insulator
Features and Benefits
• Thermal impedance:
0.32°C-in
2
/W (@50 psi)
• Optimal heat transfer
• High thermal conductivity: 3.0 W/m-K
PROPERTY
Color
Reinforcement Carrier
Thickness (inch) / (mm)
Hardness (Shore A)
Heat Capacity (J/g-K)
Continuous Use Temp (°F) / (°C)
ELECTRICAL
Dielectric Breakdown Voltage (Vac)
Dielectric Constant (1000 Hz)
Volume Resistivity (Ohm-meter)
Flame Rating
THERMAL
Thermal Conductivity (W/m-K)
THERMAL PERFORMANCE vs PRESSURE
Pressure (psi)
TYPICAL PROPERTIES OF SIL-PAD A2000
IMPERIAL VALUE
White
Fiberglass
0.015 to 0.020
90
1.0
-76 to 392
4000
7.0
10
11
METRIC VALUE
White
Fiberglass
0.381 to 0.508
90
1.0
-60 to 200
4000
7.0
10
11
TEST METHOD
Visual
—
ASTM D374
ASTM D2240
ASTM E1269
—
ASTM D149
ASTM D150
ASTM D257
U.L.94
ASTM D5470
V-O
3.0
10
2.05
0.53
25
1.94
0.40
V-O
3.0
50
1.86
0.32
100
1.79
0.28
200
1.72
0.26
Sil-Pad A2000 is a conformable elastomer
with very high thermal conductivity that acts
as a thermal interface between electrical
components and heat sinks. Sil-Pad A2000 is
for applications where optimal heat transfer is
a requirement.
This thermally conductive silicone elastomer is
formulated to maximize the thermal and
dielectric performance of the filler/binder
matrix.The result is a grease-free, con-
formable material capable of meeting or
exceeding the thermal and electrical require-
ments of high reliability electronic packaging
applications.
TO-220 Thermal Performance (°C/W) 0.015"
Thermal Impedance (°C-in /W) 0.015" (1)
2
1) The ASTM D5470 test fixture was used.The recorded value includes interfacial thermal resistance.These values are provided for
reference only. Actual application performance is directly related to the surface roughness, flatness and pressure applied.
Typical Applications Include:
• Motor drive controls
• Avionics
• High-voltage power supplies
• Power transistor / heat sink interface
Configurations Available:
• Sheet form, die-cut parts and roll form
• With or without pressure sensitive adhesive
Building a Part Number
SPA2000
–
0.015
– 00
– 1012 –
NA
Standard Options
Section E
NA = Selected standard option. If not selecting a standard
option, insert company name, drawing number, and
revision level.
_ _ _ = Standard configuration dash number,
1012 = 10" x 12" sheets, 10/250 = 10" x 250' rolls, or
00 = custom configuration
AC = Adhesive, one side
00 = No adhesive
Standard thicknesses available: 0.015", 0.020"
SPA2000 = Sil-Pad A2000 Material
Section A
Section B
Section C
Note: To build a part number, visit our website at www.bergquistcompany.com.
Sil-Pad
®
: U.S. Patents 4,574,879; 4,602,125; 4,602,678; 4,685,987; 4,842,911 and others
www.bergquistcompany.com
The Bergquist Company -
North American Headquarters
18930 West 78th Street
Chanhassen, MN 55317
Phone: 800-347-4572
Fax: 952-835-0430
The Bergquist Company -
European Headquarters
Bramenberg 9a, 3755 BT Eemnes
Netherlands
Phone: 31-35-5380684
Fax: 31-35-5380295
The Bergquist Company - Asia
Room 15, 8/F Wah Wai Industrial Centre
No. 38-40, Au Pui Wan Street
Fotan, Shatin, N.T. Hong Kong
Ph: 852.2690.9296
Fax: 852.2690.2344
All statements, technical information and recommendations herein are based on tests we believe to be reliable, and
THE FOLLOWING IS MADE IN LIEU OF ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE IMPLIED
WARRANTIES OF MARKETABILITY AND FITNESS FOR PURPOSE. Sellers’ and manufacturers’ only obligation shall be to
replace such quantity of the product proved to be defective. Before using, user shall determine the suitability of the product
for its intended use, and the user assumes all risks and liability whatsoever in connection therewith. NEITHER SELLER NOR
MANUFACTURER SHALL BE LIABLE EITHER IN TORT OR IN CONTRACT FOR ANY LOSS OR DAMAGE, DIRECT,
INCIDENTAL, OR CONSEQUENTIAL, INCLUDING LOSS OF PROFITS OR REVENUE ARISING OUT OF THE USE OR
THE INABILITY TO USE A PRODUCT. No statement, purchase order or recommendations by seller or purchaser not
contained herein shall have any force or effect unless in an agreement signed by the officers of the seller and manufacturer.
PDS_SP_A2000_12.08
