8864-0-15-80-06-14-10-0 datasheet, PDF

Datasheet> All Categories > The connector> 8864-0-15-80-06-14-10-0

8864-0-15-80-06-14-10-0: DescriptionCONN PIN RCPT; CategoryThe connector; File Size574KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

8864-0-15-80-06-14-10-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8864-0-15-80-06-14-10-0	-	-	View	Buy Now

8864-0-15-80-06-14-10-0 Overview

CONN PIN RCPT

8864-0-15-80-06-14-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8864-0-15-80-06-14-10-0
Terminal and terminal strip types	PCB TERMINAL

Preview

Download Datasheet

View All

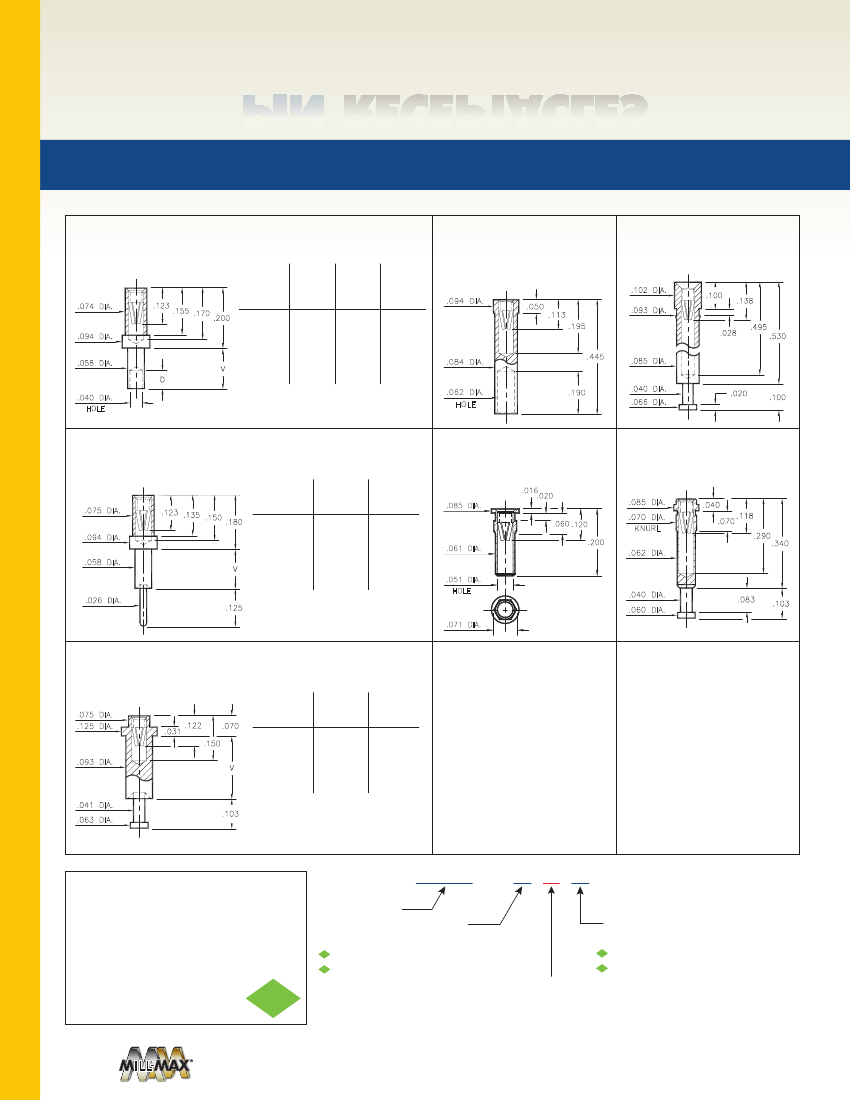

RECEPTACLES

FOR .022” - .032” DIAMETER PINS

0326

0326-X-19-XX-06-XX-10-0

Swage mount in .060 hole

5295

Basic

Part

Number

Board

Thick-

ness

Length

Depth

.094 DIA.

5295-0-19-XX-06-XX-10-0

0396

.102 DIA.

Solder mount in .086 min. mounting hole

Wire Crimp Termination. Accepts wire

sizes 18 AWG Max. / 22 AWG Min.

.050

0396-0-15-XX-06-XX-10-0

Press-fit in .090 mounting hole

.100

.074 DIA.

.123

.138

.495

.530

.155 .170

.200

.094 DIA.

.058 DIA.

.040 DIA.

HOLE

0326-1

0326-2

0326-3

0326-4

.031

.062

.094

.125

.062

.094

.125

.156

.040

.062

.113

.195

.093 DIA.

.028

.445

.084 DIA.

.085 DIA.

.062 DIA.

HOLE

.190

.040 DIA.

.066 DIA.

.020

.100

0298

.075 DIA.

.094 DIA.

.058 DIA.

0298-X-15-XX-06-XX-10-0

Swage mount in .060 hole

9293

Basic Part

Number

.180

9293-0-15-XX-06-XX-10-0

Hex press-fit in .067 plated through-hole

8864

.085 DIA.

.070 DIA.

KNURL

.062 DIA.

8864-0-15-XX-06-XX-10-0

Press-fit in .067 mounting hole

.040

.070

.118

.290

.340

.123 .135

.150

Board

Thickness

Length

.016

.020

.085 DIA.

.060 .120

.061 DIA.

.200

0298-1

0298-2

0298-3

0298-4

.031

.062

.094

.125

.051

.082

.113

.145

.051 DIA.

HOLE

.026 DIA.

.040 DIA.

.060 DIA.

.125

.071 DIA.

.083

.103

0664

.075 DIA.

.125 DIA.

0664-X-15-XX-06-XX-10-0

Swage mount in .096 hole

.031

.122

.150

.070

Basic Part

Number

Board

Thickness

Length

.093 DIA.

0664-1

0664-2

0664-3

.094

.125

.188

.125

.156

.219

.041 DIA.

.063 DIA.

.103

PAGE 174 | PIN RECEPTACLES

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

ORDER CODE: XXXX - X - 1X - XX -

- XX - 10 - 0

BASIC PART #

SPECIFY SHELL FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

SELECT CONTACT:

#06

CONTACT (DATA ON PAGE 255)

(For alternate contact choices, see group D on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

8864-0-15-80-06-14-10-0 Related Products

	8864-0-15-80-06-14-10-0	8864-0-15-15-06-14-10-0	0396-0-15-15-06-14-10-0	9293-0-15-15-06-14-10-0	5295-0-19-15-06-14-10-0	8864-0-15-80-06-84-10-0	8864-0-15-01-06-14-10-0	0664-2-15-15-06-14-10-0	0664-1-15-15-06-14-10-0	P2512Z2184LGTF
Description	CONN PIN RCPT	CONN PIN RCPT	CONN PIN RCPT	CONN PIN RCPT	CONN PIN RCPT	CONN PIN RCPT	CONN PIN RCPT	CONN PIN RCPT	CONN PIN RCPT	Fixed Resistor, Thin Film, 2W, 2180000ohm, 300V, 0.01% +/-Tol, 5ppm/Cel, Surface Mount, 2512, CHIP
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	-	Contains lead	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-	incompatible	conform to	conform to	conform to
Maker	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max	-	Mill-Max	Mill-Max	Mill-Max	-
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	-	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	8864-0-15-80-06-14-10-0	8864-0-15-15-06-14-10-0	0396	-	5295-0-19-15-06-14-10-0	-	8864-0-15-01-06-14-10-0	0664	0664	-
Terminal and terminal strip types	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	-	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	-
terminal gender	-	FEMALE	FEMALE	FEMALE	FEMALE	-	FEMALE	FEMALE	FEMALE	-
Base Number Matches	-	1	1	-	1	-	1	1	1	-
