TC74HC366AF: DescriptionHex Bus Buffer; Categorylogic logic; File Size246KB，7 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74HC366AF Overview

Hex Bus Buffer

TC74HC366AF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP, SOP16,.3
Contacts	16
Reach Compliance Code	unknow
Control type	ENABLE LOW
series	HC/UH
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	10.3 mm
Load capacitance (CL)	150 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.006 A
Number of digits	6
Number of functions	1
Number of ports	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TUBE
power supply	2/6 V
Prop。Delay @ Nom-Su	23 ns
propagation delay (tpd)	165 ns
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.3 mm

Preview

Download Datasheet

View All

TC74HC365,366AP/AF

TOSHIBA CMOS Digital Integrated Circuit

Silicon Monolithic

TC74HC365AP,TC74HC365AF,TC74HC366AP,TC74HC366AF

Hex Bus Buffer

TC74HC365AP/AF

TC74HC366AP/AF

Non-Inverted (3-state)

Inverted (3-state)

TC74HC365AP, TC74HC366AP

The TC74HC365A and TC74HC366A are high speed CMOS

3-STATE BUFFERs fabricated with silicon gate C

MOS

technology.

They achieve the high speed operation similar to equivalent

LSTTL while maintaining the CMOS low power dissipation.

The TC74HC366A is an inverting type, while the TC74HC365A

is non-inverting.

All six buffers are controlled by the combination of two enable

inputs (

and

); the outputs of these buffers are enabled only

when both

and

inputs held low, and at the other

combinations, these outputs are disabled to the high impedance

state.

All inputs are equipped with protection circuits against static

discharge or transient excess voltage.

TC74HC365AF, TC74HC366AF

Features

•

High speed: t

9 ns (typ.) at V

5 V

Low power dissipation: I

μA

(max) at Ta

25°C

High noise immunity: V

NIH

NIL

28% V

(min)

Output drive capability: 15 LSTTL loads

Symmetrical output impedance: |I

6 mA (min)

∼

Balanced propagation delays: t

pLH

−

pHL

Wide operating voltage range: V

(opr)

2 to 6 V

Pin and function compatible with 74LS365/366

Weight

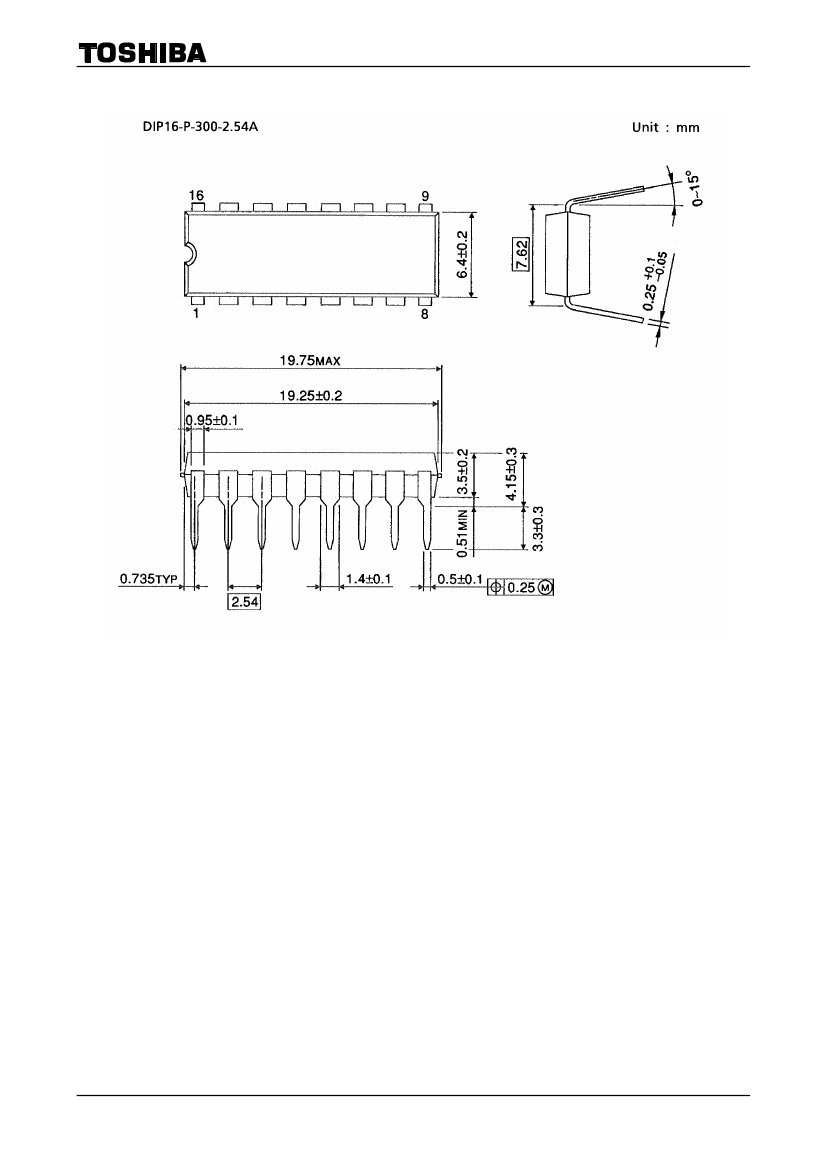

DIP16-P-300-2.54A

SOP16-P-300-1.27A

: 1.00 g (typ.)

: 0.18 g (typ.)

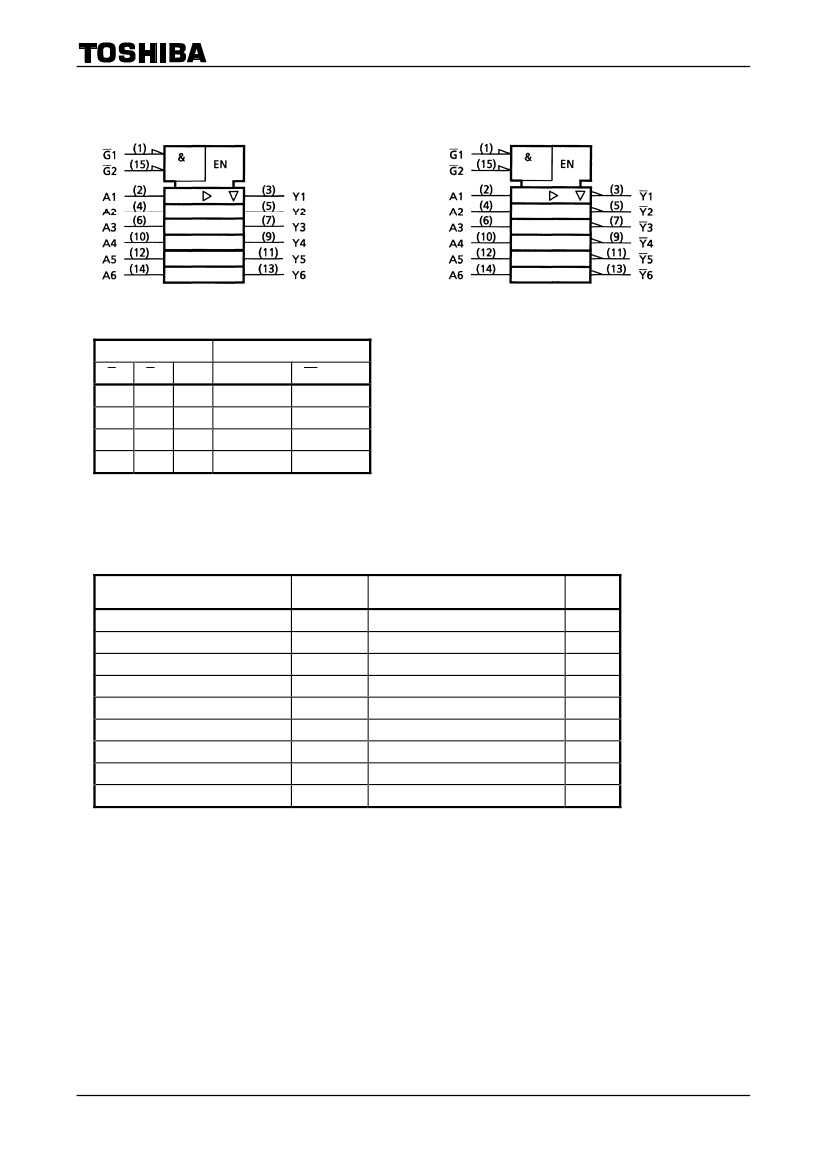

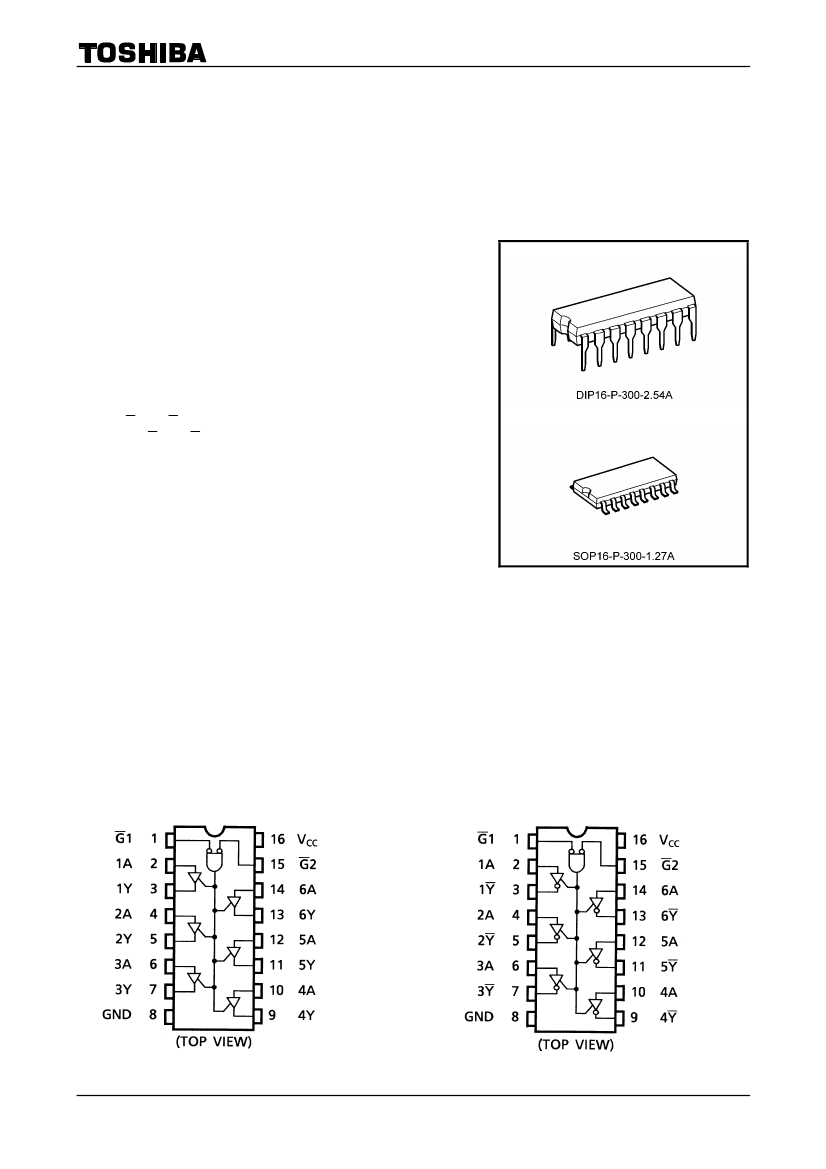

Pin Assignment

TC74HC365A

TC74HC366A

2007-10-01

TC74HC366AF Related Products

	TC74HC366AF	TC74HC365AF	TC74HC365AP	TC74HC366AP	TC74HC365AP_07
Description	Hex Bus Buffer	Hex Bus Buffer	Hex Bus Buffer	Hex Bus Buffer	Hex Bus Buffer
Is it Rohs certified?	incompatible	conform to	conform to	conform to	-
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	-	-
Parts packaging code	SOIC	SOIC	DIP	DIP	-
package instruction	SOP, SOP16,.3	0.300 INCH, 1.27 MM PITCH, LEAD FREE, PLASTIC, SOP-16	0.300 INCH, 2.54 MM PITCH, LEAD FREE, PLASTIC, DIP-16	DIP, DIP16,.3	-
Contacts	16	16	16	16	-
Reach Compliance Code	unknow	unknown	unknown	unknow	-
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	-
series	HC/UH	HC/UH	HC/UH	HC/UH	-
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16	-
length	10.3 mm	10.3 mm	19.25 mm	19.25 mm	-
Load capacitance (CL)	150 pF	150 pF	150 pF	150 pF	-
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	-
MaximumI(ol)	0.006 A	0.006 A	0.006 A	0.006 A	-
Number of digits	6	6	6	6	-
Number of functions	1	1	1	1	-
Number of ports	2	2	2	2	-
Number of terminals	16	16	16	16	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	-
Output polarity	INVERTED	TRUE	TRUE	INVERTED	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	SOP	SOP	DIP	DIP	-
Encapsulate equivalent code	SOP16,.3	SOP16,.3	DIP16,.3	DIP16,.3	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	-
power supply	2/6 V	2/6 V	2/6 V	2/6 V	-
propagation delay (tpd)	165 ns	165 ns	165 ns	165 ns	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	1.9 mm	1.9 mm	4.45 mm	4.45 mm	-
Maximum supply voltage (Vsup)	6 V	6 V	6 V	6 V	-
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V	-
Nominal supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	-
surface mount	YES	YES	NO	NO	-
technology	CMOS	CMOS	CMOS	CMOS	-
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	-
Terminal location	DUAL	DUAL	DUAL	DUAL	-
width	5.3 mm	5.3 mm	7.62 mm	7.62 mm	-
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Base Number Matches	-	1	1	1	-
