0395254010: DescriptionTERM BLOCK HDR 10POS VERT 5MM; CategoryThe connector; File Size154KB，3 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

0395254010 Overview

TERM BLOCK HDR 10POS VERT 5MM

0395254010 Parametric

Parameter Name	Attribute value
type	Connector, male pins, shrouded (4 sides)
Number of pins	10
Number of pins per level	10
Number of levels	1
spacing	0.197"（5.00mm）
Needle seat direction	Vertical
Plug entrance	-
Terminal type	welding
Installation type	Through hole
Current - IEC	-
Current - UL	15A
Voltage - UL	300V
Wire Gauge or Range - AWG	-
Wire gauge or range - mm²	-
color	black
Operating temperature	-40°C ~ 105°C
Contact mating surface treatment	tin
characteristic	mating flange
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	-
Torque - Screws	-
Wire stripping length	-
Contact material	brass
Shell material	Polyamide (PA46), Nylon 4/6
Contact tail length	0.150"（3.81mm）
Insulation height	0.470"（11.94mm）

Preview

Download Datasheet

View All

9

8

7

6

5

4

3

2

1

⌀

1.60

E

1.00

.039

3.9

.15

S

.063

5.00

.197

S

E

12.0

.47

B

D

PTH LAYOUT

A

1

2

C

B

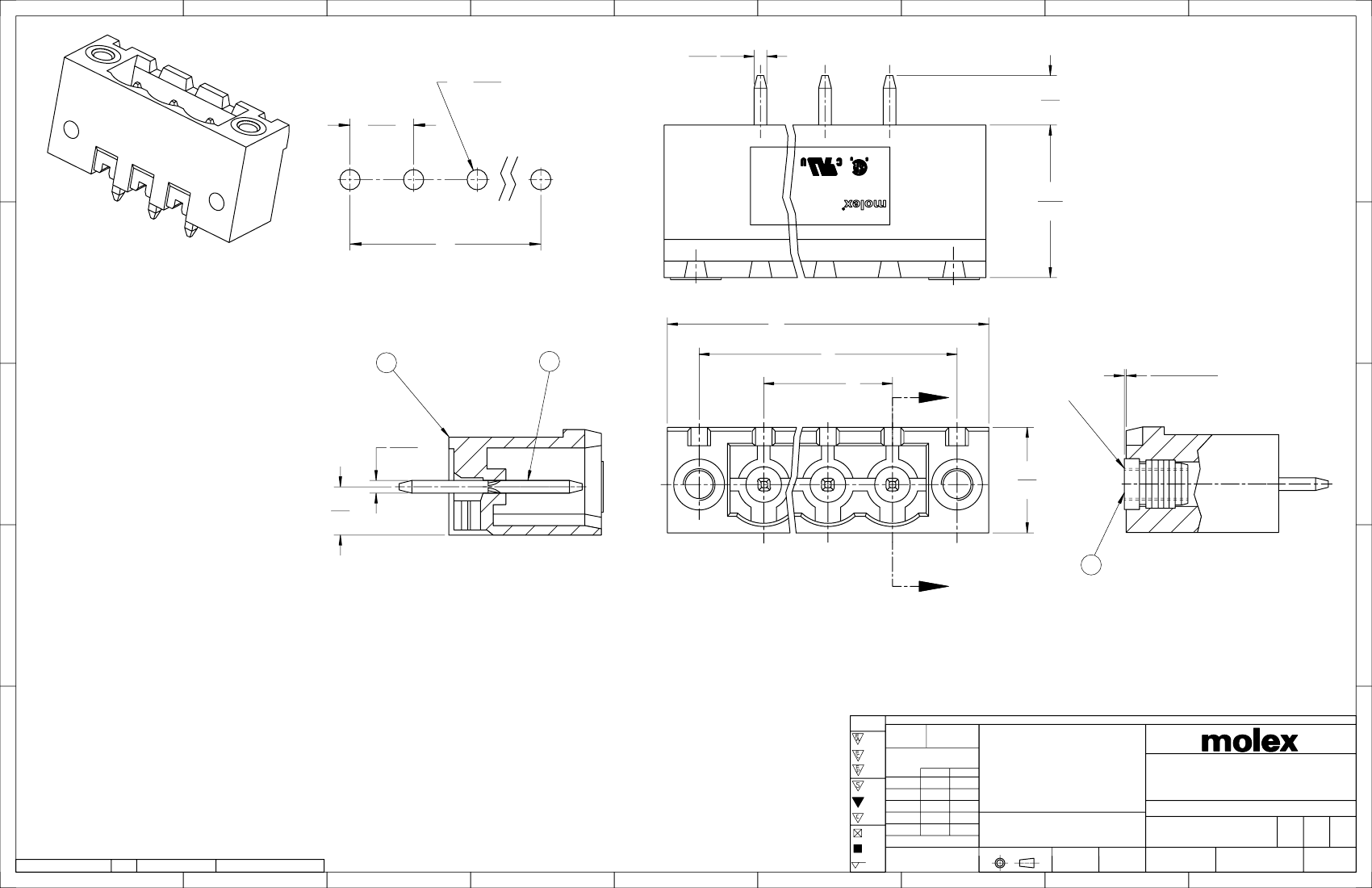

SPECIFICATIONS:

C

1. Material:

(1). Body: PA46, UL 94V-0

(2). Pin: Brass

3.8

.15

1.00

.039

(3). Threaded insert: Brass

2. Electrical rating: 300V, 15A

3. Wire strip length: N/A

3. Operating temperature: -40 to +105

°

C

B

5. Max. insert retention force: 11.02 lbf (49.03N)

6. Insulation resistance: DC 500V, 500M

7. Dielectric withstand: AC 2500V for 1 minute

8. Breakdown voltage: 4000V

9. Max soldering temp: 260

°

C (500

°

F) for 5 seconds

10. A = (B + 15.0mm)

11. B = (N - 1) x P

A

SYMBOLS

=

0

=

0

=

0

=

0

=

0

=

0

=

0

=

0

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

13. C = (B + 10mm)

12. P (PITCH) = 5.0mm (.197").

13. N = Number of positions available 2 through 24

14. Dims shown are for reference only

DOCUMENT STATUS

FORMAT: Eng-lega-master-tb-prod-B

REVISION: D

DATE: 2018/01/18

9

P1

RELEASE DATE

2018/04/25

8

16:41:14

7

6

5

3952X

8.3

.33

SCALE

HT

D

See note 7

0.15 MAX

.006 MAX

M2.5 thread

C

3

B

=

0

MM[INCH]

4:1

MM

CURRENT REV DESC: SEE SHEET 2

GENERAL TOLERANCES

(UNLESS SPECIFIED)

INCH

±

4 PLACES

±

3 PLACES

±

2 PLACES

±

1 PLACE

±

.0015

.005

.01

0.038

±

0.13

0.3

±

0 PLACES

±

ANGULAR TOL

2°

DRWN: ABENJAMINLW

CHK'D:

BRUPERT

APPR: BRUPERT

INITIAL REVISION:

DRWN:

LROTHAUS

APPR:

THIRD ANGLE PROJECTION

DRAWING

EC NO:

175526

2018/04/10

2018/04/24

2018/04/25

2005/12/06

SERIES

5.0MM, EURO HEADER,

VERTICAL, HI-TEMP

MOUNTING

PRODUCT CUSTOMER DRAWING

DOCUMENT NUMBER

DOC TYPE

DOC PART

REVISION

A

SD-39525-001

MATERIAL NUMBER

CUSTOMER

PSD

001

B1

C

4

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

SHEET NUMBER

3

B-SIZE

39525

SEE CHART

GENERAL MARKET

1 OF 2

2

1

0395254010 Related Products

	0395254010	0395254005	0395254004	0395254003	0395254006	0395254008	0395254012	0395254020	0395254002
Description	TERM BLOCK HDR 10POS VERT 5MM	TERM BLOCK HDR 5POS VERT 5MM	TERM BLOCK HDR 4POS VERT 5MM	TERM BLOCK HDR 3POS VERT 5MM	TERM BLOCK HDR 6POS VERT 5MM	TERM BLOCK HDR 8POS VERT 5MM	TERM BLOCK HDR 12POS VERT 5MM	TERM BLOCK HDR 20POS VERT 5MM	TERM BLOCK HDR 2POS VERT 5MM
type	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)
Number of pins	10	5	4	3	6	8	12	20	2
Number of pins per level	10	5	4	3	6	8	12	20	2
Number of levels	1	1	1	1	1	1	1	1	1
spacing	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）
Needle seat direction	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical
Terminal type	welding	welding	welding	welding	welding	welding	welding	welding	welding
Installation type	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole
Current - UL	15A	15A	15A	15A	15A	15A	15A	15A	15A
Voltage - UL	300V	300V	300V	300V	300V	300V	300V	300V	300V
color	black	black	black	black	black	black	black	black	black
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Contact mating surface treatment	tin	tin	tin	tin	tin	tin	tin	tin	tin
characteristic	mating flange	mating flange	mating flange	mating flange	mating flange	mating flange	mating flange	mating flange	mating flange
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Contact material	brass	brass	brass	brass	brass	brass	brass	brass	brass
Shell material	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6
Contact tail length	0.150"（3.81mm）	0.150"（3.81mm）	0.150"（3.81mm）	0.150"（3.81mm）	0.150"（3.81mm）	0.150"（3.81mm）	0.150"（3.81mm）	0.150"（3.81mm）	0.150"（3.81mm）
Insulation height	0.470"（11.94mm）	0.470"（11.94mm）	0.470"（11.94mm）	0.470"（11.94mm）	0.470"（11.94mm）	0.470"（11.94mm）	0.470"（11.94mm）	0.470"（11.94mm）	0.470"（11.94mm）
