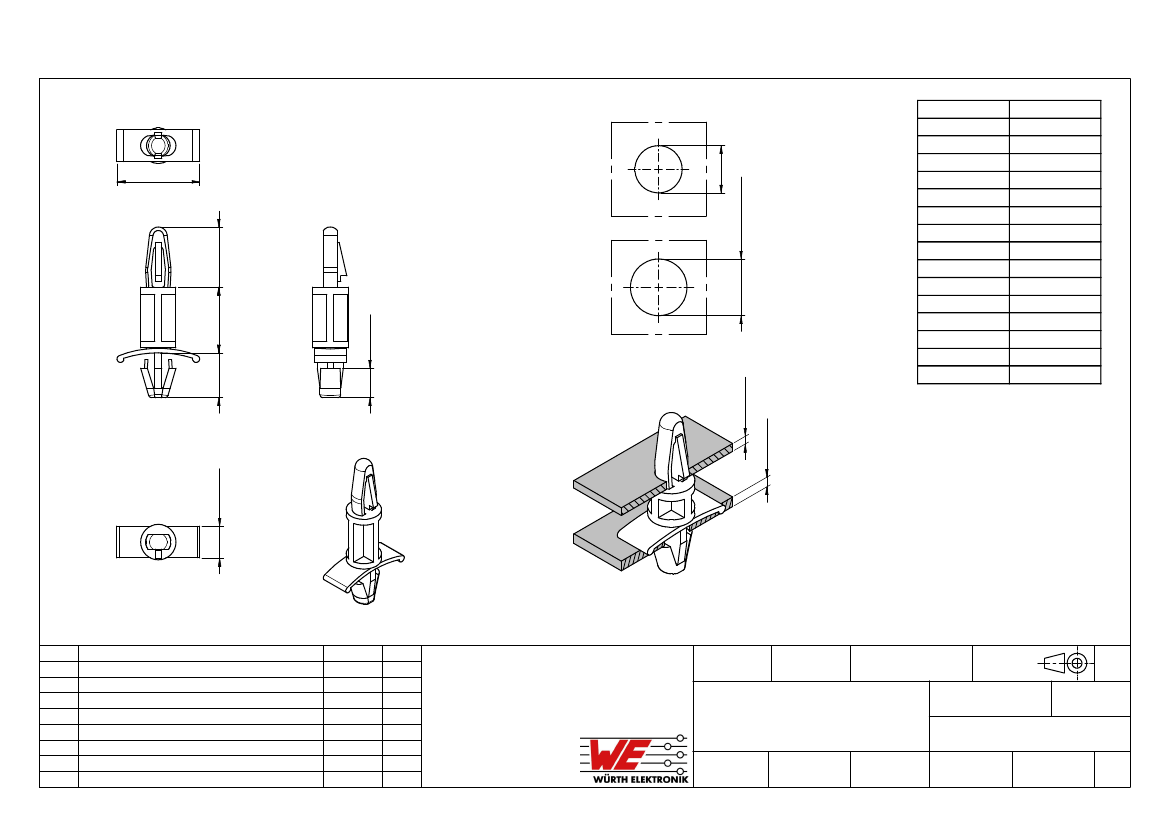

Hole Pattern
O
4,0
10,2 ±0,3
Bottom use
L
5,0 ±0,3
7,5 ±0,3
1,2 - 1,7
Panel Thickness
O
4,8 -
O
5,0
14,0 ±0,3
Top use
Order Code
709400500
709401000
709401500
709402000
709402500
709403000
709403500
709404000
709404500
709405000
709405500
709406000
709406500
709407000
709407500
L (mm)
3.5 ±0.2
4.8 ±0.2
6.0 ±0.3
6.4 ±0.3
7.9 ±0.3
9.5 ±0.3
11.1 ±0.3
12.7 ±0.3
15.9 ±0.3
19.1 ±0.3
22.2 ±0.4
25.4 ±0.4
28.6 ±0.4
31.7 ±0.4
34.9 ±0.4
Operating Temperature: -30°C up to +85°C
Flammability according to: UL94 V-2
5,4 ±0,3
0,8 - 2,0
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
com. +49 79 42 945 - 0
www.we-online.de
eiSos@we-online.de
CREATED
CHECKED
GENERAL TOLERANCE
DaF
DESCRIPTION
SKl
DIN ISO 2768-1m
PROJECTION
METHOD
MATERIAL
SIZE
A4
Nylon 66,
nature
TECHNICAL REFERENCE
AsSNSN
Snap-on stop spacer
SIZE
WEIGHT
STATUS
_________
ORDER CODE
70940xxxx
DATE
BUSINESS UNIT
PAGE
REV.
FILE
DATE
BY
xxx xxx xxx
Released
2017-03-21
eiCan
1 /1
