A-HDF15-HOOD-WP datasheet, PDF

Datasheet> All Categories > The connector> A-HDF15-HOOD-WP

A-HDF15-HOOD-WP: DescriptionCONN D-SUB HD RCPT 15POS STR; CategoryThe connector; File Size99KB，1 Pages; ManufacturerASSMANN WSW components; Environmental Compliance

Download Datasheet Parametric Compare View All

A-HDF15-HOOD-WP Overview

CONN D-SUB HD RCPT 15POS STR

A-HDF15-HOOD-WP Parametric

Parameter Name	Attribute value
Connector style	D-Sub, high density
Connector type	socket, female socket
Number of pins	15
Number of rows	3
Housing size, connector layout	1 (DE, E) high density
Contact type	Signal
Installation type	free hanging
Flange characteristics	Cable side, male tip wire
Termination	solder cup
characteristic	components
Housing material, plating	-
Contact plating	gold
Contact plating thickness	-
Intrusion protection	IP67 - dust and water resistant
Material flammability rating	-
Rated current	-
Operating temperature	-20°C ~ 60°C
Rated voltage	-
color	black
Contact shape	-
Shell material	Acrylonitrile Styrene Butadiene Copolymer (ABS)
Wire gauge	-
Contact material	copper alloy
Braking device interval	-

Preview

Download Datasheet

View All

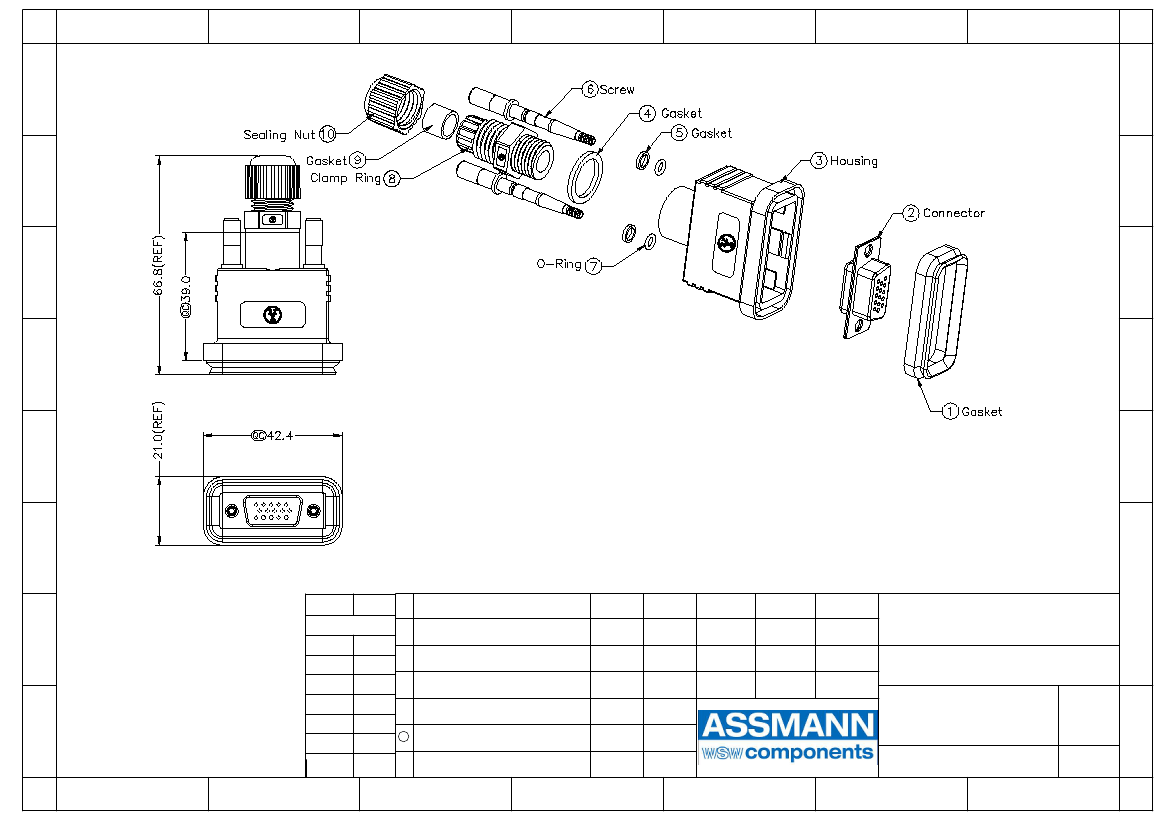

note:

important dimension

waterproof rate: IP67

housing:ABS,black

pin:copper alloy, gold plated

one set unassembled in one zipper bag

Customer-No.

RoHS compliant

Unit: mm

Scale

FREE

TOLERANCE

Date

Drawn

Approved

16.10.2014

Name

Joanna

ASSMANN WSW-No.

A-HDF15-HOOD-WP

DIM

TOL

Drawn

Modification

16.10.2014

Date

Joanna

Name

Drawing-No.

Angle

TOL

ASS 6614 CA

Replace

rev00

Sheet

Id.

A-HDF15-HOOD-WP Related Products

	A-HDF15-HOOD-WP	A-HDS15-HOOD-WP
Description	CONN D-SUB HD RCPT 15POS STR	CONN D-SUB HD PLUG 15POS STR
Connector style	D-Sub, high density	D-Sub, high density
Connector type	socket, female socket	Plug, male pin
Number of pins	15	15
Number of rows	3	3
Housing size, connector layout	1 (DE, E) high density	1 (DE, E) high density
Contact type	Signal	Signal
Installation type	free hanging	free hanging
Flange characteristics	Cable side, male tip wire	Cable side, male tip wire
Termination	solder cup	solder cup
characteristic	components	components
Contact plating	gold	gold
Intrusion protection	IP67 - dust and water resistant	IP67 - dust and water resistant
Operating temperature	-20°C ~ 60°C	-20°C ~ 60°C
color	black	black
Shell material	Acrylonitrile Styrene Butadiene Copolymer (ABS)	Acrylonitrile Styrene Butadiene Copolymer (ABS)
Contact material	copper alloy	copper alloy
