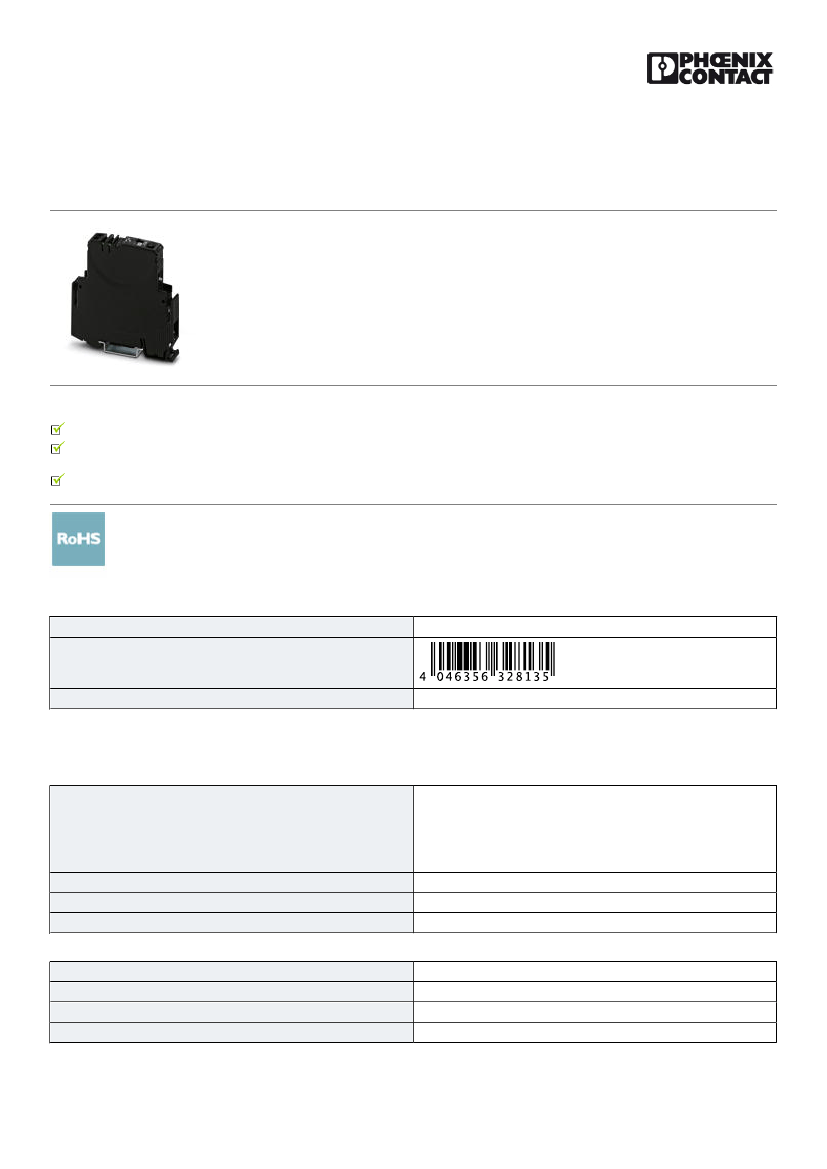

Electronic device circuit breaker - EC-E4 10A - 0903038
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Electronic circuit breaker, signal contact: 1 N/C contact, nominal current: 10 A
Your advantages
Selective protection of all 24 V DC load circuits at switched-mode power supply units
A combination of active electronic current limitation in the event of short circuit and overload shutdown ensures that the circuit breaker can
respond to overloads faster than the switched-mode power supply unit
The residual current is always limited to 1.3 - 1.8 times the nominal current
Key Commercial Data
Packing unit
GTIN
GTIN
4046356328135
6 pc
Technical data
General
When mounted in rows without convection cooling, the nominal device
current should only be led to a maximum of 80% due to the thermal
effect during continuous operation (100% operating factor).
Special precautionary measures must be taken in systems or machines,
to prevent components from restarting (e.g., use of a safety PLC).
Parallel connection of multiple circuit breakers is not permitted.
DIN rail: 35 mm
black
V0
Installation instructions
Mounting type
Color
Flammability rating according to UL 94
Electrical data
Fuse
Fuse type
Rated surge voltage
Operating voltage
electronic
Automatic device
0.5 kV
24 V DC
10/28/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/0903038
Electronic device circuit breaker - EC-E4 10A - 0903038
Technical data
Electrical data
18 V DC ... 32 V DC
Nominal current I
N
Required backup fuse
Dielectric strength
Degree of pollution
Switching capacity I
CN
Closed-circuit current range I0
10 A
not required, integrated failsafe element
max. 32 V DC (Load circuit)
2
Active current limitation
typ. 25 mA ±5 mA (When switched on)
Dimensions
Height
Width
Depth
Height NS 35/7,5
Height NS 35/15
83 mm
12.5 mm
80 mm
83 mm
90.5 mm
Ambient conditions
Degree of protection
Ambient temperature (operation)
IP20 (Housing)
0 °C ... 50 °C (non-condensing)
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Connection method
Stripping length
0.5 mm²
16 mm²
0.5 mm²
16 mm²
20
6
0.5 mm²
0.5 mm²
10 mm²
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
0.5 mm²
6 mm²
Screw connection
10 mm
10/28/2018 Page 2 / 4
Conductor cross section flexible, with ferrule without plastic sleeve max. 10 mm²
https://www.phoenixcontact.com/pi/products/0903038
Electronic device circuit breaker - EC-E4 10A - 0903038
Technical data
Connection data
Screw thread
Tightening torque max
M4
1.2 Nm
Standards and Regulations
Standards/specifications
UL 508
CSA 22.2 No. 14
UL 2367
CSA 22.2 No. 142
CSA 22.2 No. 213
UL 1604
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
Line+
1
12
11
2
LOAD+
0V
3
EC-E 4 ...
Approvals
Approvals
Approvals
DNV GL / UL Listed / UL Recognized / cUL Listed / EAC / cULus Listed
Ex Approvals
UL Recognized / CSA
10/28/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/0903038
Electronic device circuit breaker - EC-E4 10A - 0903038
Approvals
Approval details
DNV GL
http://exchange.dnv.com/tari/
TAE00002HC
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 140324
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 317172
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 140324
EAC
RU C-
DE.A*30.B01546
cULus Listed
