TPC Series
Tri-direction Scan Switch
Features/Benefits
•
One touch, 3 way switching
•
Superior tactile feel
•
Rotation of actuator closes
two individual contacts
•
Ultra-low profile housing
•
Normally open contacts
•
Custom actuator by request
Typical Applications
•
•
•
•
•
Mobile phones, pagers
PDA
Handheld electronic devices
Digital cameras, camcorders
Communication equipment
Construction
FUNCTION: Multi-directional momentary action
CONTACT ARRANGEMENT: Make contact = SP, N.O.
TERMINALS: Gullwing type for SMT
Electrical
MAXIMUM POWER: 1.0 VA
MAXIMUM VOLTAGE: 50 V
MAXIMUM CURRENT DC: 50 mA
MINIMUM CURRENT DC: 1 mA
LOW LEVEL USE: 20mV-1mA
DIELECTRIC STRENGTH: 250 VDC
CONTACT RESISTANCE:
≤
300 mΩ (select)
≤
600 mΩ (left & right)
INSULATION RESISTANCE (100 VDC): 10
9
Ω
BOUNCE TIME: < 10 ms
Mechanical
MAXIMUM ACTUATION FORCE: 40 N (8.8 lbs.) in any direction.
OPERATING FORCE/TRAVEL:
Direction
Actuation Force
Travel
Left
1.0 N ± 0.5
16˚ ± 2˚
Right
1.0 N ± 0.5
16˚ ± 2˚
Select
2.2 N ± 0.75
0.75 mm ± 0.15
(0.030 ± 0.006)
C
Navigation
Environmental
OPERATING TEMPERATURE: -40˚C to 125˚C
STORAGE TEMPERATURE: -55˚C to 125˚C
Packaging
Switches are delivered in tape and reels of 2,000 pieces. The reel
diameter is 330 mm (12.99). The tape width 24 mm (0.945)
conforms to the EIA-RS-481 and EC-2863 norms.
Process
Soldering process: Infrared according to CECC 00802
NOTE:
Specifications listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired
option from each category and place it in the appropriate box.
T
P
C
1
1
3
3
G
Termination
G
Gullwing
Contact Material
3
Gold
Button Type
1
Standard button
Actuation Force
1
1.0 N scan (left & right), 2.2 N select (push)
Navigation Select
3
2 directions with selection
Dimensions are shown: mm (inch)
Dimensions subject to change
C-6
www.ittcannon.com
TPC Series
Tri-direction Scan Switch

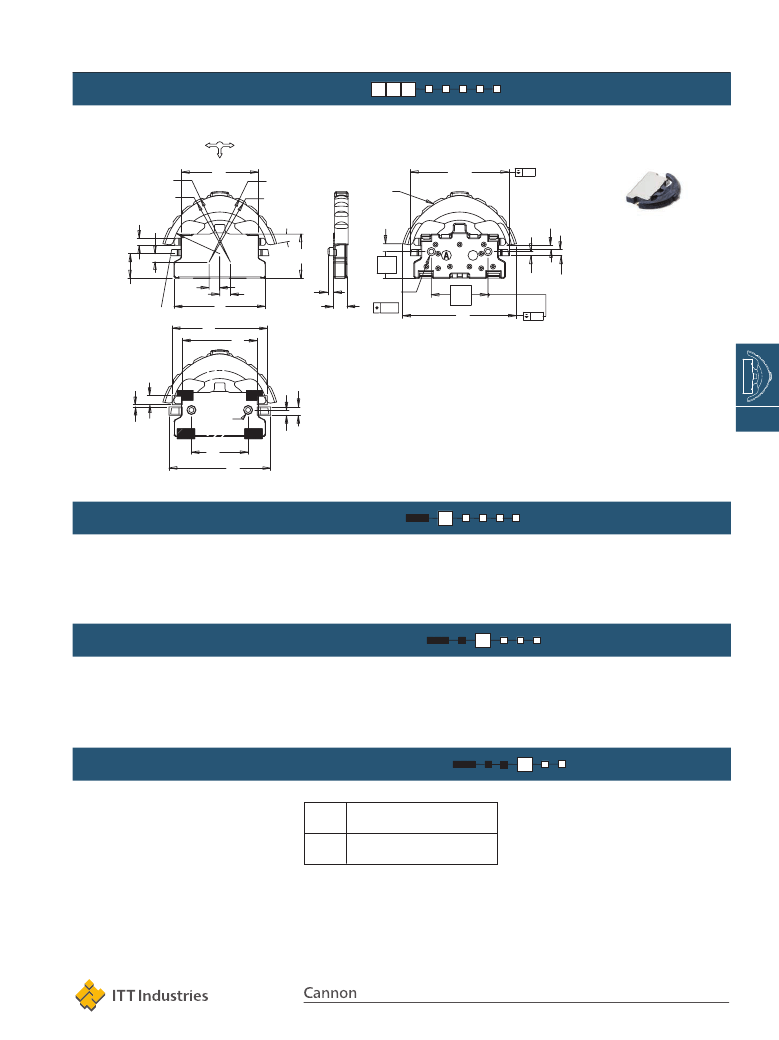

SERIES
TPC
9,2
(.362)
11,8±0,15
(.465±.006)
R 8,4
(.330)
0,85±0,05
(.033±.002)
R 8,15
(.321)
1,0
(.039)
10˚0'
R5
(.22 ,75
6)
5,3
(.209)
3,2
(.126)
0,5±0,05
(.020±.002)
6,8
(.268)
13,65
(.537)
0,2
0,95
(.037)
2,95
(.116)
1,28
(.050)
10˚0'
11,4
(.449)
11,0
(.433)
1,28
(.050)
0,65 max.
(.026)
1,65
(.065)
ø1,0+0/-0,05
(.039+.000/-.002)
ø0,1
9,0
(.354)
1,1
(.043)
1,0
(.039)
0,25
(.010)
ø1,1+0,1/-0,0
(.043+.004/-.000)

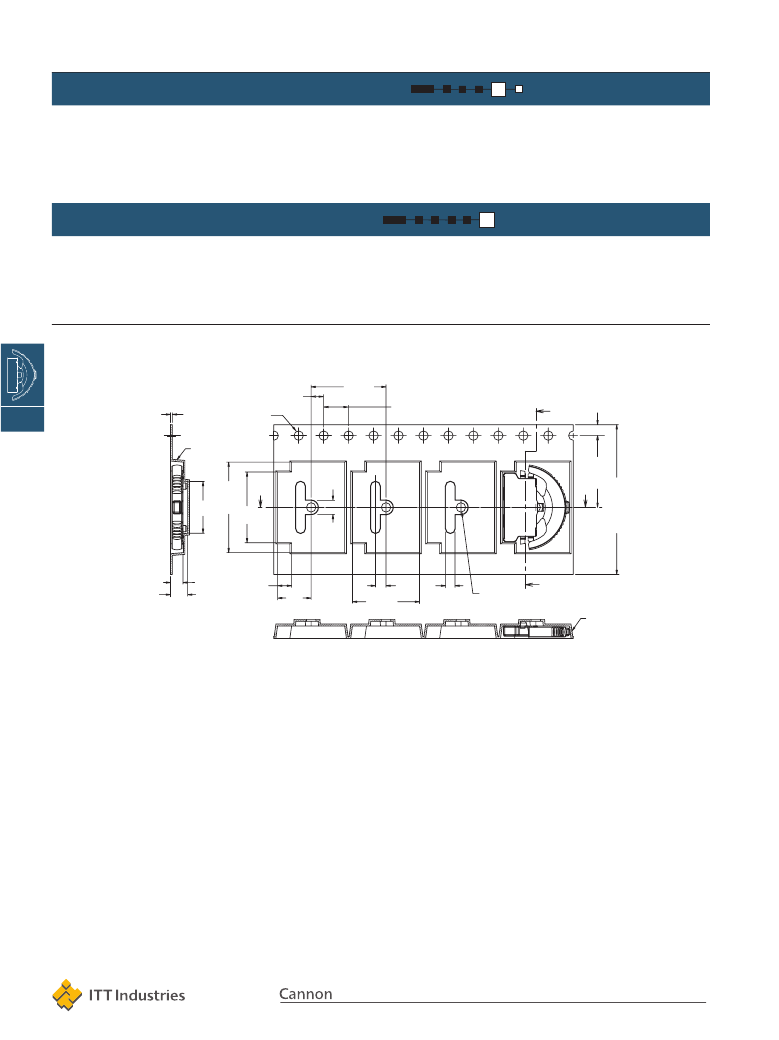

Date Code appears on TPC
First Line: product identification number
Second Line: year, week number and day
0,625
(.025)
0,75±0,05
(.030±.002)
0,5±0,05
(.020±.002)
R 8,4
(.330)
R 8,15
(.321)
.005
R 0,5
(.020)
C
Navigation
6,8
(.268)
12,2
(.480)
BUTTON TYPE
1
STANDARD BUTTON
ACTUATION FORCE
1
1.0N SIDE (left & right), 2.2N SELECT (push)
CONTACT ARRANGEMENT
OPTION
CODE
ARRANGEMENT
2 DIRECTIONS WITH SELECTION
3
Dimensions are shown: mm (inch)
Dimensions subject to change
C-7
www.ittcannon.com
