NOTES:
1.
lv = TYPICAL LUMINOUS INTENSITY @ If = 20mA (Ta = 25 C).(*4) = 4 LEDs PER
PACKAGE; (82) = 2 LEDs PER PACKAGE.
2.
SEE VOLTAGE / CURRENT TABLE FOR DESIGN SPECIFICATIONS.
3.
Ta = 25°C. VOLTAGES 6 THROUGH 60 ARE VDC. FOR AC OPERATION, INSERT D AFTER
VOLTAGE (e.g. 24AC), NOT REQUIRED FOR 120V. FOR 120 VDC, INSERT DC AFTER
VOLTAGE (e.g. 120DC).
4.
USE APPROPRIATE ESD PRECAUTIONS DURING HANDLING AND OPERATION.
5.
MOUNTING HARDWARE PROVIDED
6.
THIS DEVICES ARE RoHS COMPLIANT.
1126
1.00
25.5
.73
18.5
.25
6.4
.61
15.6
VOLTAGE/CURRENT
DESIGN
MAX
Vf/If
Vf/If
V/C Table I
5V/75mA
5.5v/85mA
7V/60mA
14V/40mA
16.5V/35mA
26V/35mA
30V/28mA
52V/22mA
65V/18mA
C
D
MODEL
1116
C
WIRES
W (OPTIONAL)
CONFIGURATION FOR MODELS
1116 W __ __ __ __
3
LOCKWASHER
ZINC PLATED
STEEL
NYLON
HEXNUT
LENS
-CW
-NW
11/16-27
UNS-2A
2X FASTON TAB
.187 SERIES
PLASTIC
WASHER
6V/40mA
12V/30mA
15V/30mA
24V/30mA
28V/25mA
48V/20mA
60V/16mA
WIRE LENGTH
(OPTIONAL)*
HIGH INTENSITY - WATERCLEAR
ENCAPSULATION
LED
-R
-O
-A
-G
-B
-W
-L
B
NUMBER
2
LENGTH
(in)
8''
12''
16''
18''
24''
36''
40''
60''
COLOR
RED
ORG
AMB
GRN
BLU
CWHT
WWHT
V/C (TABLE)
I
I
I
II
II
II
II
8
12
16
18
24
36
40
60
VOLTAGE
5
6
12
15
24
28
48
60
120
2.02
51.3
120VAC/9.5mA 130VAC/10.5mA
VOLTAGE / CURRENT
DESIGN
Vf/If
5V/26mA
DDP
MAX
Vf/If
5.5v/35mA
7V/39mA
14V/22mA
16.5V/19mA
26V/18mA
30V/18mA
50V/9.5mA
65V/7.2mA
130VAC/5.5mA
B
V/C Table II
.31
7.8
6V/28mA
12V/15mA
15V/15mA
24V/15mA
28V/15mA
48V/9mA
60V/6.5mA
120VAC/5mA
*STANDARD WIRE LENGTH:
IF THE CONFIGURATION DOES NOT INCLUDE A NUMBER AFTER
THE "W" USE THIS STANDARD:
6.0'' +1.0'' -0'' TOTAL LENGTH (NOMINAL)/.50'' STRIPPED +1/8'' -0',
RED ANODE/ BLACK CATHODE, 18 AWG UL1015 INSULATION.
UNLESS OTHERWISE SPECIFIED ALL MATERIAL
DIMENSIONS ARE INCHES (MM)
SHOWN FOR REFERENCE
ALL ANGLES ARE IN DEGREES
FINISH
GENERAL TOLERANCES
.XX
INCH
± 0.025
.X
MM
± 0.63
N/A
N/A
DESC
12780 DANIELSON CT, SUITE A, POWAY, CA 92064
PHONE: (800)522-5546 WWW.VCCLITE.COM
FILE NAME: 1116 Series

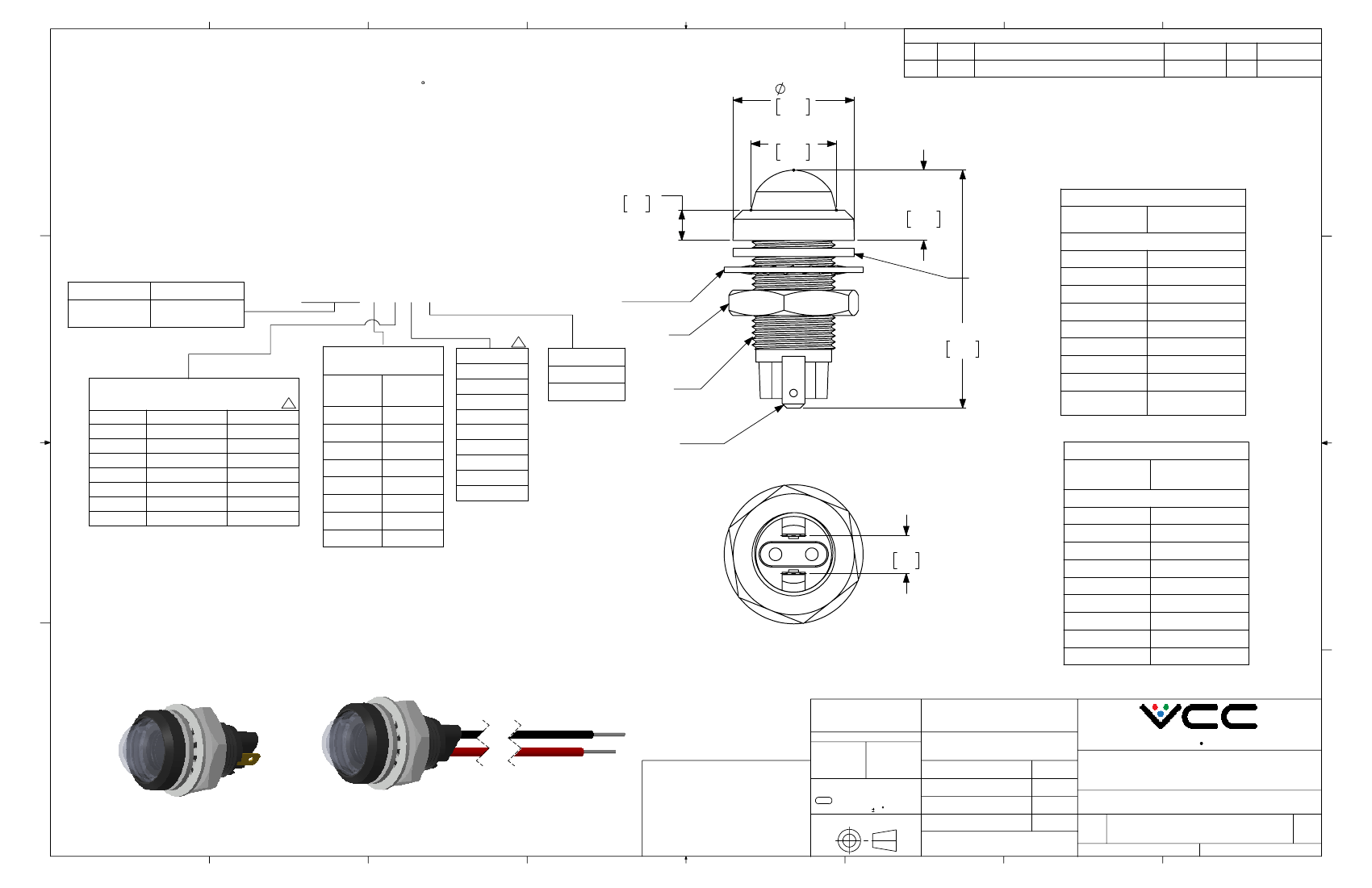

ISOMETRIC VIEWS
ONLY FOR REF.
8
7
6
5
The information in this document is the
exclusive
PROPRIETARY
property of
VISUAL
COMMUNICATIONS COMPANY, LLC.
It is
disclosed with the understanding that
acceptance or review by the recipient
constitutes an undertaking by the recipient:
(1) to hold this information in strict confidence
(2) not to disclose, duplicate, copy, or use the
information, in whole or in part, for any
purpose other than that for which disclosed
.XXX ± 0.010
.XX ± 0.25
DRW
D-ENG
A.SANCHEZ
A.SANCHEZ
O.LARA / G.RUIZ
E.LARA
1/9/18
1/9/18
1/16/18
1/17/18
PART NO
SIZE
BREAK ALL CORNERS AND
SHARP EDGES .030 MAX
11/16'' MOUNT PANEL LIGHT
SEE TABLES
DRW NO
REV
A
X.X DIMS INSPECTION CRITICAL P-ENG
ANGLE 1
QC
THIRD ANGLE PROJECTION
DO NOT SCALE DRAWING
PRINTED COPIES ARE UNCONTROLLED
B
1116 SERIES
SHEET: 1 OF 1
A
SCALE: 1:1
