PROPRIETARY INFORMATION:
PROPRIETARY OF GLOBTEK, INC. ANY REPRODUCTION, DISCLOSURE OR
USE OF THIS DRAWING, IN WHOLE OR IN PART, IS HEREBY
PROHIBITED EXCEPT AS SPECIFIED IN WRITING BY GLOBTEK,INC.
REVISION
REV
A
B
C
D
DESCRIPTION
INITIAL RELEASE
REDRAWN, RFS. 3985, DMR
ADD PROP.65, RFS. 6924, BS
ADD CH. ROHS, UPDATE RATING, RFS. 13136, EM
DATE
12/02/94
07/01/04
08/22/04
03/07/08
APPROVED
PS
DMR
DMR
BS
‘B’
‘A’
GENERAL SPECIFICATIONS:
RATING:
CABLE TYPE / SIZE:
TEMPERATURE RATING:
CONDUCTOR COLORS:
CABLE JACKET COLOR:
OVERALL LENGTH (L):
CABLE OUTER DIAMETER:
END ‘A’ PLUG;
END ‘B’
APPROVALS PLUG:
APPROVALS CABLE:
APPROVALS CONNECTOR:
15A / 125V
SJT, AWG 14 X 3 CONDUCTORS
105° C
BLUE / BROWN / GREEN-YELLOW
BLACK
2920+ 50 mm
9.3 + 0.15 mm
NEMA 5-15P
IEC 320 / C13
UL, CSA OR cUL
UL, CSA OR cUL
UL, CSA OR cUL
PACKING:
HANKING
NOTES:
1. CORD, PLUG AND CONNECTOR MUST BE MARKED WITH
APPROVAL SYMBOLS OR FILE NUMBER(S).
DASH
NO.
PART NO
REV.
DESCRIPTION
NOTES
OR
DECIMALS
.xx +/- 0.1
.xxx +/- .005
TABULATION BLOCK
TOLERANCES:
ANGULAR
+/- 1
o
www.globtek.com
ANGULAR
+/- 1
o
186 Veterans Dr. Northvale, NJ 07647
Tel. 201-784-1000 Fax 201.784.0111
Foot Note:
Globtek Inc. will not be liable for the
safety and performance of these power
Contents of this document
product if unauthorized access and repair
are subject to change without occurs. End user should consult the applica-
prior notice
ble UL,CSA or EN Standards for proper
installation instruction.
Limitation of Use:
Globtek product are not authorized for use as
mission critical components in life support,
hazardous environment, nuclear or
aircraft applications without prior written
approval from the CEO of Globtek Inc.
INIT.BY: DMR DATE:
07/01/04
DRAWN: NF DATE:
07/01/04
APRVD: DMR DATE:
07/01/04
MILLIMETERS
.xx +/- 0.3
.xxx +/- .013

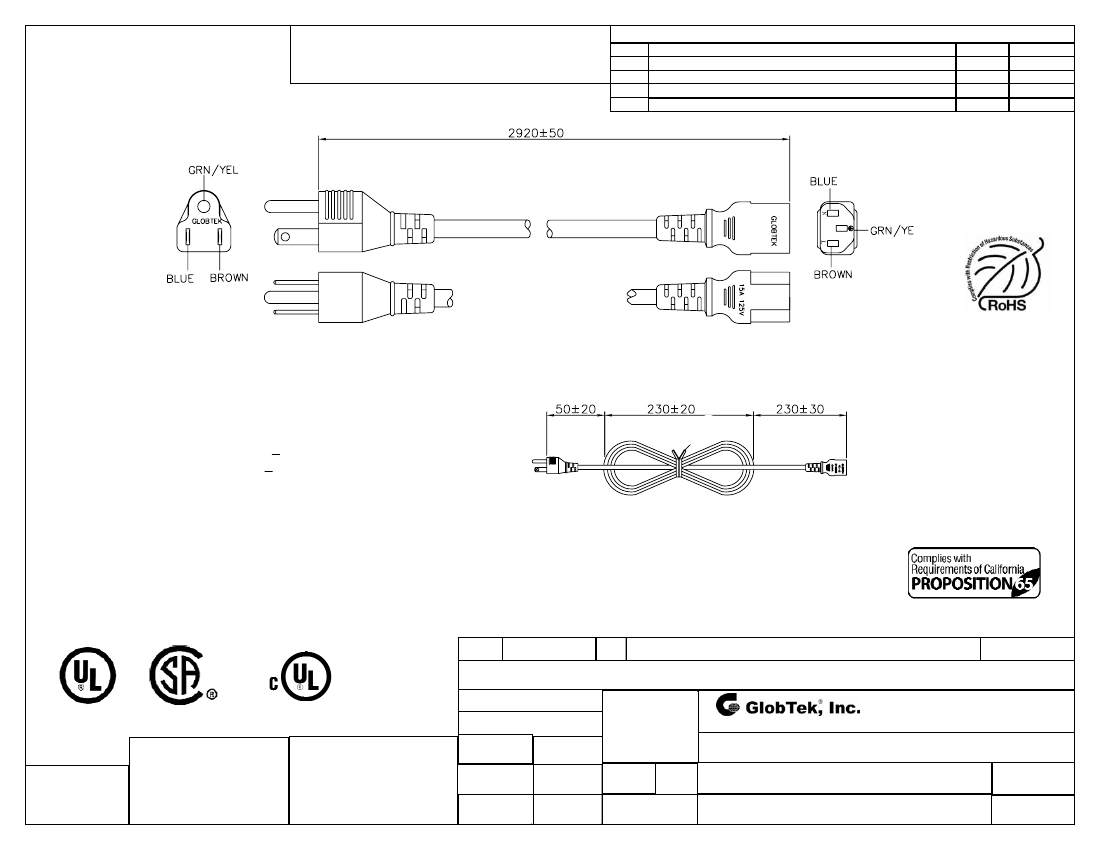

DWG TITLE: NORTH AMERICAN DETACHABLE CORDSET
REV.
D
FSCN No.:
G, CC
SI Z E
A
PART NO:
SCALE: NONE
3011049F5701(R)
SHEET 1/1
