WR9QA2000USBNMEDR6W datasheet, PDF

Datasheet> All Categories > Power/power management> WR9QA2000USBNMEDR6W

WR9QA2000USBNMEDR6W: Description10W, 5V 2A, WALL PLUG-IN, .07 KG; CategoryPower/power management; File Size581KB，13 Pages; ManufacturerMEDER electronic ( Standex ); Websitehttps://standexelectronics.com; Environmental Compliance

Download Datasheet Parametric View All

WR9QA2000USBNMEDR6W Overview

10W, 5V 2A, WALL PLUG-IN, .07 KG

WR9QA2000USBNMEDR6W Parametric

Parameter Name	Attribute value
Use area	internationality
form	Wall mounting
input type	Multiple inserts (sold separately)
Voltage - input	90 ~ 264 VAC
Voltage - Output	5V
Current - Output (maximum)	2A
Power (W)	10W
No-load power consumption	75mW (maximum)
polarization	-
application	ITE (Business), Medical
efficiency	Class VI
Operating temperature	0°C ~ 40°C
Output connector	USB A socket
size/dimensions	1.61" long x 2.80" wide x 1.24" high (41.0mm x 71.0mm x 31.5mm)
Approval	CB，CE
input connector	Multiple inserts (sold separately)
Wire length	-

Preview

Download Datasheet

View All

GlobTek, Inc.

www.globtek.com

186 Veterans Drive,

Northvale, NJ 07647

Tel. (201) 784-1000

Fax (201) 784-0111

Drawing Title: GTM46101-1005-USB, ITE / Medical Power Supply, Efficiency Level: VI, Case Color/Style: White W057, Wall

Plug-in, Regulated Switchmode AC-DC Power Supply AC Adaptor, Input Rating: 100-240V~, 50-60 Hz, Interchangeable

Blades http://en.globtek.com/interchangeable-blades.php, Output Rating: 10W, 5V@2A, Output Configuration: N/A mm, N/A/4

Cond, N/A, Type "A" USB “JACK”, integral to power supply enclosure, Ferrite: None, N/A, GT Cord # C0132, Pin Out: USB,

Pin 1: (+), Pin 2: N/C, Pin 3: N/C, Pin 4: Com, Blades/Input Cord: (Order Separately), Approvals: South African EAC CAN

ICES-3 FCC CE CB 60601-1 2MOPP CB CE cETLus ES60601 cETLus 60601-1 3rd China RoHS Double Insulation IP20

Level VI LPS CB RoHS S-Mark IEC/EN 60601-1 Ukraine WEEE cETLus 60950 RCM CCC India CB EN/IEC 60335-1 PSE

Model No. GTM46101-1005-USB

Part No./Ordering No. WR9QA2000USBNMEDR6W

Rev E

REVISION HISTORY

REV

Update regulatory approvals.

Revise label format to ISO15223 Type.

DESCRIPTION

SUB

DATE

APPROVED

emcna 08/23/2016 QA

12/11/2015 QA

12/08/2015 QA

Change Gift Box Size to 74*35*42mm and change Master Carton Size to 544*375*151mm

Change model name from GTM43085-1005-USB to GTM46101-1005-USB, remove 60950 ETL and 60950 S

mark, change CQC-PSE to TUV-PSE, change gift box Qty to 100, gift box Size to 92*72*50mm, Master

Carton Size to 484*380*228mm.

08/06/2015 QA

Initial release.

emcna 03/30/2015 QA

In Addition to GlobTek Inc.'s renewed ISO9001:2008 - Quality Management System Certification, GlobTek Inc. is now certified to:

ISO13485:2003 - Medical Devices Quality Management System Certification

ISO14001:2004 - Environmental Management System Certification

ISO Certificates are available online at

http://www.globtek.com/iso-certificates/

Customer Approval of Specification:

Please approve, sign and send back to GlobTek so we can complete order processing.

A delay in receipt of this form will delay delivery schedule.

Company Name:

Customer P/N:

Quote Number:

Date:

Authorized Representative Name:

Authorized Representative Signature:

The acceptance of this specification and use of the product described in this document indicates the acceptance and binding of the customer to

Globtek terms and conditions, which supersede all other agreements, terms, and conditions (

http://en.globtek.com/terms-and-conditions/

Footnote:

GlobTek Inc. will not be liable for the safety and performance of these power supplies if unauthorized access and repair occurs. End user should consult applicable UL, CSA or EN

standards for proper installation instruction.

Limitation of Use:

GlobTek product are not authorized for use as mission critical components in life support hazardous environment, nuclear or aircraft applications without prior written approval from

the CEO of GlobTek Inc.

Contents of this document are subject to change without prior notice.

GTM46101-1005-USB, 10W, 5V@2A, Wall Plug-in, Regulated Switchmode AC-DC Power Supply AC Adaptor

PROPRIETARY INFORMATION

PROPRIETARY OF GLOBTEK, INC. ANY REPRODUCTION, DISCLOSURE OR USE OF THIS DRAWING, IN WHOLE OR IN PART, IS HEREBY PROHIBITED EXCEPT AS SPECIFIED IN

WRITING BY GLOBTEK, INC.

guest /10/27/2018 10:46:52 AM

Page 1 of 13

GlobTek, Inc.

www.globtek.com

186 Veterans Drive,

Northvale, NJ 07647

Tel. (201) 784-1000

Fax (201) 784-0111

Drawing Title: GTM46101-1005-USB, ITE / Medical Power Supply, Efficiency Level: VI, Case Color/Style: White W057, Wall

Plug-in, Regulated Switchmode AC-DC Power Supply AC Adaptor, Input Rating: 100-240V~, 50-60 Hz, Interchangeable

Blades http://en.globtek.com/interchangeable-blades.php, Output Rating: 10W, 5V@2A, Output Configuration: N/A mm, N/A/4

Cond, N/A, Type "A" USB “JACK”, integral to power supply enclosure, Ferrite: None, N/A, GT Cord # C0132, Pin Out: USB,

Pin 1: (+), Pin 2: N/C, Pin 3: N/C, Pin 4: Com, Blades/Input Cord: (Order Separately), Approvals: South African EAC CAN

ICES-3 FCC CE CB 60601-1 2MOPP CB CE cETLus ES60601 cETLus 60601-1 3rd China RoHS Double Insulation IP20

Level VI LPS CB RoHS S-Mark IEC/EN 60601-1 Ukraine WEEE cETLus 60950 RCM CCC India CB EN/IEC 60335-1 PSE

Model No. GTM46101-1005-USB

Part No./Ordering No. WR9QA2000USBNMEDR6W

Rev E

ELECTRICAL SPECIFICATIONS

A) ELECTRICAL SPECIFICATIONS:

1. Input Voltage: Specified 90-264 Vac, Nameplate rated 100-240 Vac

2. Input Frequency: Specified 47-63 Hz, Nameplate rated 50-60 Hz

3. Output Regulation: +/- 5% measured at the end of a 1.2 meter USB cordset employing #20 Gauge conductors (RFP RFI-50856)

The longest cable GlobTek recommends to be used with this product is USB cord GlobTek PN USBA1M2MICROB20(R), 1.2 Meters for

best voltage regulation performance. (RFP RFI-20435-3)

4. Line Voltage Regulation: +/- 3% typical measured at the end of a 1.2 meter USB cordset employing #20 Gauge conductors

5. Output Ripple (Vp-p): 150mV Ripples shall be measured with a 47uF electrolytic capacitor paralleled with a high-frequency 0.1uF

ceramic capacitor across the output. The oscilloscope's bandwidth shall be set to 20MHz.

6. Turn-On/Turn-Off Overshoot: 5% maximum, 500 us maximum recovery time for 25% step load.

7. Turn-On Delay: 3000mS MAX at 115VAC Full Load

8. Hold-Up Time: 8mS Min at 100VAC Full Load

9. Inrush Current: No damage. On power when switching on/off repeatedly under any condition.

10. Switching Frequency: 66.5 KHz typical

11. Average Efficiency: 78.7% Min.(CEC&DOE Level VI Compliant), 79.0% Min. (ErP

European

Commission's Ecodesign Directive

(2005/32/EC) / CoC Tier 2 Compliant)

12. Input Power(no load): < 0.1W < 0.1W, < 0.075W (ErP

European

Commission's Ecodesign Directive (2005/32/EC) / CoC Tier 2

Compliant)

B) PROTECTION

1. Over-Voltage: Output shut down and auto restart 110% to 140% of Vnom

2. Over Temperature Protection: Output shut down and auto restart

3. Short Circuit Protection Output shut down and auto restart

4 Over Load Protection Output shut down and auto restart 110% to 150% of Inom

5. Input Protection: Input line fusing

6. ESD: 8 kV Contact/20kV Air Discharge

C) SAFETY

1. Dielectric Withstand Voltage: 4000Vac or 5656Vdc 10mA 1 minute

2. Earth Leakage Current: N/A for Class II units, there is no PE Ground pin, so Earth Leakage current is not measured

3. Touch Current: Maximum allowed values: 100uA NC(Normal condition) 500uA SFC(single fault condition)

4. Means of Protection: 2 x MOPP

5. ROHS 2: Complies with EU 2011/65/EU and China SJ/T 11363-2006

D) OTHER:

1. MTBF: 200,000 hours @ 25°C ambient temperature

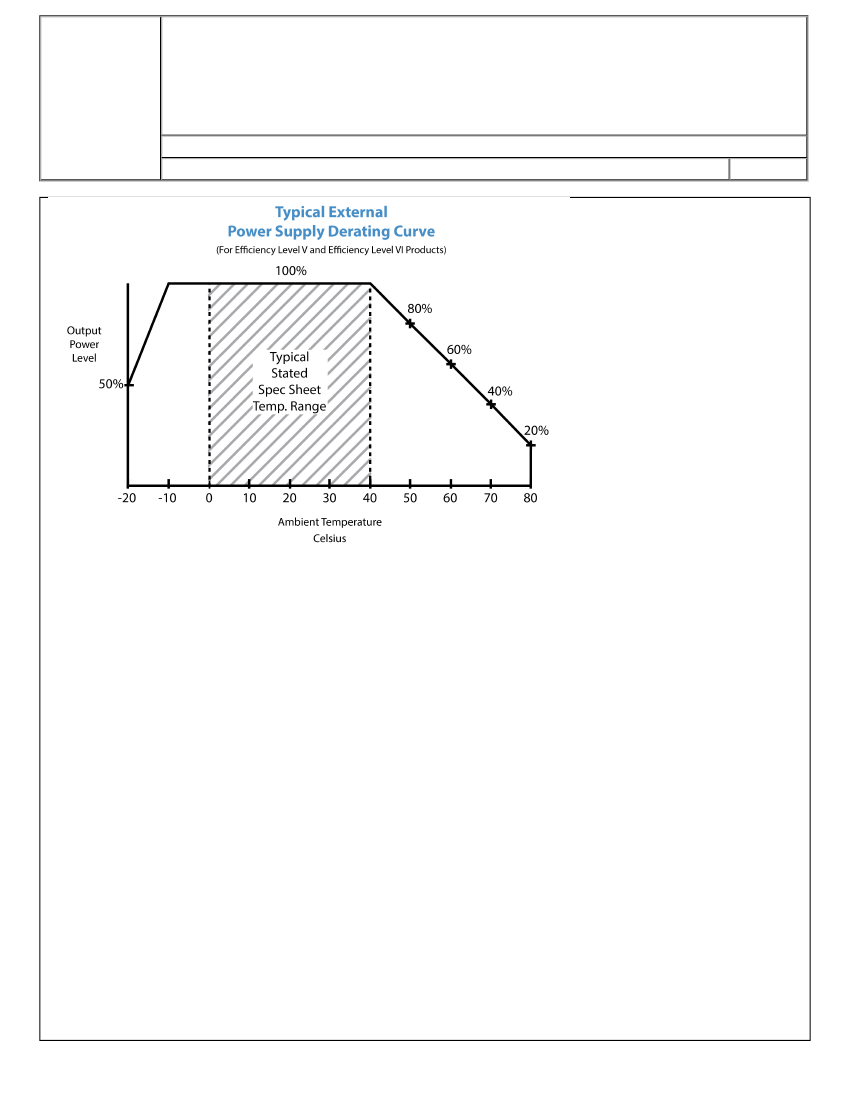

2. Operating Temperature: 0°C to 40°C ambient temperature

3. Humidity: 0% to 95% relative humidity

4. Storage Temperature: -40°C to 80°C

E) ENCLOSURE

1. Housing: High impact plastic, 94V0 polycarbonate, non-vented

2. Markings: Label and/or Pad Printed and/or Molded in the case

PROPRIETARY INFORMATION

PROPRIETARY OF GLOBTEK, INC. ANY REPRODUCTION, DISCLOSURE OR USE OF THIS DRAWING, IN WHOLE OR IN PART, IS HEREBY PROHIBITED EXCEPT AS SPECIFIED IN

WRITING BY GLOBTEK, INC.

guest /10/27/2018 10:46:52 AM

Page 3 of 13
