Current transducers - MCR-S-1-5-UI-DCI-NC - 2814715
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
MCR current transducer, programmable and configurable, for measuring direct, alternating and distorted
currents, input current 0...0.2 to 0...11 A, unconfigured
Why buy this product
True r.m.s. value measurement
Device can be set via DIP switches or MCR/PI-CONF-WIN configuration software
3-way isolation
Key Commercial Data
Packing unit
GTIN
GTIN
4017918169275
1 pc
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
22.5 mm
99 mm
114.5 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Maximum altitude
-20 °C ... 60 °C
-40 °C ... 85 °C
< 2000 m
Input data
Input
Current measuring input
10/04/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/2814715
Current transducers - MCR-S-1-5-UI-DCI-NC - 2814715
Technical data
Input data
Number of inputs
Configurable/programmable
Input current range
Operate threshold
Setting range for min. input current
Setting range for max. input current
Impulse form
Overload capacity
Surge strength
Frequency measuring range
Connection method
3
Yes, unconfigured
0 A ... 11 A (AC/DC)
2 % (of measuring range nominal value 1/5/10 A)
0 A ... 200 mA
0 A ... 11 A
AC, DC or distorted currents
2 x I
N (
continuous)
20 x I
N
(1 s)
15 Hz ... 400 Hz
Screw connection
Output data
Output name
Configurable/programmable
Voltage output signal
Voltage output / current output
Yes, unconfigured
0 V ... 10 V
2 V ... 10 V
-10 V ... 10 V
0 V ... 5 V
1 V ... 5 V
-5 V ... 5 V
10 V ... 0 V
10 V ... 2 V
10 V ... -10 V
5 V ... 0 V
5 V ... 1 V
5 V ... -5 V
Current output signal
0 mA ... 20 mA
4 mA ... 20 mA
20 mA ... 0 mA
20 mA ... 4 mA
Load/output load voltage output
Load/output load current output
> 10 kΩ
< 500 Ω
Switching output
Output name
No switching output
Power supply
Supply voltage range
Max. current consumption
20 V DC ... 30 V DC
< 40 mA (without load)
Connection data
Connection method
Screw connection
10/04/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/2814715
Current transducers - MCR-S-1-5-UI-DCI-NC - 2814715
Technical data
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Stripping length
Screw thread
0.2 mm²
2.5 mm²
24
14
0.2 mm²
2.5 mm²
8 mm
M3
General
Maximum transmission error
Temperature coefficient, typical
Step response (10-90%)
Status display
Overvoltage category
Degree of pollution
Rated insulation voltage
Test voltage input/output
Test voltage input/power supply
Test voltage output/power supply
Electromagnetic compatibility
Noise emission
Noise immunity
Color
Housing material
Mounting position
Conformance
UL, USA/Canada
< 0.5 % (of nominal range value under nominal conditions)
< 0.025 %/K
330 ms (with AC)
40 ms (with DC)
Green LED
III
2
300 V AC (to earth)
4 kV (50 Hz, 1 min.)
4 kV (50 Hz, 1 min.)
500 V (50 Hz, 1 min.)
Conformance with EMC directive
EN 61000-6-4
EN 61000-6-2
green
Polyamide PA non-reinforced
any
CE-compliant
Class I, Zone 2, AEx nA nC IIC T4, Ex nA nC IIC T4 Gc X
Class I, Div. 2, Groups A, B, C and D or Non-Hazardous Locations Only
Standards and Regulations
Electromagnetic compatibility
Noise emission
Noise immunity
Connection in acc. with standard
Low Voltage Directive
Conformance
UL, USA/Canada
Conformance with EMC directive
EN 61000-6-4
EN 61000-6-2
CUL
Conformance with Low Voltage Directive
CE-compliant
Class I, Zone 2, AEx nA nC IIC T4, Ex nA nC IIC T4 Gc X
Class I, Div. 2, Groups A, B, C and D or Non-Hazardous Locations Only
Environmental Product Compliance
10/04/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/2814715
Current transducers - MCR-S-1-5-UI-DCI-NC - 2814715
Technical data
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

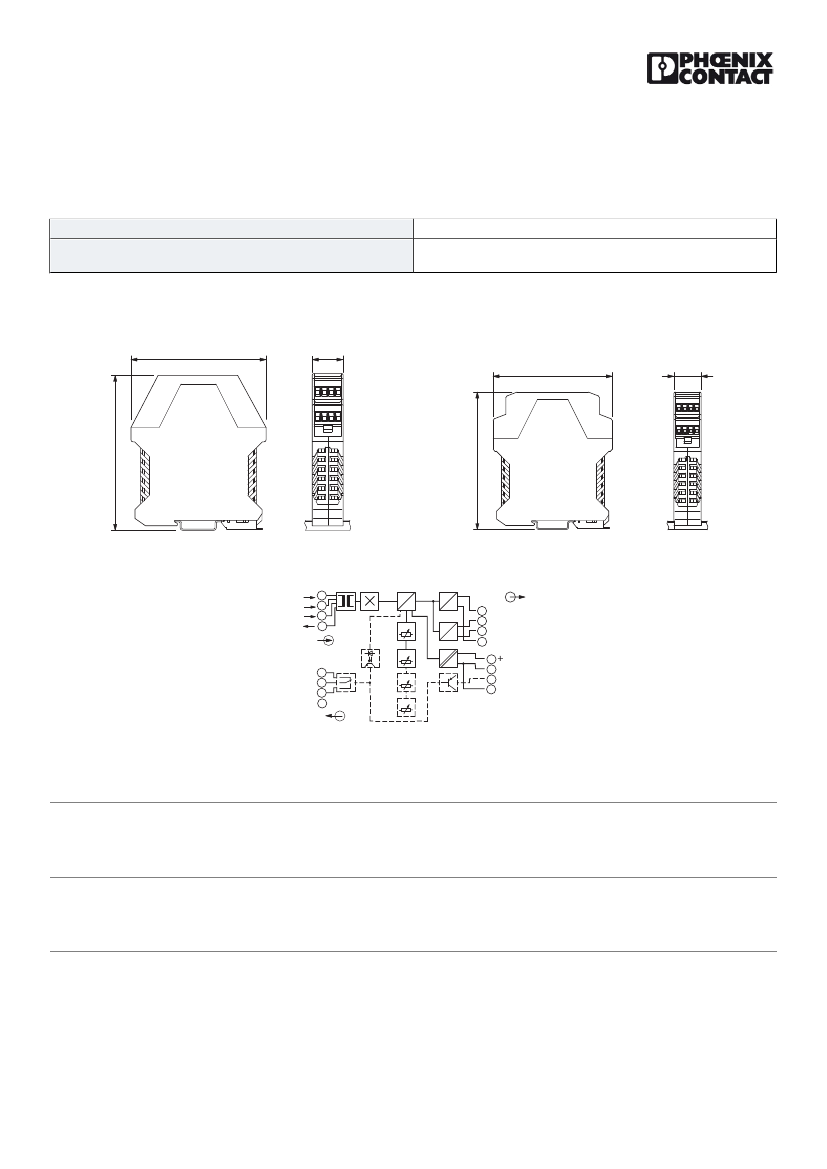

Drawings
Dimensional drawing
99
22,5
Dimensional drawing
99
22,5
114,5
Circuit diagram
10A
5A
1A
5
6
7
8
ADC
DAC
114,5
OUT
I
DAC
µC
SPAN
9
O UT I
10
O UT U
11
GND 2
12
GND 2
13
24VDC
14
GND 1
15
SW
16
GND 1
IN
U
Po
wer
SET
TIME POINT ZERO
=
12
1
11
2
14
3
NC
4
OUT
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
UL Listed / cUL Listed / cULus Listed
Approval details
10/04/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/2814715
Current transducers - MCR-S-1-5-UI-DCI-NC - 2814715
Approvals
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 238705
cUL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 238705
EAC
EAC-Zulassung
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/04/2018 Page 5 / 5
