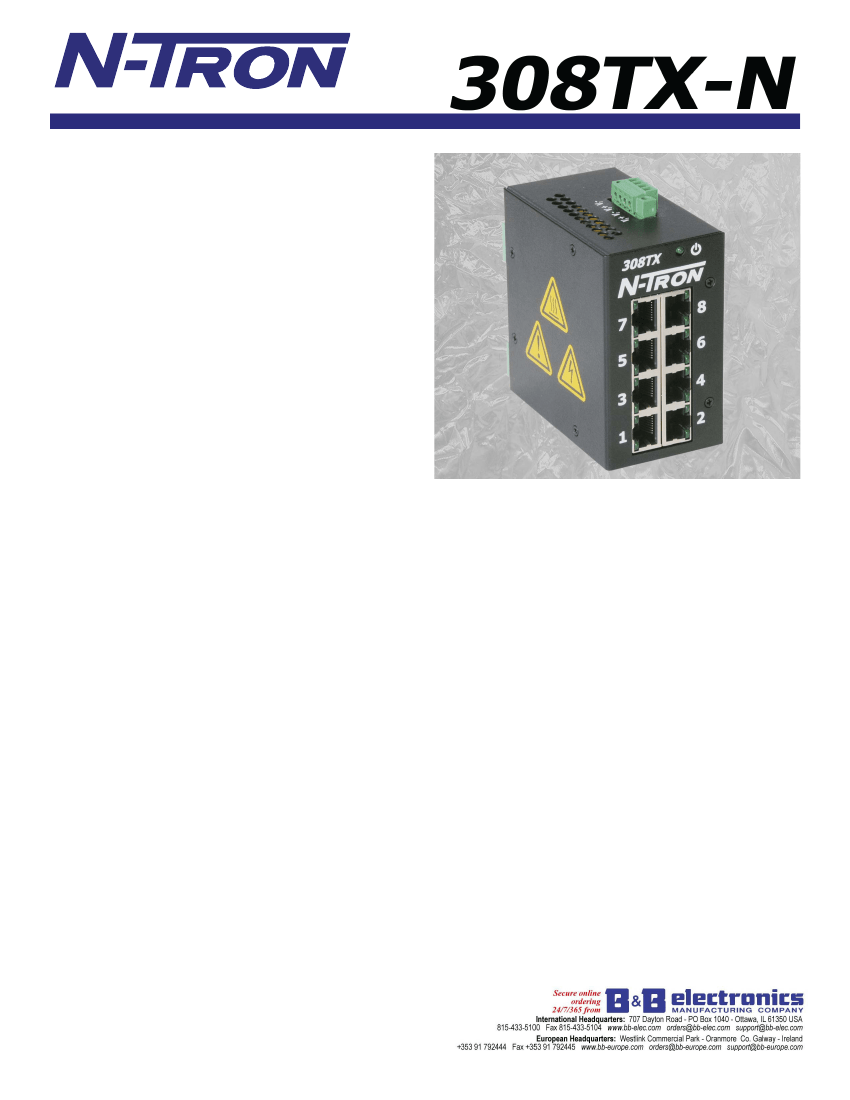

N-TRON
®
308TX
is an unmanaged four port Industrial
Ethernet Switch. It is housed in a ruggedized
DIN-RAIL enclosure, and is designed for use in industrial
data acquisition, control, and Ethernet I/O applications.
PRODUCT FEATURES
•
•
•
•
•
•
•
•
•
•
•
Compact Size, Small Footprint
Full IEEE 802.3 and 1613 Compliance
NEMA TS1/TS2 Compliance
American Bureau of Shipping (ABS) Type Approval
Extended Environmental Specifications
Eight 10/100 BaseTX RJ-45 Ports
Supports Full/Half Duplex Operation
LED Link/Activity Status Indication
Store-and-forward Technology
Auto Senses Speed and Flow Control
MDIX Auto Cable Sensing (RJ-45)
• Up to 1.0 Gb/s Maximum Throughput
• Rugged Industrial DIN-RAIL Enclosure
• Redundant Power Inputs (10-30 VDC)
• N-View™ OPC Switch Monitoring Option
PRODUCT OVERVIEW
The
308TX
Industrial Network Switch is designed to meet
and exceed the most demanding industrial communication
requirements while providing high throughput and minimum
downtime.
The
308TX
provides eight RJ-45 auto sensing 10/100BaseTX
ports. All ports are full/half duplex capable, using "state
of the art" Ethernet switching technology. The
304TX
auto-negotiates the speed and flow control capabilities of the
TX copper port connection, and configures itself automatically.
The
308TX
is auto sensing, so there will be no need to make
extensive wiring changes if upgrades are made to host
computers, plant systems, or Ethernet I/O modules. The
switching fabric simply scales up or down automatically to
match network environments.
The
308TX
supports up to 4,000 MAC addresses, enabling
these products to support extremely sophisticated and
complex network architectures.
The
308TX
is an ideal candidate for upgrading existing hubs
and repeaters to increase bandwidth and determinism by vir-
tually eliminating network collisions. The product provides
a cost effective solution while maintaining the plug & play
simplicity of an unmanaged hub.
The
308TX
simplifies plant wiring by eliminating the
need to bring data acquisition and control network
connections back to a climate controlled environment. The
308TX
has extended operating environmental specifications to
meet the harsh needs of the industrial environment. For cost
savings and convenience the network switch can be DIN-RAIL
mounted alongside Ethernet I/O or other Industrial Equipment.
The unique compact size provides a small footprint,
conserving space in the most critical dimension.
The
308TX
can also be panel mounted if desired.
To increase reliability, the
308TX
contains redundant
power inputs. LED's are provided to display power on/off
status as well as the link status and activity of each port.
N-VIEW OPC PORT MONITORING (With -N Option Only)
The
N-TRON
N-View OLE for Process Control (OPC)
Server Software can be combined with popular HMI software
packages to add network traffic monitoring, trending and alarm-
ing to any application using
N-TRON
switches configured with
the N-View option.
N-TRON's
N-View OPC Server collects 41
different traffic variables per port and 5 system level variables
per switch. This information can provide a complete overview
of the network load, service quality, and packet traffic. OPC
client software can use N-View OPC Server data to resolve
network problems quickly and improve system reliability.
THE INDUSTRIAL NETWORK COMPANY
308TX SPECIFICATIONS

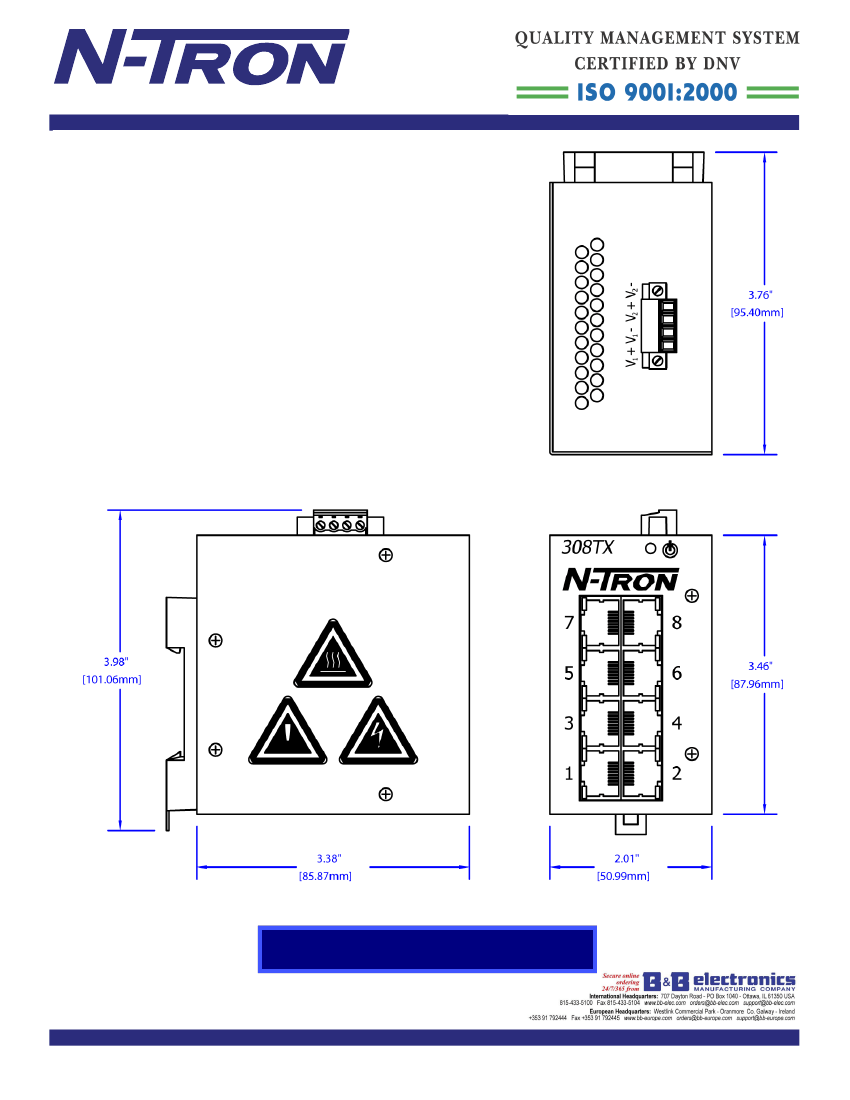

Case Dimensions
Height:
Width:
Depth:
Weight:
3.5"
2.0"
3.4"
0.75 lbs
(8.8 cm)
(5.1 cm)
(8.6 cm)
(0.34 kg)
BENEFITS
Industrial Network Switch
•
•
•
•
•
•
Compact Size, Small Footprint
High Reliability/Availability
Extended Environmental Specifications
Ruggedized DIN-RAIL Enclosure
High Performance
High MTBF >2M Hours (measured)
Electrical
Input Voltage:
Input Current:
Inrush:
10-30 VDC
250 mA@24V
9.0Amp/0.5ms@24V
-20
o
C to 70
o
C
-40
o
C to 85
o
C
10% to 95%
(Non Condensing)
0 to 10,000 ft.
200g @ 10ms
50g, 5-200Hz, Triaxial
>Cat3 Cable
>Cat5 Cable
Ease of Use
•
•
•
•
•
Plug & Play Operation
Eight Auto Sensing 10/100BaseTX RJ-45 Ports
Auto Sensing Duplex, Speed, and Cable Type
Unmanaged Operation
Compact DIN-RAIL Package
Environmental
Operating Temperature:
Storage Temperature:
Operating Humidity:
Operating Altitude:
Shock:
Vibration/Seismic:
Increased Performance
•
•
•
•
•
Full Wire Speed Capable
Full Duplex Capable
Eliminates Network Collisions
Increases Network Determinism
N-View Switch Viewing Option
Shock and Vibration (bulkhead mounting)
Network Media
10BaseT:
100BaseTX:
Connectors
10/100BaseTX:
Eight (8) RJ-45 TX Ports
Recommended Wiring Clearance
Front:
Top:
4" (10.16 cm)
1" (2.54 cm)
Ordering Information
308TX
308TX-N
Eight 10/100BaseTX Ports
with N-View Firmware Option
Regulatory Approvals
FCC Part 15 Class A
UL Listed 1604 (US and Canada)
CLASS I, DIV 2, GROUPS A,B,C,D,T4A;
CE:EN61000-6-2,4
EN61000-4-2,3,4,5,6;
EN55011
ABS Type Approval for Shipboard Applications
GOST-R Certified
RoHS Compliant
Contact Information
N-TRON
Corp.
820 S. University Blvd., Suite 4E
Mobile, AL36609USA
TEL: (251) 342-2164
FAX: (251) 342-6353
Website: www.n-tron.com
Email: N-TRON_info@n-tron.com
N-TRON
Europe GmbH
Alte Steinhauserstr 19
6330 Cham / Zg Switzerland
TEL: +41 41 7406636
FAX: +41 41 7406637
REV 090804
® 2009
N-TRON
, Corp.
, N-TRON
and the
N-TRON
logo are trademarks of
N-TRON
, Corp. Product names mentioned herein are for identification purposes only and
may be trademarks and/or registered trademarks of their respective company. Specifications subject to change without notice.
The responsibility for the use and application
of
N-TRON
products rests with the end user.
N-TRON
makes no warranties as to the
fi
tness or suitability of any
N-TRON
product for any specific application.
N-TRON
Corporation
shall not be liable for any damage resulting from the installation, use, or misuse of this product.
Printed in USA.
