1569-24-1-0500-002-1-TS datasheet, PDF

Datasheet> All Categories > Wire/cable> 1569-24-1-0500-002-1-TS

1569-24-1-0500-002-1-TS: DescriptionHOOK-UP STRND 24AWG 300V WHT 50'; CategoryWire/cable; File Size212KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

1569-24-1-0500-002-1-TS Overview

HOOK-UP STRND 24AWG 300V WHT 50'

1569-24-1-0500-002-1-TS Parametric

Parameter Name	Attribute value
Cable type	electronic wire
Wire gauge	24 AWG
Number of wire strands	11/0.0063"
conductor material	Copper, tin plated
Sheath (insulation) material	Polyvinyl chloride (PVC)
Sheath (insulation) diameter	0.057"（1.45mm）
Sheath (insulation) thickness	0.015"（0.38mm）
length	50.00'（15.24m）
Voltage	300V
Operating temperature	-10°C ~ 105°C
Casing color	White
grade	UL Type 1569
characteristic	Oil resistant

Preview

Download Datasheet

View All

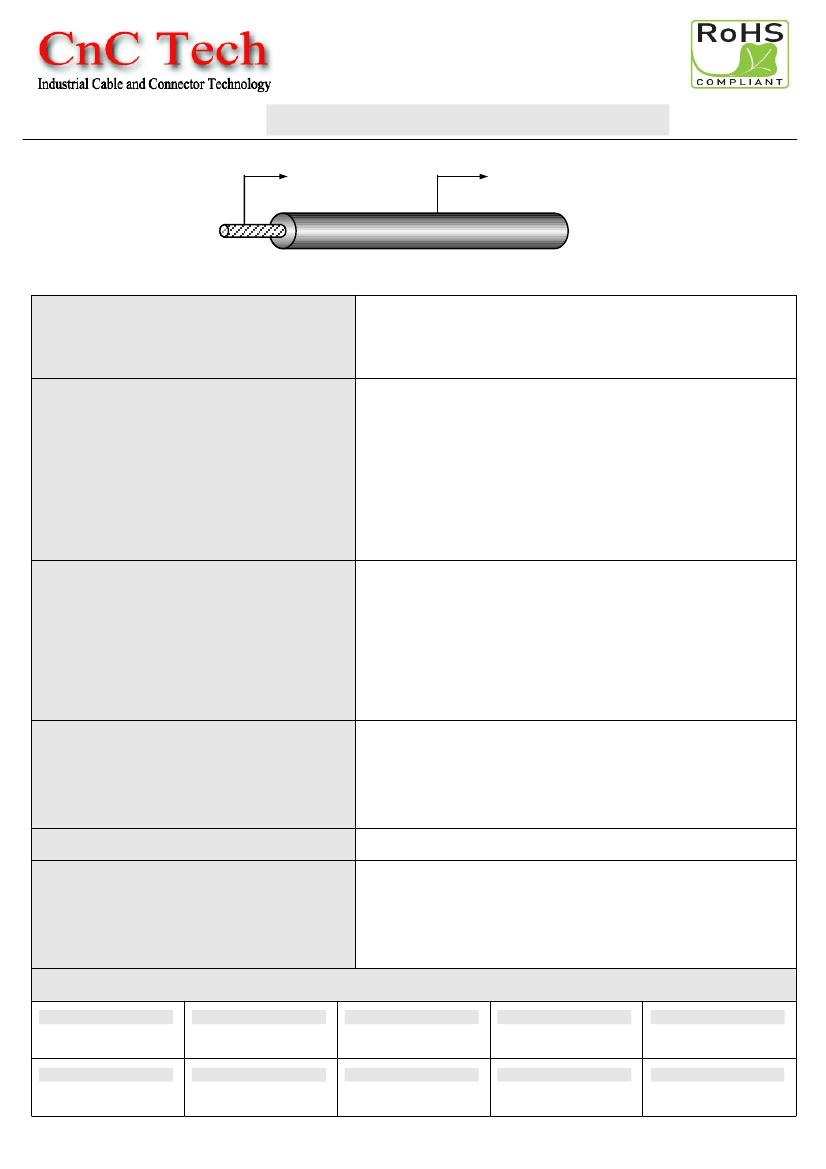

P/N 1569-24-1-0500-0XX-1-TS

Conductor:

strands)

(Conductor: Tinned

Tinned Strands

Insulation: PVC

(Insulation: Silicone Rubber)

UL1569 PVC Wire 105°C 300V (24AWG)

Tinned Strands, copper conductor, 11/0.160mm strands.

CONSTRUCTION:

Overall Diameter=1.45+/-0.10mm

Insulation Thickness: 0.38mm

DUAL-RATED AWM: Can be used in USA and Canada

UL Subject 758 UL FILE NO:E108485

CSA Standard CSA FILE NO:LL84687

Printed Markings:

AWG 1569 VW-1 105°C 300V

E108485-S ( )AWG

REI HSING

CSA AWM I A 105° 300V LL84687 ()AWG FT1 -F- LF

CERTIFICATION & APPROVALS:

PHYSICAL

ELECTRICAL PROPERTIES:

Rated Temperature: 105

℃

~ -10

℃

Rated Voltage: 300V

Insulation Potential Strength: 2000 VAC/min.

Flexibility: PVC Insulation

Maximum Conductor Resistance: 88.6 ohm/km

Resistant to: Oil, hot & cold, lighter, flexing.

APPLICATIONS:

PVC Wire, pass VW-1 flame test

Suitable for electric cookers, hair dryers, internal transformer coils,

air-conditioners, lights fixture, electric ovens etc.

PACKAGING:

ENVIRONMENTAL APPROVALS:

500ft per reel.

Conforms to all current RoHS directives as laid out in EU

Directive 2011/65/EC.

Current SGS reports for this wire are available upon

request.

P/N's & COLORS

1569-24-1-0500-001-1-TS

1569-24-1-0500-002-1-TS

1569-24-1-0500-003-1-TS

1569-24-1-0500-004-1-TS

1569-24-1-0500-005-1-TS

BLACK

1569-24-1-0500-006-1-TS

WHITE

1569-24-1-0500-007-1-TS

YELLOW

1569-24-1-0500-008-1-TS

RED

1569-24-1-0500-010-1-TS

BLUE

1569-24-1-0500-011-1-TS

BROWN

GREEN

ORANGE

VIOLET

GREEN + YELLOW

1569-24-1-0500-002-1-TS Related Products

	1569-24-1-0500-002-1-TS	1569-24-1-0500-004-1-TS	1569-24-1-0500-010-1-TS	1569-24-1-0500-011-1-TS	1569-24-1-0500-005-1-TS	1569-24-1-0500-003-1-TS	1569-24-1-0500-006-1-TS	1569-24-1-0500-007-1-TS	1569-24-1-0500-008-1-TS	1569-24-1-0500-001-1-TS
Description	HOOK-UP STRND 24AWG 300V WHT 50'	HOOK-UP STRND 24AWG 300V RED 50'	HOOK-UP STRND 24AWG VIOLET 50'	HOOK-UP STRND 24AWG GRN/YEL 50'	HOOK-UP STRND 24AWG 300V BLU 50'	HOOK-UP STRND 24AWG 300V YEL 50'	HOOK-UP STRND 24AWG 300V BRN 50'	HOOK-UP STRND 24AWG 300V GRN 50'	HOOK-UP STRND 24AWG 300V ORG 50'	HOOK-UP STRND 24AWG BLACK 500'
Cable type	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire
Wire gauge	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG
Number of wire strands	11/0.0063"	11/0.0063"	11/0.0063"	11/0.0063"	11/0.0063"	11/0.0063"	11/0.0063"	11/0.0063"	11/0.0063"	11/0.0063"
conductor material	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated
Sheath (insulation) material	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)
Sheath (insulation) diameter	0.057"（1.45mm）	0.057"（1.45mm）	0.057"（1.45mm）	0.057"（1.45mm）	0.057"（1.45mm）	0.057"（1.45mm）	0.057"（1.45mm）	0.057"（1.45mm）	0.057"（1.45mm）	0.057"（1.45mm）
Sheath (insulation) thickness	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）	0.015"（0.38mm）
length	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	50.00'（15.24m）	500.0'（152.4m）
Voltage	300V	300V	300V	300V	300V	300V	300V	300V	300V	300V
Operating temperature	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C	-10°C ~ 105°C
Casing color	White	red	Purple	green,yellow	blue	yellow	brown	green	orange color	black
grade	UL Type 1569	UL Type 1569	UL Type 1569	UL Type 1569	UL Type 1569	UL Type 1569	UL Type 1569	UL Type 1569	UL Type 1569	UL Type 1569
characteristic	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant	Oil resistant
