0397050005 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0397050005

0397050005: DescriptionTERM BLOCK PLUG 5POS STR 7.62MM; CategoryThe connector; File Size129KB，1 Pages; ManufacturerMolex Premise Network

Download Datasheet Parametric View All

0397050005 Overview

TERM BLOCK PLUG 5POS STR 7.62MM

0397050005 Parametric

Parameter Name	Attribute value
type	plug, female socket
Number of pins	5
Number of pins per level	5
Number of levels	1
spacing	0.300"（7.62mm）
Needle seat direction	-
Plug entrance	180°
Terminal type	screws
Installation type	free hanging
Current - IEC	-
Current - UL	10A
Voltage - UL	300V
Wire Gauge or Range - AWG	12-30 AWG
Wire gauge or range - mm²	-
color	green
Operating temperature	-40°C ~ 105°C
Contact mating surface treatment	tin
characteristic	mating flange
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	M2.5
Torque - Screws	0.56 Nm (5.0 Lb-In)
Wire stripping length	5mm
Contact material	copper alloy
Shell material	Polyamide (PA66), Nylon 6/6
Contact tail length	-
Insulation height	0.591"（15.00mm）

Preview

Download Datasheet

View All

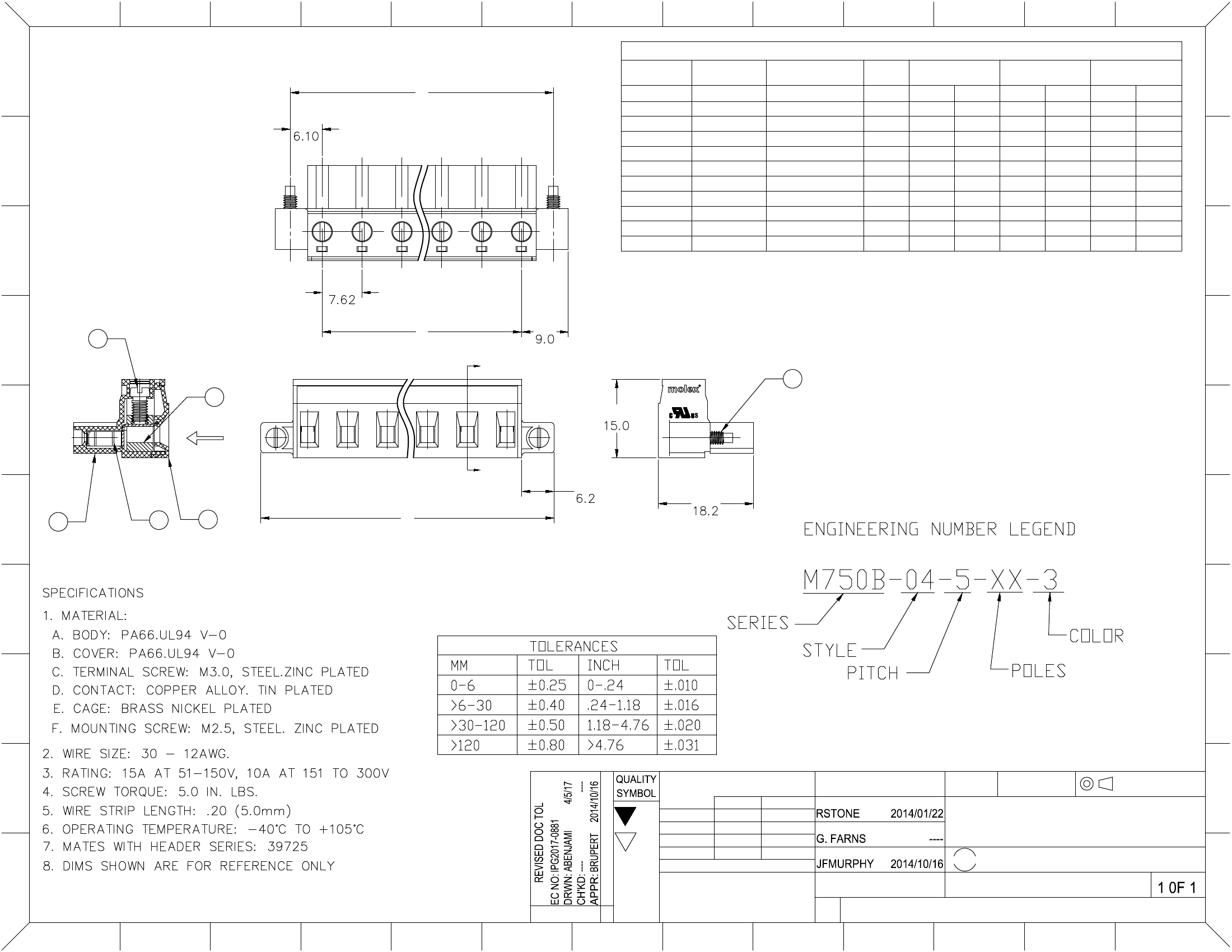

PART NUMBER DATA

CIRCUITS

.240

PART

NUMBER

397050002

397050003

397050004

397050005

397050006

397050007

397050008

397050009

397050010

397050011

397050012

ENGINEERING

NUMBER

M750B-04-5-02-3

M750B-04-5-03-3

M750B-04-5-04-3

M750B-04-5-05-3

M750B-04-5-06-3

M750B-04-5-07-3

M750B-04-5-08-3

M750B-04-5-09-3

M750B-04-5-10-3

M750B-04-5-11-3

M750B-04-5-12-3

COLOR

GREEN

A IN mm

1.01

1.31

1.61

1.91

2.21

2.50

2.80

3.10

3.40

3.70

4.00

25.5

33.2

40.8

48.4

56.0

63.6

71.2

78.9

86.5

94.1

101.7

B IN mm

.300

.600

.900

1.200

1.500

1.799

2.099

2.399

2.699

2.999

3.299

7.62

15.23

22.85

30.47

38.09

45.70

53.32

60.94

68.56

76.17

83.79

C IN mm

.780

1.080

1.380

1.680

1.980

2.279

2.579

2.879

3.179

3.479

3.779

19.81

27.43

35.04

42.66

50.28

57.90

65.51

73.13

80.75

88.37

95.98

.300

.35

REF. LAST 2 DIGITS OF PART NUMBER EQUALS NUMBER OF POLES

M750B

.59

WIRE ENTRY

.24

.72

CONTACT FACTORY FOR OPTIONAL COLORS

DESCRIPTION

GENERAL TOLERANCES

(UNLESS SPECIFIED)

DIMENSION STYLE

SCALE

DESIGN UNITS

IN/MM

DRAWN BY

DATE

TITLE

CHECKED BY

DATE

---

METRIC

THIRD ANGLE

PROJECTION

4 PLACES

3 PLACES

2 PLACES

1 PLACE

---

INCH

---

APPROVED BY

DATE

molex

7.62MM EURO PLUG

RIGHT ANGLE

WITH MOUNTING ENDS

MOLEX INCORPORATED

SHEET NO.

REV

DRAFT WHERE

APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

MATERIAL NO.

DOCUMENT NO.

SEE CHART

SIZE

SD-39705-001

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
