SY10EPT20VKG: DescriptionTTL/CMOS TO PECL TRANSLATOR, COMPLEMENTARY OUTPUT, PDSO8; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size110KB，6 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance; Related ProductsFound20parts with similar functions to SY10EPT20VKG

Download Datasheet Parametric View All

SY10EPT20VKG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SY10EPT20VKG	-	-	View	Buy Now

SY10EPT20VKG Overview

TTL/CMOS TO PECL TRANSLATOR, COMPLEMENTARY OUTPUT, PDSO8

SY10EPT20VKG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Microchip
package instruction	TSSOP,
Reach Compliance Code	compli
ECCN code	EAR99
maximum delay	0.6 ns
Interface integrated circuit type	TTL/CMOS TO PECL TRANSLATOR
JESD-30 code	S-PDSO-G8
JESD-609 code	e4
length	3 mm
Humidity sensitivity level	1
Number of digits	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output latch or register	NONE
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	SQUARE
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	NICKEL PALLADIUM GOLD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	3 mm

Preview

Download Datasheet

View All

Micrel, Inc.

5V/3.3V

LVTTL/LVCMOS-to-DIFFERENTIAL

LVPECL TRANSLATOR

SY10EPT20V

SY100EPT20V

ECL Pro™

SY10EPT20V

ECL Pro™

SY100EPT20V

FEATURES

3.3V and 5V power supply options

300ps typical propagation delay

Differential LVPECL output

Max 20mA

PNP LVTTL input for minimal loading

ECL Pro™

DESCRIPTION

The SY10/100EPT20V is a TTL/CMOS to differential

PECL translator. Capable of running from a 3.3 or 5V

supply, the part can be used in either LVTTL/LVCMOS/

LVPECL or TTL/CMOS/PECL systems.

The device only requires a single positive supply of

3.3V or 5V - no negative supply is required.

The tiny 8-pin MSOP package and the low skew, dual

gate design of the EPT20V makes it ideal for those

applications where space, performance, and low power

are at a premium.

Q output will default HIGH with inputs open

High bandwidth to 800MHz typical

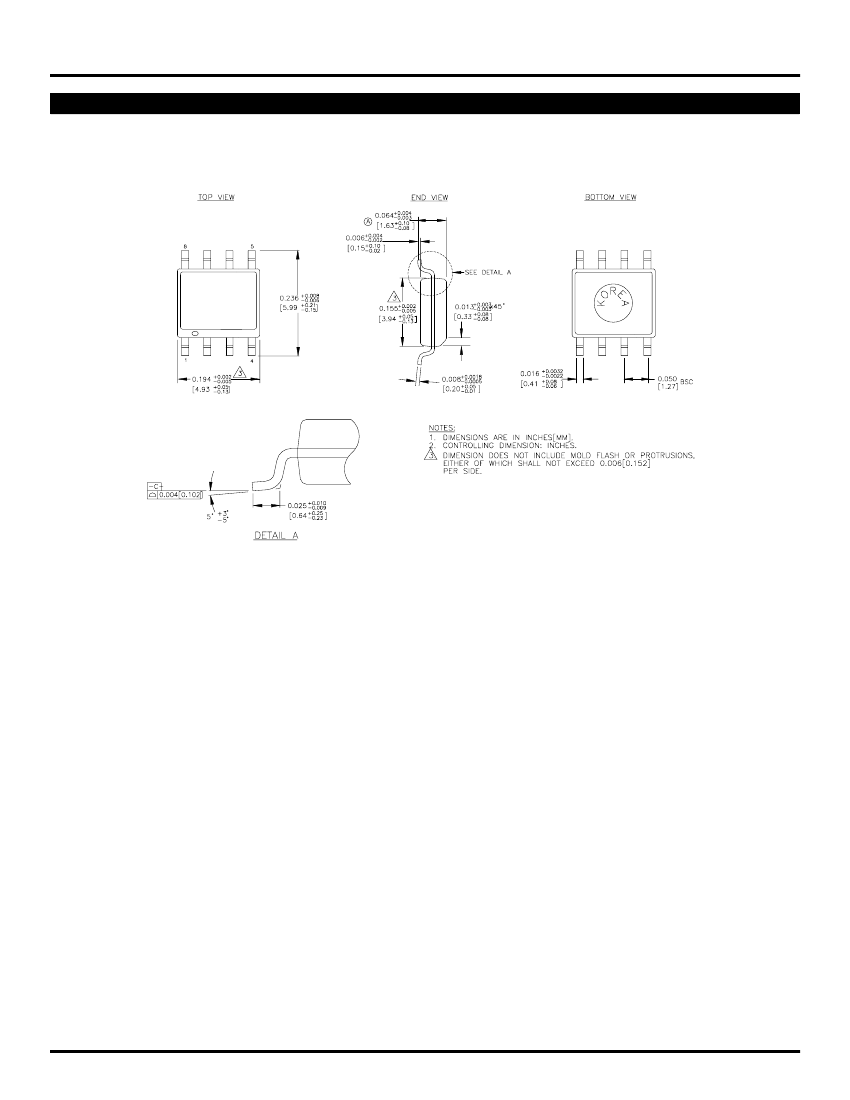

Available in 8-pin MSOP and SOIC package

PIN NAMES

Q, /Q

GND

Function

Differential LVPECL Output

LVTTL Input

Positive Supply

Ground

ECL Pro is a trademark of Micrel, Inc.

M9999-021910

hbwhelp@micrel.com or (408) 955-1690

Rev.: E

Amendment: /0

Issue Date: February 2010
