100-030-033: DescriptionBoard Euro Connector, 30 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size200KB，2 Pages; ManufacturerITW Switches; Environmental Compliance

Download Datasheet Parametric Compare View All

100-030-033 Overview

Board Euro Connector, 30 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal,

100-030-033 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	100
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30
Base Number Matches	1

Preview

Download Datasheet

View All

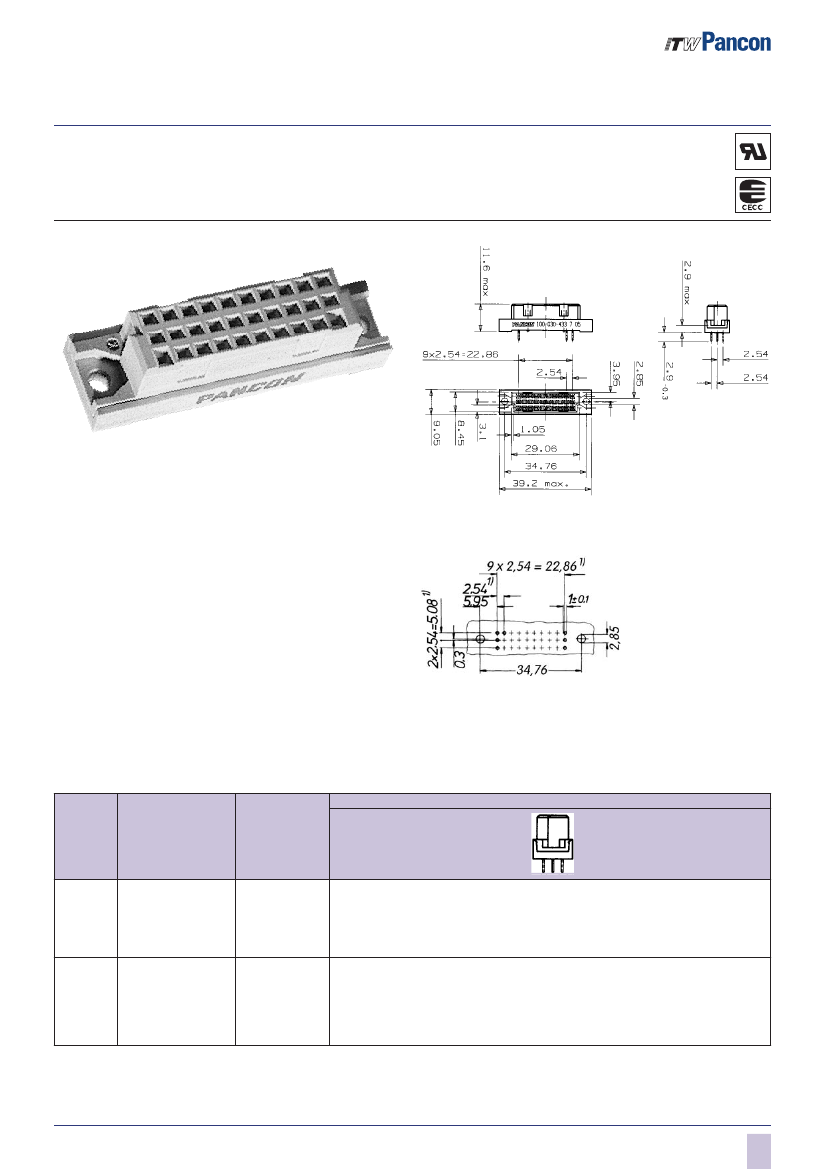

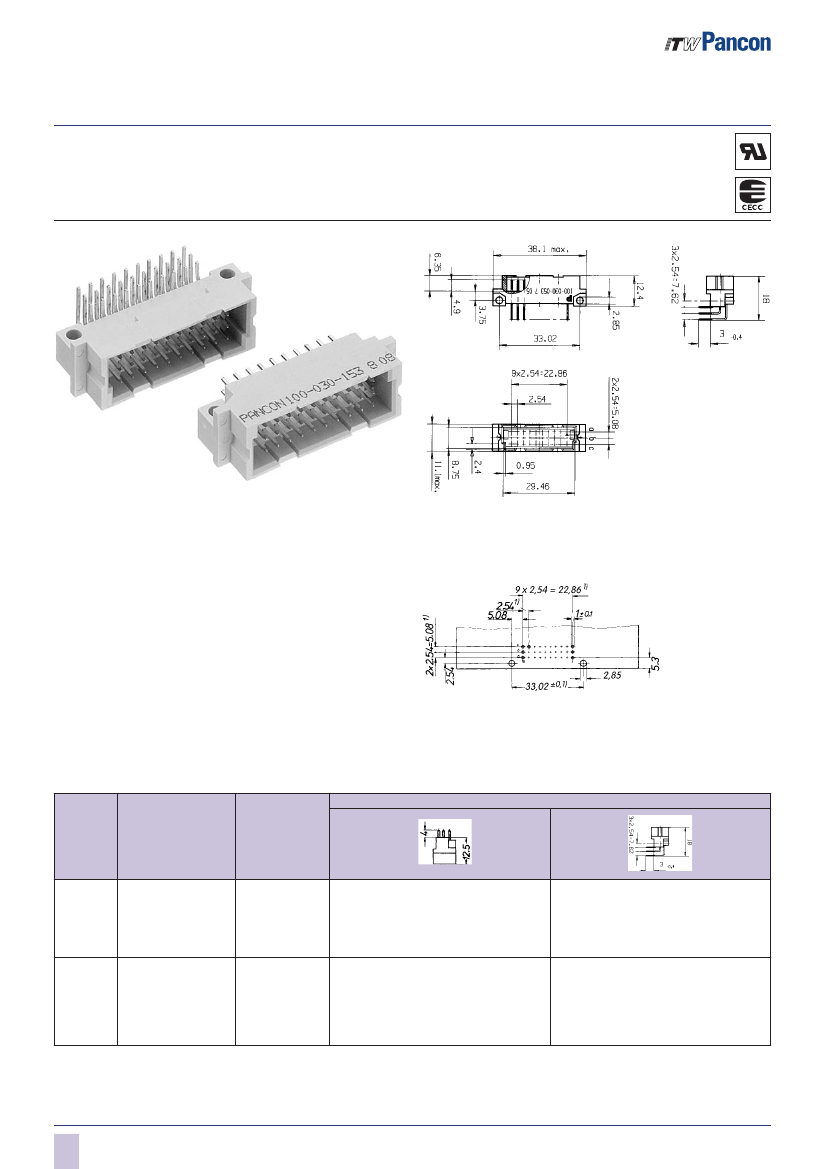

HI-CON

Bauform

⁄

C – Serie 100

Type

⁄

C – Series 100

20- und 30-polige Messerleisten

– dreireihig – mit Kodierung

20 and 30 contact male connectors

– three row – with polarization

Type

⁄

C – Série 100

Tipo

⁄

C – Serie 100

Connecteurs à 20 et 30 contacts mâles

– 3 rangées – avec détrompage

Connettori maschi a 20 o 30 contatti

– 3 file – con codifica

Lochbild /

Printed circuit layout

Perçage du circuit imprimé

Dima foratura del circuito stampato

Bestell-Nummern /

Part numbers

Références

Numeri di catalogo

Polzahl

No. of

contacts

Nombre

de contacts

Numero

poli

Bestückung

Contact

arrangement

Disposition

des contacts

Disposizione

dei contatti

Reihe a + c

Row a + c

Rangées a + c

Linee a + c

Voll bestückt

Fully equipped

Equipé entièrement

Equipaggiato

completamente

100-030-133

100-030-033

100-920-133

100-920-033

Anforderungsstufe

Performance

level

Niveau des

exigences de contrôle

Classe di

prestazione

Anschlußarten /

Termination methods

Raccordements

Tipo di terminazione

Hinweise siehe Ausklappseite

Notes see fold-out-page

Note voir la page dépliante

Note vedi pagina ripiegata

100-030-033 Related Products

	100-030-033	100-030-133	100-030-433	100-920-033	100-920-133	100-920-433
Description	Board Euro Connector, 30 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal,	Board Euro Connector, 30 Contact(s), 3 Row(s), Male, Straight, Solder Terminal,	Board Euro Connector, 30 Contact(s), 3 Row(s), Female, Straight, Solder Terminal,	Board Euro Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Euro Connector, 20 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,	Board Euro Connector, 20 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,
Reach Compliance Code	compli	compli	compli	compli	compli	compli
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	FEMALE	MALE	MALE	FEMALE
DIN compliance	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	30	30	30	20	20	20
Base Number Matches	1	1	1	1	1	1
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99
Manufacturer's serial number	100	100	100	100	100	-
