IEC/EN 60947-5-1, UL 508, IEC/EN 60073, IEC/EN 60529
PB 22S
PB 22B

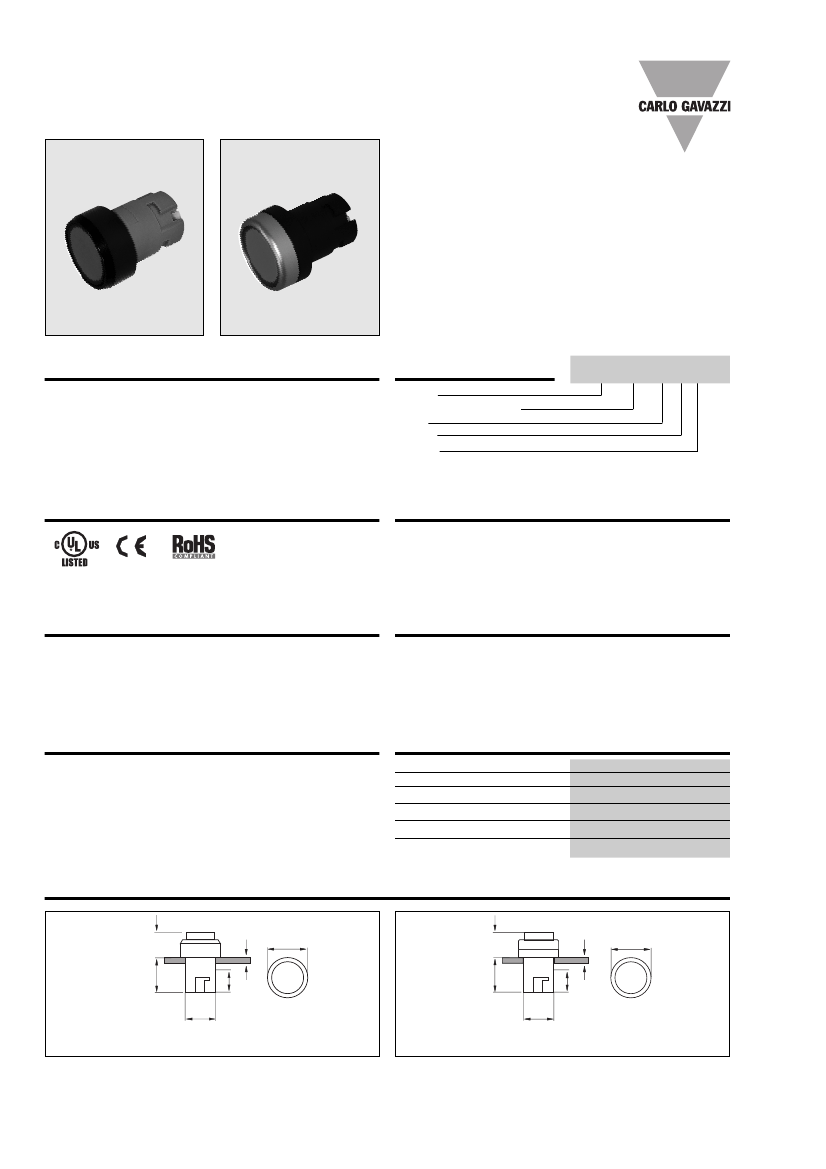

Product description
Pushbutton switches are
mechanical switches that are
pushed down to open or to
close the electric contacts.
They are mostly used to
start/stop electric circuits or
devices like lamps, motors,
etc.
They should be ordered in
parts (operator + holder +
contact block) and installed in
an enclosure.
Ordering key
Series
Dimension and Style
Type
Action
Colour
PB 22S IF 0 R
Approvals
Dimensions and styles
22S =
Ø22mm (Ø0.87”) Standard style
22B =
Ø22mm (Ø0.87”) Bezel style
3MHG
Types
F =
Flush round
IF =
Illuminated
1
flush round
1
Actions
0 =
Spring return
1 =
Maintained
= Light function is obtained by the lamp element pg.19
Colours
R =
Red
W =
Clear/White
K =
Black
B =
Blue
Y =
Yellow
G =
Green
General data
Peripheral of actuator
Actuator
Mechanical life
Operating temperature
Storage temperature
Degree of protection
mm/inches
AL
Pa
≥3
x 10
6
cycles
-25 to +70°C (-13 to +158°F)
-30 to +80°C (-22 to +176°F)
IP 65
Dimensions - Push Buttons
18/0.71”
7/0.27”
max
18/0.71”
Ø29/1.14”
24/0.94”
7/0.27”
max
Ø29/1.14”
24/0.94”
16/0.63”
Ø22/0.87”
“S” Style
Ø22/0.87”
16/0.63”
“B” Style
1
Specifications are subject to change without notice. Pictures are just an example. For special features and/or custumization, please ask to our sales network. 122011

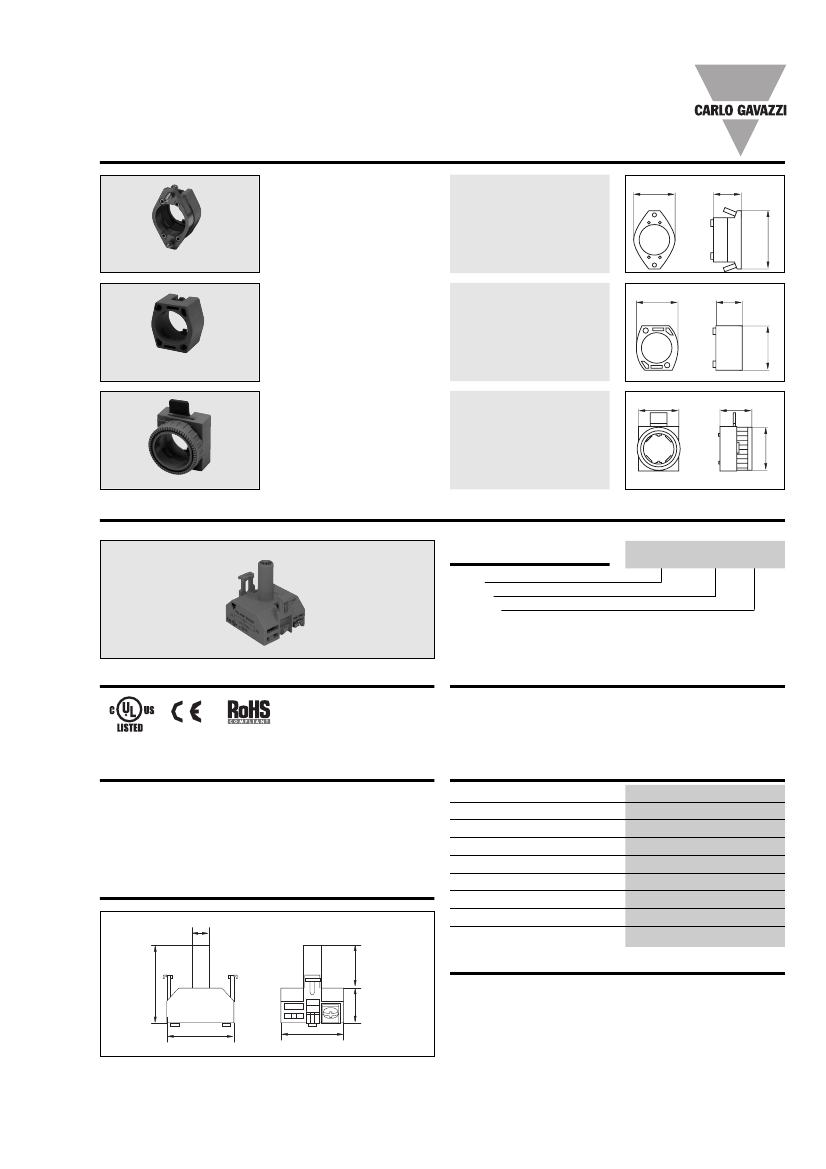

Holders
Holder type “M”
Code
Material
PB MB M
Zn + PBT
43/1.69”
30/1.18”
20/0.79”
29/1.14”
23/0.91”
42/1.65”
27/1.06”
20/0.79”
Holder type “P”
Code
Material
PB MB P
PBT
Holder type “N”
Code
Material
PB MB N
PC
Lamp Element
Ordering key
Type
Colour
Voltage
PALAMP R 220A
Approvals
Colours
R =
Red
W =
Clear/White
B =
Blue
Y =
Yellow
G =
Green
3MHG
Voltage
06
12
24
48
=
=
=
=
6VAC/DC
12VAC/DC
24VAC/DC
48VAC/DC
110
220D
220A
380A
=
=
=
=
110VAC/DC
220VDC
220VAC
380VAC
Technical data
Rated imp. withstand voltage U
imp
Rated insulation Voltage U
i
Allowable voltage fluctuation
Continuous operating life
Ultrahigh brightness
Applying frequency
Current consumption (AC/DC)
Operating temperature
Storage temperature
2500VAC 50Hz 1min.
500VAC
±20%
≥100.000h
≥100cd/m
2
(≥9.29ftc)
50-60Hz
≤18mA
-25 to +70°C (-13 to +158°F)
-30 to +80°C (-22 to +176°F)
Dimensions
mm/inches
8/0.31”
20/0.79”
36/1.42”
Wiring Notes
1) Use 60°C or 75°C copper (CU) conductor and wire size
range 18AWG, stranded or solid.
2) Terminal tightening torque 0.6Nm (5.3in.lb)
3) Recommended external fuse - listed or R/C fuses,
Supplemental (JDYX, JDYX2) rated 3A mmaximum.
31/1.22”
29/1.14”
16/0.63”
Specifications are subject to change without notice. Pictures are just an example. For special features and/or custumization, please ask to our sales network. 122011
31/1.22”
2
Panel Actuators and Indicators
Type PA2

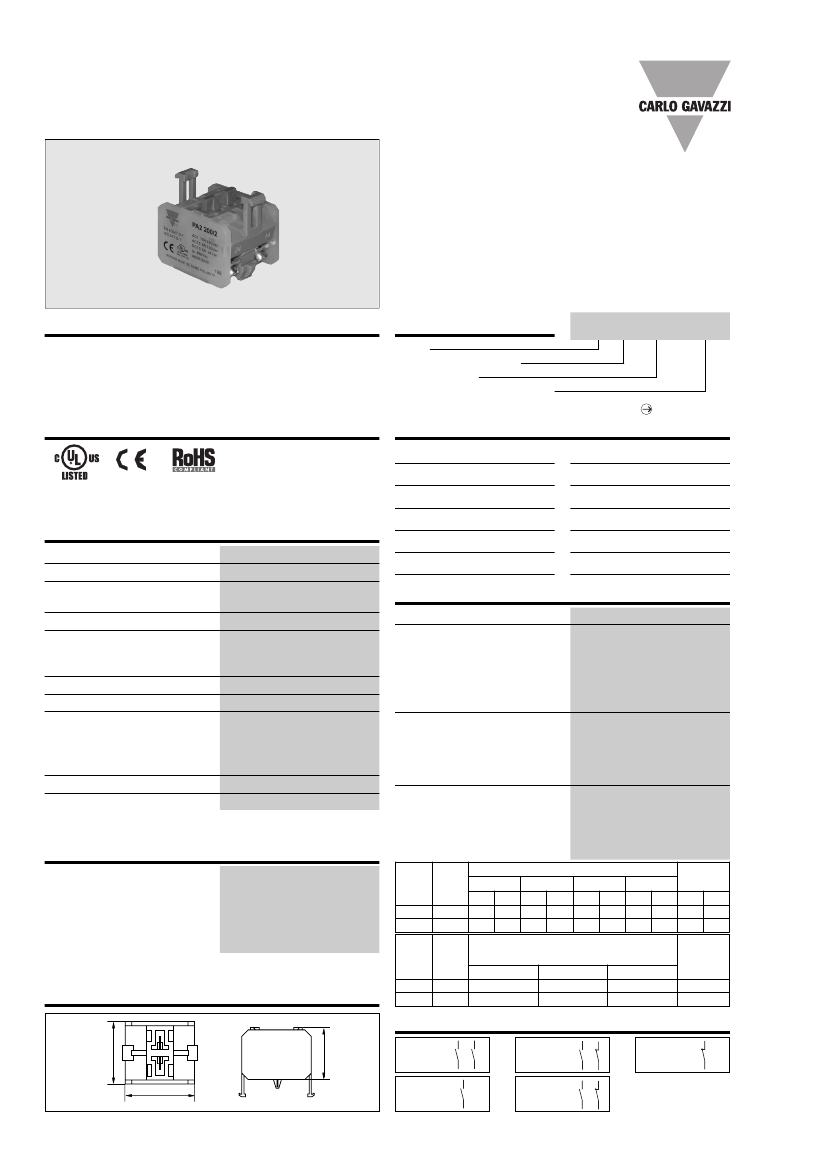

Contact Block
•
•
•
•
•
•
•
•
•
•
•
PA2110/1
High switching power
Double switch
Industrial applications
10A switching capacity
Up to 500VAC
Modular mounting (up to 3 elements)
Screw terminals
High reliability
cULus and CE
According to EN ISO 13850 (only NC slow action)
IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
Product description
Switching element equipped
with two independent elements.
Available in different switching
configurations. Pole and throw
configurations can be single
pole single throw (SPST) or
double pole single throw
(DPST).
Elements can be snapped to each
other on the bottom, up to 3.
Ordering key
PA 2 110 / 1
Type
Number of contacts
Contact code
Options ( 1 = Snap action
2 = Slow action
with forced opening
NC contact
)
Approvals
Contact code
Contact configuration
2 NO contacts (DPST)
Contact code
200
020
010
100
110
3MHG
2 NC contacts (DPST)
Technical data
Contact resistance
Travel
Rated insulation Voltage U
i
Rated imp. withstand voltage U
imp
Minimum switching power
Min Current
Min Voltage
Switch housing
Contact parts
Contact material
Standard
Optional
Optional for aggressive atmospheres
Operating temperature
Storage temperature
≤50mΩ
5.8 ± 0.2mm (2.28” ± 0.08”)
660VAC/DC
(acc. to IEC 60947-5-1)
600VAC/DC
(acc. to UL508)
2500VAC 50Hz 1min.
100mA
24V
PC
Cu
Hard silver
Gold/silver
Silver/palladium
-25 to +70°C (-13 to +158°F)
-30 to +80°C (-22 to +176°F)
1 NC contact (SPST)
1 NO contact (SPST)
1 NC + 1 NO contacts (DPST)
Contact characteristics
Contact Rating AC1
Contact Rating
(acc. to IEC 60947-5-1)
AC Contact Rating
(acc. to UL 508)
B600
(all snap codes)
A600
(all slow codes)
Terminals
Screw terminals
Max. section sigle-core wire
Max. section stranded wire
Copper conductor wire
Terminal tightening torque
2 x 2.5mm
2
(0.004sq.inch)
2 x 1.5mm
2
(0.002sq.inch)
14 AWG @ 60°C or 75°C
CU conductor
1.2Nm (10.6in.lb.)
DC Contact Rating
(acc. to UL 508)
Q600
(all snap codes)
Q600
(100, 200 slow codes)
Q300
(010, 020, 110 slow codes)
Thermal
continous test
current,
Amperes
Contact
rating code
designation
10A @ 250VAC
AC15
@ 24V
10A
@ 110V
8A
@ 220V
6A
@ 380V
4A
@ 500V
2.5A
A600
@ 120V
6A
@ 240V
3A
@ 480V
1.5A
@ 600V
1.2A
Q600
@ 125V
0.55A
@ 250V
0.27A
@ 480V
0.10A
@ 600V
0.10A
DC13
6A
1A
0.5A
-
-
B600
3A
1.5A
0.75A
0.6A
Q300
0.55A
0.27A
-
-
Maximum
volt-amperes
Make Break
7200 720
3600 360
Maximum
make or break
volt-amperes
@ 300V or
less
69
69
A600
B600
Contact rating
code
designation
10
5
Thermal
continous test
current,
Amperes
Maximum current, amperes (acc. to UL508)
120V
240V
480V
600V
Make Break Make Break Make Break Make Break
60 6.00 30 3.00 15
1.5
12
1.2
30 3.00 15 1.50 7.50 0.75
6
0.6
Maximum current, amperes (acc. to UL508)
125V
0.55
0.55
250V
0.27
0.27
301 to 600V
0.10
-
Dimensions
29/1.14”
mm/inches
Q600
Q300
2.5
2.5
Wiring diagram
24/0.94”
13
23
13
11
11
2NO
14
13
24
2NC
14
13
12
11
1NC
12
32/1.26”
1NO
14
1NO+1NC
14
12
3
Specifications are subject to change without notice. Pictures are just an example. For special features and/or custumization, please ask to our sales network. 122011

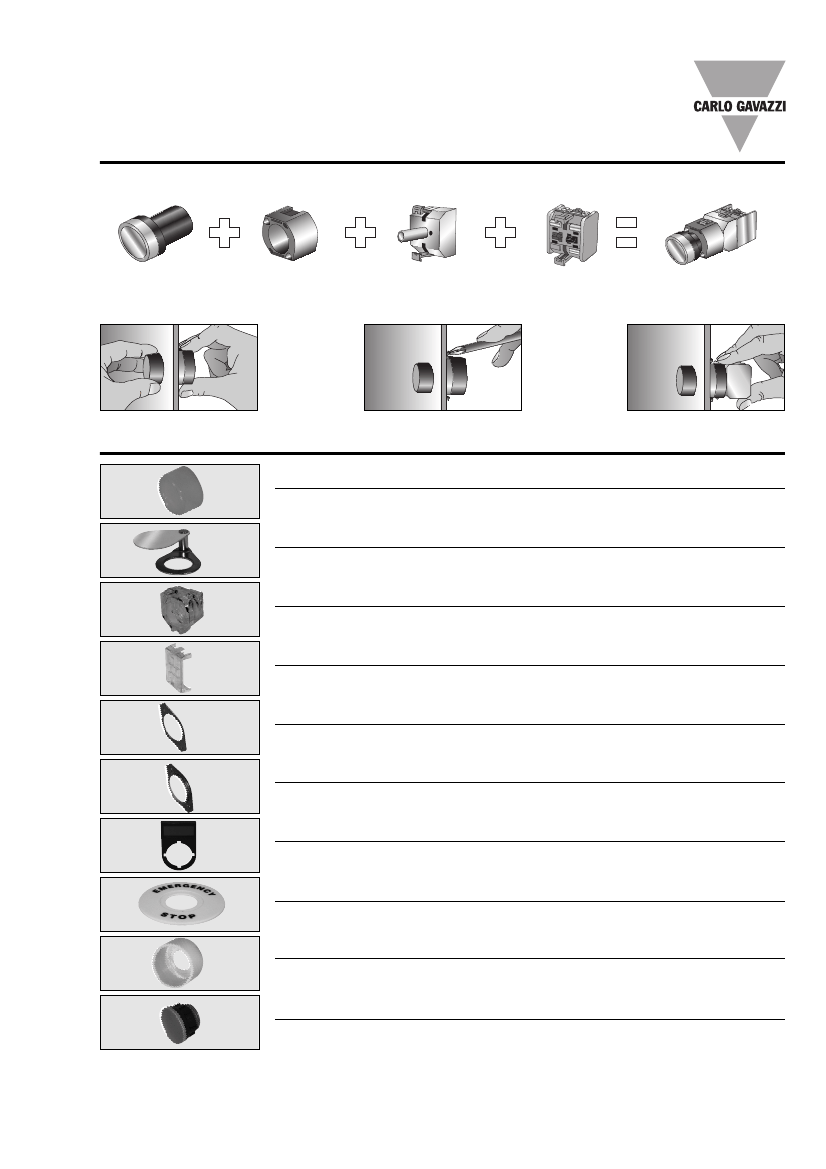

Assembling and Mounting
It come easy to get a complete product. Just to choose the operator, the holder, the lamp element if illuminated function is
required and the contact block (up to 3).
Operator
Holder
Lamp element
Contact block
Bezel Push Button
with LED and 1NO+1NC
To install it, the only tool needed is a screwdriver. The same used to wiring the contact block can be used to fix the push-button.
The operator will be inserted into the panel.
The holder will be secured at the back by two screws or nut.
The contact block is snapped on.
Accessories for Panel Actuators
Sealing cover IP67
Always on the head of operators,
waterproof and dust, IP67.
Silicon rubber
PA SEAL COV
Shield
Always on the head of button, prevent
strike and mistaking operation.
Stainless steel
PA PB SHIELD
Protection cover
Always on the head of button, prevent strike
and mistaking operation. Lockable.
PC
PA PB COV
Terminal shield
Installed behind the wiring screws of the
contact block to avoid electric shock.
PC
PA 2 SHIELD
Mounting ring Ø22mm (0.87”)
Installed on plastic panel to strengthen
mounting.
FE
PA MR 22
Mounting ring Ø25mm (0.98”)
When the mounting hole is Ø25mm
(0.98”), it should be add to the panel.
FE
PA MR 25
Label frame
Hang it on the push button or pilot light,
for symbol or text explanation.
PC
10mm/0.39”
18mm/0.71”
PA LBF 11
PA LBF 18
Warning plate
For emergency stop push
Thickness 1.5mm/0.059”
buttons.
ABS
Ø60mm/Ø2.36”
PA WP 6
Ø90mm/Ø3.54”
PA WP 9
Yellow protection ring
To protect button and to prevent strike or
mistaking operation.
ABS
Rubber
Ø40mm/Ø1.57”
PA YPR 4
Ø60mm/Ø2.36”
PA YPR 6
Panel hole cap Ø22mm (0.87”)
For blocking up prepared or useless holes
on the panels.
ABS
PA PHC 22
Specifications are subject to change without notice. Pictures are just an example. For special features and/or custumization, please ask to our sales network. 122011
