SRAF820 - SRAF8150
Taiwan Semiconductor
CREAT BY ART

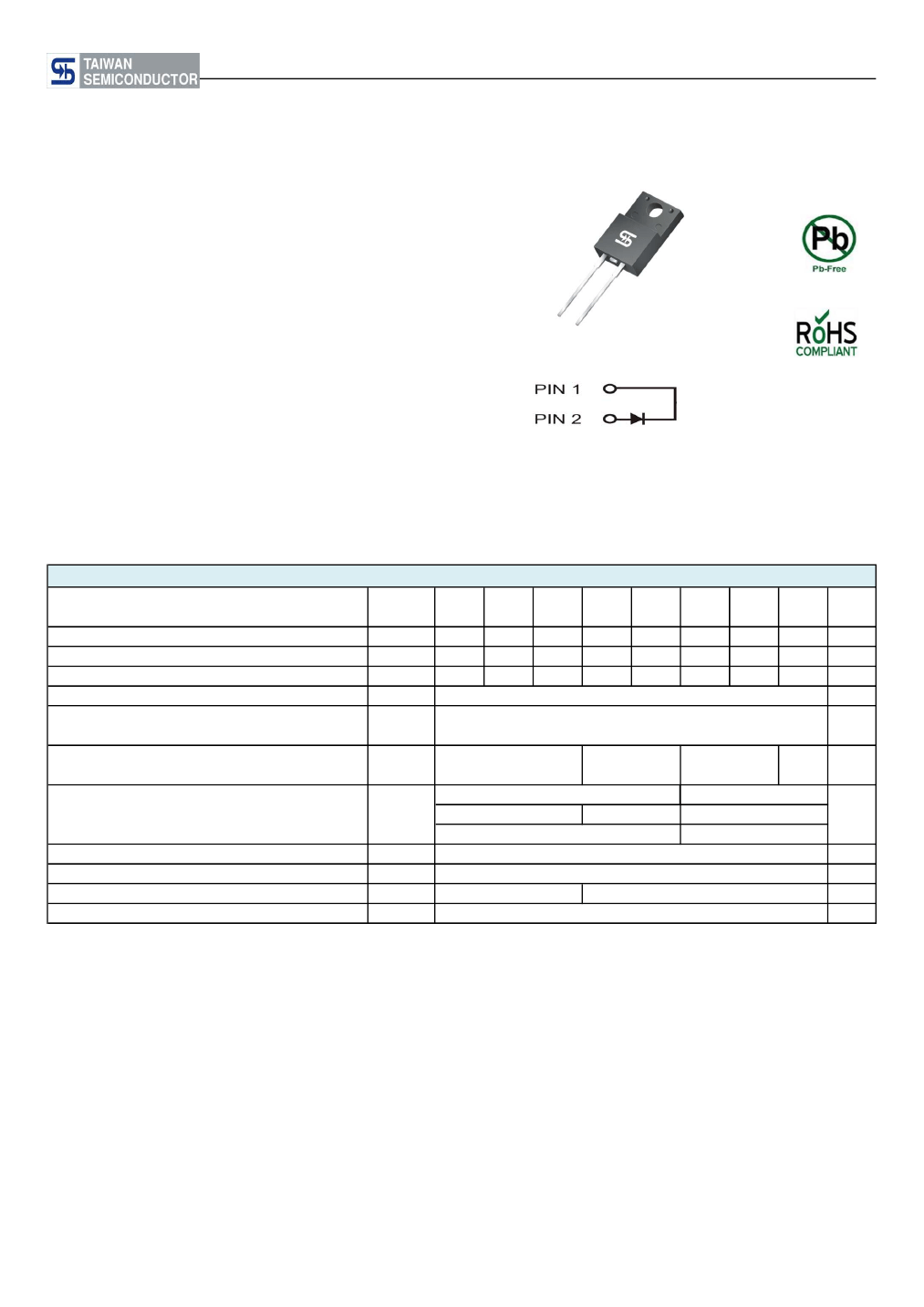

8A, 20V - 150V Isolated Schottky Barrier Rectifiers
FEATURES
- Low power loss, high efficiency
- Guard ring for over-voltage protection
- High surge current capability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
1
2
MECHANICAL DATA
Case:
ITO-220AC
Molding compound: UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
0.56 Nm max.
Weight:
1.7 g (approximately)
ITO-220AC
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half
sine-wave superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
I
F
= 8A
T
J
=25°C
Maximum reverse current @ Rated V
R
Voltage rate of change (Rated V
R
)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
T
J
=100°C
T
J
=125°C
dV/dt
R
θJC
T
J
T
STG
- 55 to +125
- 55 to +150
I
R
15
-
10000
5
- 55 to +150
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
0.55
0.5
10
SRAF SRAF SRAF SRAF SRAF SRAF SRAF SRAF
820
20
14
20
830
30
21
30
840
40
28
40
850
50
35
50
8
150
0.70
0.85
0.1
-
5
V/μs
°C/W
°C
°C
mA
0.95
860
60
42
60
890
90
63
90
8100
100
70
100
8150
150
105
150
UNIT
V
V
V
A
A
V
Version: J1512
SRAF820 - SRAF8150
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
SRAF8xx
(Note 1)
*: Optional available
PART NO.
SUFFIX
H
PACKING CODE
C0
PACKING CODE
SUFFIX
G
(*)
PACKAGE
ITO-220AC
PACKING
50 / Tube
Note 1: "xx" defines voltage from 20V (SRAF820) to 150V (SRAF8150)
EXAMPLE
EXAMPLE P/N
SRAF860HC0G
PART NO.
SRAF860
PART NO.
SUFFIX
H
PACKING CODE
C0
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

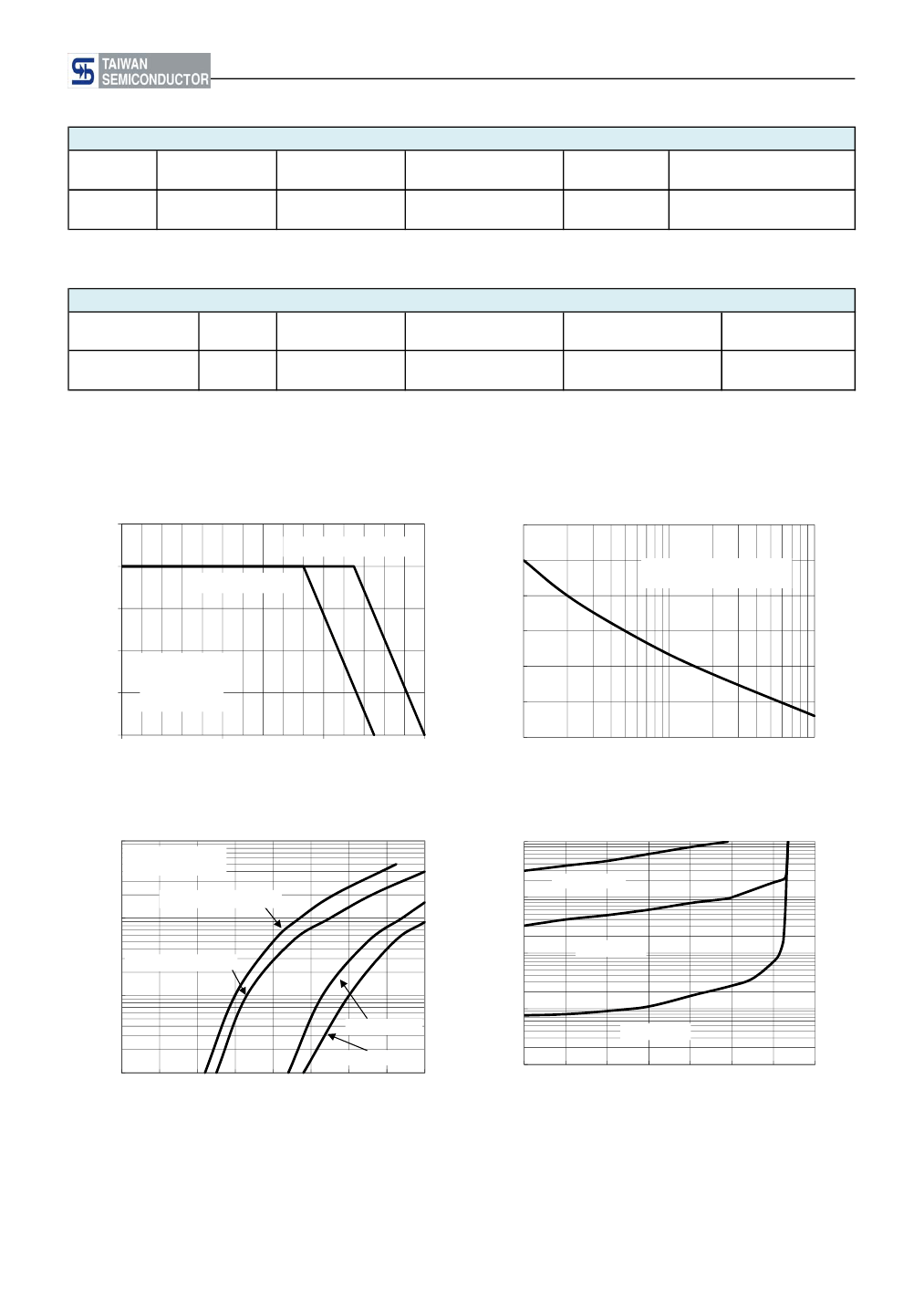

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 MAXIMUM FORWARD CURRENT
DERATING CURVE
10
SRAF850-SRAF8150
AVERAGE FORWARD CURRENT (A)
8
SRAF820-SRAF840
6
175
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT (A)
150
8.3ms single half sine wave
125
100
75
50
25
1
10
NUMBER OF CYCLES AT 60 Hz
100
4
Resistive or
inductive load
with heat sink
2
0
0
50
100
150
CASE TEMPERATURE (
°
C)
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
100
INSTANTANEOUS FORWARD CURRENT (A)
INSTANTANEOUS REVERSE CURRENT (mA)
Pulse width=300μs
1% duty cycle
SRAF820-SRAF840
10
10
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
1
T
J
=100
°
C
SRAF850-SRAF860
1
SRAF890-8100
SRAF8150
0.1
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
FORWARD VOLTAGE. (V)
0.1
T
J
=75
°
C
0.01
T
J
=25
°
C
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE.(%)
Version: J1512
SRAF820 - SRAF8150
Taiwan Semiconductor
CREAT BY ART
FIG. 5 TYPICAL JUNCTION CAPACITANCE
10000
JUNCTION CAPACITANCE (pF)
100
FIG. 6 TYPICAL TRANSIENT THERMAL
CHARACTERISTICS
f=1.0MHz
Vslg=50mVp‐p
TRANSIENT THERMAL
IMPEDANCE (°C/W)
10
1000
SRAF820-SRAF840
1
SRAF850-SRAF8150
100
0.1
1
10
100
REVERSE VOLTAGE (V)
0.1
0.01
0.1
1
T, PILSE DURATION. (s)
10
100

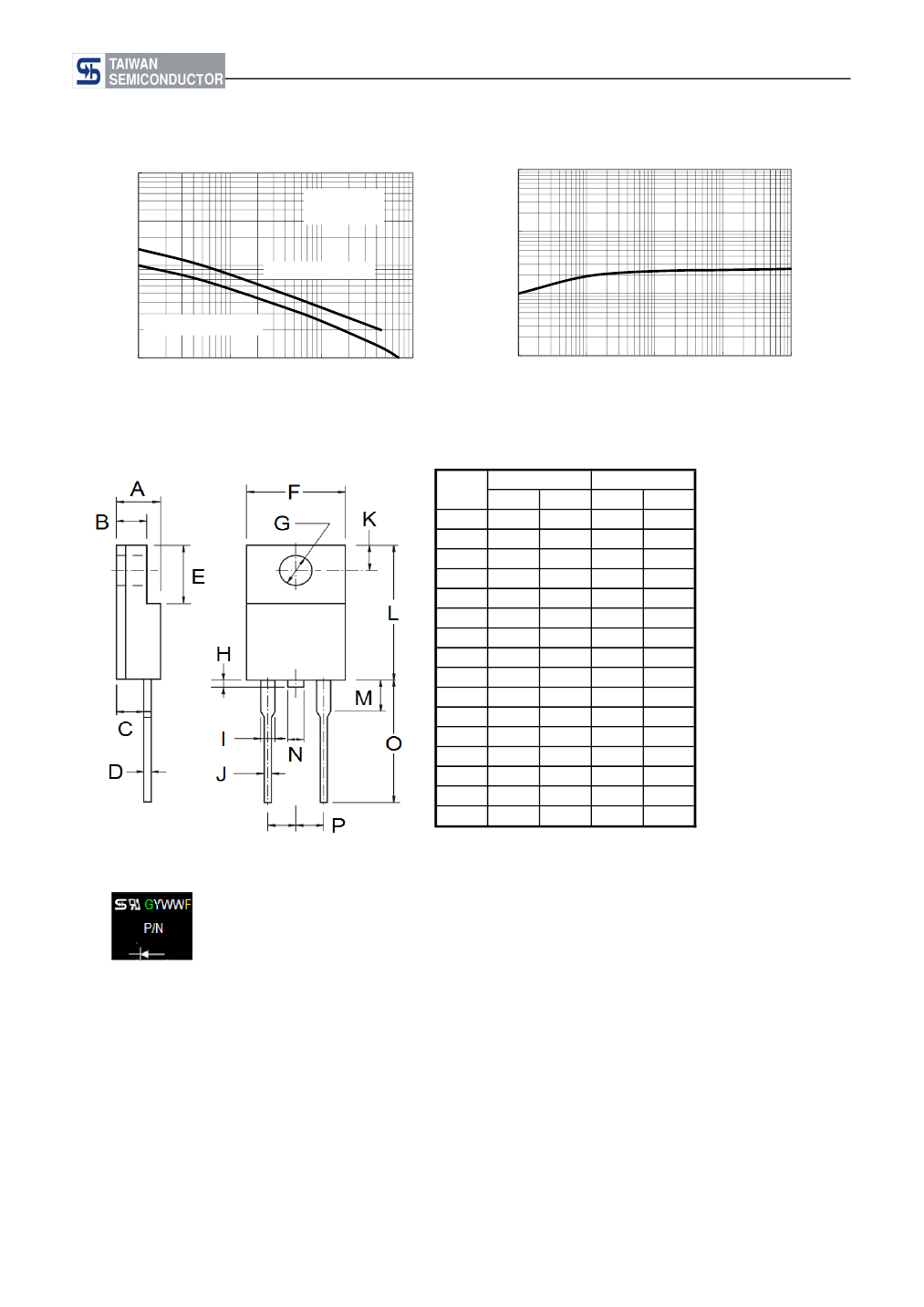

PACKAGE OUTLINE DIMENSIONS
ITO-220AC
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Unit (mm)
Min
4.30
2.50
2.30
0.46
6.30
9.60
3.00
0.00
0.95
0.50
2.40
14.80
-
-
12.60
4.95
Max
4.70
3.10
2.90
0.76
6.90
10.30
3.40
1.60
1.45
0.90
3.20
15.50
4.10
1.80
13.80
5.20
Unit (inch)
Min
0.169
0.098
0.091
0.018
0.248
0.378
0.118
0.000
0.037
0.020
0.094
0.583
-
-
0.496
0.195
Max
0.185
0.122
0.114
0.030
0.272
0.406
0.134
0.063
0.057
0.035
0.126
0.610
0.161
0.071
0.543
0.205
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Version: J1512
SRAF820 - SRAF8150
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Version: J1512
