Data sheet
OMNIMATE Power - series WGK
WGK 25 GY BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
The WGK finger-proof-insulated enclosures are especially
suitable as industrial electronic enclosures for frequency
converters, power supplies or filter components which
offer a convenient and reliable form of connection
internally and externally. To match the wire guides to
the installation requirements in the best possible way,
Weidmüller offers two versions with horizontal (WGK)
and vertical (WGKV) outlet directions.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
Product data
Packaging

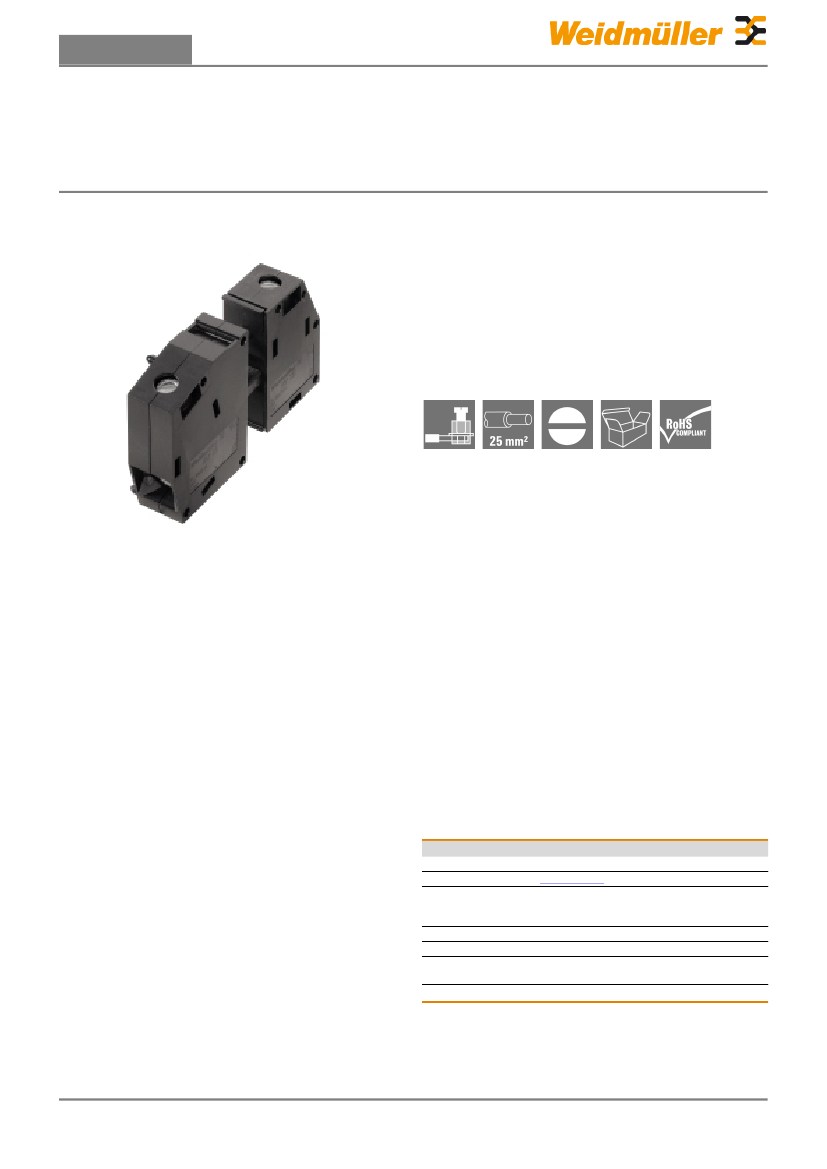

WGK 25 GY BX
2444660000
OMNIMATE Power - series WGK, Feedthrough
terminal, Rated cross-section: 25 mm², Wemid
(PA)
4050118480351
50 pc(s).
IEC: 690 V / 101 A / 6 - 35 mm²
UL: 600 V / 100 A / AWG 10 - AWG 3
Box
Creation date April 19, 2018 10:28:18 PM CEST
Catalogue status 06.04.2018 / We reserve the right to make technical changes.
1
Data sheet
OMNIMATE Power - series WGK
WGK 25 GY BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
64.36 g
Dimensions and weights
Net weight
System parameters
Product family
OMNIMATE Power - series
WGK
180°
1.2 x 6.5
4.5 Nm
18 mm
Wire connection method
Fitted by customer
Tightening torque, min.
Clamping screw
Touch-safe protection acc. to DIN VDE
0470
Screw connection
No
4 Nm
M6
IP 20
Conductor outlet direction
Screwdriver blade
Tightening torque, max.
Stripping length
Material data
Insulating material
Colour chart (similar)
Contact material
Storage temperature, min.
Max. relative humidity during storage
Operating temperature, max.
Temperature range, installation, max.
Wemid (PA)
RAL 7035
E-Cu
-25 °C
80 %
120 °C
120 °C
Colour
UL 94 flammability rating
Contact surface
Storage temperature, max.
Operating temperature, min.
Temperature range, installation, min.
Grey
V-0
tinned
55 °C
-50 °C
-25 °C
Conductors suitable for connection
Clamping range, min.
4 mm²
Wire connection cross section AWG,
min.
AWG 10
Solid, min. H05(07) V-U
6 mm²
Stranded, min. H07V-R
10 mm²
Flexible, min. H05(07) V-K
6 mm²
w. wire end ferrule, DIN 46228 pt 1, min
4 mm²
Clamping range, max.
Wire connection cross section AWG,
max.
Solid, max. H05(07) V-U
Stranded, max. H07V-R
Flexible, max. H05(07) V-K
w. wire end ferrule, DIN 46228 pt 1,
max.
35 mm²
AWG 3
16 mm²
35 mm²
16 mm²
25 mm²
Rated data acc. to IEC
tested acc. to standard
IEC 60664-1, IEC 61984
Rated current, min. no. of poles
(Tu=20°C)
Rated voltage for surge voltage class /
pollution degree III/3
101 A
690 V
Rated current, max. no. of poles
(Tu=20°C)
101 A
Rated impulse voltage for surge voltage
class/ contamination degree III/3
6 kV
Rated data acc. to CSA
Rated voltage (Use group B)
Rated current (use group B)
Wire cross-section, AWG, min.
600 V
100 A
AWG 10
Rated voltage (Use group C)
Rated current (use group C)
Wire cross-section, AWG, max.
600 V
100 A
AWG 3
Creation date April 19, 2018 10:28:18 PM CEST
Catalogue status 06.04.2018 / We reserve the right to make technical changes.
2
Data sheet
OMNIMATE Power - series WGK
WGK 25 GY BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Certificate No. (cURus)
Rated data acc. to UL 1059
Institute (cURus)
Rated voltage (use group B)
Rated current (use group B)
Wire cross-section, AWG, min.
Reference to approval values
600 V
100 A
AWG 10
Specifications are
maximum values, details -
see approval certificate.
Rated voltage (use group C)
Rated current (use group C)
Wire cross-section, AWG, max.
E60693
600 V
100 A
AWG 3
Classifications
ETIM 6.0
eClass 9.1
EC001283
27-14-11-34
eClass 6.2
27-14-11-34
Notes
Notes
• Clearance and creepage distances to other components must be devised in accordance with the relevant
application standard. This can be achieved in the device by full encapsulation or by the use of additional
spacer plates.
• Rated data refer only to the component itself. Clearance and creepage distances to other components are to
be designed in accordance with the relevant application standards.
• Colours: SW = black; GN/YL = green/yellow; GY = grey
• Additional colours on request
• WGK: Rated voltage plastic walls: 1 - 6 mm = 800 V; metal walls: 1 - 4 mm = 800 V; metal walls: 4 - 6 mm =
690 V
• WGKV: Rated voltage plastic walls: 1 - 6 mm = 800 V; metal walls: 1 - 4 mm = 800 V; metal walls: 4 - 6 mm
= 690 V
• WGK…VP: Rated voltage plastic walls: 1 - 6 mm = 800 V; metal walls: 1 - 2.5 mm = 800 V; metal walls: 2.5 -
4 mm = 690 V; metal walls: 4 - 6 mm = 500 V
Approvals
Approvals
ROHS
Conform
Creation date April 19, 2018 10:28:18 PM CEST
Catalogue status 06.04.2018 / We reserve the right to make technical changes.
3
Data sheet
OMNIMATE Power - series WGK
WGK 25 GY BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Downloads
Approval/Certificate/Document of
Conformity
Brochure/Catalogue
Engineering Data
Declaration of the Manufacturer
FL DRIVES EN
MB DEVICE MANUF. EN
FL DRIVES DE
FL_BASE_STATION_EN
FL ELEVATOR EN
FL POWER SUPPLY EN
FL 72H SAMPLE SER EN
PO OMNIMATE EN
STEP
Creation date April 19, 2018 10:28:18 PM CEST
Catalogue status 06.04.2018 / We reserve the right to make technical changes.
4
Data sheet
OMNIMATE Power - series WGK
WGK 25 GY BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

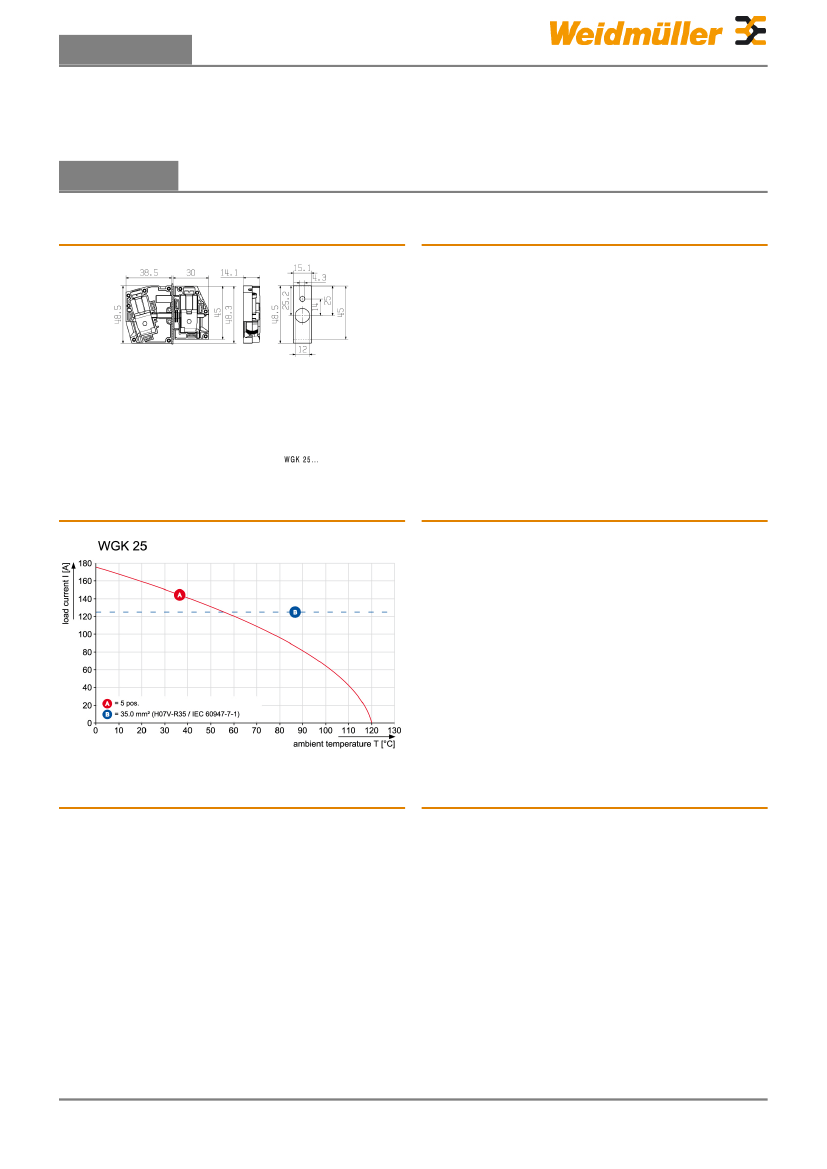

Drawings
Dimensional drawing
Graph
Creation date April 19, 2018 10:28:18 PM CEST
Catalogue status 06.04.2018 / We reserve the right to make technical changes.
5
