Surface-Mount Ceramic Multilayer Capacitors
Automotive grade
NP0
/
X7R
6.3 V to 630 V
SCOPE
This specification describes
Automotive grade X7R series
chip capacitors with flexible lead-
free terminations and used for
automotive equipments.
APPLICATIONS
All general purpose applications
Entertainment applications
Comfort / security applications
Information applications
FEATURES
AEC-Q200 qualified
MSL class: MSL 1
AC series soldering is
compliant with J-STD-020D
Halogen free epoxy
RoHS compliant
Reduce environmentally
hazardous waste
High component and
equipment reliability
Save PCB space
The capacitors are 100%
performed by automatic optical
inspection prior to taping.
ORDERING INFORMATION - GLOBAL PART NUMBER
All part numbers are identified by the series, size, tolerance, TC material,
packing style, voltage, process code, termination and capacitance value.
GLOBAL PART NUMBER
AS
XXXX X X XXX X
B
X XXX
(1)
(2) (3) (4)
(5)
(6) (7)
(1) SIZE – INCH BASED (METRIC)
0805 (2012) / 1206 (3216)/ 1210 (3225)
(2) TOLERANCE
J = ± 5%
K = ± 10%
M = ± 20%
(3) PACKING STYLE
R = Paper/PE taping reel; Reel 7 inch
K = Blister taping reel; Reel 7 inch
P = Paper/PE taping reel; Reel 13 inch
F = Blister taping reel; Reel 13 inch
(4) TC MATERIAL
X7R
(5) RATED VOLTAGE
8 = 25 V
9 = 50 V
0 = 100 V
A = 200 V
Y = 250 V
(6) PROCESS
B = Class 2 MLCC
(7) CAPACITANCE VALUE
2 significant digits+number of zeros
The 3rd digit signifies the multiplying factor, and letter R is decimal point
Example: 121 = 12 x 10
1
= 120 pF
www.yageo.com
Oct. 5, 2017 V.0
Product specification
3
17
Surface-Mount Ceramic Multilayer Capacitors
Automotive grade
NP0
/
X7R
6.3 V to 630 V

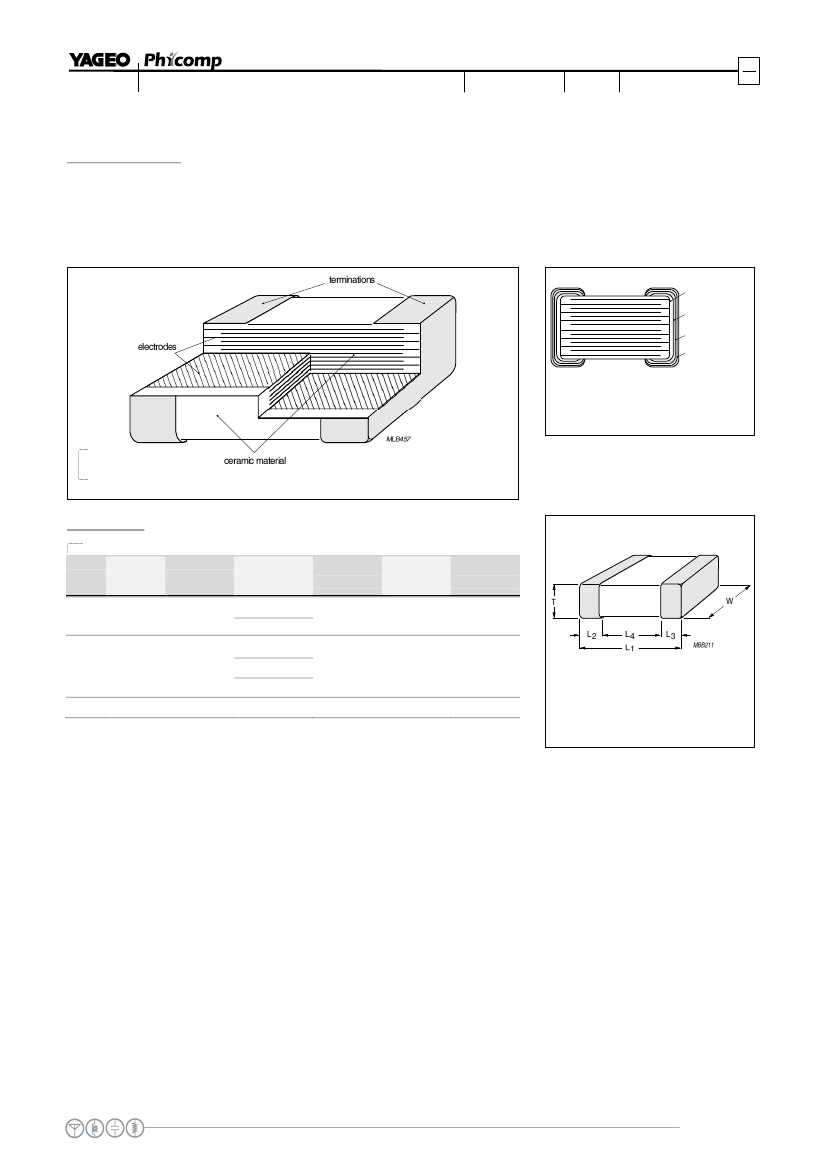

CONSTRUCTION
The capacitor consists of a rectangular block of ceramic dielectric in which a number of interleaved metal
electrodes are contained. This structure gives rise to a high capacitance per unit volume.
The inner electrodes are connected to the two end flexible terminations and finally co vered with a layer of plated
tin (NiSn).
The terminations are lead-free. A cross section of the structure is shown in Fig.1 and Fig.2.
Copper
Soft electrode
(Stress relaxation)
Ni Plating
Sn Plating
YNM0049
Fig. 1 Surface mounted multilayer ceramic capacitor construction
OUTLINES
DIMENSION
Table 1
For outlines see fig. 3
TYPE
0805
L1 (mm)
2.0 ± 0.3
W (mm)
1.25 ± 0.2
T (mm)
0.85 ± 0.15
1.25 ± 0.20
0.85 ± 0.15
1206
3.2 ± 0.4
1.6 ± 0.2
1.25 ± 0.20
1.60 ± 0.20
1210
3.2 ± 0.5
2.5 ± 0.3
2.5 ± 0.3
0.25
1.00
1.20
0.25
0.85
1.50
L2/L3(mm)
min
0.25
L2/L3(mm)
max
0.75
L4(mm)
min
0.70
www.yageo.com
Oct. 5, 2017 V.0
