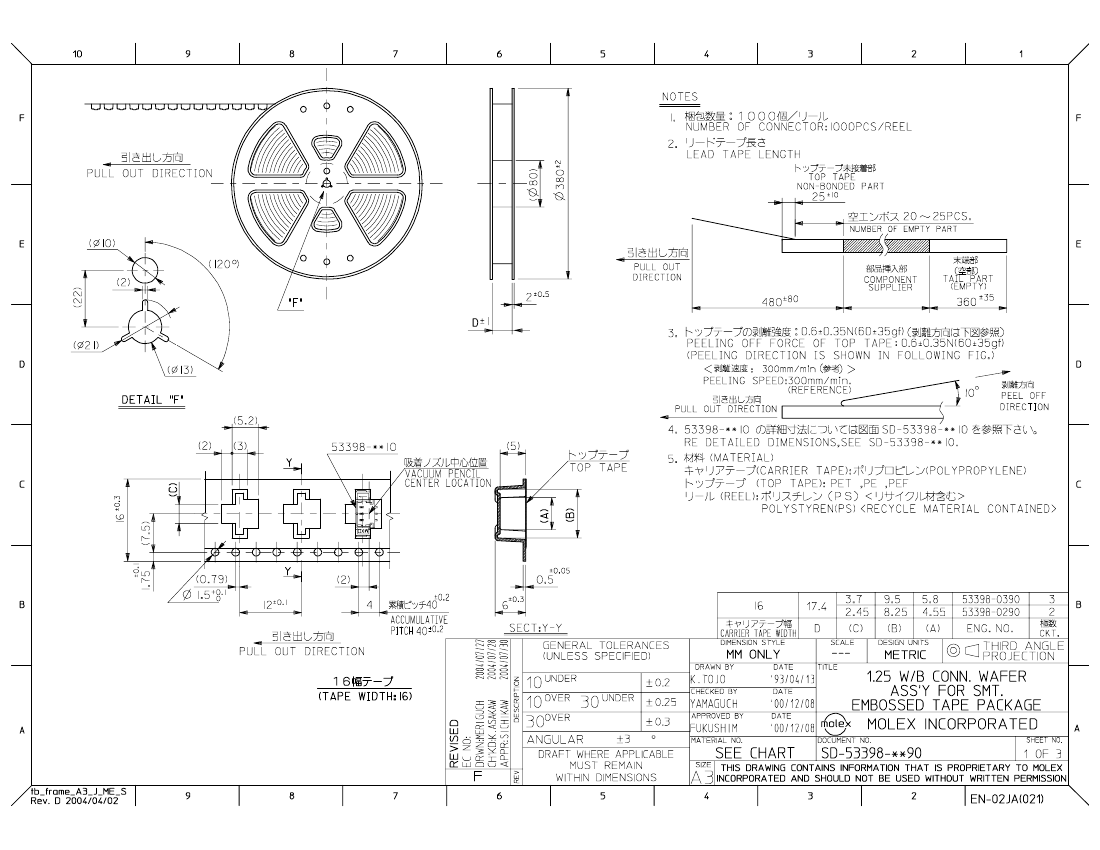

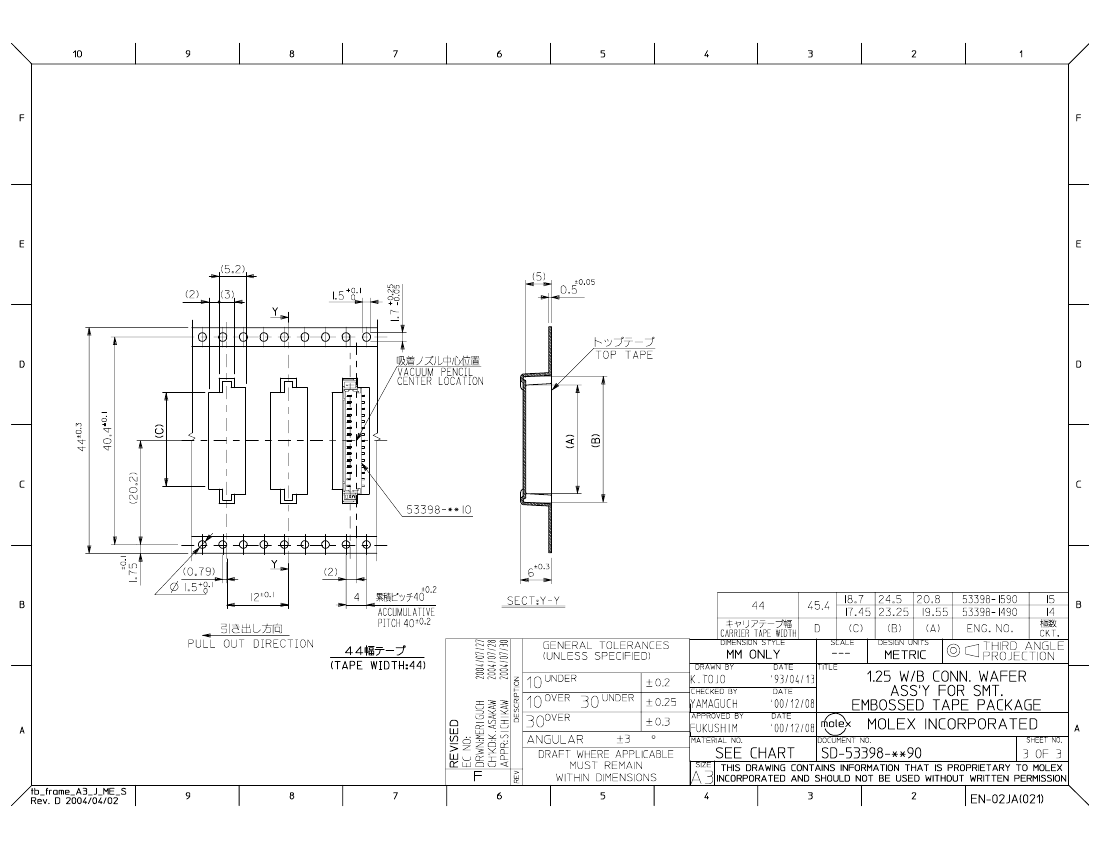

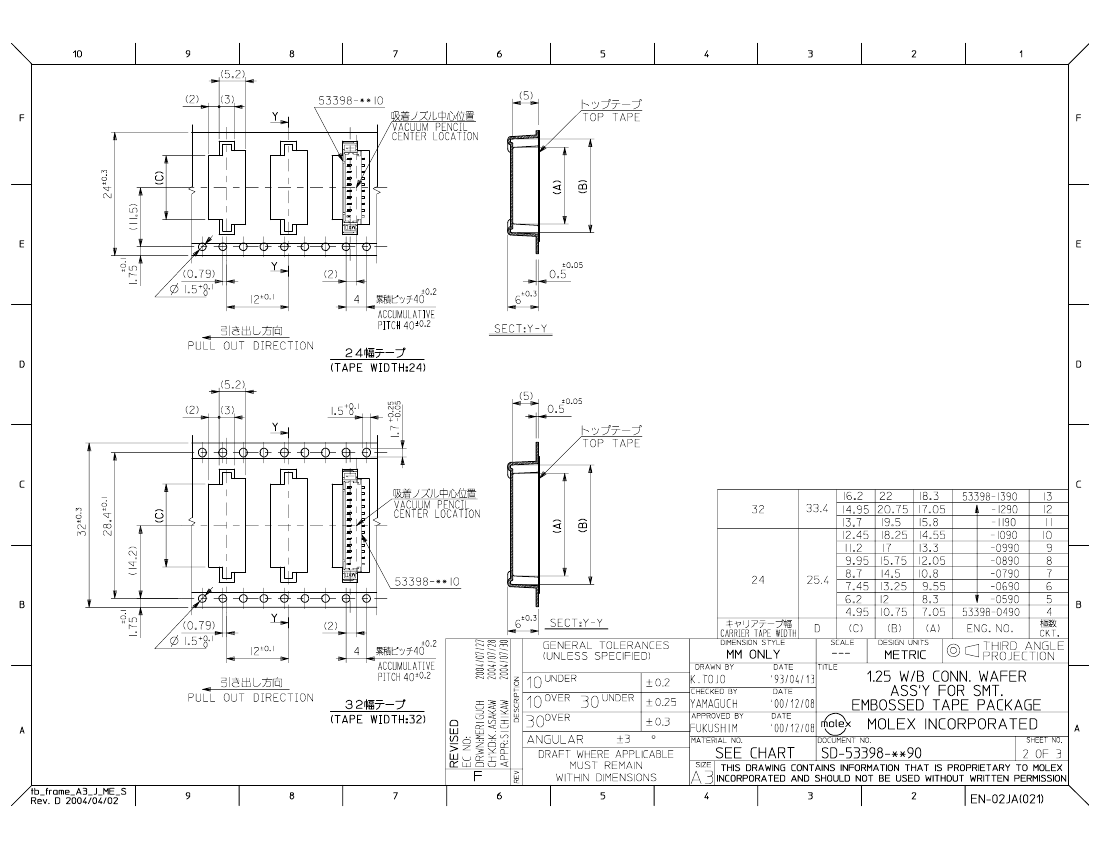

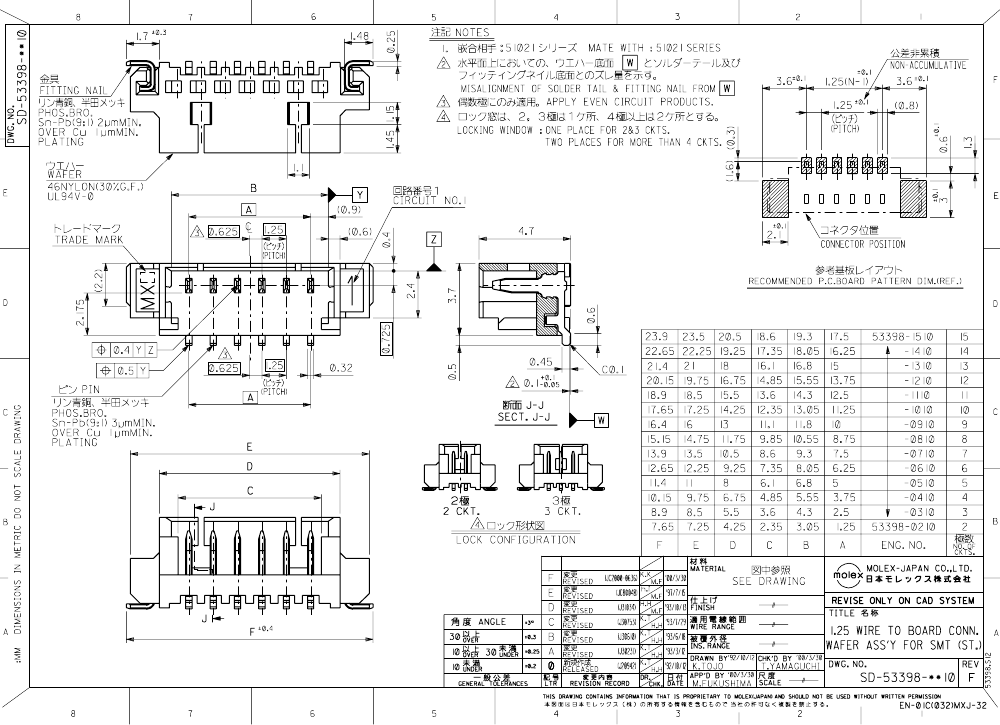

CONN HEADER 3POS 1.25MM VERT SMD
| Parameter Name | Attribute value |
| Connector type | Connector |
| Contact type | Male plug type |
| Spacing - Mating | 0.049"（1.25mm） |
| Number of pins | 3 |
| Number of rows | 1 |
| Line spacing - patching | - |
| Number of pins loaded | all |
| style | Board to cable/wire |
| shield | Covered - 3 walls |
| Installation type | surface mount |
| Termination | welding |
| Fastening type | pin lock |
| Contact Length - Mating | - |
| Contact length - terminal | - |
| Overall contact length | - |
| Insulation height | 0.185"（4.70mm） |
| Contact shape | rectangle |
| Contact surface treatment - mating | Tin - Lead |
| Contact Surface Treatment Thickness - Mating | - |
| Contact Surface Preparation - Column | - |
| Contact material | - |
| Insulation Materials | - |
| characteristic | Fixed solder tail |
| Operating temperature | - |
| Intrusion protection | - |
| Material flammability rating | UL94 V-0 |
| Insulation color | natural |
| Rated current | - |
| Rated voltage | - |
| Joint stack height | - |
| Contact Surface Treatment Thickness - Column | - |
| application | Automotive, General, Industrial, Medical |
| 53398-0390 | 53398-0290 | 53398-0690 | 53398-0790 | 53398-0890 | 53398-1190 | |
|---|---|---|---|---|---|---|
| Description | CONN HEADER 3POS 1.25MM VERT SMD | CONN HEADER 2POS 1.25MM VERT SMD | CONN HEADER 6POS 1.25MM VERT SMD | CONN HEADER 7POS 1.25MM VERT SMD | CONN HEADER 8POS 1.25MM VERT SMD | CONN HEADER 11POS 1.25MM VRT SMD |
| Connector type | Connector | Connector | Connector | Connector | Connector | Connector |
| Contact type | Male plug type | Male plug type | Male plug type | Male plug type | Male plug type | Male plug type |
| Spacing - Mating | 0.049"（1.25mm） | 0.049"（1.25mm） | 0.049"（1.25mm） | 0.049"（1.25mm） | 0.049"（1.25mm） | 0.049"（1.25mm） |
| Number of pins | 3 | 2 | 6 | 7 | 8 | 11 |
| Number of rows | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of pins loaded | all | all | all | all | all | all |
| style | Board to cable/wire | Board to cable/wire | Board to cable/wire | Board to cable/wire | Board to cable/wire | Board to cable/wire |
| shield | Covered - 3 walls | Covered - 3 walls | Covered - 3 walls | Covered - 3 walls | Covered - 3 walls | Covered - 3 walls |
| Installation type | surface mount | surface mount | surface mount | surface mount | surface mount | surface mount |
| Termination | welding | welding | welding | welding | welding | welding |
| Fastening type | pin lock | pin lock | pin lock | pin lock | pin lock | pin lock |
| Insulation height | 0.185"（4.70mm） | 0.185"（4.70mm） | 0.185"（4.70mm） | 0.185"（4.70mm） | 0.185"（4.70mm） | 0.185"（4.70mm） |
| Contact shape | rectangle | rectangle | rectangle | rectangle | rectangle | rectangle |
| Contact surface treatment - mating | Tin - Lead | Tin - Lead | Tin - Lead | Tin - Lead | Tin - Lead | Tin - Lead |
| characteristic | Fixed solder tail | Fixed solder tail | Fixed solder tail | Fixed solder tail | Fixed solder tail | Fixed solder tail |
| Material flammability rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation color | natural | natural | natural | natural | natural | natural |
| application | Automotive, General, Industrial, Medical | Automotive, General, Industrial, Medical | Automotive, General, Industrial, Medical | Automotive, General, Industrial, Medical | Automotive, General, Industrial, Medical | Automotive, General, Industrial, Medical |
