LWD-50-1515 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> LWD-50-1515

LWD-50-1515: DescriptionAC/DC CONVERTER 2X15V 50W; CategoryPower/power management; File Size290KB，4 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric Compare View All

LWD-50-1515 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LWD-50-1515	-	-	View	Buy Now

LWD-50-1515 Overview

AC/DC CONVERTER 2X15V 50W

LWD-50-1515 Parametric

Parameter Name	Attribute value
type	open framework
Number of outputs	2
Voltage - input	85 ~ 265 VAC
Voltage - Output 1	15V
Voltage - Output 2	15V
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (maximum)	1.6A，1.6A
Power (W)	50W
application	ITE (Business)
Voltage - Isolation	2kV
efficiency	72%
Operating temperature	0°C ~ 60°C (with derating)
characteristic	Adjustable output, DC input capability, universal input
Installation type	Base installation

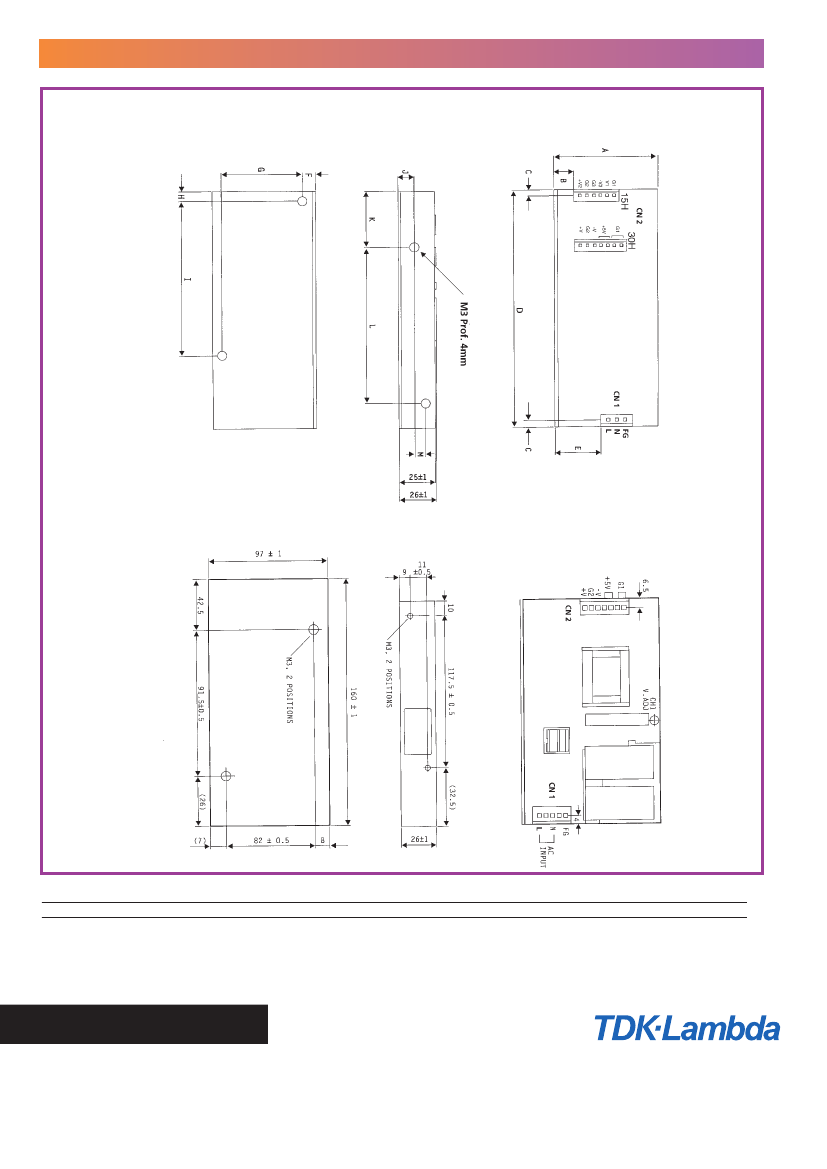

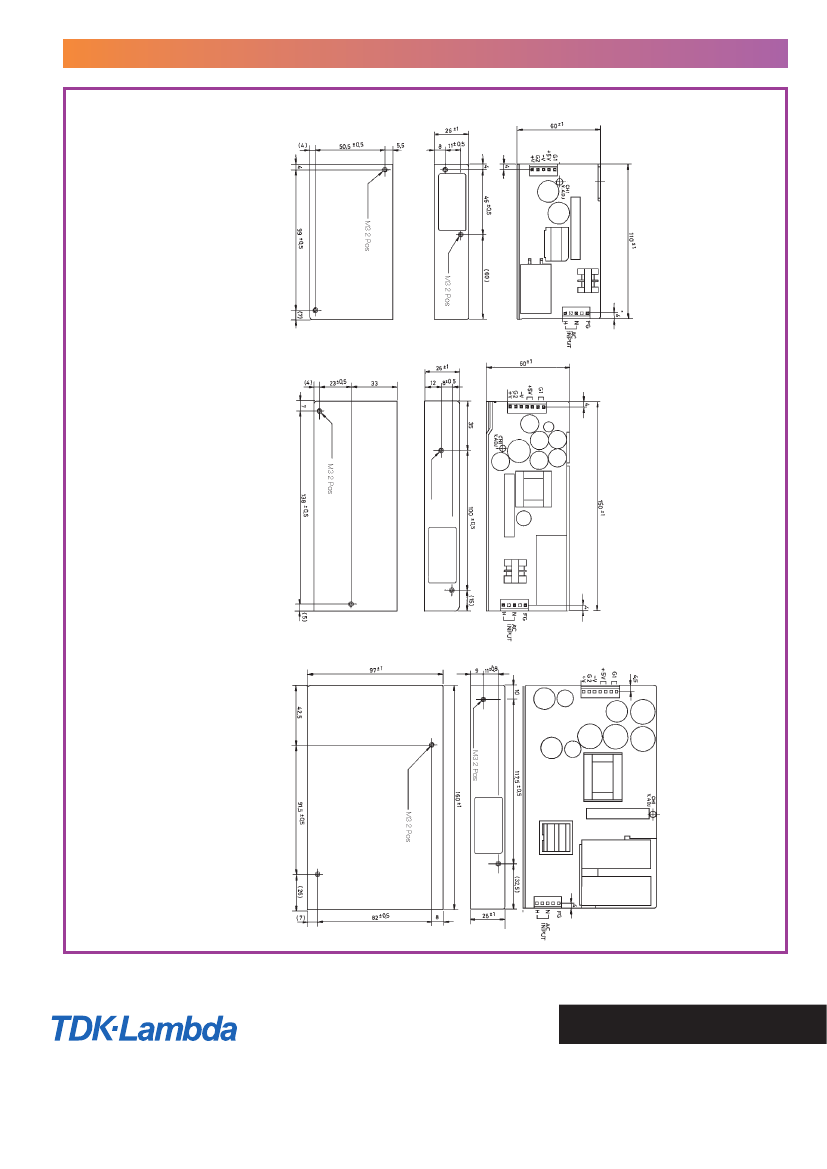

size/dimensions	6.30" long x 3.82" wide x 1.02" high (160.0mm x 97.0mm x 26.0mm)
Minimum load required	yes
Approval	CE

Preview

Download Datasheet

View All

Series

LWD-T

INPUT

Input voltage range

Frequency

Inrush current

(at 200VAC)

85-265VAC

47-440Hz

28A on LWD 30, LWD 50,

LWT 15H

32A on LWD 15, LWT 30H,

LWT 50H

fuse

110-330VDC

Input protection

Input voltage

DC Input

OUTPUT

Power

(convection cooled)

Adjustable output

Line regulation

Liner regulation

Hold up

(at 100VAC)

15 to 50W

+ 5% on output 1

1% on all models

2% of 0 to 100% of charge

20mS at full charge

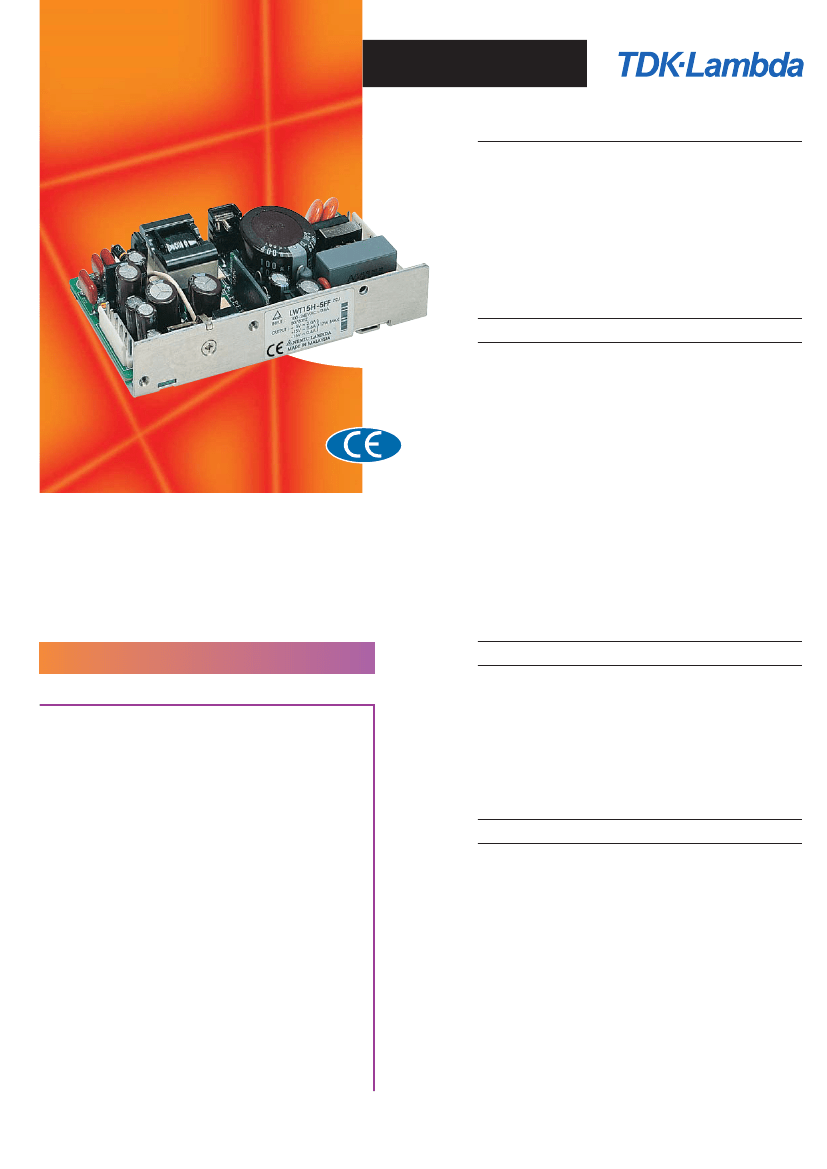

15-50

WATTS

POWER SUPPLY AC/DC

DUAL OR

TRIPLE OUTPUT

Universal input 85 at 265VAC

Low profile : 26mm high

Fully regulated outputs

Conforms to EMI conducted

EN55022 curve B

Guarantee 1 year

Ripple and noise (value peak to peak) :

on the 5V

100mV

on the 12V and the 15V

150mV

on the 24V

200mV

Coefficient temperature

Over current protection

Over voltage protection

GENERAL

Efficiency

MTBF

Isolation voltage :

Input-output

Input-ground

Isolation resistance

Output-ground

ENVIRONMENTAL

Operating temperature range

(convection cooled)

0°C to + 60°C

Storage temperature

Relative humidity :

operating

storage

- 30°C to + 85°C

30% to 90% RH

10% to 95 %

63% on LWD 15

72% on other models

Consult Technical Sales

2kV RMS

> 100M 500V

0.02% / °C on output 1

0.04% / °C on outputs 2 and 3

current limit

135% output 1 only

LWD-50-1515 Related Products

	LWD-50-1515	LWD-50-0512	LWD-50-0524	LWD-50-1212	LWD-50-1224
Description	AC/DC CONVERTER 2X15V 50W	AC/DC CONVERTER 5V 12V 50W	AC/DC CONVERTER 5V 24V 50W	AC/DC CONVERTER 2X12V 50W	AC/DC CONVERTER 12V 24V 50W
type	open framework	open framework	open framework	open framework	open framework
Number of outputs	2	2	2	2	2
Voltage - input	85 ~ 265 VAC	85 ~ 265 VAC	85 ~ 265 VAC	85 ~ 265 VAC	85 ~ 265 VAC
Voltage - Output 1	15V	5V	5V	12V	12V
Voltage - Output 2	15V	12V	24V	12V	24V
Current - Output (maximum)	1.6A，1.6A	5A，2A	5A，1A	2A，2A	2A，1A
Power (W)	50W	50W	50W	50W	50W
application	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)
Voltage - Isolation	2kV	2kV	2kV	2kV	2kV
efficiency	72%	72%	72%	72%	72%
Operating temperature	0°C ~ 60°C (with derating)	0°C ~ 60°C (with derating)	0°C ~ 60°C (with derating)	0°C ~ 60°C (with derating)	0°C ~ 60°C (with derating)
characteristic	Adjustable output, DC input capability, universal input	Adjustable output, DC input capability, universal input	Adjustable output, DC input capability, universal input	Adjustable output, DC input capability, universal input	Adjustable output, DC input capability, universal input
Installation type	Base installation	Base installation	Base installation	Base installation	Base installation
size/dimensions	6.30" long x 3.82" wide x 1.02" high (160.0mm x 97.0mm x 26.0mm)	6.30" long x 3.82" wide x 1.02" high (160.0mm x 97.0mm x 26.0mm)	6.30" long x 3.82" wide x 1.02" high (160.0mm x 97.0mm x 26.0mm)	6.30" long x 3.82" wide x 1.02" high (160.0mm x 97.0mm x 26.0mm)	6.30" long x 3.82" wide x 1.02" high (160.0mm x 97.0mm x 26.0mm)
Minimum load required	yes	yes	none	yes	yes
Approval	CE	CE	CE	CE	CE
