0050291623 datasheet, PDF - EEWORLD Datasheet

0050291623: DescriptionKK 100 HDR ASSY RA BKWY 5POS; CategoryThe connector; File Size154KB，2 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

0050291623 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0050291623	-	-	View	Buy Now

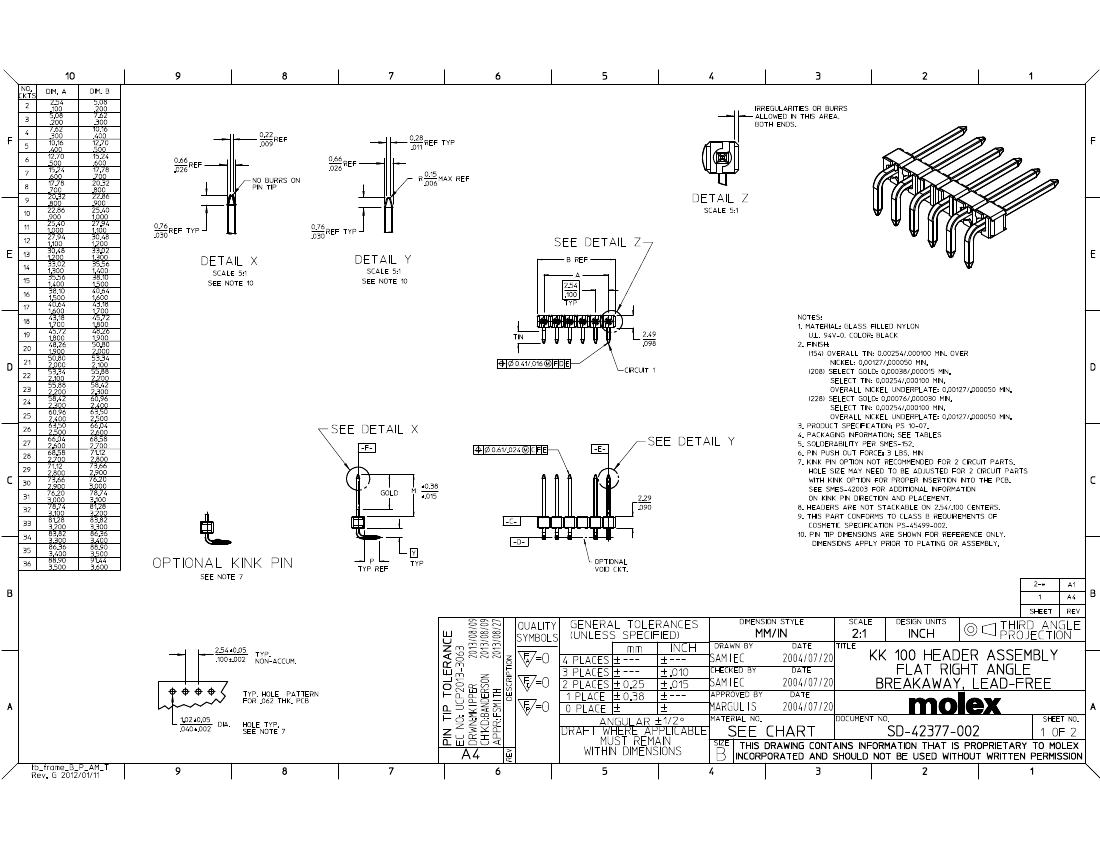

KK 100 HDR ASSY RA BKWY 5POS

Parameter Name	Attribute value
Connector type	Needle hub, separate
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	5
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to Board or Cable
shield	Uncovered
Installation type	Through hole, right angle
Termination	Kink pins, solder
Fastening type	push-pull
Contact Length - Mating	0.244"（6.20mm）
Contact length - terminal	0.135"（3.43mm）
Overall contact length	-
Insulation height	0.098"（2.50mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	30.0µin（0.76µm）
Contact Surface Preparation - Column	tin
Contact material	-
Insulation Materials	Polyamide (PA), nylon, glass fiber reinforced
characteristic	-
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	100.0µin（2.54µm）
application	Automotive, general, medical, telecommunications

	0050291623
Description	KK 100 HDR ASSY RA BKWY 5POS
Connector type	Needle hub, separate
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	5
Number of rows	1
Number of pins loaded	all
style	Board to Board or Cable
shield	Uncovered
Installation type	Through hole, right angle
Termination	Kink pins, solder
Fastening type	push-pull
Contact Length - Mating	0.244"（6.20mm）
Contact length - terminal	0.135"（3.43mm）
Insulation height	0.098"（2.50mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	30.0µin（0.76µm）
Contact Surface Preparation - Column	tin
Insulation Materials	Polyamide (PA), nylon, glass fiber reinforced
Material flammability rating	UL94 V-0
Insulation color	black
Contact Surface Treatment Thickness - Column	100.0µin（2.54µm）
application	Automotive, general, medical, telecommunications
