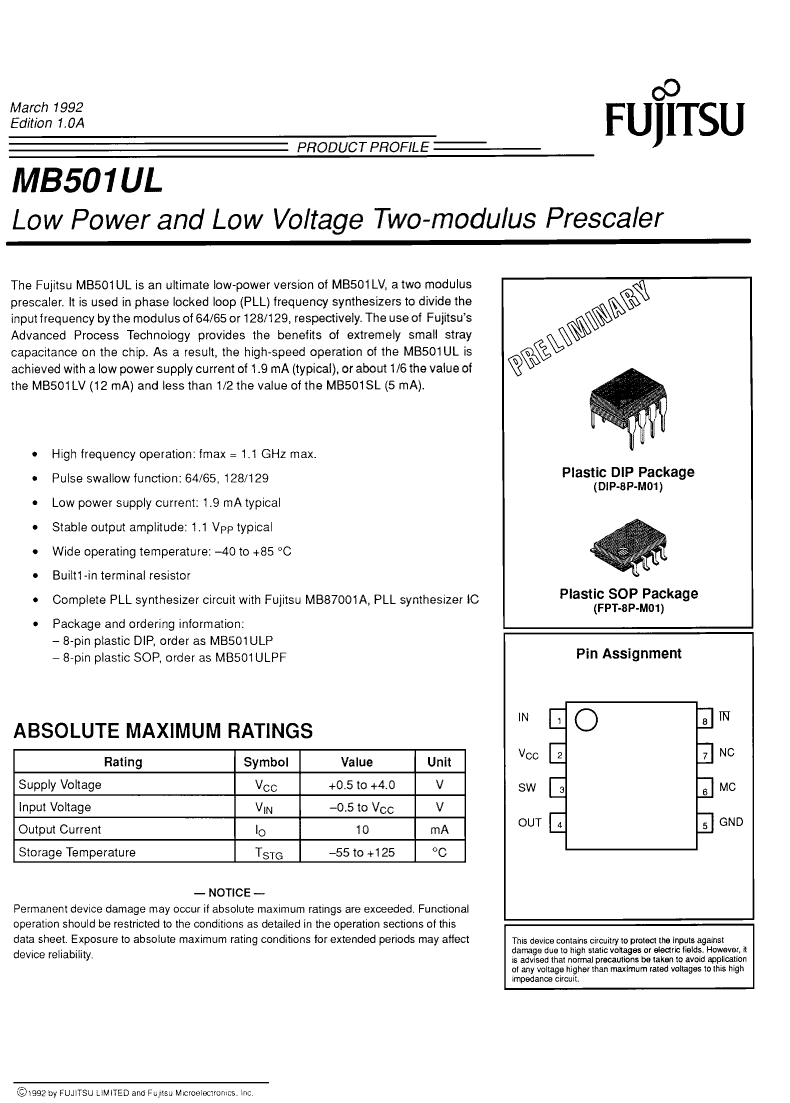

MB501ULPF datasheet, PDF - EEWORLD Datasheet

MB501ULPF: DescriptionECL SERIES, PRESCALER, PDSO8, PLASTIC, SOP-8; Categorylogic; File Size186KB，8 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

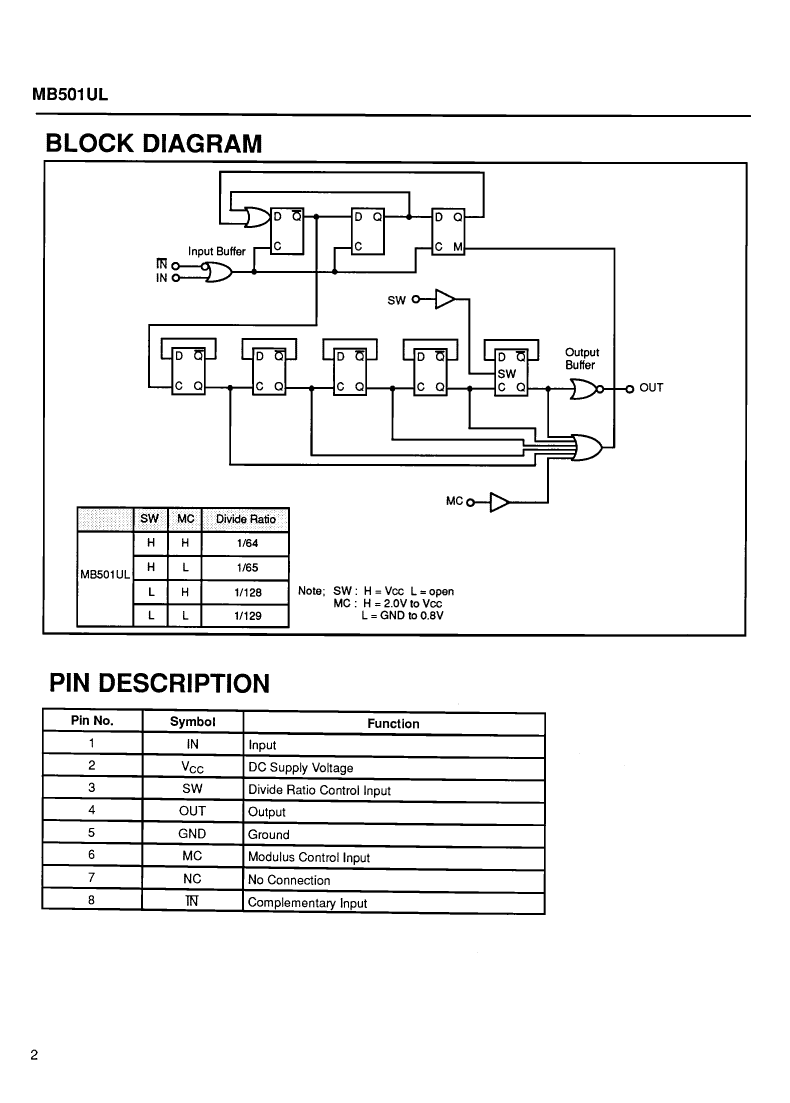

MB501ULPF Overview

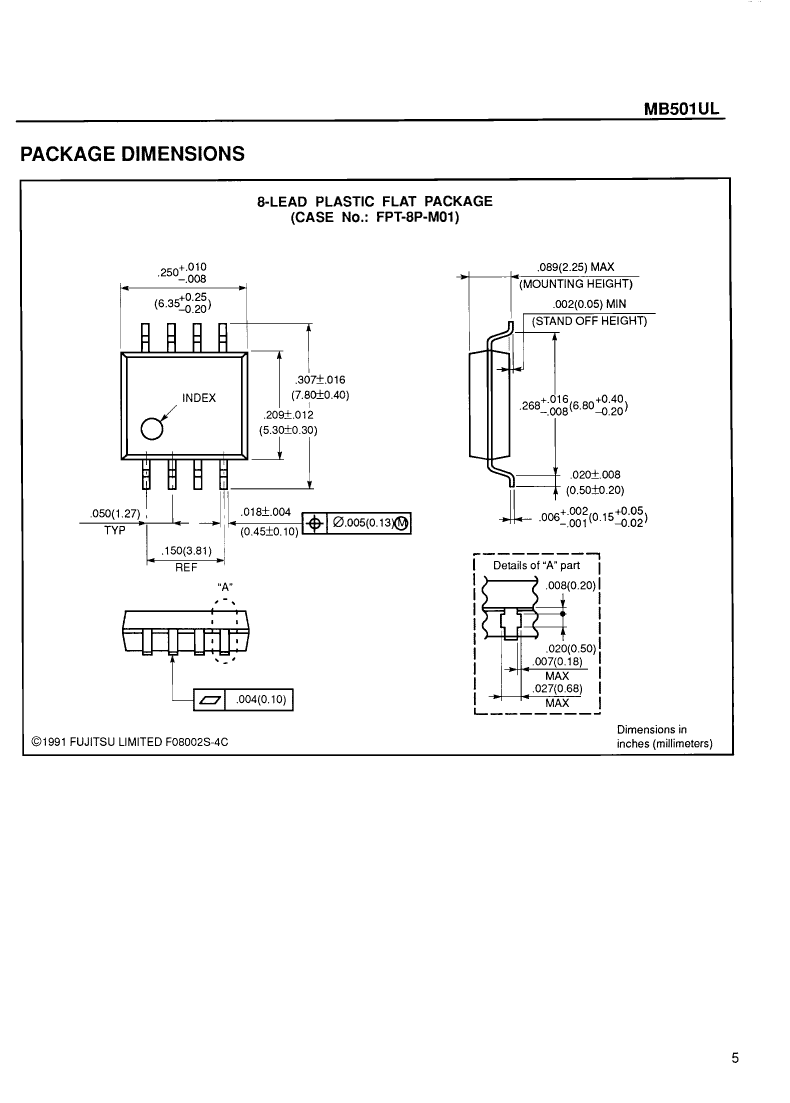

ECL SERIES, PRESCALER, PDSO8, PLASTIC, SOP-8

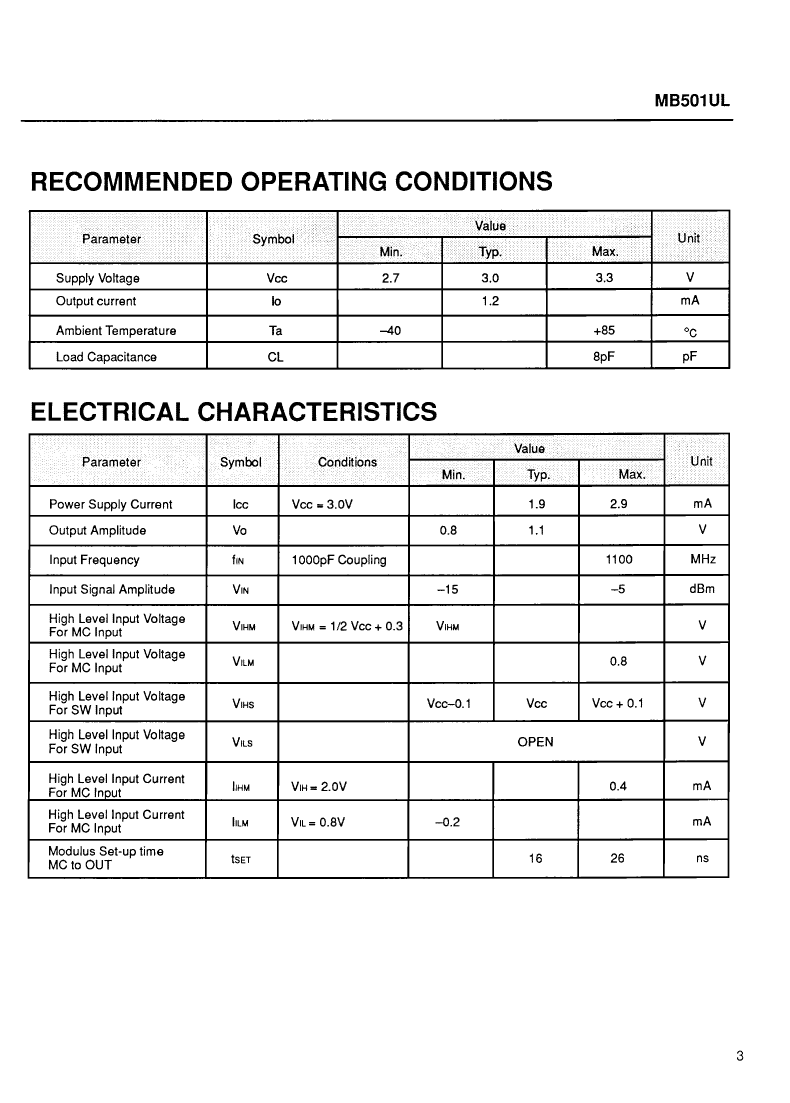

Parameter Name	Attribute value
Maker	FUJITSU
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
Is Samacsys	N
series	ECL
JESD-30 code	R-PDSO-G8
length	6.35 mm
Load capacitance (CL)	8 pF
Logic integrated circuit type	PRESCALER
Number of data/clock inputs	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	EMITTER FOLLOWER
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	2.9 mA
Certification status	Not Qualified
Maximum seat height	2.25 mm
Maximum supply voltage (Vsup)	3.3 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.3 mm
minfmax	1100 MHz
Base Number Matches	1

	MB501ULPF	MB501ULP

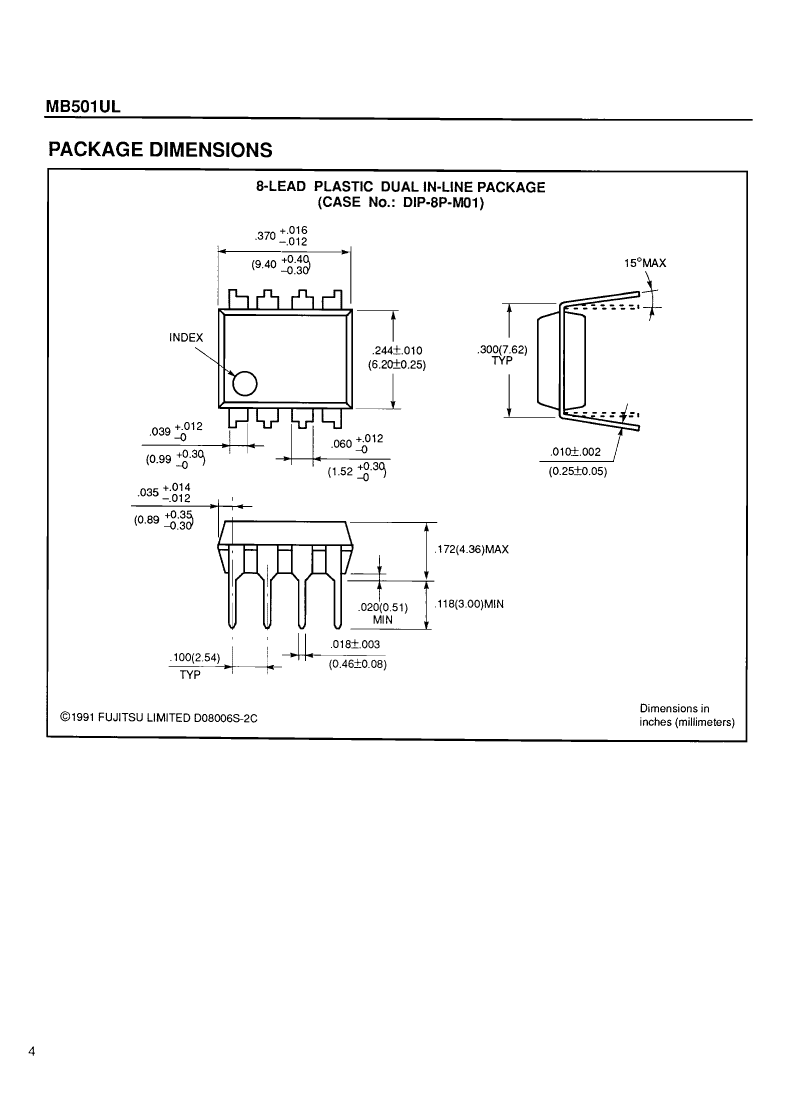

Description	ECL SERIES, PRESCALER, PDSO8, PLASTIC, SOP-8	ECL SERIES, PRESCALER, PDIP8, PLASTIC, DIP-8
Maker	FUJITSU	FUJITSU
Parts packaging code	SOIC	DIP
package instruction	SOP,	DIP,
Contacts	8	8
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
series	ECL	ECL
JESD-30 code	R-PDSO-G8	R-PDIP-T8
length	6.35 mm	9.4 mm
Load capacitance (CL)	8 pF	8 pF
Logic integrated circuit type	PRESCALER	PRESCALER
Number of data/clock inputs	1	1
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	EMITTER FOLLOWER	EMITTER FOLLOWER
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Maximum supply current (ICC)	2.9 mA	2.9 mA
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.25 mm	4.36 mm
Maximum supply voltage (Vsup)	3.3 V	3.3 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3 V	3 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	5.3 mm	7.62 mm
minfmax	1100 MHz	1100 MHz
Base Number Matches	1	1
