SBH11-NBPC-D08-SM-BK-M81: DescriptionCONN HEADR 2.54MM 16POS GOLD SMD; CategoryThe connector; File Size188KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

SBH11-NBPC-D08-SM-BK-M81 Overview

CONN HEADR 2.54MM 16POS GOLD SMD

SBH11-NBPC-D08-SM-BK-M81 Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	16
Number of rows	2
Line spacing - patching	0.100"（2.54mm）
Number of pins loaded	all
style	Board to Board or Cable
shield	Covered - 4 walls
Installation type	surface mount
Termination	welding
Fastening type	push-pull
Contact Length - Mating	-
Contact length - terminal	-
Overall contact length	-
Insulation height	0.358"（9.10mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	flash memory
Contact Surface Preparation - Column	gold
Contact material	brass
Insulation Materials	Polyamide (PA), nylon
characteristic	keyway, pick and place
Operating temperature	-40°C ~ 105°C
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	3A
Rated voltage	-
Joint stack height	11.17mm，12.72mm，14.87mm，19.87mm
Contact Surface Treatment Thickness - Column	flash memory
application	-

Preview

Download Datasheet

View All

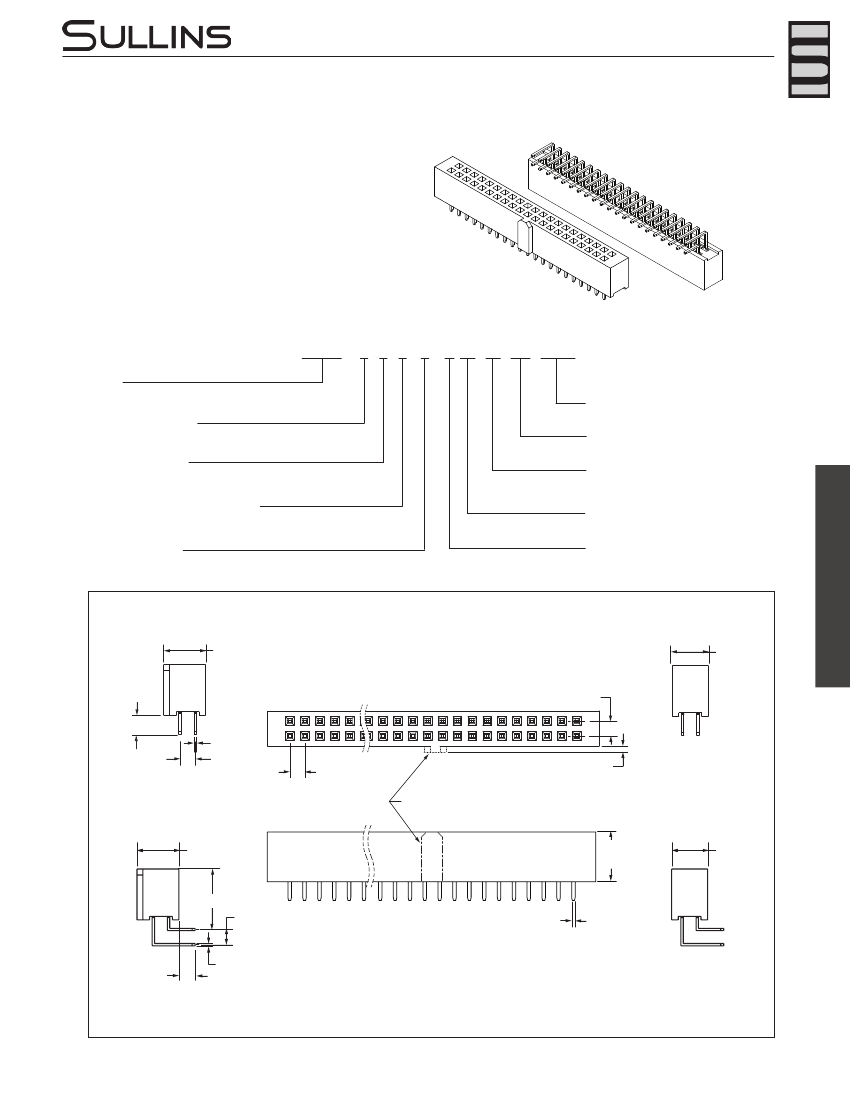

Headers

.100” [2.54 mm] Contact Centers, Female Headers,

Straight/Right Angle - SFH11 Series

Mates with SBH11 series (See opposite page)

SPECIFICATIONS

• Centered Polarizing Key Optional

• Operating Temperature: -40°C to +105°C

• Processing Temperature: 230°C Max. for 60 seconds,

(260°C Max. for 10 seconds)

• UL Flammability Rating: 94V-0

• Contact Resistance: 20 milli Ohms Max.

• Current Rating: 3 Amps

• Dielectric Withstanding: 1000 VAC

• Insulation Resistance: 5000 Megohms Min.

PART NUMBER OPTIONS

SFH11 - P P P

SERIES

SFH11 = Female Header, .100” [2.54 mm] Contact Centers

by .100” [2.54 mm] Row Spacing

INSULATOR MATERIAL

P = PBT

N = NYLON

CONTACT MATERIAL

P = Phosphor Bronze

B = Brass

CONTACT FINISH - RoHS Compliant

P = Gold Flash Overall

E = .000100” Pure Tin, Matte, Overall

CONTACT CENTERS

C = .100” [2.54 mm]

C - D 10 - ST - BK - M181

MODIFICATION (Omit for Standard)

M181 = Without Centered Polarizing Key

COLOR

BK = Black

TERMINATION TYPE (Opposite Page)

ST = Straight

RA = Right Angle

NUMBER OF CONTACT POSITIONS

03 thru 08,10,12, 13, 15,17, 20, 25, 30, 32

NUMBER OF ROWS

D = Dual Row

Headers

DIMENSIONS

For complete drawings, go to www.sullinscorp.com or e-mail techsupport@sullinscorp.com

Dimensions in [ ] are in millimeters, all others are in inches.

.276[7.00]

.236[6.00]

.100[2.54]

.126[3.20]

.016[0.40]

.100[2.54]

.039[1.00]

Centered Polarizing Key Optional,

Requires -M181 Modification to Remove

.335

[8.50]

STRAIGHT (ST)

Example P/N:

SFH11-PPPC-D20-ST-BK

-M181 Modification

(No Centered

Polarizing Key)

.276[7.00]

.236[6.00]

.398[10.10]

.100[2.54]

.024[0.60]

.106[2.70]

.016[0.40]

-M181 Modification

(No Centered

Polarizing Key)

RIGHT ANGLE (RA)

Example P/N:

SFH11-PPPC-D20-RA-BK

www.sullinscorp.com

|

760-744-0125

|

toll-free 888-774-3100

|

fax 760-744-6081

|

info@sullinscorp.com
