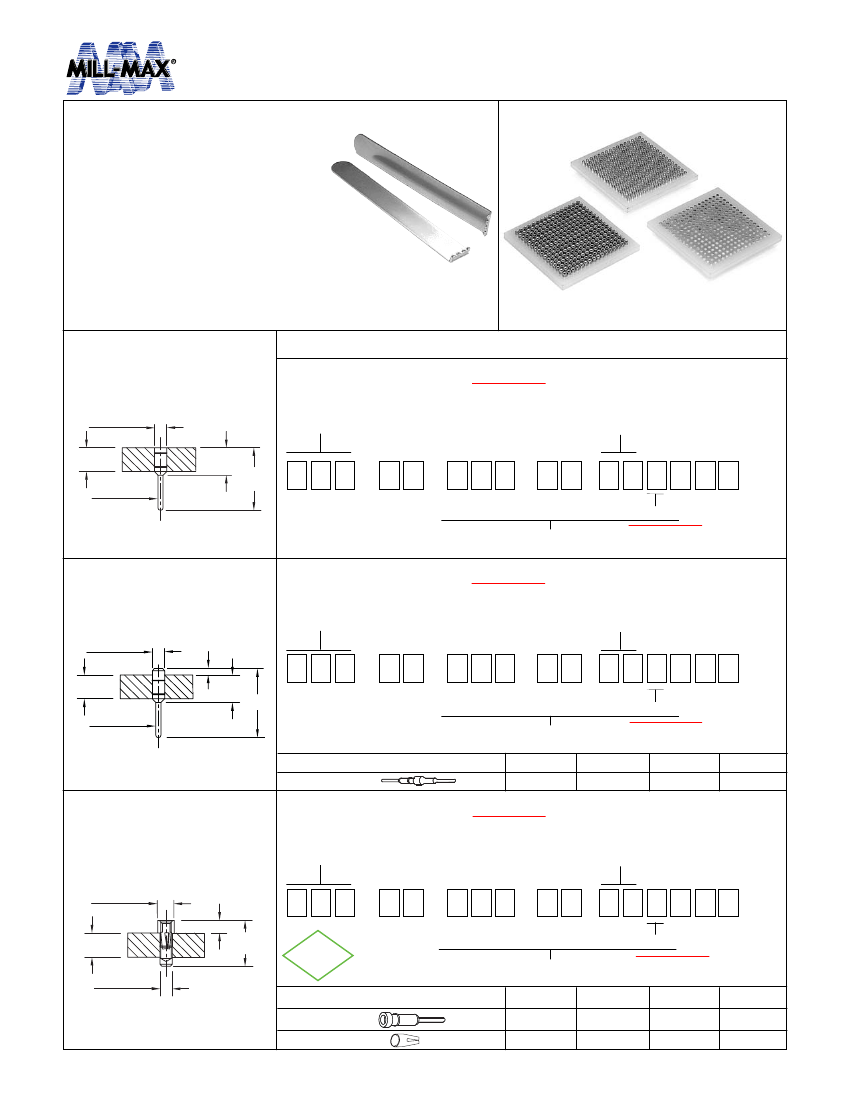

BALL GRID ARRAYS
For 1mm Grid
Male Pin Adapters & Female Socket
•
BGA adapter/socket systems are a reliable way to make BGAs
pluggable, they may also be used as a
high density board-to-board interconnect.
•
The BGA device is soldered to a 9929
adapter (or a 7929 adapter is soldered
to a PCB); and then either one can be
plugged into a 9928 surface mount socket.
•
Both socket and adapter have the same
footprint as the BGA device.
•
Insertion force is only .41N per pin, and a pry-bar tool
(part #828-01-010) is available for extraction.
•
Insulator material is FR-4 epoxy having a TCE to match the BGA
device and circuit board.
BGA MOUNT
ADAPTER PIN TYPE 9929
Series 5X9
Ordering Information
FOR BGA MOUNT ADAPTERS
Locate footprint pattern from page 111.4, the middle 8 digits of the part
number will be located under the pattern.
Series
Plating
Code
Window
.024 DIA.
.047
.010 DIA.
.054
.123
5 9 9
-
1 0
-
No. of pins
-
-
Grid size
Pattern #
4 2 9
Determined from footprint pattern on page 111.4
PRINTED CIRCUIT MOUNT
ADAPTER PIN TYPE 7929
FOR PCB MOUNT ADAPTERS
Locate footprint pattern from page 111.4, the middle 8 digits of the part
number will be located under the pattern.
Series
Plating
Code
Window
.024 DIA.
.047
.010 DIA.
.018
5 7 9
.054
.141
-
1 0
-
No. of pins
-
10
10μ” Au
-
Grid size
Pattern #
4 2 9
Determined from footprint pattern on page 111.4
PLATING CODE XX=
Pin Plating
SURFACE MOUNT
RECEPTACLE TYPE 9928
FOR FEMALE SOCKETS
Locate footprint pattern from page 111.4, the middle 8 digits of the part
number will be located under the pattern.
Series
Plating
Code
Window
.033 DIA.
.047
.024 DIA.
.025
.090
5 9 9
-
1 1
-
No. of pins
-
11
10μ” Au
10μ” Au
-
Grid size
Pattern #
4 2 8
Determined from footprint pattern on page 111.4
SPECIFY PLATING CODE XX=
Sleeve (Pin)
Contact (Clip)
w w w. m i l l - m a x . c o m
111.3
516-922-6000

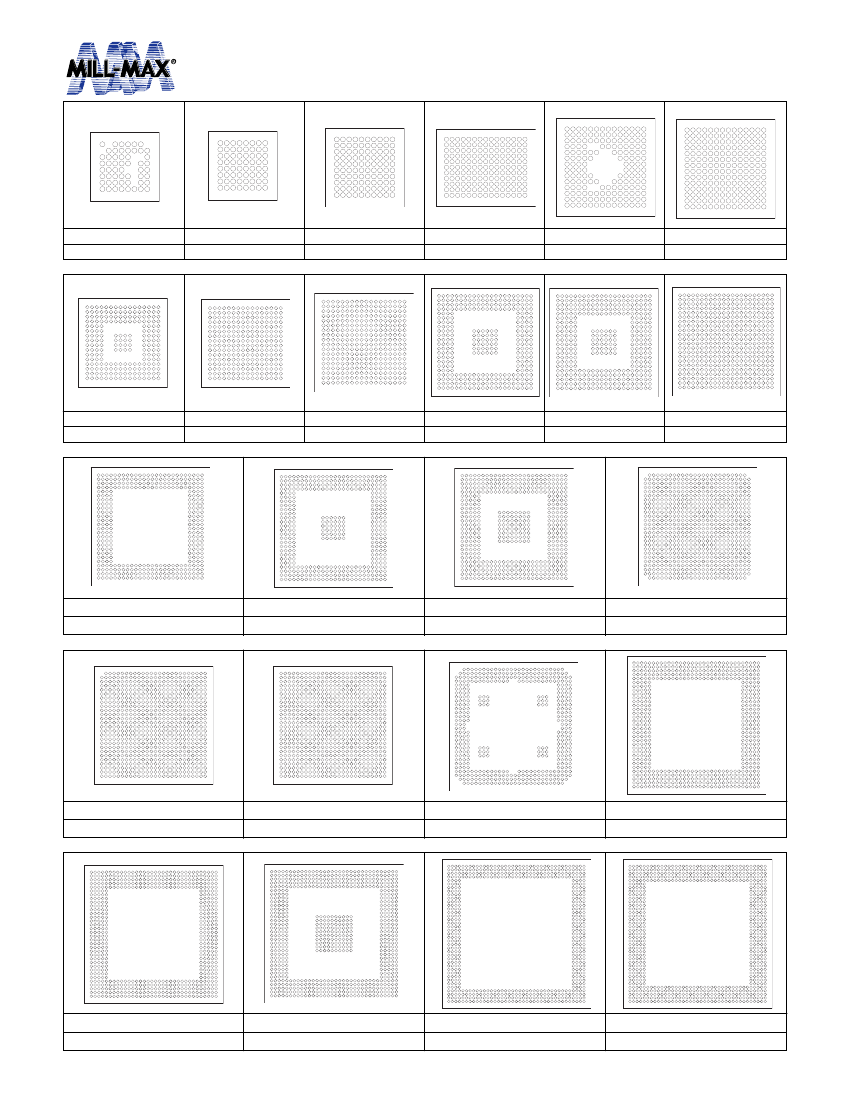

BALL GRID ARRAY FOOTPRINTS (1mm GRID)
Top view shown. Many other standard footprints are available.
Visit
www.mill-max.com
for a complete selection.
Series 5X9
10 X 10
11 X 15
14 X 14
14 X 14
8X8
8X8
XXX-XX-054-04-005 XXX-XX-064-04-000 XXX-XX-100-05-000 XXX-XX-165-01-005 XXX-XX-168-07-005 XXX-XX-196-07-000
22 X 22
22 X 22
22 X 22
16 X 16
18 X 18
16 X 16
XXX-XX-208-08-001 XXX-XX-256-08-007 XXX-XX-324-09-000 XXX-XX-324-11-005 XXX-XX-376-11-005 XXX-XX-484-11-005
26 X 26
XXX-XX-352-13-007
26 X 26
XXX-XX-388-13-007
26 X 26
XXX-XX-484-13-005
26 X 26
XXX-XX-672-13-005
26 X 26
XXX-XX-675-13-005
26 X 26
XXX-XX-676-13-000
30 X 30
XXX-XX-432-15-001
33 X 33
XXX-XX-560-17-001
34 X 34
XXX-XX-580-17-005
34 X 34
XXX-XX-680-17-005
39 X 39
XXX-XX-560-20-007
39 X 39
XXX-XX-680-20-005
