11_QN-50-2-1/133_NH: DescriptionRF Connector, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

11_QN-50-2-1/133_NH Overview

RF Connector, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT

11_QN-50-2-1/133_NH Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	APPLICABLE CABLES: RG 316/U; RG 174/U; RG 188A/U
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

HUBER+SUHNER

®

DATA SHEET

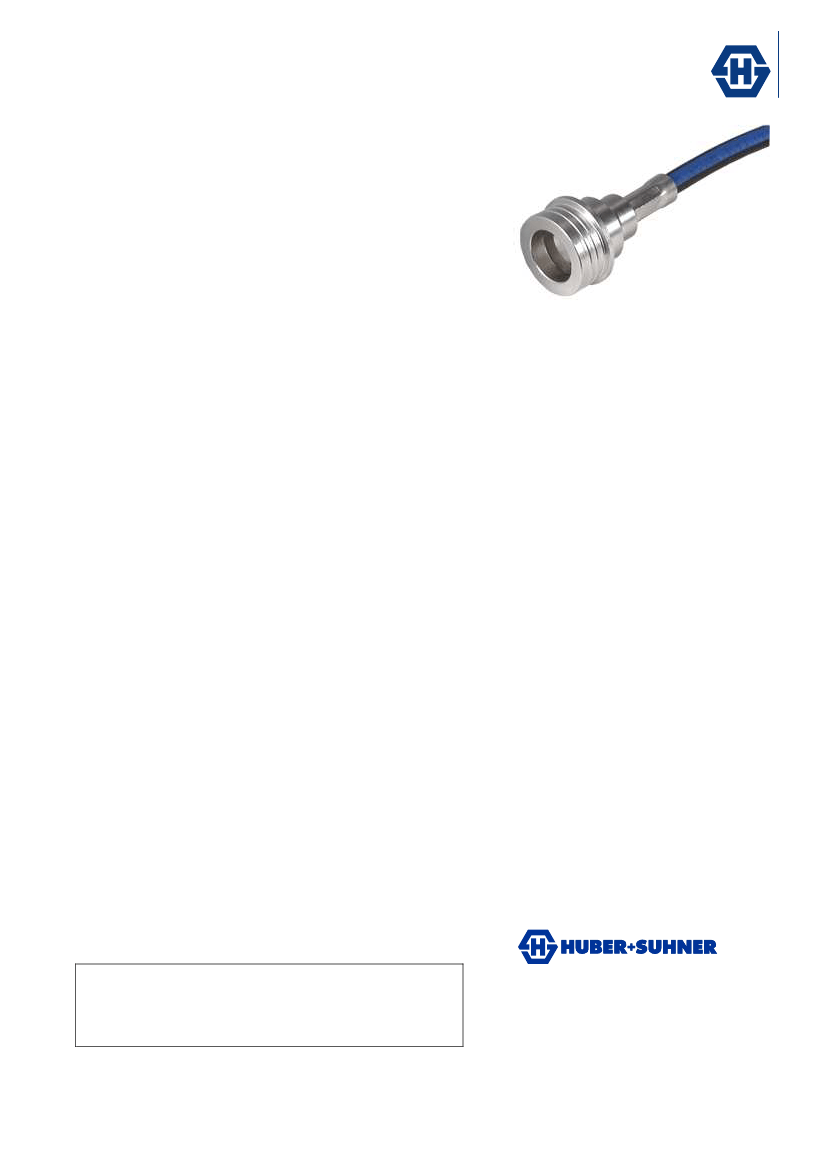

Coaxial Cable Connector: 11_QN-50-2-1/133_N

Description

Rev.: D

Straight cable plug

Interface Standards

QN QLF compliant

Technical Data

Electrical Data

Impedance

Interface frequency max.

50

Ω

11 GHz

crimped

0.0173 kg

-40 °C to 125 °C

compliant

Material

Copper Beryllium Alloy

Brass

PTFE

EPDM

Copper

DOU-00073196

DOC-0000229677

11_QN-50-2-1/133_NH

RG_316_/U, ENVIROFLEX_316, RG_174_/U, RG_188_A/U

Surface Plating

SUCOPRO Plating

SUCOPLATE (R) Plating

Mechanical Data

Centre contact

Outer contact

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Gasket

Crimp ferrule

Material Data

Recommended Resources

Ten-band frequency equalizer

UM3758 (universal) infrared or ultrasonic remote control transceiver circuit - receiving circuit

Ice alarm

Amplifier timer circuit

Infrared thermometer control circuit

Light-operated series switch circuit
