IQG48047A096V-1D1-R datasheet, PDF

Datasheet> All Categories > Power/power management> IQG48047A096V-1D1-R

IQG48047A096V-1D1-R: DescriptionDC DC CONVERTER 9.6V; CategoryPower/power management; File Size733KB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric Compare View All

IQG48047A096V-1D1-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IQG48047A096V-1D1-R	-	-	View	Buy Now

IQG48047A096V-1D1-R Overview

DC DC CONVERTER 9.6V

IQG48047A096V-1D1-R Parametric

Parameter Name	Attribute value
type	isolation module
Number of outputs	1
Voltage - Input (minimum)	36V
Voltage - input (maximum)	75V
Voltage - Output 1	9.6V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (maximum)	47A
Power (W)	450W
Voltage - Isolation	1.5kV
application	ITE (Business)
characteristic	Remote on/off, OCP, OVP
Operating temperature	-40°C ~ 124°C (with derating)
efficiency	94.5%
Installation type	Through hole
Package/casing	quarter brick
size/dimensions	2.28" long x 1.45" wide x 0.52" high (57.9mm x 36.8mm x 13.2mm)
Supplier device packaging	quarter brick

Preview

Download Datasheet

View All

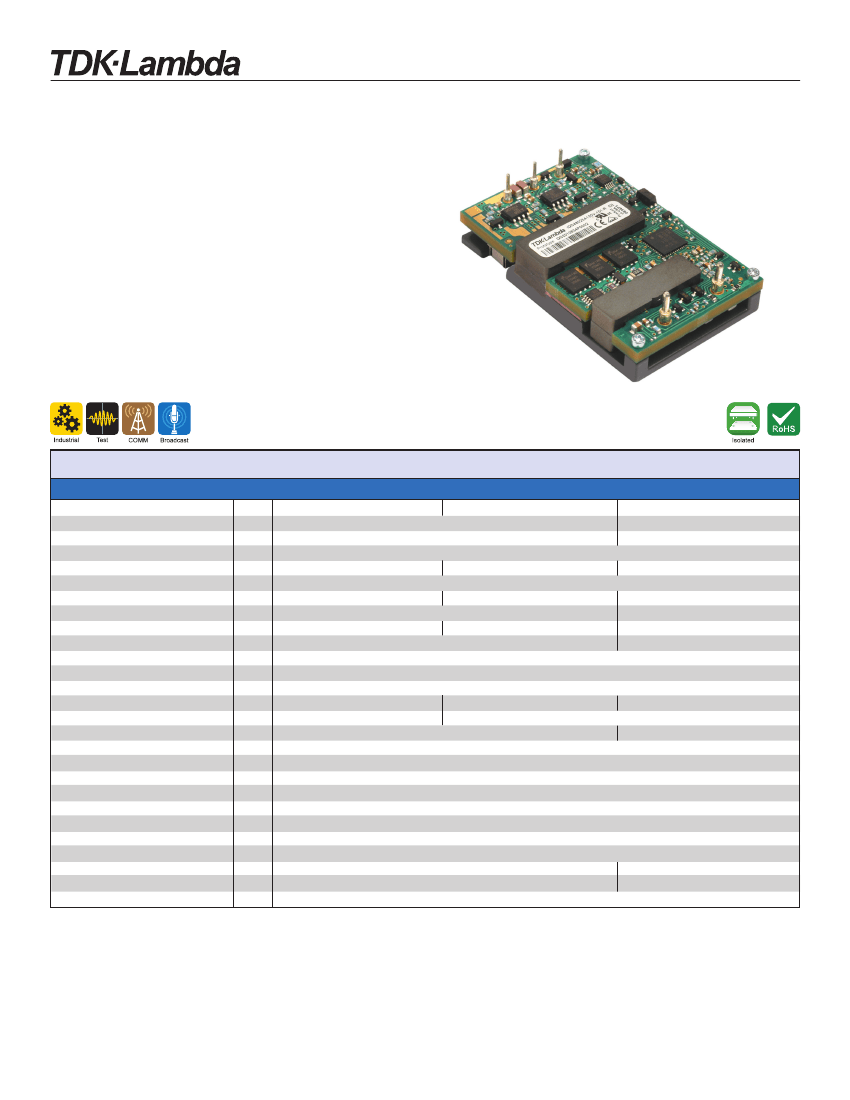

iQG Series

300-504W Quarter Brick Converters

Features



Standard Quarter Brick Footprint



36-75VDC Input



9.6 or 12V Outputs



Through Hole Mounting



Low 13.2mm Proﬁle



1500VDC Basic Isolation



High operating efﬁciency (up to 95%)



Constant switching frequency



Starts with pre-biased output



Baseplate cooled



Parallel Operation (400W model)

Key Market Segments & Applications

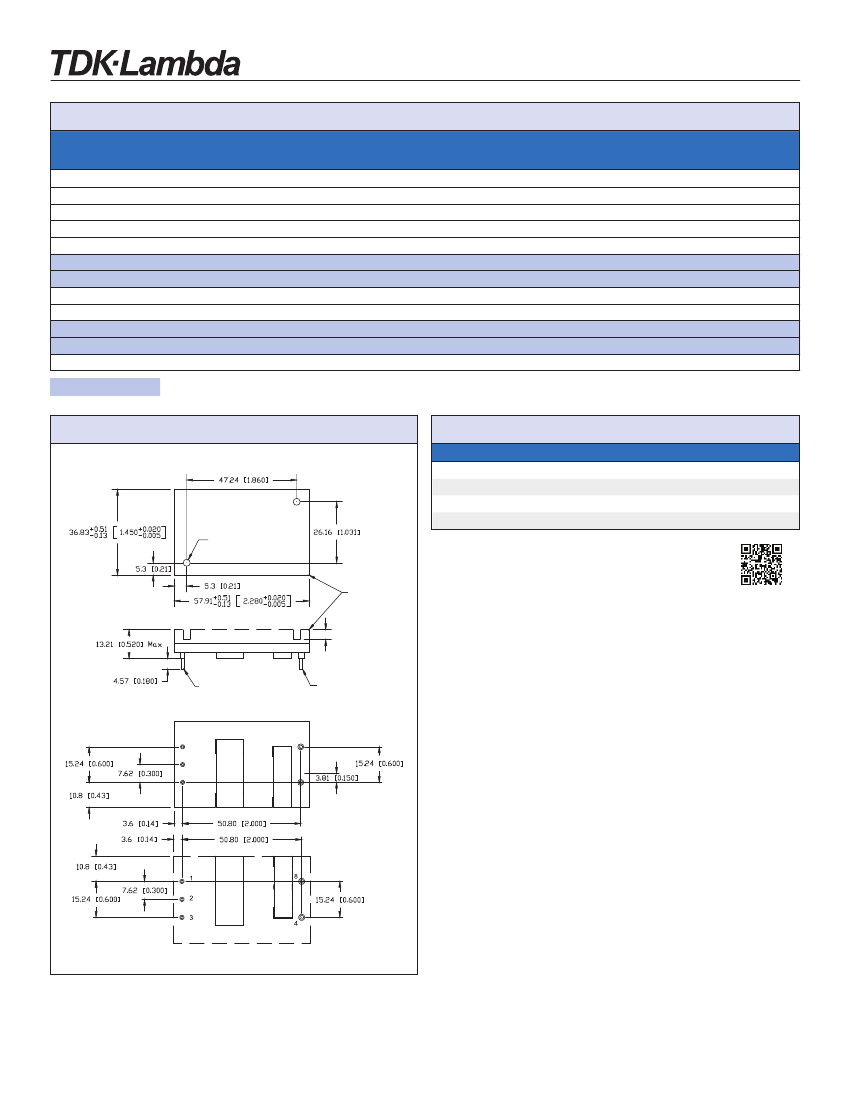

Speciﬁcations

Model

Nominal Output Voltage

Input Voltage Range

Input Current (max)

Efﬁciency (48V Input)

Output Voltage Tolerance

Output Voltage Adjustment

Ripple & Noise (max) (pk - pk)

Line Regulation (typical)

Load Regulation (typical)

Overload Protection (typ)

Overvoltage Protection

Remote Sense

Remote On / Off

Current Share (Droop Mode)

Current Share Accuracy

Temperature (operating)

Temperature (storage)

Humidity (operating)

Humidity (storage)

Cooling

Isolation Voltage

Vibration (non operating)

Shock

Safety Agency Certiﬁcations

Weight

Size (LxWxH)

Warranty

iQG48033A120V-000-109

iQG48033A120V-1D1 & 1D9

iQG48042A120V-109 & 1U9

VDC

12V

VDC

36 - 75VDC

39 - 75VDC

10.5A

15A

94.5%

VDC

11.5 - 11.85

11.6 - 12.0

11.93 - 12.35

None

125mV

150mV

175mV

20mV

12mV

35mV

n/a

35mV (-109 only)

39A (non-latching)

52A (non-latching)

VDC

13.7 - 15.6 (latching)

Yes

Negative

Yes

(-1U9 only)

±10% (50-100% of total load)

°C

-40 to 124°C (1)

-40 to 125°C (1)

°C

-55 to 125

%RH

20-95% RH Non Condensing

%RH

10-95% RH Non Condensing

Conduction, convection, or forced air (See detailed datasheet for derating)

VDC

1500VDC Input to Output, Input to Baseplate

5-50Hz @ 0.5g (4.9m/s

) and 50-500Hz @ 1.5g (14.7m/s

) per Bellcore TR-EOP-000063-5.4.4

196.1m/s

UL60950-1 (US and Canada), VDE0805 (IEC60950-1), CB scheme (IEC60950-1), CE Mark

70g

88g

57.91 x 36.83 x 13.21

57.91 x 36.83 x 13.97

Yrs

3 Years

Note: See website for detailed speciﬁcations and test methods

(1) See detailed datasheet for derating

1-800-526-2324 • www.us.tdk-lambda.com/lp/

181

Disclaimer: us.tdk-lambda.com/lp/legal.htm

IQG48047A096V-1D1-R Related Products

	IQG48047A096V-1D1-R	IQG48042A120V-1U9-R	IQG48042A120V-109-R	IQG48033A120V-101-R	IQG48033A120V-1D1-R	IQG48025A120V-001-R	IQG48025A120V-009-R
Description	DC DC CONVERTER 9.6V	Isolated DC/DC Converters 36-75Vin 12Vout 42A Neg Log Par Therm	DC DC CONVERTER 12V 504W	DC DC CONVERTER 12V	DC DC CONVERTER 12V	DC DC CONVERTER 12V	DC DC CONVERTER 12V
type	isolation module	-	-	isolation module	isolation module	isolation module	isolation module
Number of outputs	1	-	-	1	1	1	1
Voltage - Input (minimum)	36V	-	-	36V	36V	36V	36V
Voltage - input (maximum)	75V	-	-	75V	75V	75V	75V
Voltage - Output 1	9.6V	-	-	12V	12V	12V	12V
Current - Output (maximum)	47A	-	-	33A	33A	25A	25A
Power (W)	450W	-	-	400W	400W	300W	300W
Voltage - Isolation	1.5kV	-	-	1.5kV	1.5kV	1.5kV	1.5kV
application	ITE (Business)	-	-	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)
characteristic	Remote on/off, OCP, OVP	-	-	Remote on/off, OCP, OVP	Remote on/off, OCP, OVP	Remote on/off, OCP, OVP	Remote on/off, OCP, OVP
Operating temperature	-40°C ~ 124°C (with derating)	-	-	-40°C ~ 124°C (with derating)	-40°C ~ 124°C (with derating)	-40°C ~ 124°C (with derating)	-40°C ~ 124°C (with derating)
efficiency	94.5%	-	-	94.5%	94.5%	94.5%	94.5%
Installation type	Through hole	-	-	Through hole	Through hole	Through hole	Through hole
Package/casing	quarter brick	-	-	quarter brick	quarter brick	quarter brick	quarter brick
size/dimensions	2.28" long x 1.45" wide x 0.52" high (57.9mm x 36.8mm x 13.2mm)	-	-	2.28" long x 1.45" wide x 0.52" high (57.9mm x 36.8mm x 13.2mm)	2.28" long x 1.45" wide x 0.52" high (57.9mm x 36.8mm x 13.2mm)	2.28" long x 1.45" wide x 0.52" high (57.9mm x 36.8mm x 13.2mm)	2.28" long x 1.45" wide x 0.52" high (57.9mm x 36.8mm x 13.2mm)
Supplier device packaging	quarter brick	-	-	quarter brick	quarter brick	quarter brick	quarter brick
