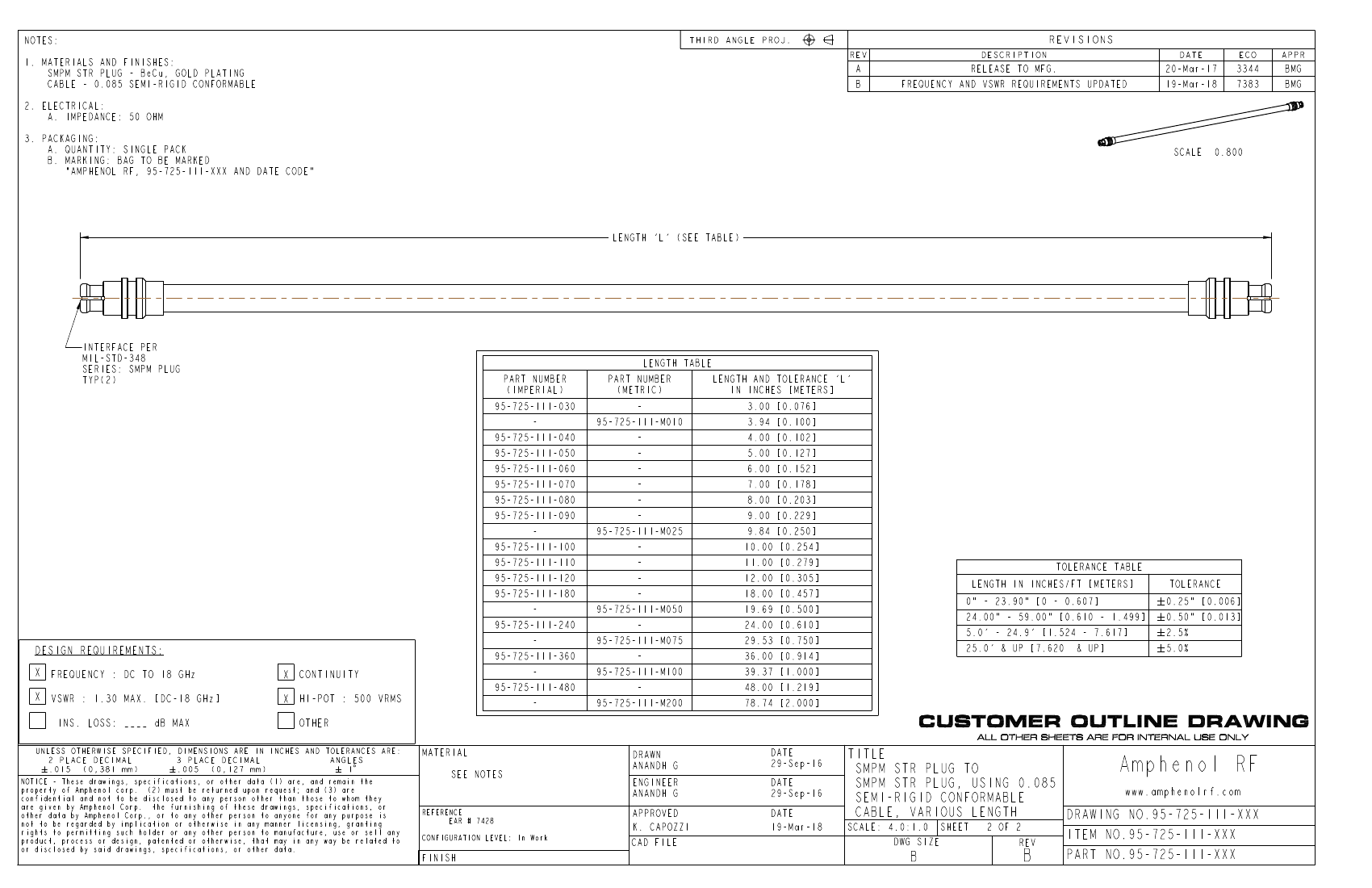

NOTES:
1. MATERIALS AND FINISHES:
SMPM STR PLUG - BeCu, GOLD PLATING
CABLE - 0.085 SEMI-RIGID CONFORMABLE
2. ELECTRICAL:
A. IMPEDANCE: 50 OHM
3. PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL RF, 95-725-111-XXX AND DATE CODE"
THIRD ANGLE PROJ.
REV
REVISIONS
A
B
RELEASE TO MFG.
DESCRIPTION
FREQUENCY AND VSWR REQUIREMENTS UPDATED
20-Mar-17
19-Mar-18
DATE
3344
7383
ECO
APPR
BMG
BMG
SCALE
0.800
LENGTH 'L' (SEE TABLE)
INTERFACE PER
MIL-STD-348
SERIES: SMPM PLUG
TYP(2)
PART NUMBER
(IMPERIAL)
95-725-111-030
95-725-111-040
95-725-111-050
95-725-111-060
95-725-111-070
95-725-111-080
95-725-111-090
95-725-111-100
95-725-111-110
95-725-111-120
95-725-111-180
95-725-111-240
-
-
-
-
-
-
PART NUMBER
(METRIC)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
LENGTH TABLE
LENGTH AND TOLERANCE 'L'
IN INCHES [METERS]
3.00 [0.076]
3.94 [0.100]
4.00 [0.102]
5.00 [0.127]
6.00 [0.152]
7.00 [0.178]
8.00 [0.203]
9.00 [0.229]
10.00 [0.254]
11.00 [0.279]
12.00 [0.305]
18.00 [0.457]
19.69 [0.500]
24.00 [0.610]
29.53 [0.750]
36.00 [0.914]
39.37 [1.000]
48.00 [1.219]
78.74 [2.000]
TOLERANCE TABLE
LENGTH IN INCHES/FT [METERS]
0" - 23.90" [0 - 0.607]
24.00" - 59.00" [0.610 - 1.499]
5.0' - 24.9' [1.524 - 7.617]
25.0' & UP [7.620
& UP]
TOLERANCE
# 0.25" [0.006]
# 0.50" [0.013]
# 2.5%
# 5.0%
9.84 [0.250]
95-725-111-M010
95-725-111-M025
95-725-111-M050
95-725-111-M075
95-725-111-M100
95-725-111-M200
DESIGN REQUIREMENTS:
X
FREQUENCY : DC TO 18 GHz
X
VSWR : 1.30 MAX. [DC-18 GHz]
INS. LOSS: ____ dB MAX
95-725-111-360
X
CONTINUITY
X
HI-POT : 500 VRMS
OTHER
MATERIAL
95-725-111-480
CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
SEE NOTES
REFERENCE
EAR # 7428
CONFIGURATION LEVEL: In Work
DRAWN
ANANDH G
ENGINEER
ANANDH G
APPROVED
K. CAPOZZI
DATE
29-Sep-16
DATE
29-Sep-16
DATE
19-Mar-18
TITLE
SMPM STR PLUG TO
SMPM STR PLUG, USING 0.085
SEMI-RIGID CONFORMABLE
CABLE, VARIOUS LENGTH
SCALE: 4.0:1.0
DWG SIZE
SHEET
2 OF 2
Amphenol RF
www.amphenolrf.com
DRAWING NO. 95-725-111-XXX
ITEM NO. 95-725-111-XXX
PART NO. 95-725-111-XXX
FINISH
CAD FILE
B
REV
B
