IPBD-14-D-K-M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The power connector> Heavy duty power connector> IPBD-14-D-K-M

IPBD-14-D-K-M: DescriptionHeavy Duty Power Connector.165" Power Mate Discrete Wire Socket Housing; CategoryThe connector The power connector Heavy duty power connector; File Size494KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

IPBD-14-D-K-M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IPBD-14-D-K-M	-	-	View	Buy Now

IPBD-14-D-K-M Overview

Heavy Duty Power Connector.165" Power Mate Discrete Wire Socket Housing

IPBD-14-D-K-M Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	Heavy duty power connector
Shipping restrictions	Mouser does not currently sell this product.
series	IPBD
Encapsulation	Bulk
Factory packaging quantity	1

Preview

Download Datasheet

View All

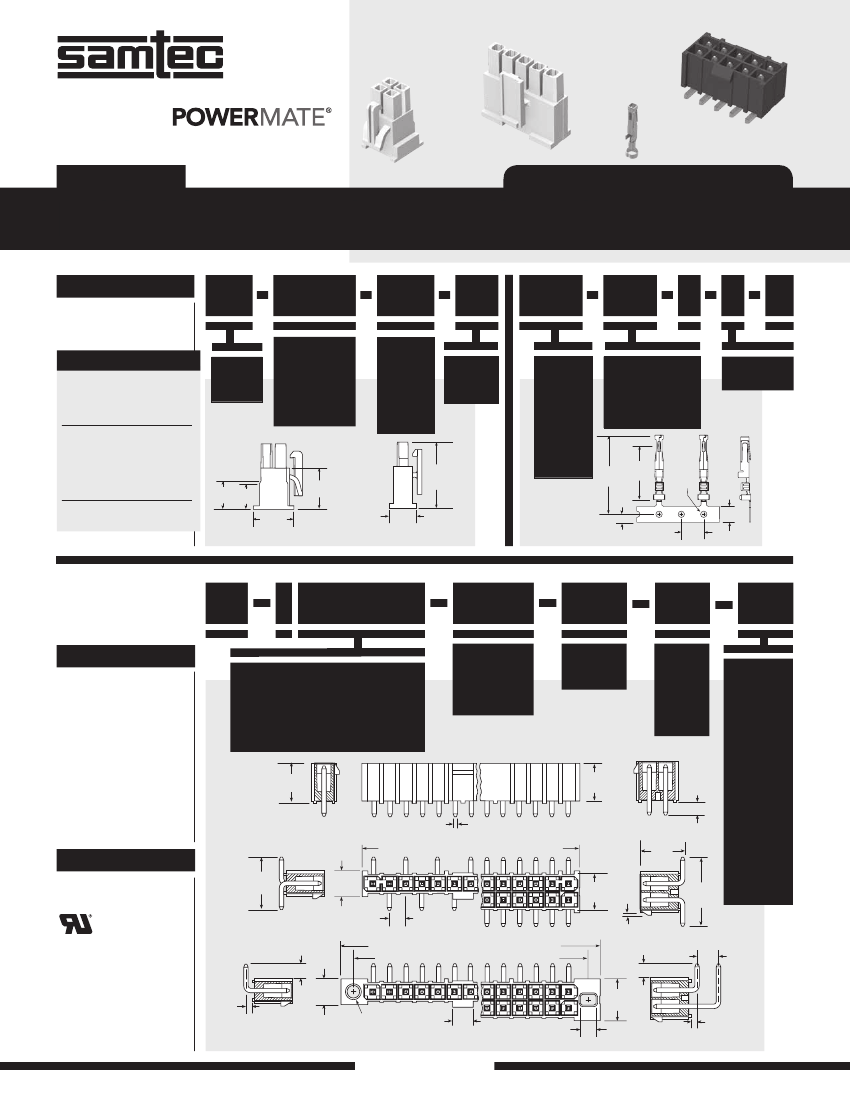

F-219 SUPPLEMENT

IPBD–05–S–K

IPBT–105–H2–T–D–K

CC69L–2024–01–T–SP

(4.19 mm) .165"

IPBD–02–D–K

IPBD, CC69L, CC69R, IPBT SERIES

DISCRETE WIRE CABLE COMPONENTS

SPECIFICATIONS

For complete specifications

www.samtec.com?IPBD,

www.samtec.com?CC69L or

www.samtec.com?CC69R

TYPE

POSITIONS

PER ROW

ROW

OPTION

TYPE

WIRE

GAUGE

TOOLING

• Hand Tool (16-20 AWG):

CAT-HT-169-1620-13

• Hand Tool (20-24 AWG):

CAT-HT-169-2024-13

• Mini Applicator

(16-20 AWG):

CAT-MC-169-1620-XX-01

• Mini Applicator

(20-24 AWG):

CAT-MC-169-2024 XX-01

• Extraction Tool:

CAT-EX-169-01

IPBD

= Body,

Loose

(Standard sizes)

–02,

–03, –04,

–05,–08,

–10, –15

= Single

Row

–S

= Double

Row

–D

= Keyed

Polarization

–K

CC69L

= Contact,

Loose

= 20 to 24 AWG

–2024

–1620

= Tin

–T

CC69R

= Contact,

Full Reel

(4,000 Parts

per Reel)

= 16 to 20 AWG

(8.51)

(7.62)

.335

.300

(12.14)

.478

(12.32)

.485

(7.95)

.313

(19.56)

.770

(13.21)

(19.23) .520

.757

(1.91)

.075

(1.57)

.062

DIA

(3.81)

.150

–D

–S

(5.40)

.2125

Board Mates:

IPBS

Cable Mates:

PMSD, PMSS

IPBT

NO. OF POSITIONS

PER ROW

LEAD

STYLE

PLATING

OPTION

ROW

OPTION

SPECIFICATIONS

For complete specifications

see www.samtec.com?IPBT

Insulator Material:

Black Liquid Crystal

Polymer

Contact Material:

High Copper Alloy

Plating:

Sn over 50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +105 °C

Voltage Rating:

400 VAC/565 VDC

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

02, 03, 04, 05, 08, 10, 15

(–D only)

= Through-hole

–H1

02, 03, 04, 05, 08, 10

(–S only)

(Standard sizes)

= Surface Mount

–H2

= Matte

Tin

–T

= Single

Row

–S

= Double

Row

–D

= Right-angle

(Lead Style

–H1 only)

–RA

(10.29)

.405

(9.65)

.380

(3.30)

.130

= Guide

Post Holes

(8 positions

not available)

–GP

– H1–S

(1.14) .045 SQ

No. of Positions x (4.19) .165 + (1.33) .052

–H1–D

(11.43)

.450

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

(11.40)

.449

(6.58)

.259

(9.60) (1.27)

.378 .050

(15.62)

.615

= Keyed

Polarization

(not available

with -GP

option, is

required

callout if -GP

not called out)

–K

– H2–S

FILE NO. E111594

(4.19)

.165

No. of Positions x (4.19) .165 + (12.27) .483

No. of Positions x (4.19) .165 + (6.10) .240

–H2–D

(5.51)

.217

(3.73) .147

(1.52)

.060

(6.58)

.259

(3.73) .147

(10.77)

.424

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

–H1–S–RA

(3.43)

.135 DIA

(5.21)

.205

–GP OPTION

(4.06) .160

(1.52)

.060

–H1–D–RA

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
