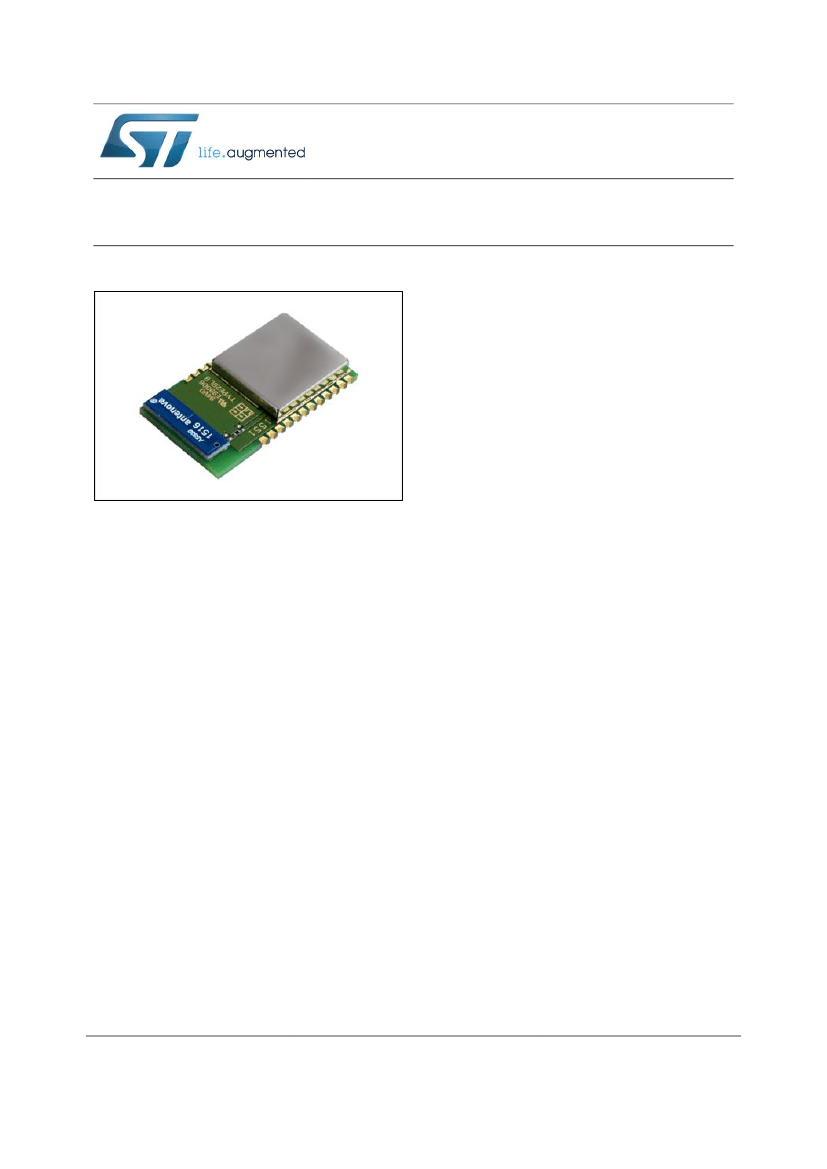

SPBT3.0DP1
Bluetooth® Classic module
Datasheet - production data
Features
Bluetooth radio
Fully embedded Bluetooth
®
v3.0 with
SPP and HID profiles
Class 1 module
Enhanced Data Rate (EDR) support
Complete RF-ready module
Embedded support for MFi iAP2 profile
128-bit encryption security
Integrated antenna
ST Cortex-M4 microprocessor
Up to 100 MHz
512 KB Flash
128 KB RAM
Supports transmission speed with SPP up to
1500 Kbit/s
14 general-purpose I/Os
User interface
AT command Data Package (DP)
Firmware upgrade over UART
EU, FCC, IC and Bluetooth qualified
Single voltage supply: 3.3 V typical
Small form factor: 15.24 x 26.9 x 2.9 mm
Operating temperature range: -40 °C to
85 °C
September 2017
DocID029412 Rev 2
1/35
www.st.com
This is information on a product in full production.
