GRF6011
SPDT Failsafe Switch
0.1
–
3.8 GHz
Product Description
GRF6011 is linear, ultra-low loss SPDT switch that has
been designed with failsafe characteristics when all volt-
age inputs are removed. In switching mode, the device
delivers IP1dB levels greater than 1 Watt along with >49
dBm IIP3 levels for both RF paths.
Features
Path: RFC to RF1: (1.9 GHz); Vdd: 3.3V
•
Insertion Loss: 0.43 dB
When powered down (Failsafe Mode), RFC to RF1 de-
faults to a high insertion loss while RFC to RF2 defaults
to a low insertion loss state that retains high linearity.
The device is operated from a supply voltage of 3.0 volts
to 5.0 volts with the single control input (V
SEL
) from 3.0
volts up to V
DD
.
Consult with the GRF applications engineering team for
technical support and device s-parameters.
•
•
•
IP1dB: 32.0 dBm
IIP3: 49.5 dBm
Failsafe Mode: High loss
Path: RFC to RF2: (1.9 GHz); Vdd: 3.3V
•
•
•
•
Insertion Loss: 0.33 dB
IP1dB: 30.5 dBm
IIP3: 51.0 dBm
Failsafe Mode: 0.4 dB loss
Applications
•
•
•
•
•
Signal Boosters/Repeaters
Tower Mounted Amplifiers
ISM Radios
Automotive Telematics
RFID
1.5 x 1.5 mm DFN-6
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/28/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
1
Preliminary
GRF6011
SPDT Failsafe Switch
0.1
–
3.8 GHz
Absolute Ratings:
Parameter
Drain Voltage
RF Input Power (average)
Operating Temperature
Maximum Channel Temperature
Electrostatic Discharge:
Charged Device Model: (TBD)
Human Body Model: (TBD)
Storage:
Storage Temperature
Moisture Sensitivity Level
T
STG
MSL
-40
150
1
°C
--
CDM
HBM
1500
250
V
V
Symbol
V
D
P
IN MAX
T
AMB
T
MAX
Min.
0
Max.
6.0
36
Unit
V
dBm
°C
°C
-40
105
170
Caution!
ESD Sensitive Device
Exceeding Absolute Maximum Rating conditions may cause permanent damage to the device.
Note: For package dimensions and manufacturing information, see the Guerrilla-RF.com website
for the following document located on the GRF6011 landing page: Manufacturing Note—MN-
001 Product Tape and Reel, Solderability and Package Outline Specification.
Link to manufacturing note
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/28/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
2
Preliminary
GRF6011
SPDT Failsafe Switch
0.1
–
3.8 GHz

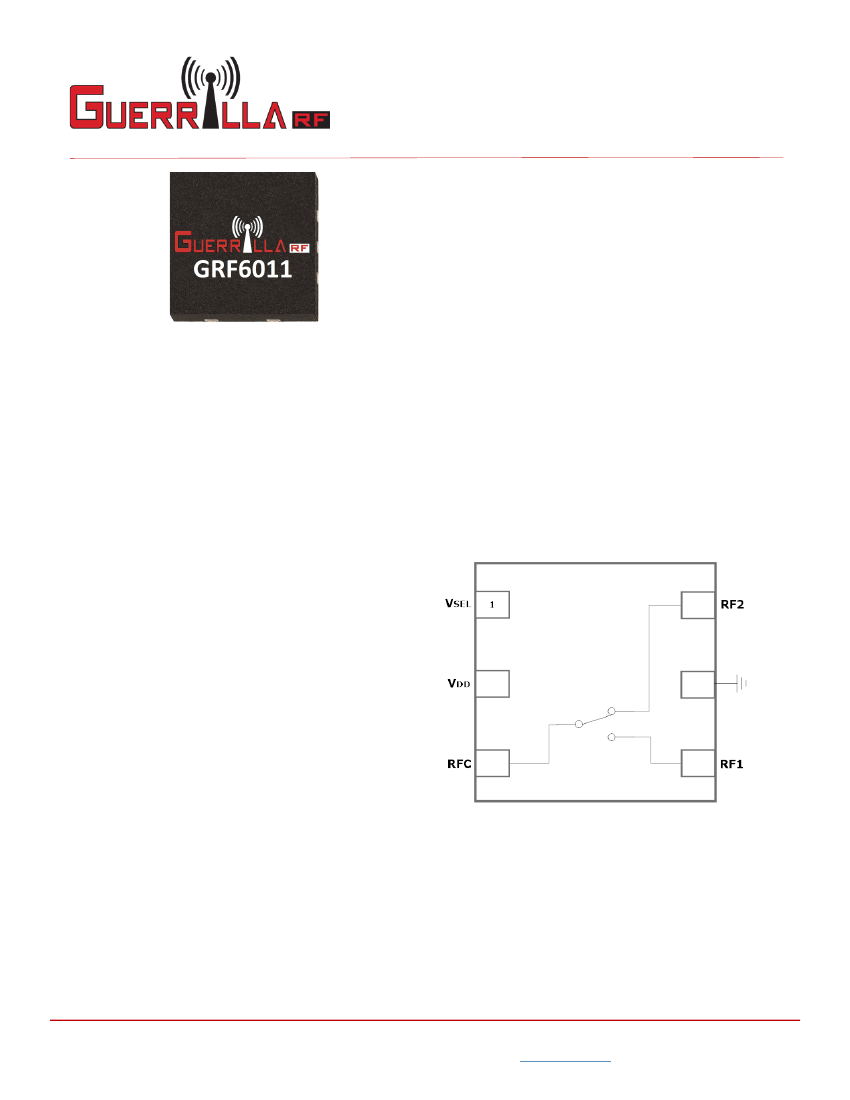

Pin Out (Top View)
Pin Assignments:
Pin
1
2
Name
V
SEL
V
DD
Description
Switching control Input
Supply voltage input
Common RF Path
RFC to RF1
Ground
RFC to RF2
Ground
DC blocking cap must be used
Note
Selects RF path
3
4
5
6
PKG
BASE
RFC
RF1
GND
RF2
GND
This path defaults to high insertion loss when all power is removed. DC
blocking cap must be used
This path defaults to low insertion loss when all power is removed. DC
blocking cap must be used
Provides DC and RF ground for LNA, as well as thermal heat sink. Recom-
mend multiple 8 mil vias beneath the package for optimal RF and thermal
performance. Refer to evaluation board top layer graphic on schematic
page.
Control Logic Truth Table:
Mode
RFC to RF1
RFC to RF2
Failsafe
V
SELECT
Logic Level “0”
V
SELECT
Logic Level “1”
Description
Select RF1
Select RF2
No voltage input
Logic Low
Logic High
Vdd
>= 3.0
>= 3.0
0.0 or float
>= 3.0
>= 3.0
V
SELECT
1
0
0.0 or float
< 0.1V
3.0 <= V
SELECT
<= V
DD
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/28/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
3
Preliminary
GRF6011
SPDT Failsafe Switch
0.1
–
3.8 GHz
Nominal Operating Parameters:
Parameter
Test Frequency
Symbol
F
TEST
Specification
Min.
Typ.
1.9
Max.
Unit
GHz
Condition
Switch Mode: RFC to RF1 Selected
Loss (Packaged Device)
Isolation: RF1 to RF2
Input Power for 1 dB Compression
Input 3rd Order Intercept
Supply Current
Select Current
Loss_1
Isol_1_2
IP1dB_1
IIP3_1
I
DD
I
SELECT
0.43
22.0
32.0
49.5
1000
800
dB
dB
dBm
dBm
uA
uA
V
DD
: 3.3V; V
SEL
: 3.3V; T
A
= 25°C
Switch Mode: RFC to RF2 Selected
Loss (Packaged Device)
Isolation: RF1 to RF2
Input Power for 1 dB Compression
Input 3rd Order Intercept
Supply Current
Select Current
Failsafe Mode: RFC to RF2 (Default Short)
Loss
Isolation: RF1 to RF2
Input Power for 1 dB Compression
Input 3rd Order Intercept
Failsafe Mode: RFC to RF1 (Default Open)
Loss
Loss_1
23.0
dB
Loss_2
Isol_1_2
IP1dB_2
IIP3_2
0.40
22.0
29.0
48.0
dB
dB
dBm
dBm
Loss_2
Isol_1_2
IP1dB_2
IIP3_2
I
DD
I
SELECT
0.33
25.0
30.5
51.0
300
0
dB
dB
dBm
dBm
uA
uA
V
DD:
3.3V; V
SEL:
0.0V , T
A
= 25°C
V
DD:
0.0V; V
SEL:
0.0 V , T
A
= 25°C
V
DD:
0.0V; V
SEL:
0.0 V , T
A
= 25°C
Thermal Data
Thermal Resistance: (Infra-Red Scan)
Channel Temperature @ +85 C Reference
(Package heat sink)
jc
T
CHANNEL
TBD
ᵒC/W
ᵒC
On standard Evaluation Board
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/28/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
4
Preliminary
GRF6011
SPDT Failsafe Switch
0.1
–
3.8 GHz

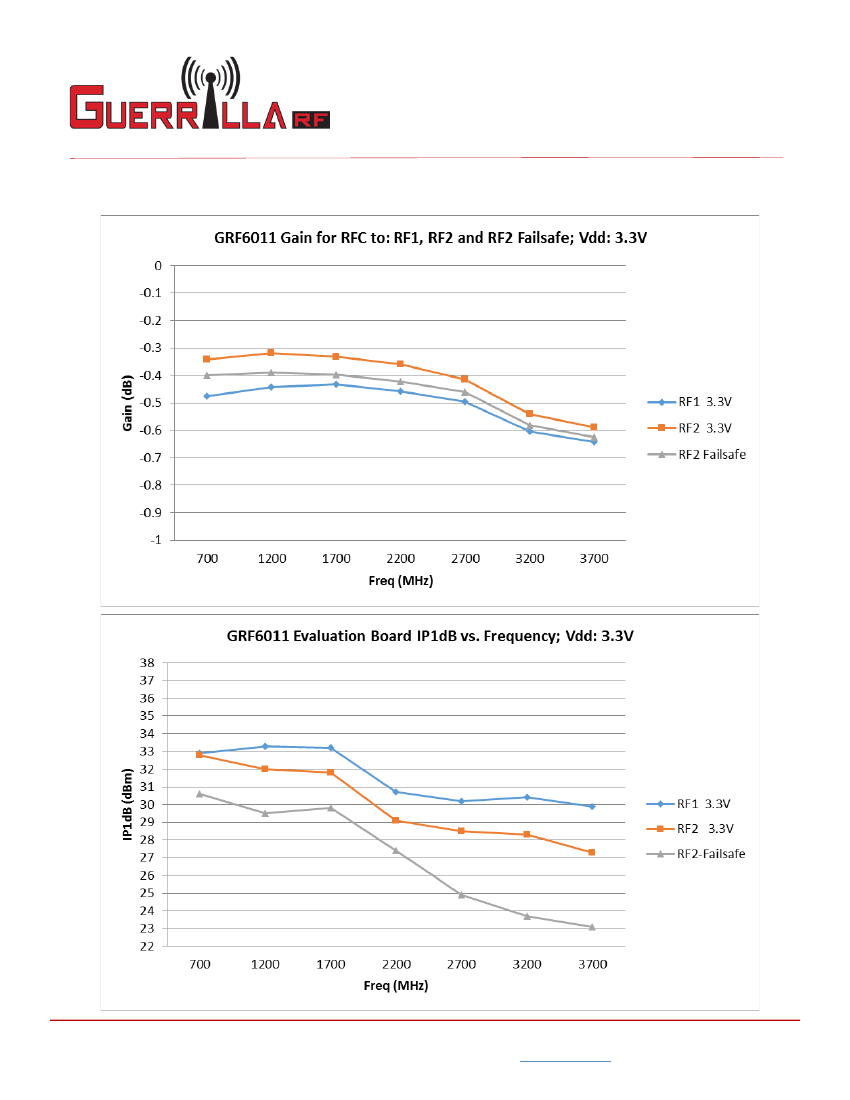

GRF6011 Evaluation Board Data
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/28/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
5
