RP510L001J-TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management IC> Voltage regulator and the voltage controller> Switching voltage stabilizer> RP510L001J-TR

Preview

RP510L001J-TR: DescriptionSwitching Regulator 4A Forced PWM Step-down DCDC Converter with Synchronous Rectifier; Categorysemiconductor Power management IC Voltage regulator and the voltage controller Switching voltage stabilizer; File Size1MB，32 Pages; ManufacturerRicoh Electronic; Environmental Compliance

Download Datasheet Parametric Compare View All

RP510L001J-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RP510L001J-TR	-	-	View	Buy Now

RP510L001J-TR Overview

Switching Regulator 4A Forced PWM Step-down DCDC Converter with Synchronous Rectifier

RP510L001J-TR Parametric

Parameter Name	Attribute value
Maker	Ricoh Electronic
Product Category	switching regulator
Installation style	SMD/SMT
Package/box	DFN3030-12
The output voltage	800 mV to 3.3 V
Output current	4 A
Number of outputs	1 Output
Maximum input voltage	5.5 V
Topology	Buck
Minimum input voltage	2.5 V
On-off level	2.3 MHz
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
series	RP510L
Encapsulation	Cut Tape
Encapsulation	MouseReel
Encapsulation	Reel
Input voltage	2.5 V to 5.5 V
range of working temperature	- 40 C to + 85 C
type	Step-Down DC/DC Converter
closure	Shutdown
Working power current	800 uA
Factory packaging quantity	3000
Supply voltage - min.	2.5 V

Preview

Download Datasheet

View All

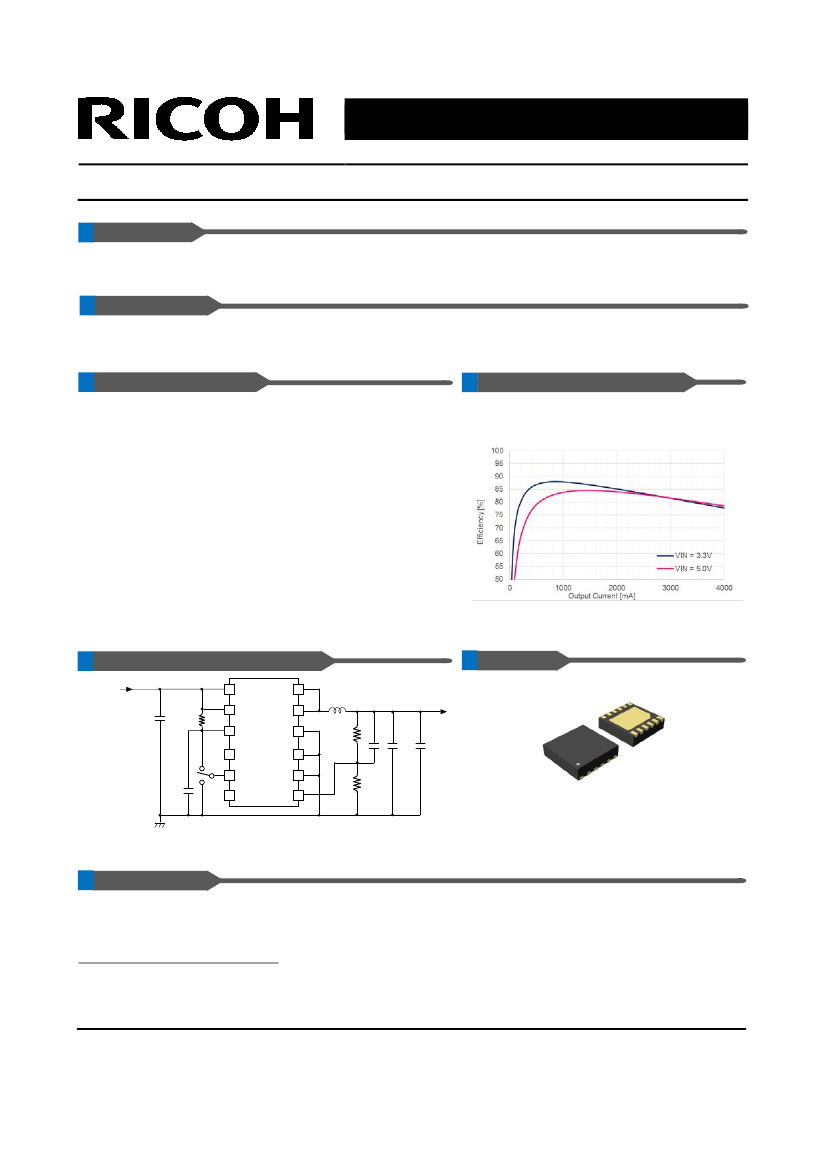

RP510L Series

4 A Forced PWM Step-down DC/DC Converter with Synchronous Rectifier

No. EA-366-180125

OVERVIEW

The RP510L is a low input voltage step-down DC/DC converter that operates from 2.5 V to 5.5 V and provides up to 4

A of output current

(1)

. It is suitable for power supply of SoC (System-on-a-chip). It is also available in a foldback type

overcurrent protection which automatically recovers to the normal state after the cause of overcurrent is removed.

•

KEY BENEFITS

The realization of the high-density mounting by the adoption of a small package DFN3030-12.

A simplification of the power sequencing by power-good and adjustable soft-start functions.

Selectable overcurrent protection: Latch type or Foldback type.

KEY SPECIFICATIONS

Operating Temperature Range:

−40°C

to 85°C

Output Voltage Range

(2)

: 0.8 V to 3.3 V

Output Voltage Accuracy

(3)

: ±1% (V

SET

≥ 1.2

V),

±12 mV (V

SET

< 1.2 V)

Feedback Voltage Accuracy

(4)

: ±6 mV (V

= 0.6 V)

Output/Feedback Voltage Temperature Coefficient: ±100 ppm/°C

Standby Current: Typ.0.35 µA (RP510LxxN)

Typ.0.01 µA or less (RP510LxxG/H/J)

Oscillator Frequency: Typ. 2.3 MHz

Built-in Driver On-resistance (Pch./Nch.): Typ. 0.04

= 3.6 V)

Maximum Duty Cycle: Min. 100%

Minimum On Time: Typ. 55 ns

Protection Features: UVLO, LX Peak Current Limit, Overcurrent

protection (Latch/Foldback type), and Thermal shutdown.

TYPICAL CHARACTERISTICS

OUT

= 1.2 V, V

= 3.3 V/5.0 V (Ta = 25°C)

TYPICAL APPLICATION CIRCUIT

PVIN

AVIN

RP510L

AVIN

0.01µF

TSS

PGND

AGND

VFB

OUT 1

22µF

OUT 2

22µF

PGND

1µH

OUT

PACKAGE

22µF

DFN3030-12

3.0 x 3.0 x 0.8

(1)

maximum dimension

RP510L001G/1H/4G/4H (

Adjustable Output Voltage Type

)

APPLICATIONS

•

(1)

POL (Point of Load) Converter, and Micro-processor Power Supply with using Battery

Server, Networking Equipment, FPGA, and DSP

(2)

The maximum allowable output current is 4 A but it is a criterion and can be affected by conditions and external parts.

Refer to the section

SELECTION GUIDE

for details of V

SET

(3)

Fixed Output Voltage Type

(4)

Adjustable Output Voltage Type

RP510L001J-TR Related Products

	RP510L001J-TR	RP510L001N-TR	RP510L004N-TR	RP510L004J-TR
Description	Switching Regulator 4A Forced PWM Step-down DCDC Converter with Synchronous Rectifier	Switching Regulator 4A Forced PWM Step-down DCDC Converter with Synchronous Rectifier	Switching Regulator 4A Forced PWM Step-down DCDC Converter with Synchronous Rectifier	Switching Regulator 4A Forced PWM Step-down DCDC Converter with Synchronous Rectifier
Maker	Ricoh Electronic	Ricoh Electronic	Ricoh Electronic	Ricoh Electronic
Product Category	switching regulator	switching regulator	switching regulator	switching regulator
Installation style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Package/box	DFN3030-12	DFN3030-12	DFN3030-12	DFN3030-12
The output voltage	800 mV to 3.3 V	800 mV to 3.3 V	800 mV to 3.3 V	800 mV to 3.3 V
Output current	4 A	4 A	4 A	4 A
Number of outputs	1 Output	1 Output	1 Output	1 Output
Maximum input voltage	5.5 V	5.5 V	5.5 V	5.5 V
Topology	Buck	Buck	Buck	Buck
Minimum input voltage	2.5 V	2.5 V	2.5 V	2.5 V
On-off level	2.3 MHz	2.3 MHz	2.3 MHz	2.3 MHz
Minimum operating temperature	- 40 C	- 40 C	- 40 C	- 40 C
Maximum operating temperature	+ 85 C	+ 85 C	+ 85 C	+ 85 C
series	RP510L	RP510L	RP510L	RP510L
Input voltage	2.5 V to 5.5 V	2.5 V to 5.5 V	2.5 V to 5.5 V	2.5 V to 5.5 V
range of working temperature	- 40 C to + 85 C	- 40 C to + 85 C	- 40 C to + 85 C	- 40 C to + 85 C
type	Step-Down DC/DC Converter	Step-Down DC/DC Converter	Step-Down DC/DC Converter	Step-Down DC/DC Converter
closure	Shutdown	Shutdown	Shutdown	Shutdown
Working power current	800 uA	800 uA	800 uA	800 uA
Factory packaging quantity	3000	3000	3000	3000
Supply voltage - min.	2.5 V	2.5 V	2.5 V	2.5 V
Encapsulation	Reel	Reel	Reel	Reel
