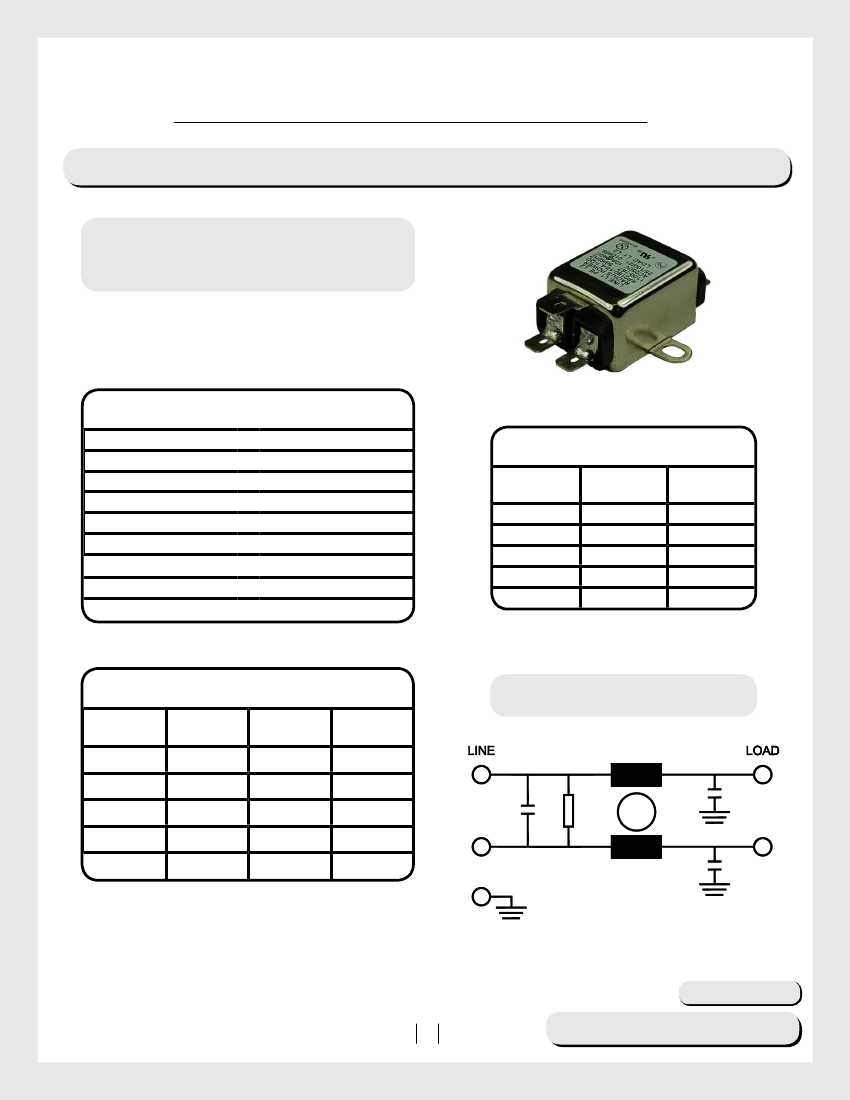

RP
RP2180 Series
RP2180
ULTRA COMPACT TO 10A
CHASSIS MOUNT FILTER
ROHS COMPLIANT
RADIUS POWER
Your Power Partner
Ultra Compact Single Stage Power Line Filter
SPECIFICATIONS
Operating Freq.
Usable Freq.
Max. Operating Voltage
Ambient Temperature
Climatic Category
Hipot Rating (L-G)
Terminals (-T)
Safety Approvals
Typ. Weight, LBS (KG)
:
:
:
:
:
:
:
:
:
50/60Hz
DC - 400Hz
250V +10%
-25 to 40C
25/100/21
2700VDC
QD: 0.25 Tabs
cURus, EN60939
0.04 (0.02)
LEAKAGE CURRENT
Y-cap, nF
0
.47
1
2.2
4.7
mA,
120V/60Hz
0
0.04
0.09
0.2
0.4
mA,
250V/60Hz
0
0.08
0.18
0.4
0.8
PART NUMBER/ ORDERING
RP2180
-X
(Amps)
1
3
6
10
-Y
(Ycap, nF)
0
.47
1
2.2
4.7
Note:
Use any combination of -Y with any -X (Amps) rating
e.g. RP2180-6-4.7-QD (6Amps with 4.7nF Ycap)
SCHEMATIC
-T
QD
www.radiuspower.com
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
Engineering Assistance: engg@radiuspower.com
Sales:sales@radiuspower.com
37
RP

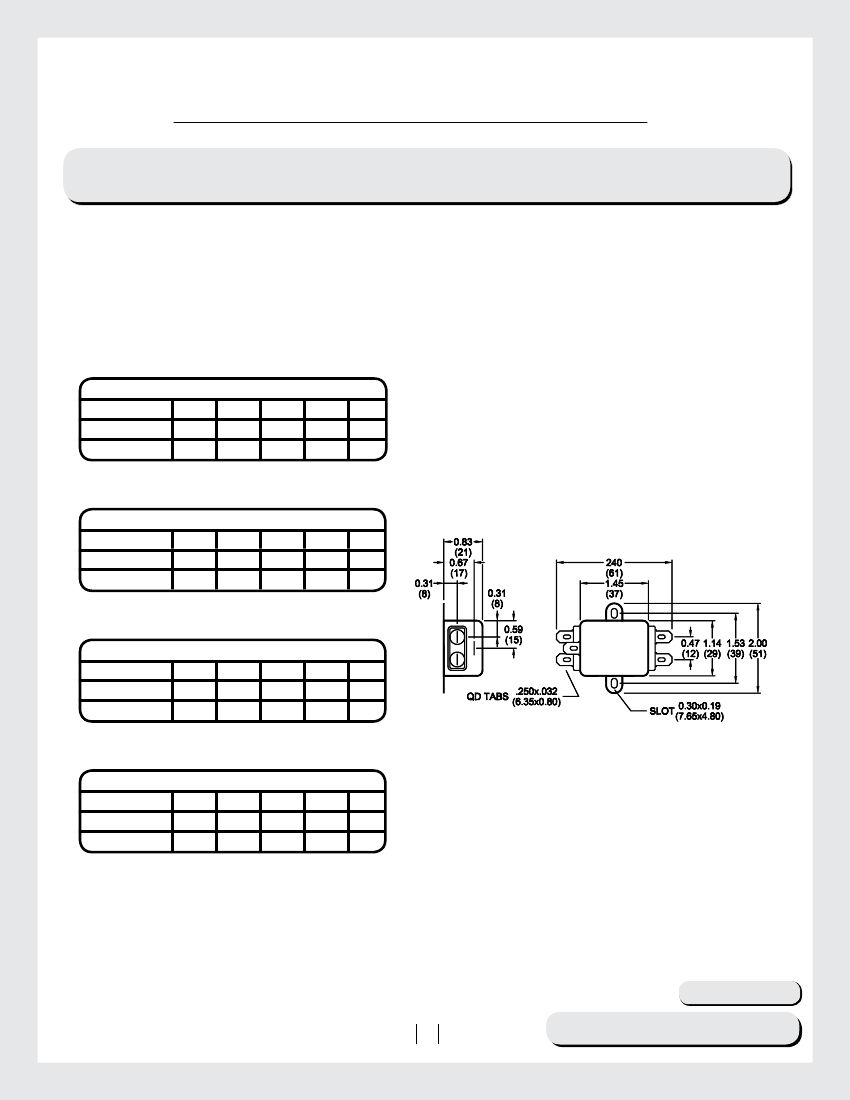

RP2180
Typical Insertion Loss, dB (50/50ohm)
RADIUS POWER
Your Power Partner
Mechanical Dimensions
1 Amp
FREQ (MHz)
CM(dB)
DM(dB)
.15
46
12
.5
55
26
1.0
55
50
10
55
50
30
40
44
3 Amp
FREQ (MHz)
CM(dB)
DM(dB)
.15
30
12
.5
40
22
1.0
55
32
10
55
50
30
60
45
6 Amp
FREQ (MHz)
CM(dB)
DM(dB)
.15
22
12
.5
35
22
1.0
42
28
10
55
50
30
60
44
TYPICAL TOLERANCE: +/-0.02 (0.50)
10 Amp
FREQ (MHz)
CM(dB)
DM(dB)
.15
10
12
.5
20
20
1.0
26
26
10
50
50
30
60
50
www.radiuspower.com
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
Engineering Assistance: engg@radiuspower.com
Sales:sales@radiuspower.com
38
