MAX7037EVKIT868# datasheet, PDF

Datasheet> All Categories > Embedded solution> Engineering tools> Rf/wireless development tools> Rf development tools> MAX7037EVKIT868#

Preview

MAX7037EVKIT868#: DescriptionRF development tool MAX7037 evaluation kit tuned to 868MHz; CategoryEmbedded solution Engineering tools Rf/wireless development tools Rf development tools; File Size3MB，32 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MAX7037EVKIT868# Overview

RF development tool MAX7037 evaluation kit tuned to 868MHz

MAX7037EVKIT868# Parametric

Parameter Name	Attribute value
Maker	Maxim
Product Category	RF development tools
product	Evaluation Kits
type	RF Transceivers
Tools for assessment	MAX7037
frequency	868 MHz
Working power voltage	2.1 V
Interface Type	USB
Factory packaging quantity	1

Preview

Download Datasheet

View All

Click

here

for production status of specific part numbers.

MAX7037 Evaluation Kits

Evaluate: MAX7037

General Description

The MAX7037 evaluation kits (EV kits) are fully assembled

and tested to evaluate the MAX7037 sub-1GHz, ultra-low-

power, RF ISM transceiver. The EV kits are connected to

the PC through a Siam Kitty board. The EV kits get power

from the Siam Kitty board and run from a minimum supply

voltage of only 2.1V.

A particular EV kit will only work at a specific carrier

frequency. The frequencies supported are: 315MHz,

434MHz, 868MHz, 902MHz, 915MHz, and 928MHz. EV

kits are shipped configured for 315MHz, 434MHz, 868MHz,

902MHz, 915MHz, or 928MHz operation. It is necessary to

change the RF matching components to configure an EV

kit to work at one of the other frequencies. Further details

are provided in the

Changing EV Kit for Operation at

Other Frequencies

section.

Note that, if an EV kit is used at a frequency other than

that for which it is configured, it will likely either not work at

all or display very poor performance. Ensure that both EV

kits match the frequency for which they are configured.

Furthermore, the MAX7037_915MHz EV kit can be used

for 902MHz, 915MHz, or 928MHz operation.

Features

●

Easy Evaluation of the MAX7037

●

Proven PCB Layout

●

Fully Assembled and Tested

EV Kit Contents

●

Assembled circuit board including MAX7037.

●

Assembled Siam Kitty Board.

●

14 POS Mini D Ribbon (MDR) Cable

●

A Male-to-Micro B Male USB Cable

Note:

For testing the MAX7037 EV kit, two sets of above-

mentioned packages of EV kits are required; one used as a

transmitter and one as a receiver.

Ordering Information

appears at end of data sheet.

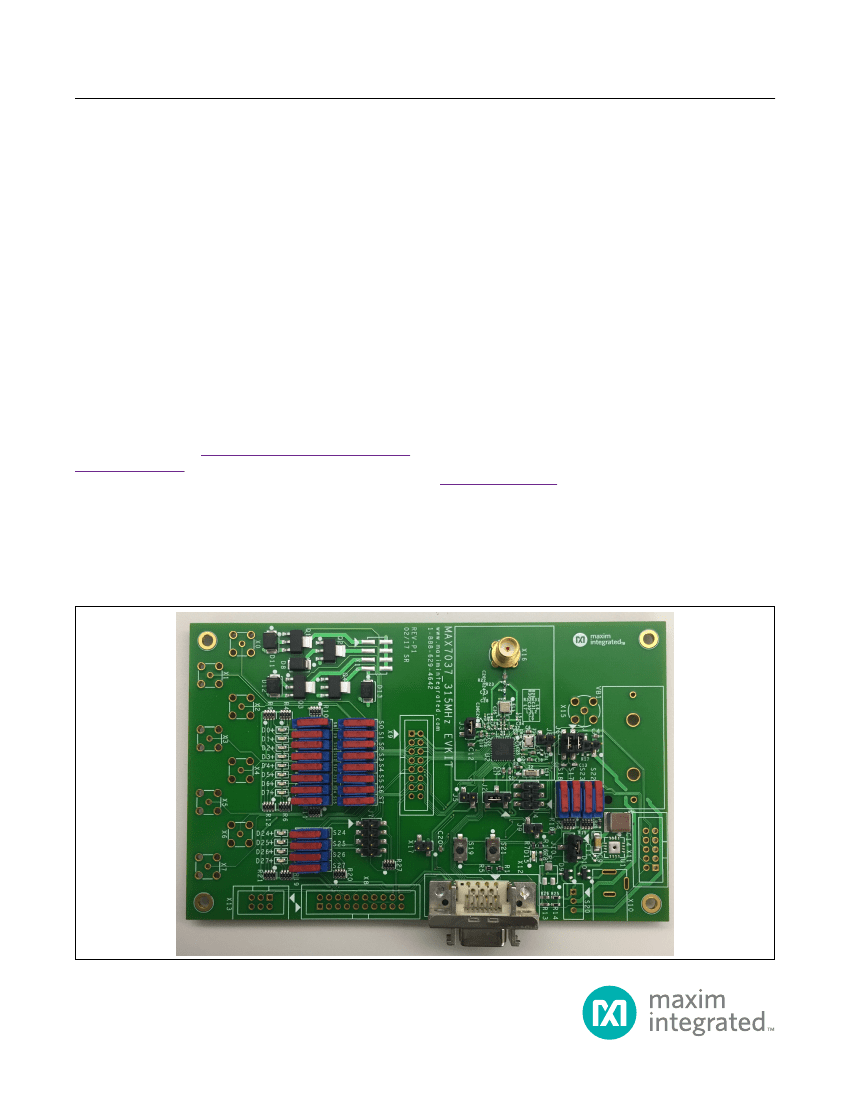

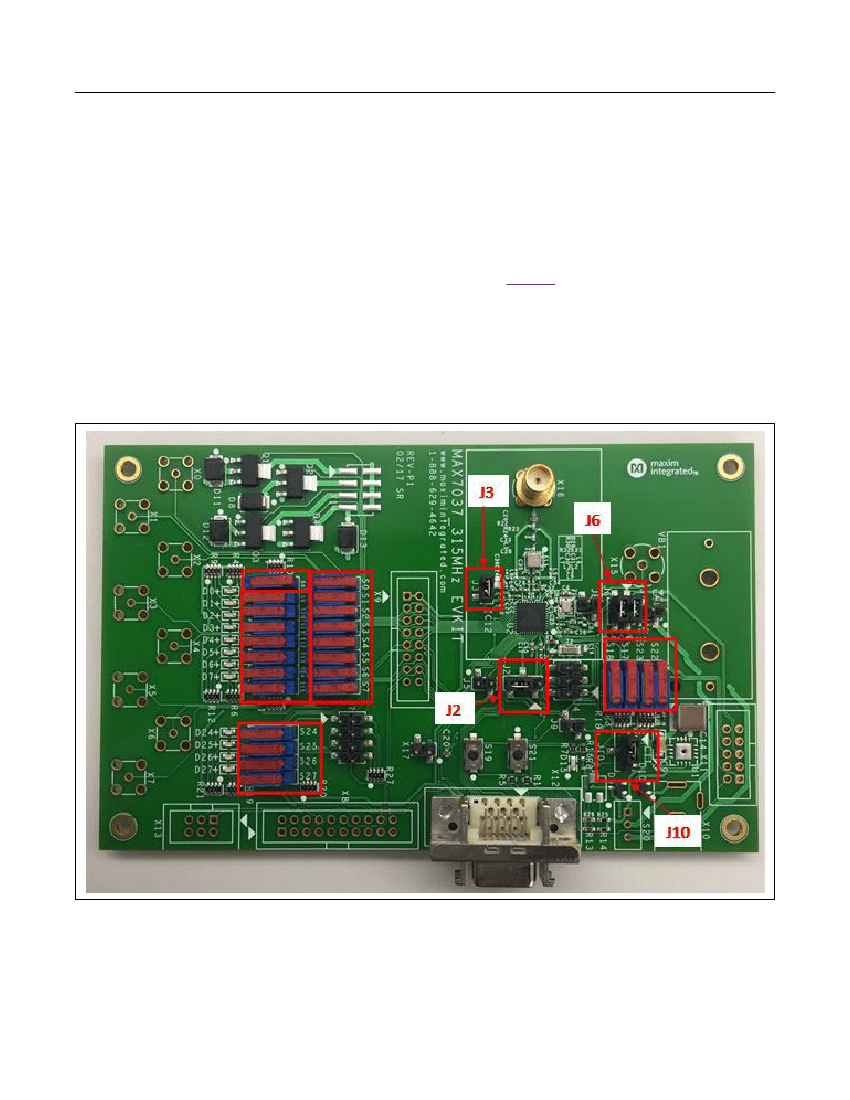

MAX7037_315MHz EV Kit Board Photo

19-8668; Rev 3; 7/18
