CYWT1543AV18
CYWT1545AV18
72-Mbit QDR
®
II+ SRAM Four-Word Burst
Architecture (2.0 Cycle Read Latency)
Features
■
Configurations
With Read Cycle Latency of 2.0 cycles:
CYWT1543AV18 – 4M x 18
CYWT1545AV18 – 2M x 36
Separate independent read and write data ports
❐
Supports concurrent transactions
250-MHz clock for high bandwidth
Four-word burst for reducing address bus frequency
Double Data Rate (DDR) interfaces on both read and write ports
(data transferred at 500 MHz) at 250 MHz
Available in 2.0 clock cycle latency
Two input clocks (K and K) for precise DDR timing
❐
SRAM uses rising edges only
Echo clocks (CQ and CQ) simplify data capture in high-speed
systems
Data valid pin (QVLD) to indicate valid data on the output
Single multiplexed address input bus latches address inputs
for both read and write ports
Separate port selects for depth expansion
Synchronous internally self-timed writes
Available in x18 and x36 configurations
Full data coherency, providing most current data
Core V
DD
= 1.8 V ± 0.1 V; I/O V
DDQ
= 1.4 V to V
DD [1]
HSTL inputs and variable drive HSTL output buffers
Available in 165-pin CCGA package (21 x 25 x 2.89 mm)
Offered with 0.51 mm Sn/Pb solder columns
JTAG 1149.1 compatible test access port
Delay Lock Loop (DLL) for accurate data placement
■
■
■
■
■
Functional Description
The CYWT1543AV18 and CYWT1545AV18 are 1.8 V
synchronous pipelined SRAMs, equipped with QDR II+ archi-
tecture. Similar to QDR II architecture, QDR II+ SRAMs consists
of two separate ports: the read port and the write port to access
the memory array. The read port has dedicated data outputs to
support read operations and the write port has dedicated data
inputs to support write operations. QDR II+ architecture has
separate data inputs and data outputs to completely eliminate
the need to “turn around” the data bus that exists with common
I/O devices. Each port is accessed through a common address
bus. Addresses for read and write addresses are latched on
alternate rising edges of the input (K) clock. Accesses to the
QDR II+ read and write ports are completely independent of one
another. To maximize data throughput, both read and write ports
are equipped with DDR interfaces. Each address location is
associated with four 18-bit words (CYWT1543AV18) or 36-bit
words (CYWT1545AV18) that burst sequentially into or out of the
device. Because data is transferred into and out of the device on
every rising edge of both input clocks (K and K), memory
bandwidth is maximized while simplifying system design by
eliminating bus “turn-arounds”.
Depth expansion is accomplished with port selects, which
enables each port to operate independently.
All synchronous inputs pass through input registers controlled by
the K or K input clocks. All data outputs pass through output
registers controlled by the K or K input clocks. Writes are
conducted with on-chip synchronous self-timed write circuitry.
■
■
■
■
■
■
■
■
■
■
■
■
■
Selection Guide
Description
Maximum Operating Frequency
Maximum Operating Current
x18
x36
250 MHz
250
1100
1140
Unit
MHz
mA
Note
1. The QDR consortium specification for V
DDQ
is 1.5 V + 0.1 V. The Cypress QDR devices exceed the QDR consortium specification and are capable of supporting
V
DDQ
= 1.4 V to V
DD
.
Cypress Semiconductor Corporation
Document Number: 002-18432 Rev. **
•
198 Champion Court
•
San Jose
,
CA 95134-1709
•
408-943-2600
Revised February 23, 2017
CYWT1543AV18
CYWT1545AV18

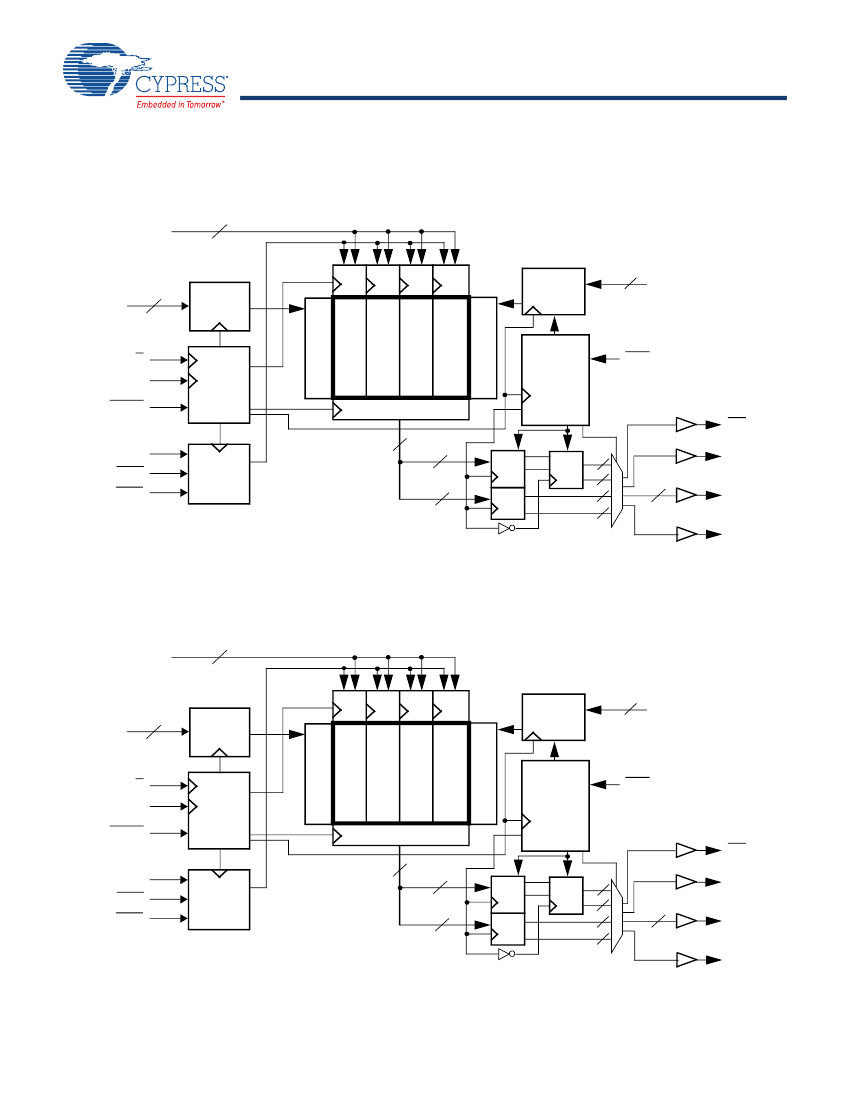

Logic Block Diagram (CYWT1543AV18)
D
[17:0]
18
Read Add. Decode
Write Add. Decode
A
(19:0)
20
Write
Reg
Address
Register
Write
Reg
Write
Reg
Write
Reg
Address
Register
20
A
(19:0)
1M x 18 Array
1M x 18 Array
1M x 18 Array
1M x 18 Array
K
K
CLK
Gen.
Control
Logic
RPS
DOFF
Read Data Reg.
CQ
72
V
REF
WPS
BWS
[1:0]
36
Control
Logic
36
Reg.
Reg.
Reg. 18
18
18
18
CQ
18
Q
[17:0]
QVLD
Logic Block Diagram (CYWT1545AV18)
D
[35:0]
36
Read Add. Decode
Write Add. Decode
A
(18:0)
19
Write
Reg
Address
Register
Write
Reg
Write
Reg
Write
Reg
Address
Register
19
A
(18:0)
512K x 36 Array
512K x 36 Array
512K x 36 Array
512K x 36 Array
K
K
CLK
Gen.
Control
Logic
RPS
DOFF
Read Data Reg.
CQ
144
V
REF
WPS
BWS
[3:0]
72
Control
Logic
72
Reg.
Reg.
Reg. 36
36
36
36
CQ
36
Q
[35:0]
QVLD
Document Number: 002-18432 Rev. **
Page 2 of 26
CYWT1543AV18
CYWT1545AV18
Contents
Pin Configuration ............................................................. 4
165-Pin CCGA (21 x 25x 2.89 mm) Pinout ................. 4
Pin Definitions .................................................................. 5
Functional Overview ........................................................ 7
Read Operations ......................................................... 7
Write Operations ......................................................... 7
Byte Write Operations ................................................. 7
Concurrent Transactions ............................................. 7
Depth Expansion ......................................................... 8
Programmable Impedance .......................................... 8
Echo Clocks ................................................................ 8
Valid Data Indicator (QVLD) ........................................ 8
DLL .............................................................................. 8
Application Example ........................................................ 8
Truth Table ........................................................................ 9
Write Cycle Descriptions ................................................. 9
Write Cycle Descriptions ............................................... 10
IEEE 1149.1 Serial Boundary Scan (JTAG) .................. 11
Disabling the JTAG Feature ...................................... 11
Test Access Port—Test Clock ................................... 11
Test Mode Select (TMS) ........................................... 11
Test Data-In (TDI) ..................................................... 11
Test Data-Out (TDO) ................................................. 11
Performing a TAP Reset ........................................... 11
TAP Registers ........................................................... 11
TAP Instruction Set ................................................... 11
TAP Controller State Diagram ....................................... 13
TAP Controller Block Diagram ...................................... 14
TAP Electrical Characteristics ...................................... 14
TAP AC Switching Characteristics ............................... 15
TAP Timing and Test Conditions .................................. 15
Identification Register Definitions ................................ 16
Scan Register Sizes ....................................................... 16
Instruction Codes ........................................................... 16
Boundary Scan Order .................................................... 17
Power Up Sequence in QDR II+ SRAM ......................... 18
Power Up Sequence ................................................. 18
DLL Constraints ......................................................... 18
Maximum Ratings ........................................................... 19
Operating Range ............................................................. 19
Electrical Characteristics ............................................... 19
DC Electrical Characteristics ..................................... 19
AC Electrical Characteristics ..................................... 20
Capacitance .................................................................... 21
Thermal Resistance ........................................................ 21
Switching Characteristics .............................................. 22
Switching Waveforms .................................................... 23
Read/Write/Deselect Sequence ................................ 23
Ordering Information ...................................................... 24
Package Diagram ............................................................ 24
Document History Page ................................................. 25
Sales, Solutions, and Legal Information ...................... 26
Worldwide Sales and Design Support ....................... 26
Products .................................................................... 26
PSoC® Solutions ...................................................... 26
Cypress Developer Community ................................. 26
Technical Support ..................................................... 26
