Customer Specification
PART NO: DR04AR117
M12 Male to M12 Female

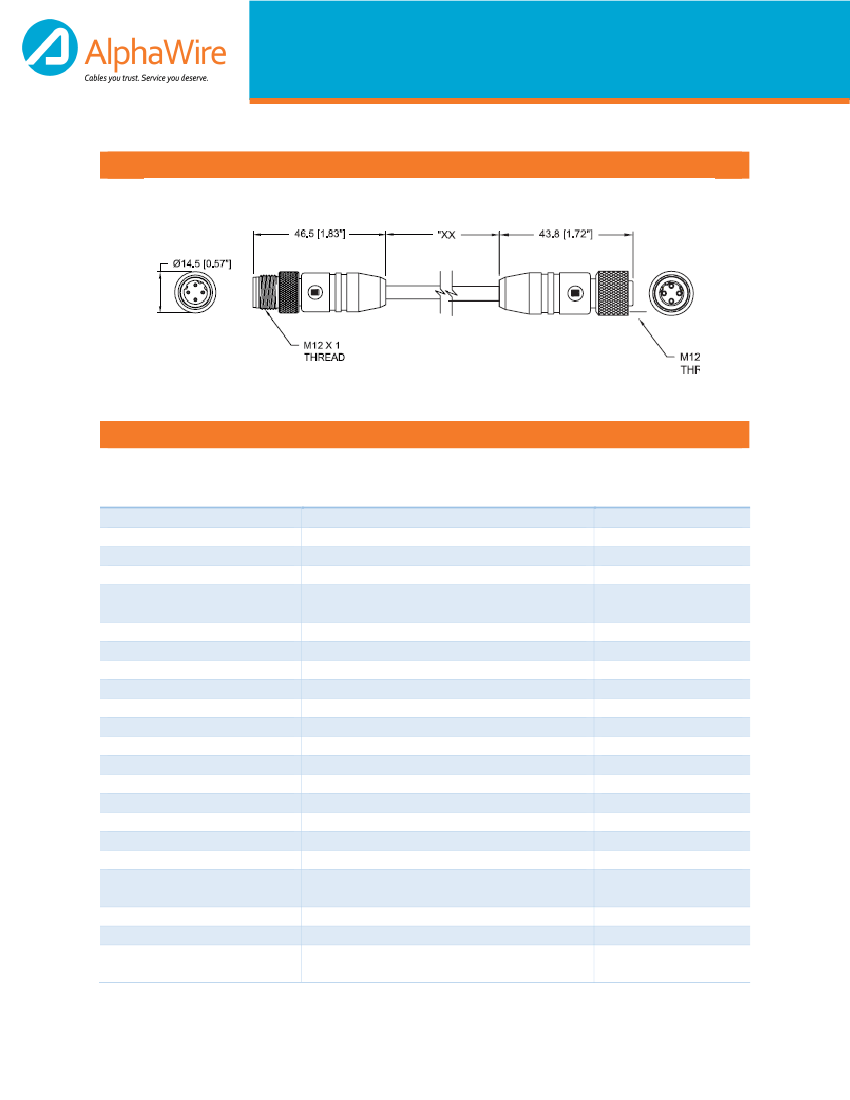

Drawings
Technical Data
Cordage Construction
Cordage Part Number
Component
a) Conductor
b) Insulation
Insulation Colors
c) Pair
Cable Assembly
a) Twists
Jacket
a) Color(s)
Cord Configuration
End 1
End 2
Insert
Molded Body
Contact
Coupling Nut
Available Lengths
Applicable Specifications-
Cable
UL
CSA International
Applicable Specifications-
Cord Set
Diameters (In)
117
2 PAIR
24 (7/32) AWG Tinned Copper
0.008” Wall, Nom. Polyolefin
White/Orange - Orange, White/Green -
Green
2/Cond Cabled Together, Staggered Lays
2 Components Cabled
4.8 Twists/foot (min)
0.035” Wall, Nom. TPE
TEAL
M12 Male
M12 Female
Black TPU
Black TPU
Copper Alloy, gold plated
Copper Alloy, nickel plated
0.6, 1, 3, 5, 10, 15, 20 Meters
Issue: 1 Issue Date: 7/29/2016 Effective Date: 7/29/2016
0.024
0.040
0.246
CMR
CMG
75°C
75°C
•••••••••••••••••••••••••••••••••••••••
Alpha Wire | 711 Lidgerwood Ave, Elizabeth, NJ 07207
www.alphawire.com | 1-800-52 ALPHA
1
Customer Specification
PART NO: DR04AR117
M12 Male to M12 Female
Ingress Protection
Environmental Compliance
CE
IP68
All materials used in the manufacture of
this part meet the requirements of
European Directive 2011/65/EU regarding
the restriction of use of certain hazardous
substances in electrical and electronic
equipment. Exemption used; 6a.
This product does not contain Substances
of Very High Concern (SVHC) listed on the
European Union’s REACH candidate list in
excess of 0.1% mass of the item.
REACH Regulation (EC
1907/2006)
Physical & Electrical
Properties
Temperature Range
Bend Radius
Voltage Rating
Current Rating
Ordering Information
DR04AR117 TL355
DR04AR117 TL356
DR04AR117 TL357
DR04AR117 TL358
DR04AR117 TL359
DR04AR117 TL400
DR04AR117 TL401
Standard Package
-40 to 75°C(operating), -25 to 75°C
(installation)
10X Cable Diameter (2 million cycles), 20X
Cable Diameter (10 million cycles)
250V
1.6 Amps
0.6 Meters
1.0 Meters
3.0 Meters
5.0 Meters
10.0 Meters
15.0 Meters
20.0 Meters
Each
Although Alpha Wire (“Alpha”) makes every reasonable effort to ensure their accuracy at the time of this publication, information and
specifications described herein are subject to error or omission and to change without notice, and the listing of such information and
specifications does not ensure product availability. Alpha provides the information and specification herein on an “AS IS” basis, with no
representations or warranties, whether express, statutory or implied. In no event will Alpha be liable any damages (including consequential,
indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Alpha has been advised of the possibility of such damages,
whether in an action under contact, negligence or any other theory, arising out of or in connection with the use, or inability to use, the
information or specification described herein.
•••••••••••••••••••••••••••••••••••••••
