Terminal Systems
DCS-2
1.5 mm female and male terminals
Features
•
DCS-2 technology
•
Long contact mating force
•
Long auxiliary steel spring in CrNi
•
4 mm pitch
•
Single wire seal versions available
•
Crimp code on terminal
•
Suitable for secondary lock
•
Selective gold-plated versions
available
•
Standard product
Performance characteristics*
•
Contact resistance:
•
Contact mating force:
•
Contact unmating force:
< 2 mΩ
<7N
< 4N
Packing
•
No. of terminals per reel: Consult us
•
No. of reels per packing: Consult us
•
Current carrying capacity with
1.5 mm
2
wire:
at 23°C up to approx.:
20 A
at 85°C up to approx.:
15 A
at 100°C up to approx.:
10 A
* Mated with 1.5 x 0.6 mm DCS-2 male
terminal (Sn)
Tooling
•
Manual crimping tool:
•
Mini applicator:
Consult us
Consult us
Part Numbers
Type
Wire size range
(in mm2)
Min.
Max.
Insulation Ø
(in mm)
Max.
Material
Plating
6 000 05 11
6 000 05 14
6 000 05 31
6 000 05 34
6 000 05 41
6 000 06 11 (SWS)
6 000 06 14 (SWS)
6 000 06 31 (SWS)
6 000 06 34 (SWS)
6 000 06 41 (SWS)
6 010 06 11
6 010 06 14
6 010 06 31
Female
Female
Female
Female
Female
Female
Female
Female
Female
Female
Male
Male
Male
0.20
0.20
0.50
0.50
> 1.00
0.20
0.20
0.50
0.50
> 1.00
0.20
0.20
0.50
0.35
0.35
1.00
1.00
1.50
0.35
0.35
1.00
1.00
1.50
0.35
0.35
1.00
1.30
1.30
2.10
2.10
2.40
1.60
1.60
2.00
2.00
2.40
1.30
1.30
2.10
CuFe/CrNi
CuSn/CrNi
CuFe/CrNi
CuSn/CrNi
CuFe/CrNi
CuFe/CrNi
CuSn/CrNi
CuFe/CrNi
CuSn/CrNi
CuFe/CrNi
CuFe/CrNi
CuSn/CrNi
CuFe/CrNi
Sn
Au
Sn
Au
Sn
Sn
Au
Sn
Au
Sn
Sn
Au
Sn
SWS: Single Wire Seal
1.55
Terminal Systems
DCS-2
1.5 mm female and male terminals
Part Numbers
Type
Wire size range
(in mm2)
Min.
Max.
Insulation Ø
(in mm)
Max.
Material
Plating
6 010 06 34
6 010 06 41
6 010 07 11 (SWS)
6 010 07 14 (SWS)
6 010 07 31 (SWS)
6 010 07 34 (SWS)
6 010 07 41 (SW)
Male
Male
Male
Male
Male
Male
Male
0.50
> 1.00
0.20
0.20
0.50
0.50
> 1.00
1.00
1.50
0.35
0.35
1.00
1.00
1.50
2.10
2.40
1.60
1.60
2.00
2.00
2.40
CuSn/CrNi
CuFe/CrNi
CuFe/CrNi
CuSn/CrNi
CuFe/CrNi
CuSn/CrNi
CuFe/CrNi
Au
Sn
Sn
Au
Sn
Au
Sn
SWS: Single Wire Seal

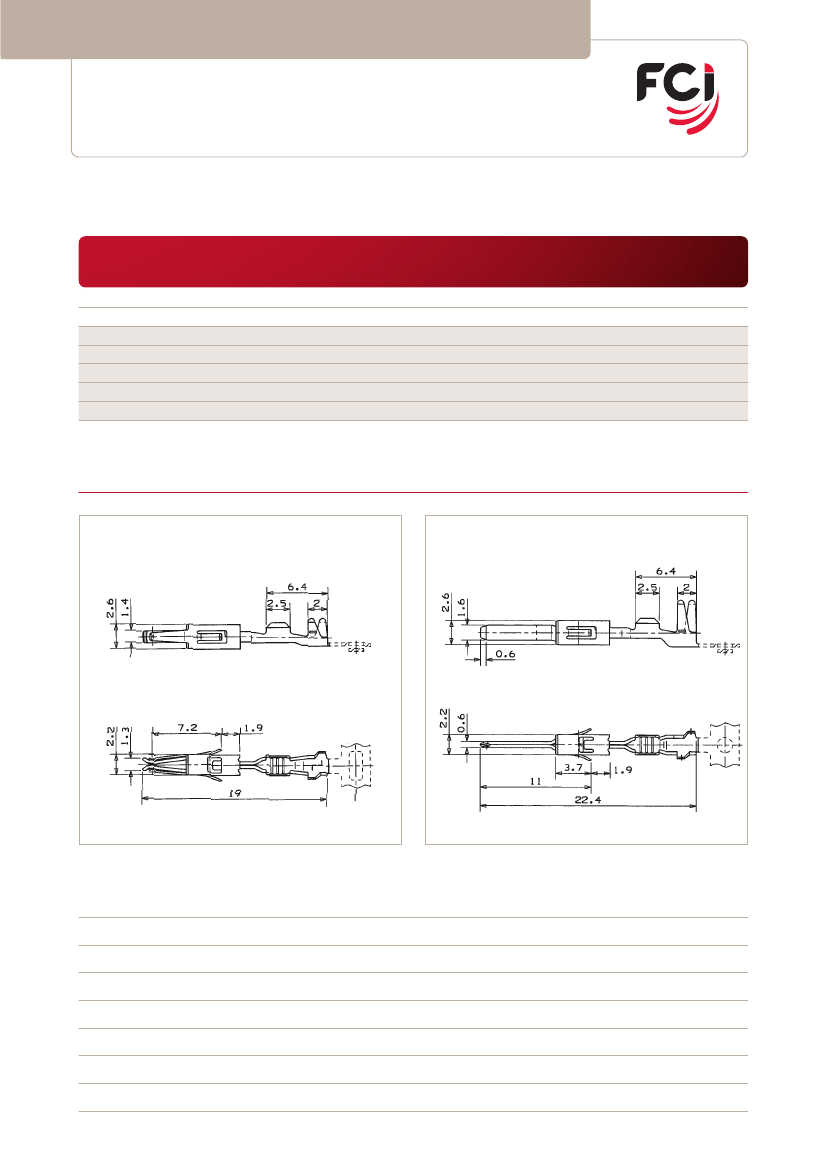

Dimensional characteristics
Female terminals
valid for wire size 0.5-1.0 mm
2
Male terminals
valid for wire size 0.5-1.0 mm2
Notes :
1.56
