conga-QG/222GC-4GECC: Description模块化计算机 - COM Qseven module based on AMD Embedded G-Series GX-222GC dual core processor with 2.2 GHz to 2.4 GHz, 10W to 15 W TDP, 1MB L2 cache and 4GB 1600MT/s ECC DDR3L onboard memory. Features AMD Radeon HD 8000E Graphics with 655/800 MHz GPU frequency.; CategoryEmbedded solution To calculate Modular computer - COM; File Size1MB，2 Pages; Manufacturercongatec; Environmental Compliance

Download Datasheet Parametric Compare View All

conga-QG/222GC-4GECC Overview

模块化计算机 - COM Qseven module based on AMD Embedded G-Series GX-222GC dual core processor with 2.2 GHz to 2.4 GHz, 10W to 15 W TDP, 1MB L2 cache and 4GB 1600MT/s ECC DDR3L onboard memory. Features AMD Radeon HD 8000E Graphics with 655/800 MHz GPU frequency.

conga-QG/222GC-4GECC Parametric

Parameter Name	Attribute value
Maker	congatec
Product Category	Modular Computer - COM
Shipping restrictions	Mouser does not currently sell this product in your area.
physical dimension	Qseven
Processor brand	AMD
Processor type	AMD GX-222GC
frequency	2.2 GHz
cache memory	1 MB
Interface Type	Audio, Ethernet, I2C, LPC, PCIe, SATA, SDIO, SMBus, UART, USB
size	70 mm x 70 mm
storage	4 GB
storage type	DDR3L
series	conga-QG
Factory packaging quantity	1

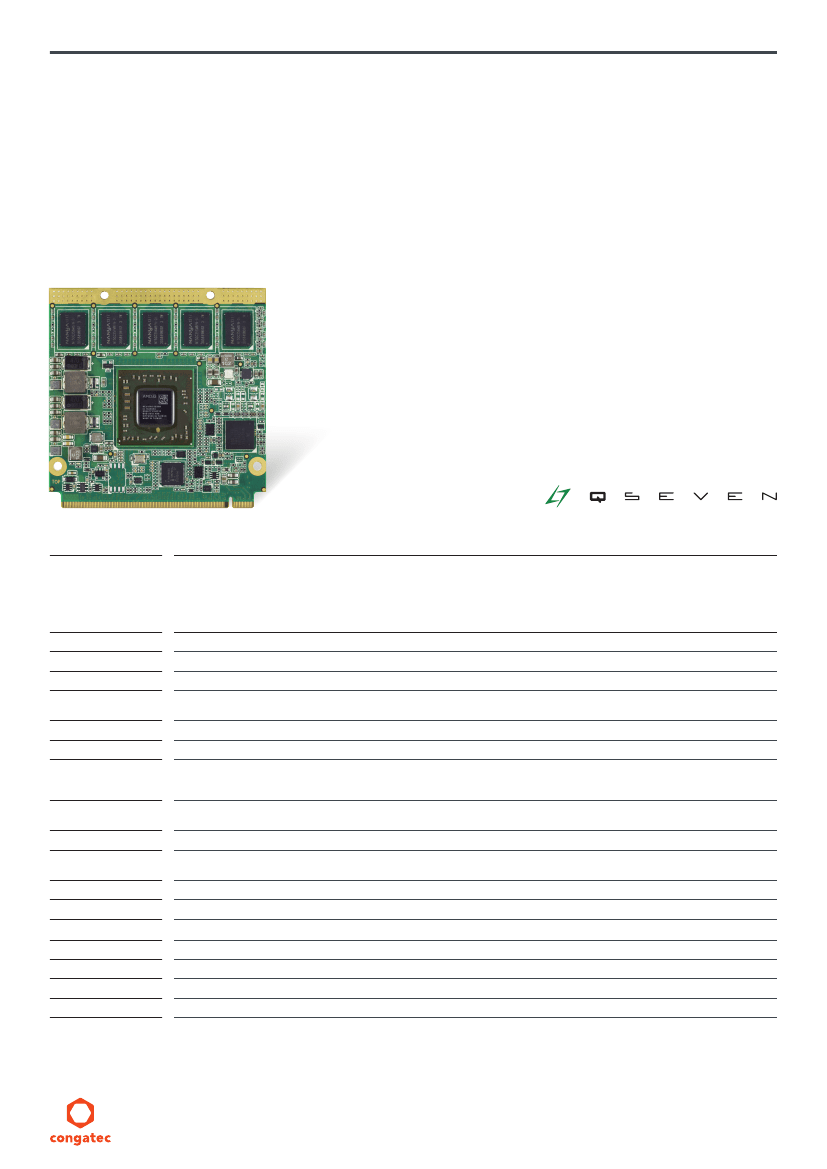

Preview

Download Datasheet

View All

ERROR PROTECTED RAM

conga-QG

AMD Embedded G-Series SOC APU

ECC protected on module memory up to 8 GByte

Power saving „Steppe Eagle“ processors

High performance integrated graphics

Temperature range up to -40°C .. +85°C

Formfactor

CPU

Qseven Form Factor Rev. 2.0 compliant, 70x70 mm

AMD Embedded GX-Series processors

AMD Embedded GX-210HA SOC

AMD Embedded GX-210JA SOC

AMD Embedded GX-412HC SOC

AMD Embedded GX-212JC SOC

Dual Core

Quad Core

Dual Core

CPU freq. 1.0 GHz

GPU freq. 300MHz

CPU freq. 1.0 GHz

GPU freq. 255MHz

CPU freq. 1.2 GHz / 1.6GHz (Boost)

CPU freq. 1.2 GHz / 1.4GHz (Boos)

9W TDP

6W TDP

7W TDP

6W TDP

DRAM

Chipset

Ethernet

I/O Interfaces

Mass Storage

Sound

Graphics

Up to 8GB ECC DDR3L-1333

Integrated in SOC (single-chip)

Gigabit Ethernet

up to 4x PCI Express

™

2.0 lanes, 2x SATA

3Gb/s, 1x USB 3.0, 5x USB2.0, LPC bus, SMBus, I²C bus (fast mode, 400 kHz, multi-master), SD Card or SDIO,

UART

Silicon Motion FerriSSD

up to 64GB

High Definition Audio Interface

integraded AMD Radeon

™

HD 8000E Graphics, High Performance Video, DirectX 11.1 GPU supports two simultaneous displays, Unified Video De-

coder 4.2 (H.264, MPEG-2, VC-1, MPEG4 and WMV), Video Compresion Engine 2.0 (Video conferencing, wireless display, H.264, SVC), Security Asset

Management Unit 2.1 (DRM offloaded from CPU, HDCP2)

18/24-bit Single/Dual Channel LVDS Interface, resolutions up to 1920X1200@60Hz, VESA standard or JEIDA data mapping, Automatic Panel Detection

via EDID/EPI

One DisplayPort 1.2 / HDMI 1.4a

Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board Information, Board Statistics, BIOS Setup Data Backup, I²C bus (fast

mode, 400 kHz, multi-master), Power Loss Control, Backlight

AMI Aptio

UEFI firmware with congatec Embedded BIOS features

ACPI 3.0 with battery support

Microsoft

Windows 8, Microsoft

Windows 7, Linux, Microsoft

Windows 7/8 embedded Standard, Microsoft

Windows 7 Embedded Compact

Typ. application: tbd., see manual for full details

Operating: 0 .. +60°C

Storage: -20 .. +80°C

Industrial : Operating: -40 to +85°C Storage: -45 to +85°C

LVDS

Digital Display Interface (DDI)

congatec Board controller

Embedded BIOS Features

Power Management

Operating Systems

Power Consumption

Temperature

Humidity

Size

Operating: 10 - 90% r. H. non cond.

70 x 70 mm (2¾” x 2¾”)

Storage: 5 - 95% r. H. non cond.

www.congatec.com
