RN4020BCN-V/RM120 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> RN4020BCN-V/RM120

RN4020BCN-V/RM120: DescriptionBluetooth Module (802.15.1) Bluetooth Module 4.1 LE iBeacon w/ant; CategoryWireless rf/communication Telecom circuit; File Size1MB，29 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

RN4020BCN-V/RM120 Overview

Bluetooth Module (802.15.1) Bluetooth Module 4.1 LE iBeacon w/ant

RN4020BCN-V/RM120 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	Microchip
package instruction	PACKAGE-24
Reach Compliance Code	compliant
Factory Lead Time	12 weeks
data rate	1 Mbps
JESD-30 code	R-XXMA-N24
length	19.5 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Filter level	TS 16949
Maximum seat height	2.38 mm
Nominal supply voltage	3.3 V
surface mount	YES
Telecom integrated circuit types	TELECOM CIRCUIT
Temperature level	OTHER
Terminal form	NO LEAD
Terminal location	UNSPECIFIED
width	11.5 mm

Preview

Download Datasheet

View All

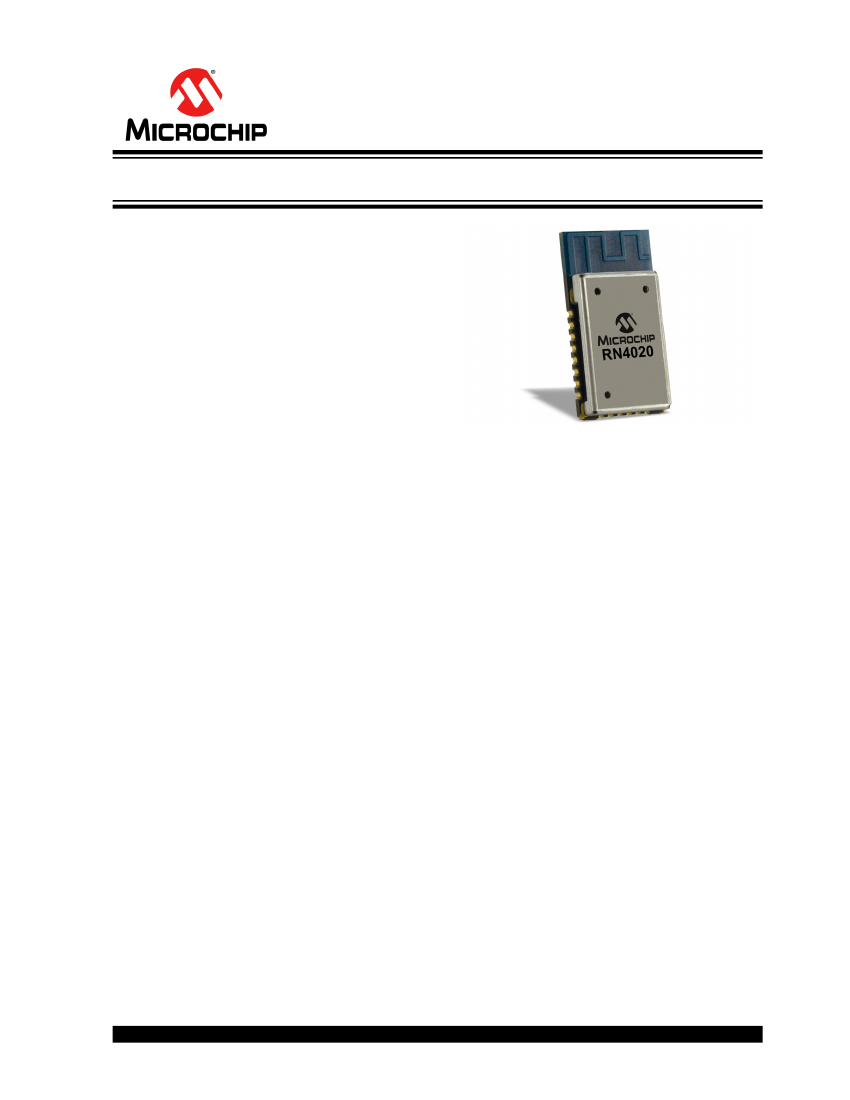

RN4020

Bluetooth

Low Energy Module

Features

•

Fully certified Bluetooth

version 4.1 module

On-board Bluetooth Low Energy 4.1 stack

ASCII command interface API over UART

Device Firmware Upgrade (DFU) over UART or Over

the Air (OTA)

Microchip Low-energy Data Profile (MLDP) for serial

data applications

Remote commands over-the-air

64 KB internal flash

Compact form factor: 11.5 x 19.5 x 2.5 mm

Castellated SMT pads for easy and reliable PCB

mounting

Environmentally friendly, RoHS compliant

Certifications: FCC, IC, CE, QDID, VCCI, KCC, and

NCC

Applications

• Health/Medical Devices

- Glucose meters

- Heart rate

- Scale

• Sports Activity and Fitness

- Pedometer

- Cycling computer

- Heart rate

• Retail

- Point of Sale (POS)

- Asset tagging and tracking

- Proximity advertising

• Beacon Applications

• Internet of Things (IoT) Sensor tag

• Remote Control

- Embedded Device Control

- AV consoles and game controllers

• Wearable Smart Devices and Accessories

• Industrial Control

- Private (custom) services

- Low bandwidth cable replacement

• Smart Energy/Smart Home

Operational

•

Single operating voltage: 1.8V to 3.6V (3.3V typical)

Temperature range: -30°C to 85°C

Low-power consumption

Simple, UART interface

Integrated Crystal, I

C Interface, Internal Voltage

Regulator, Matching Circuitry, and PCB Antenna

• Multiple IOs for control and status

• GPIO, ADC

• Three Pulse Width Modulation (PWM) outputs

RF/Analog Features

•

ISM Band 2.402 to 2.480 GHz operation

Channels 0-39

RX Sensitivity: -92.5 dBm at 0.1% BER

TX Power: -19.0 dBm to +7.5 dBm

RSSI Monitor

MAC/Baseband/Higher Layer Features

• Secure AES128 encryption

• GAP, GATT, SM, L2CAP, and integrated public

profiles

• Create custom services using command API

• Keyboard I/O Authentication

• Software configurable role as peripheral or central

and client or server

• Built-in scripting capabilities for hostless operation

Description

Microchip’s RN4020 Bluetooth Low Energy Module pro-

vides a highly integrated solution for delivering low-power

Bluetooth 4.1 solutions. The advanced command inter-

face offers rapid time to market. The RN4020 module

complies with Bluetooth specification version 4.1. The

module integrates RF, a baseband controller, and a com-

mand API processor, making it a complete Bluetooth Low

Energy solution. The RN4020 can be used with ultra-low

cost microcontroller for intelligent Bluetooth Low Energy

applications. For simple sensor applications, the RN4020

internal scripting capabilities enable basic functions to be

implemented without the need for external host MCU or

software development tools.



2015 Microchip Technology Inc.

DS50002279B-page 1

RN4020

Table of Contents

1.0 Device Overview........................................................................................................................................................................... 3

2.0 General Specifications .................................................................................................................................................................. 6

3.0 Microcontroller to RN4020 Interface ............................................................................................................................................. 7

4.0 Physical Dimensions .................................................................................................................................................................... 8

5.0 Typical Application Schematic .................................................................................................................................................... 11

6.0 ASCII Command API .................................................................................................................................................................. 12

7.0 Supported Services .................................................................................................................................................................... 13

8.0 Regulatory Approval ................................................................................................................................................................... 15

9.0 Ordering Information................................................................................................................................................................... 21

Appendix A: Revision History ............................................................................................................................................................... 23

The Microchip Web Site ....................................................................................................................................................................... 25

Customer Change Notification Service ................................................................................................................................................ 25

Customer Support ................................................................................................................................................................................ 25

TO OUR VALUED CUSTOMERS

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip

products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and

enhanced as new volumes and updates are introduced.

If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via

E-mail at

docerrors@microchip.com.

We welcome your feedback.

Most Current Data Sheet

To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:

http://www.microchip.com

You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.

The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).

Errata

An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current

devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision

of silicon and revision of document to which it applies.

To determine if an errata sheet exists for a particular device, please check with one of the following:

• Microchip’s Worldwide Web site;

http://www.microchip.com

• Your local Microchip sales office (see last page)

When contacting a sales office, please specify which device, revision of silicon and data sheet (include literature number) you are

using.

Customer Notification System

www.microchip.com

to receive the most current information on all of our products.

DS50002279B-page 2



2015 Microchip Technology Inc.

RN4020BCN-V/RM120 Related Products

	RN4020BCN-V/RM120	RN4020-V/RM123	RN4020-V/RM	RN4020-V/RM120
Description	Bluetooth Module (802.15.1) Bluetooth Module 4.1 LE iBeacon w/ant	Bluetooth module (802.15.1) Microchip Technology	Bluetooth module (802.15.1) Bluetooth 4.1 module w/ built in antenna	Bluetooth module (802.15.1) Bluetooth 4.1 module FW 1.20
Maker	Microchip	Microchip	Microchip	Microchip
Maximum operating temperature	85 °C	85 °C	85 °C	+ 85 C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	- 30 C
Reach Compliance Code	compliant	compliant	compliant	-
Factory Lead Time	12 weeks	5 weeks 4 days	12 weeks	-
JESD-30 code	R-XXMA-N24	R-XXMA-N24	R-XXMA-N24	-
length	19.5 mm	19.5 mm	19.5 mm	-
Number of functions	1	1	1	-
Number of terminals	24	24	24	-
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	-
Maximum seat height	2.38 mm	2.38 mm	2.38 mm	-
Nominal supply voltage	3.3 V	3.3 V	3.3 V	-
surface mount	YES	YES	YES	-
Telecom integrated circuit types	TELECOM CIRCUIT	TELECOM CIRCUIT	TELECOM CIRCUIT	-
Temperature level	OTHER	OTHER	OTHER	-
Terminal form	NO LEAD	NO LEAD	NO LEAD	-
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-
width	11.5 mm	11.5 mm	11.5 mm	-
